Xigmatek Elysium Super Tower Computer Case

Page 2 »

It’s been a little while since we’ve reviewed anything from Xigmatek, and it’s about time we make up for that in a big way. When I say big, I mean BIG. Today’s review sample comes in the form of the Xigmatek Elysium Super Tower Chassis. The Elysium is geared toward the larger HPTX and XL-ATX platforms like the EVGA X58 Classified 4-way SLI (SR2) board. With the option to run dual PSU’s, and take a motherboard as large as the HPTX form factor, it’s going to easily cater to the high end gaming rigs. So let’s dive in and see what we got.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 1

Sponsor: Xigmatek

[hr]

First Look

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 2

  Looking at the box when it arrived, it really gave you an idea just how big it was. Then came the time to pick it up and move it. The case alone weighs close to what a couple of my fully built rigs weigh. The Elysium is well packed in a thick cardboard box to prevent any issues with shipping. The box art is also very graphical and informative for a consumer looking at the unit in a brick & mortar store.

Related Articles

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 3

  Looking at the lower area of the rear we see several images that focus on specific areas of the Elysium. On one end of the box we find the full list of specifications, with the other end showing the four different variations that the Elysium comes in.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 4

  The Elysium is available in black on black windowed, black on black, silver on black windowed, and a silver on black configuration.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 5     Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 6

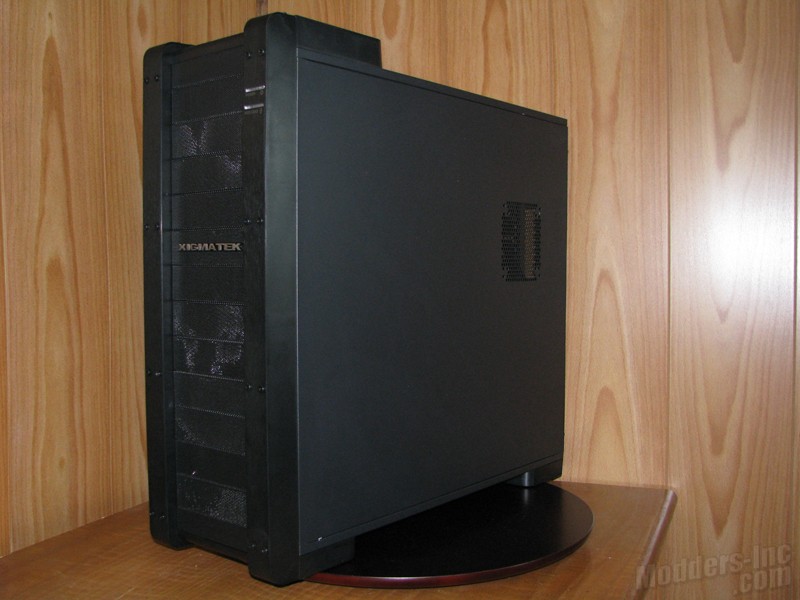

  The Elysium measures in at 9.06 Wide x 24.33 High x 26.10 Long. If your planning on sitting this on your desk rather than under it, you might want to make sure you desk can handle it. From a first glance the Elysium does have some nice clean lines to it.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 7     Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 8

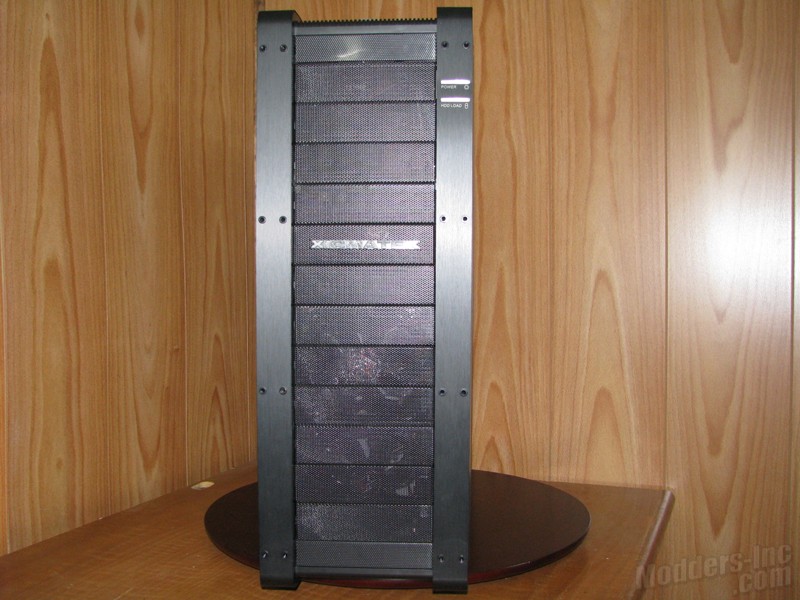

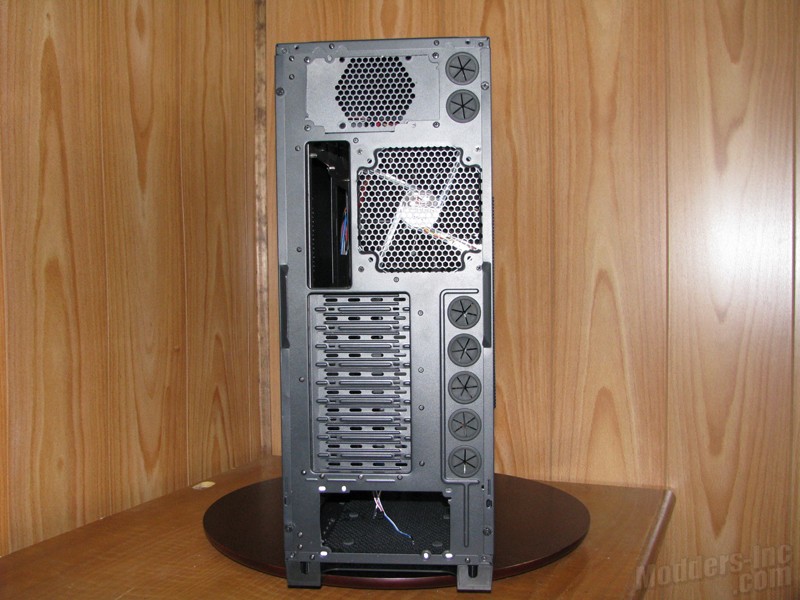

  The Elysium has a plastic from panel with aluminum strips that run up both sides of the 5.25″ drive bays (which there are 12 in total). Moving over to the rear, we see that there is a total of 7 watercooling line grommets pre-installed. It also uses a 140mm rear white LED exhaust fan. Just above the I/O area is a filler panel that hides the top PSU mount. The Elysium has 10 expansion slots above the rear PSU mount.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 9     Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 10

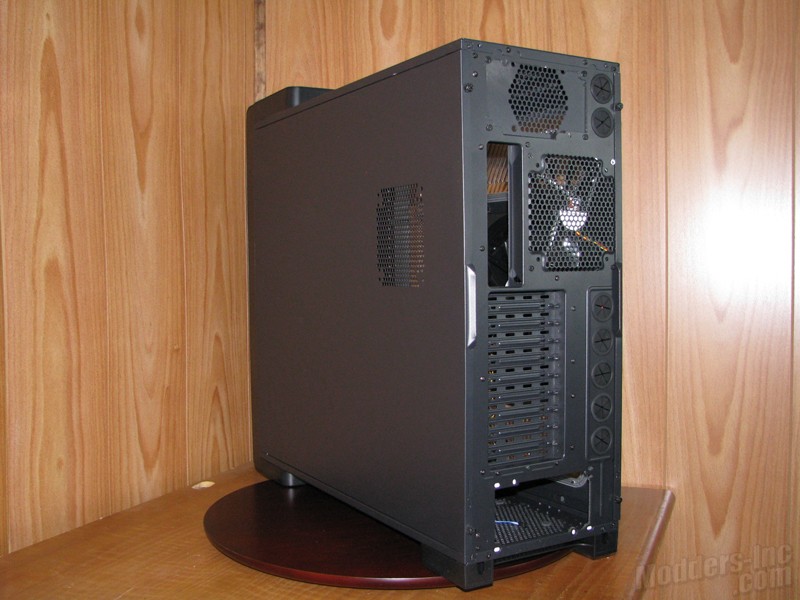

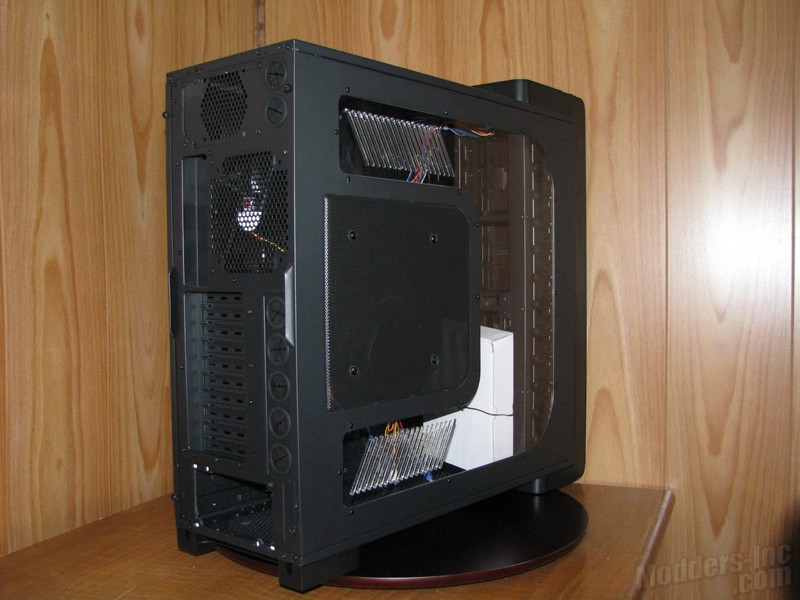

  We can also see that the Elysium is painted inside and out to help it with that nice clean look.

Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 11     Xigmatek Elysium Super Tower Computer Case computer case, Elysium Super Tower, Xigmatek 12

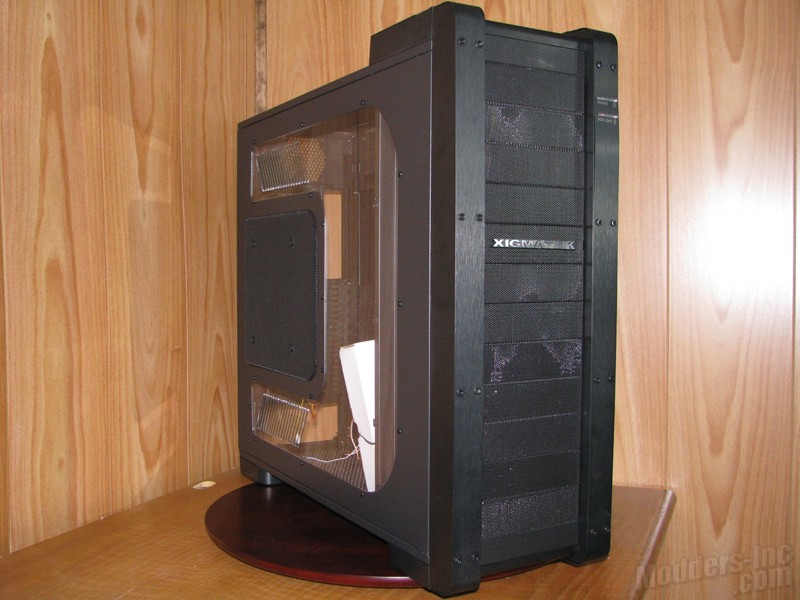

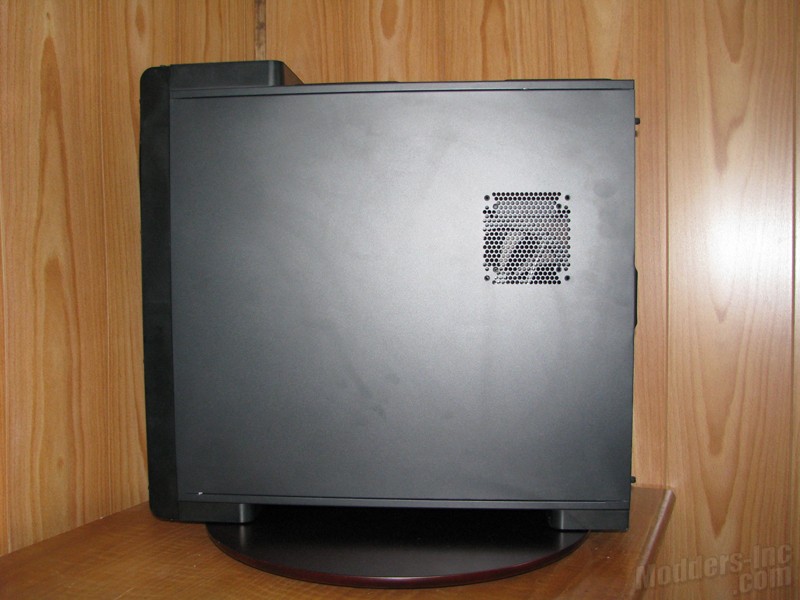

  On the left side we have a large U-shaped window with vents above and below the side mounted 200mm white LED intake fan. On the right panel we have a perforated fan mount located where the main CPU would be to offer additional cooling (fan is optional).

Features:

  • Support HPTX super big M/B and 10 PCI slots for four graphic cards.
  • Hot-swappable 2.5″/3.5″ SATA HDD docking on top panel.
  • Two USB 3.0 super-speed ports on top panel with dust-proof cover.
  • Both side screw-less ODD holders.
  • Dual PSU possible on the top and bottom.
  • 360/420mm water cooling radiator possible.
  • Total external twelve 5.25″ bays with two “4 in 3 HDD cages”.
  • 3.5″ HDD anti-vibration rubbers inside of 4 in 3 cage.
  • Anti-vibration rubber and bottom dust filter for PSU.
  • Aluminum surface on the front mesh panel with removable dust filter.
  • Two CPU cooler backside holes and 8/12cm cooling fan available.

Specifications
Product Name Elysium-Window Black
Power Supply Supports two standard P/S2 ATX/EPS power supply units.
1. Intake vent with dust filter (Bottom PSU only).
2. PSU can be mounted with fan up or down.
3. Rubber pads for bottom mounted PSU to sit on.
Dimensions (W x H x D) 230 x 618 x 663 mm / 9.06 x 24.33 x 26.10 inches
Drive Bay 5.25″ External x 12 with tool-less fastners on both sides.
(This includes the six bays populated by the two 3.5″ 4in3 HDD cages.)
3.5″ Internal HDD x 8 via the two 3.5″ 4in3 HDD cages.
Expansion Slots 10
Motherboard Support Extended ATX, SSI CEB/EEB, XL-ATX, ATX, Micro-ATX
(With CPU cooler back plate installation window)
Cooling System Air Cooling
Front Fan: Pre-installed 120mm white LED x 2 (On the 4in3 HDD cage.)
Rear Fan: Pre-installed 140mm white LED x 1 (120mm fan optional)
Side Fan: Pre-installed 200mm white LED x 1
CPU Fan: 80/120mm fan optional
Bottom Fan: If PSU was installed in the bottom: 120/140mm fan x 2 or 200mm fan x 1
Bottom Fan: If PSU was installed in the top: 120/140mm fan x 3 or 200mm fan x 2
Top Fan: If PSU was installed in the bottom : 120/140mm fan x 3 or 200mm fan x 2
Top Fan: If PSU was installed in the bottom : 120/140mm fan x 2 or 200mm fan x 1
Water Cooling
Water pip holes x 7 (with rubber cover)
Available for 360/420mm radiator.
I/O Panel Top Panel: Power button, Reset button, USB 3.0 x 2, USB 2.0 x 2, e-SATA x 1, Audio in/out x 1 (HD Audio), One 2.5″/3.5″ HDD hot-swap docking.
