Benchmarking Results

Following Benchmarks were performed via 1GbE connectivity trough the onboard switch.

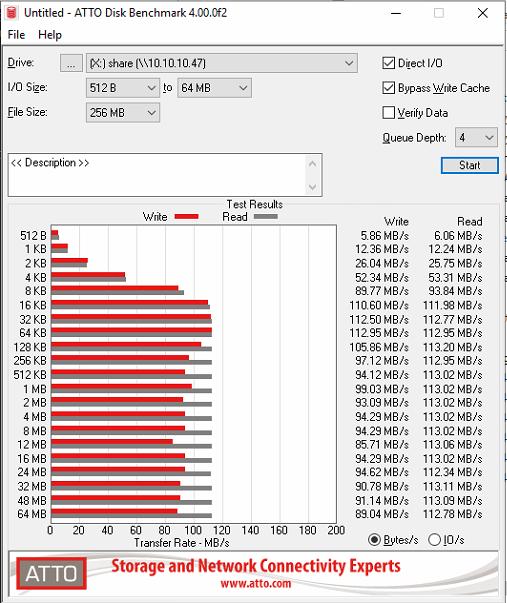

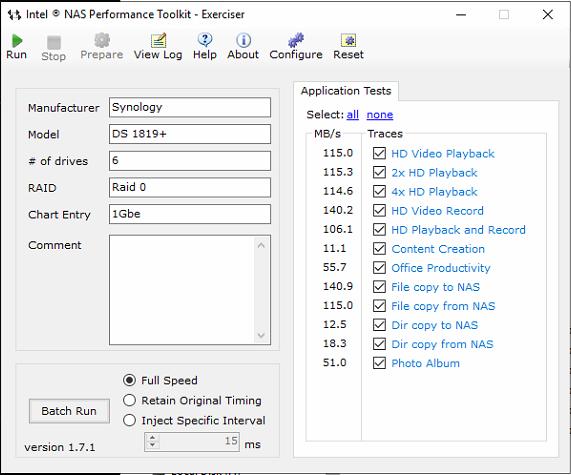

Raid 0 1Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 1

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 2

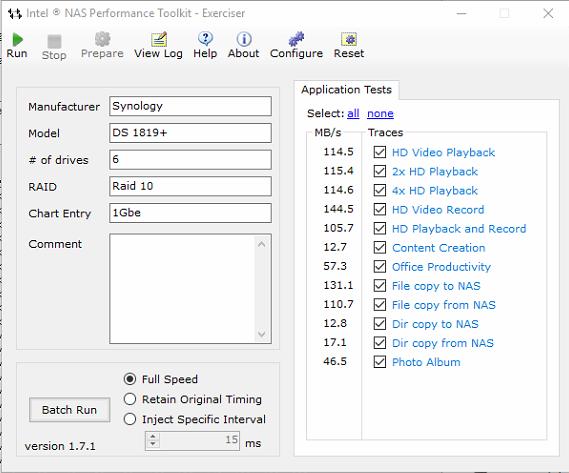

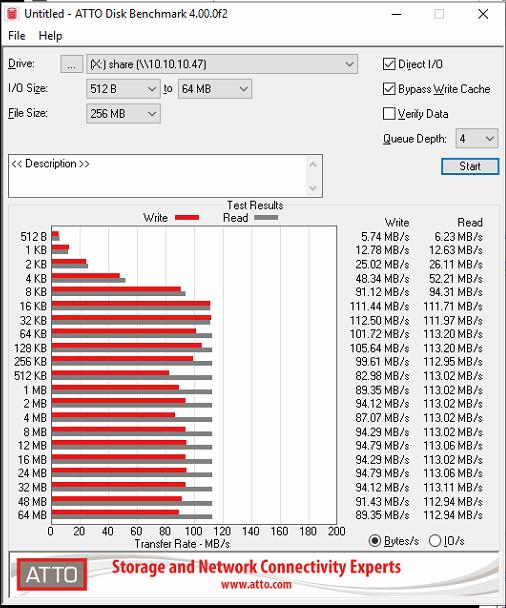

Raid 10 1Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 3

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 4

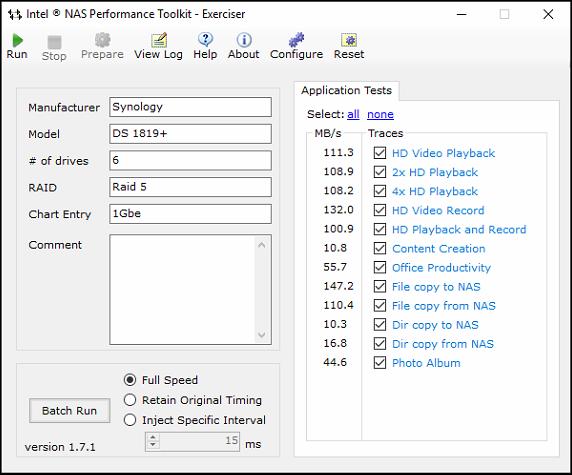

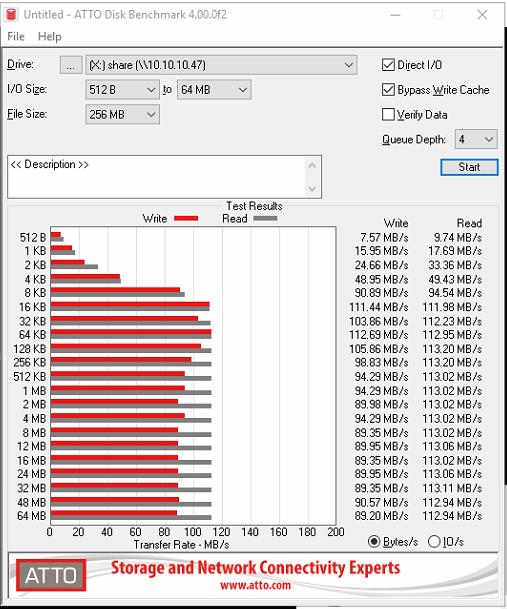

Raid 5 1Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 5

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 6

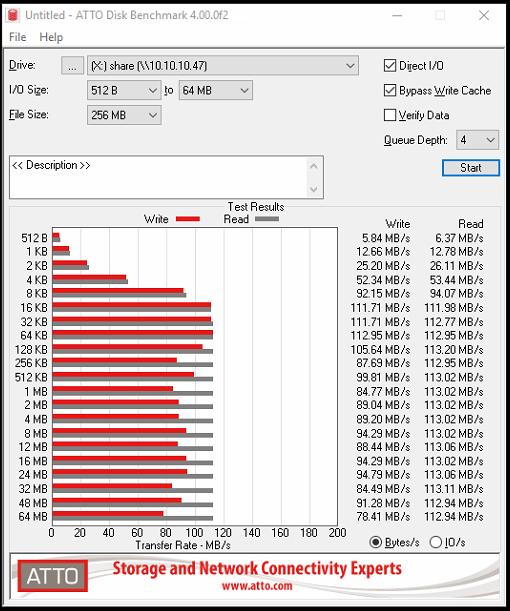

Raid SHR 1Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 7

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 8

Following Benchmarks were performed via 10GbE connectivity through PCIe card.

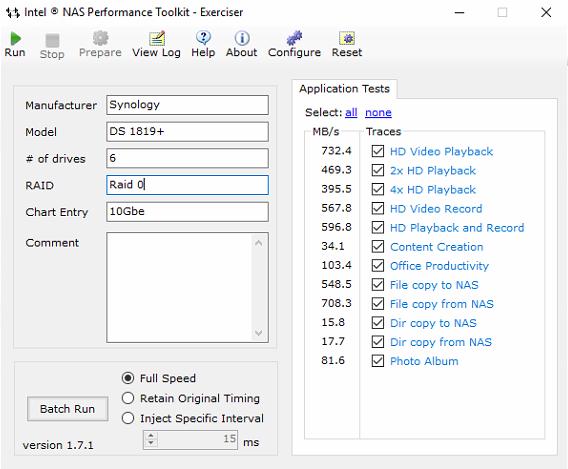

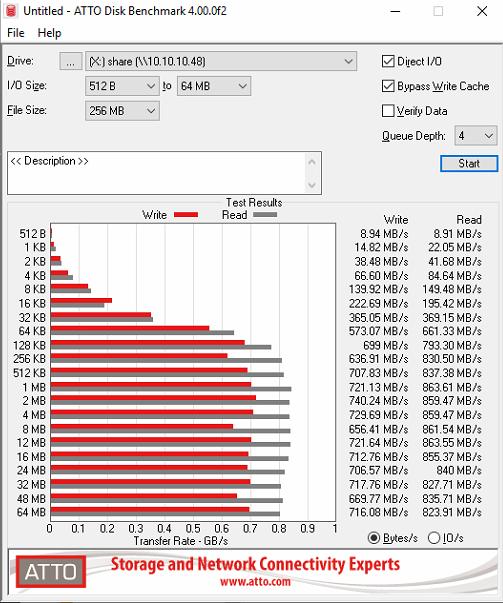

Raid 0 10Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 9

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 10

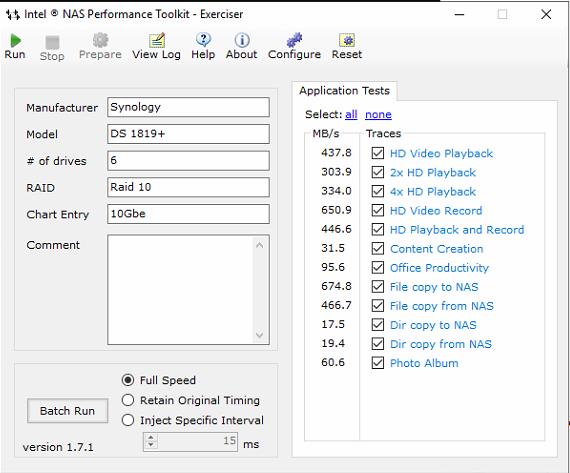

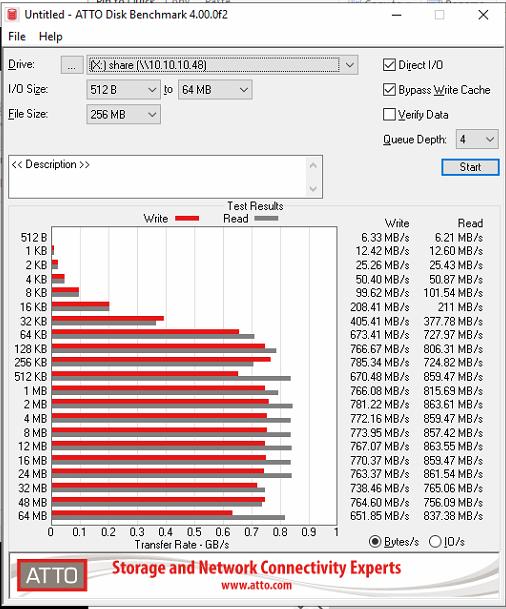

Raid 10 10Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 11

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 12

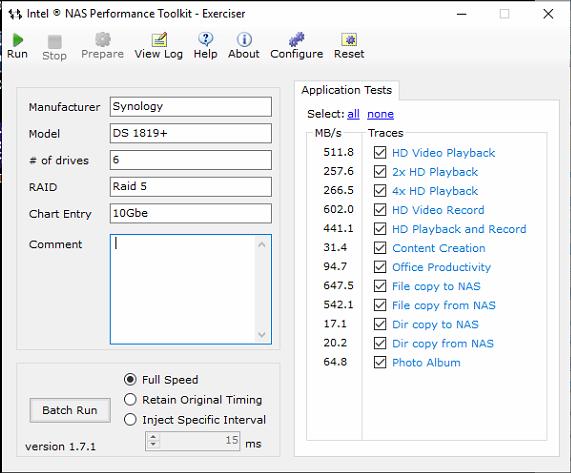

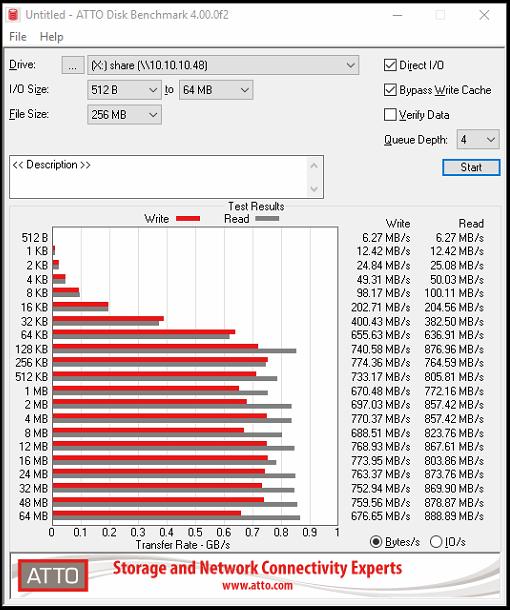

Raid 5 10Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 13

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 14

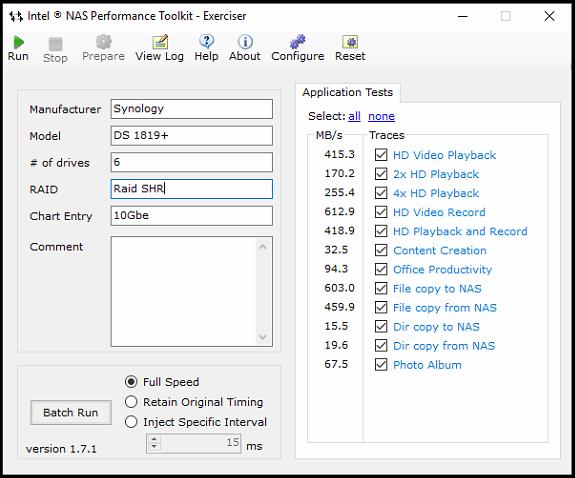

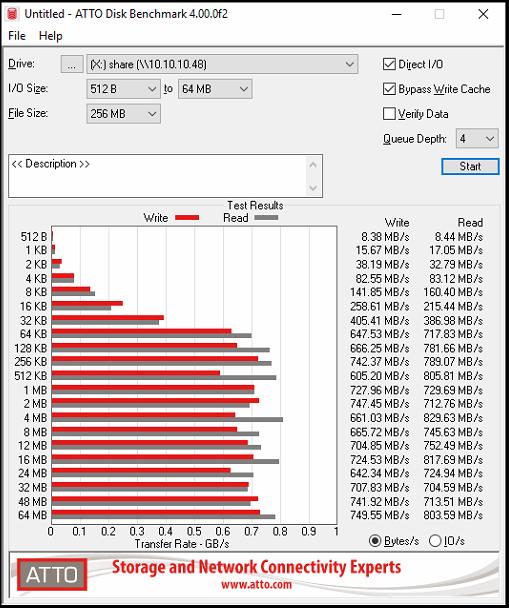

Raid SHR 10Gbps

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 15

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 16
