Chips and Boards

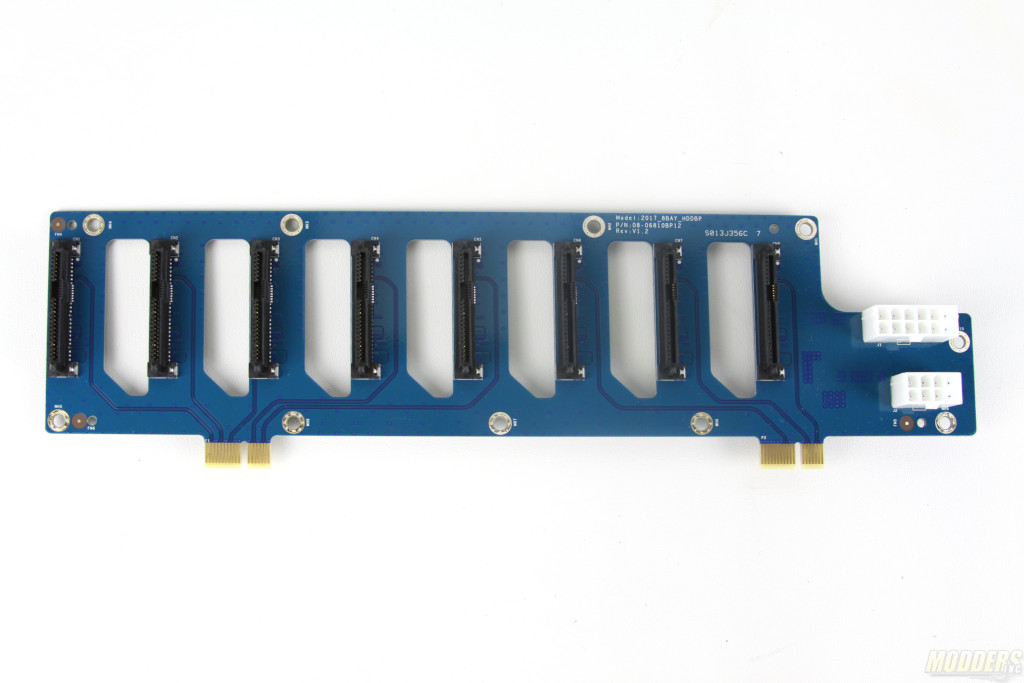

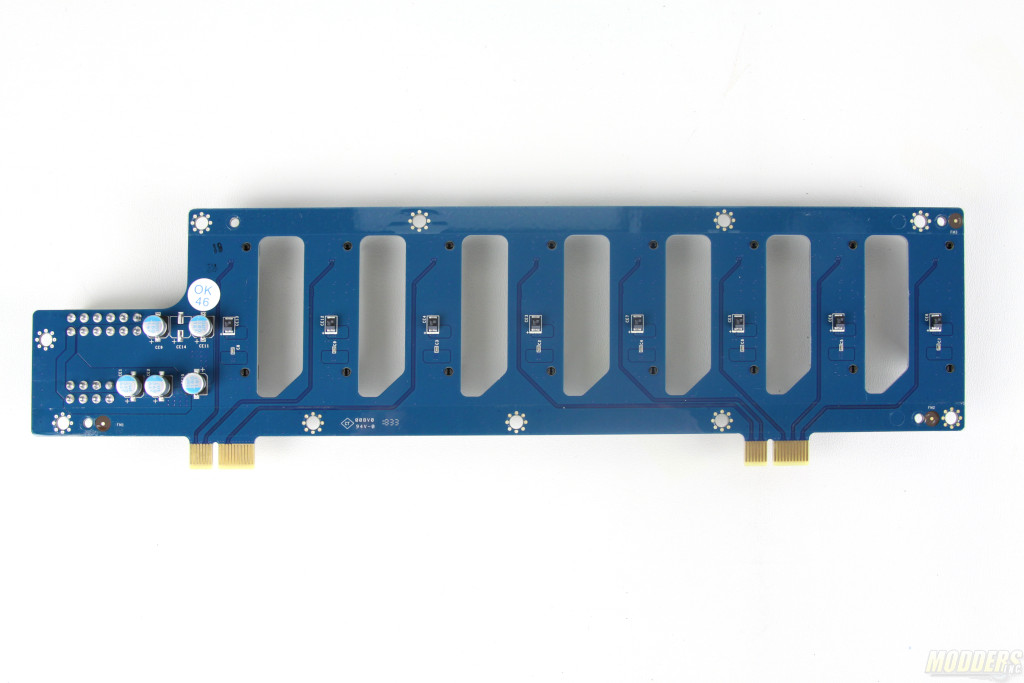

The backplane of DS 1819+ has eight SAS type connectors. We noticed this Synology uses SAS connectors across all of their NAS offerings. Five of the eight connectors are placed on one channel and the rest three on the second channel.

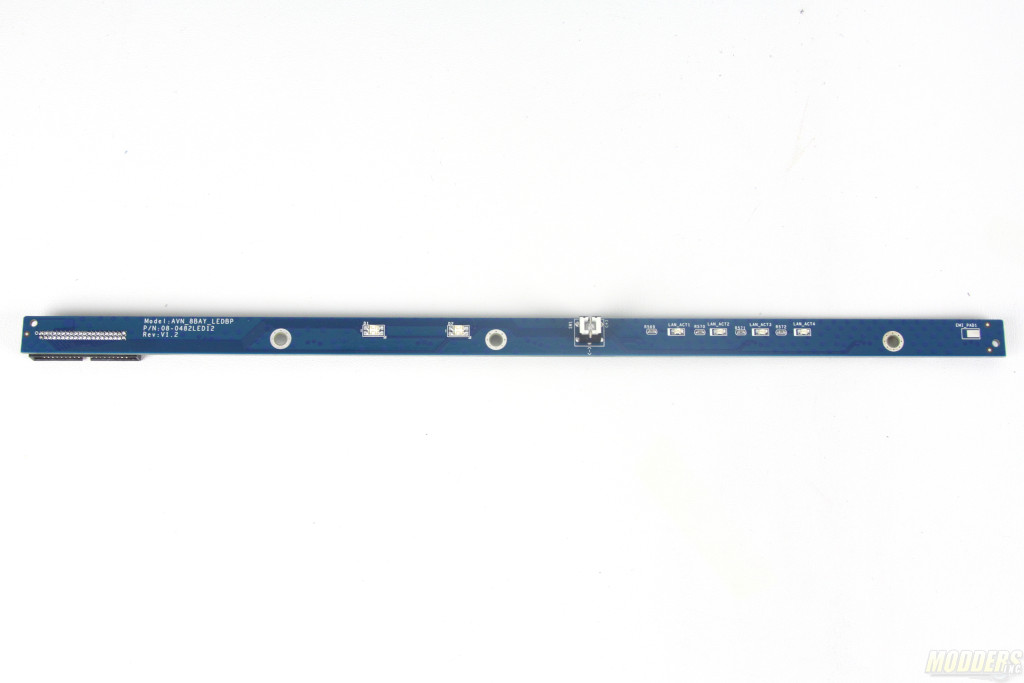

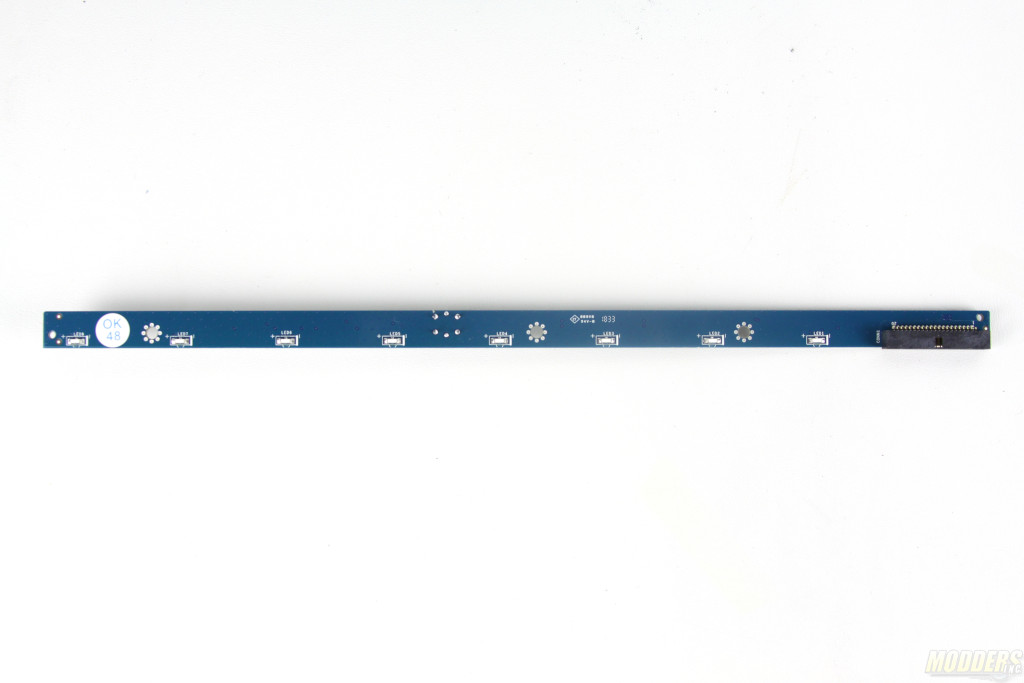

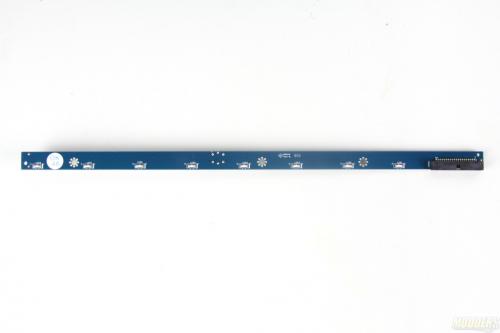

Front facing IO board has only one button and a set of micro LEDs. This board connects to the motherboard via a ribbon cable.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 7

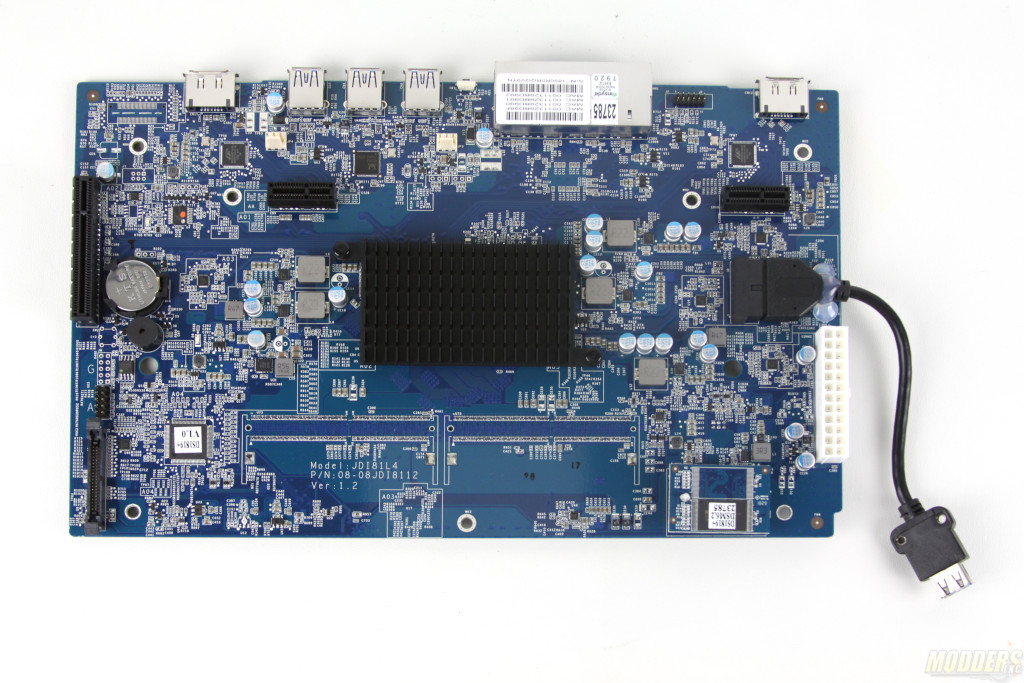

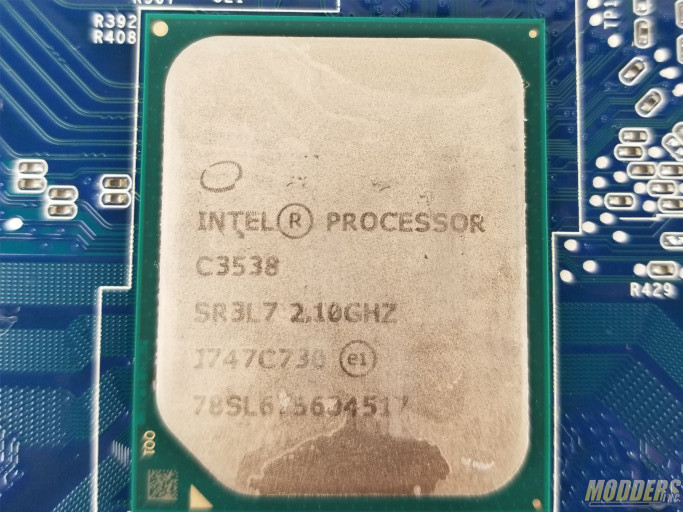

CPU of DS 1819+ is powered by Intel Atom c3538. This chip is 64 bit and offers Quad Core clocked at 2.1GHz. It is also worth to mention that c3538 support Hardware Encryption Engine (AES-NI) standard.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 8

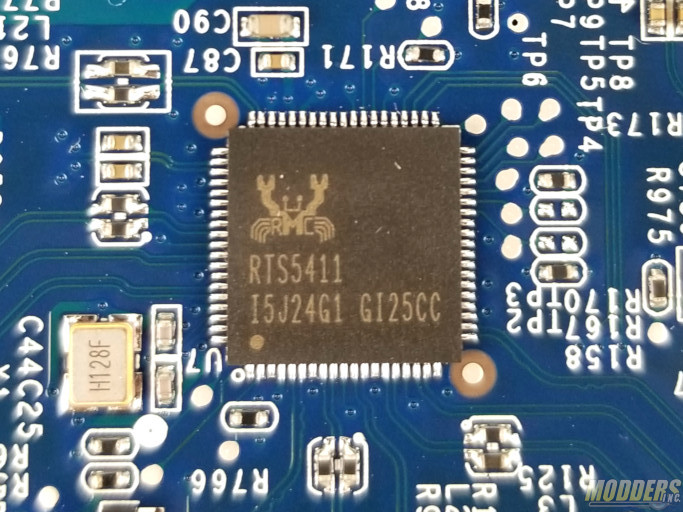

USB 3.0 SuperSpeed HUB controller that supports 4 USB 3.0 connections on the motherboard is by Realtek RTS5411.

Related Articles

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 9

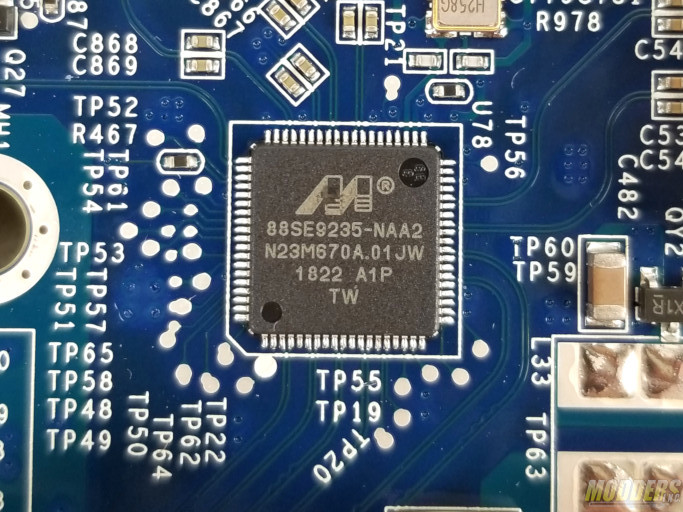

To support both groups (5 drives and 3 drives) Synology uses two SATA 6Gb/s Marvel controllers 88SE92350-NAA2.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 10

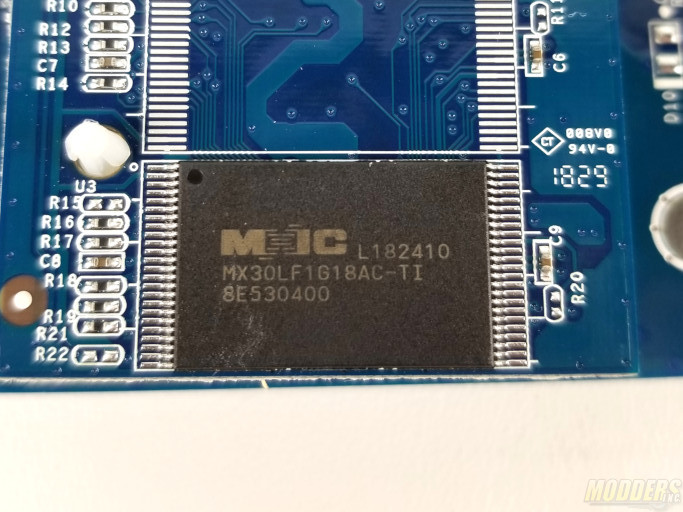

DS 1819+ has 1Gb Flash Memory by Macronix MX30LF1G18AC-TI which is SLC NAND.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 11

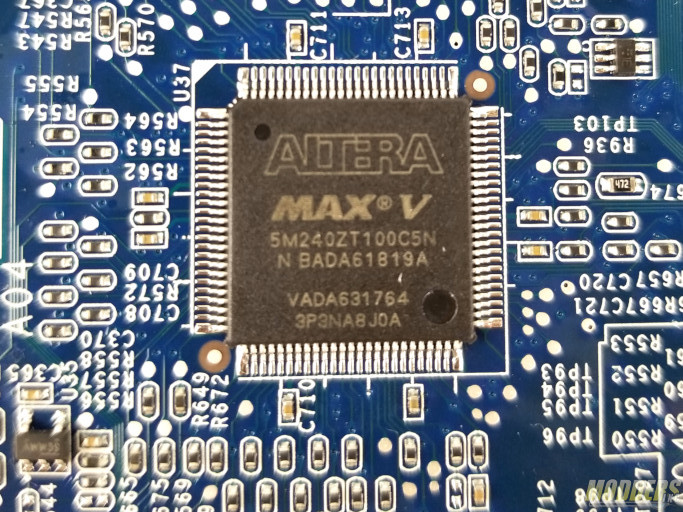

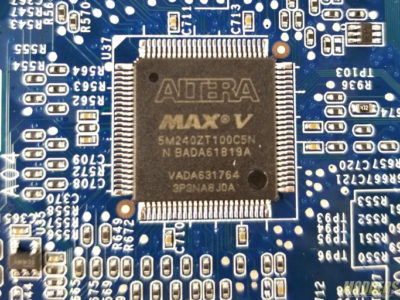

Flash CPLC in this device is by Intel/Altera 5M240ZT199C5N.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 12

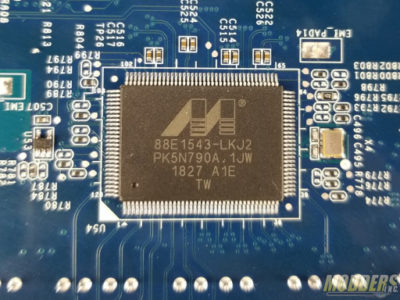

The onboard Ethernet adapters are supported by Marvel 88E1543-LKJ2 controller. This controller offers 10/100/1000 Mbps speeds.

Synology DS 1819+ NAS Review 10Gbe, ATOM, CPU, Disk Manager, DS 1819+, SFP+, SSD, Synology, Virtual Machines 13

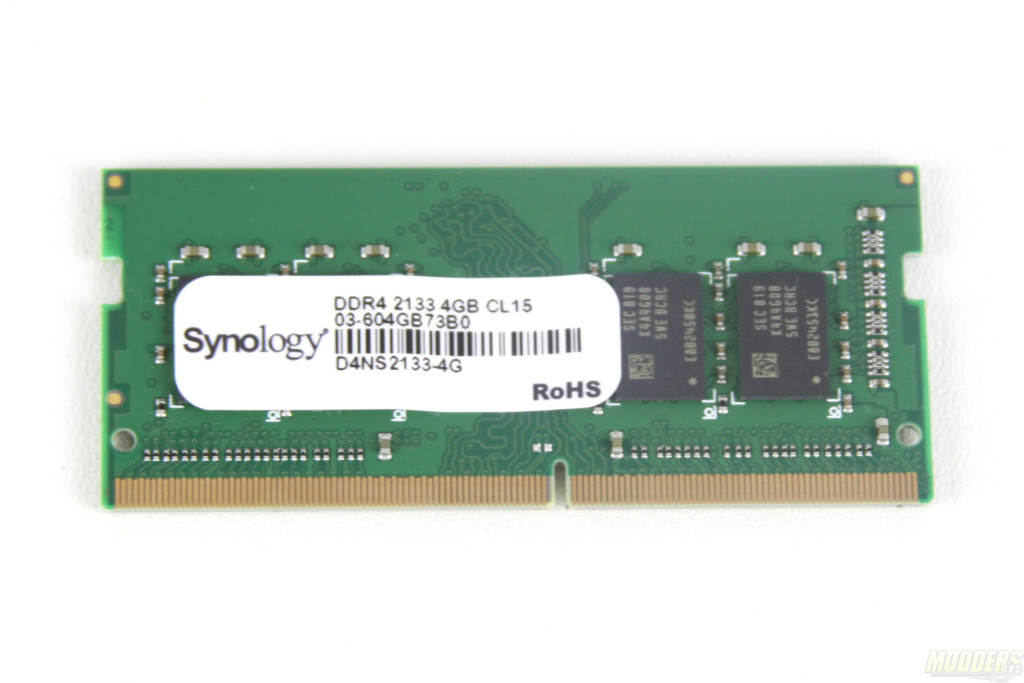

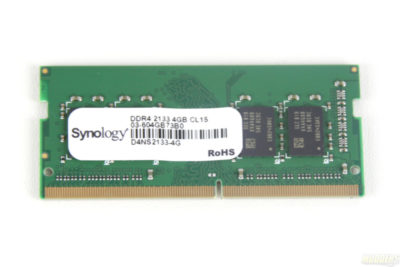

The Synology DS 1819+ comes with one DDR4 2133 4GB module which has a timing of CL15. This is a NON-ECC unbuffered SO-DIMM 260pin module that runs at 1.2V.

Looking to remove this module and replace it with 16GB modules? Consider this ECC SO-DIMM by Synology “RAMEC2133DDR4SO-16G
