Silverstone Tundra TD02-E CPU Cooler Review: An Affordable, Quieter 240mm AIO Option

A Closer Look at the Silverstone TD02-E »


td02e00Silverstone Technologies has made quite a career making cooling solutions for the PC DIY market. Their solutions are also quite often a unique alternative with out-of-the-box oriented ideas and far from having a “me too” design philosophy. With the all-in-one liquid cooling solution’s popularity, Silverstone also has thrown their hat in the ring with alternatives from the typical Asetek OEM solutions. An alternative that goes beyond just bundling a different high-RPM fan but having an end-user experience focused approach instead with a lineup that can find a home in ITX or ATX builds.

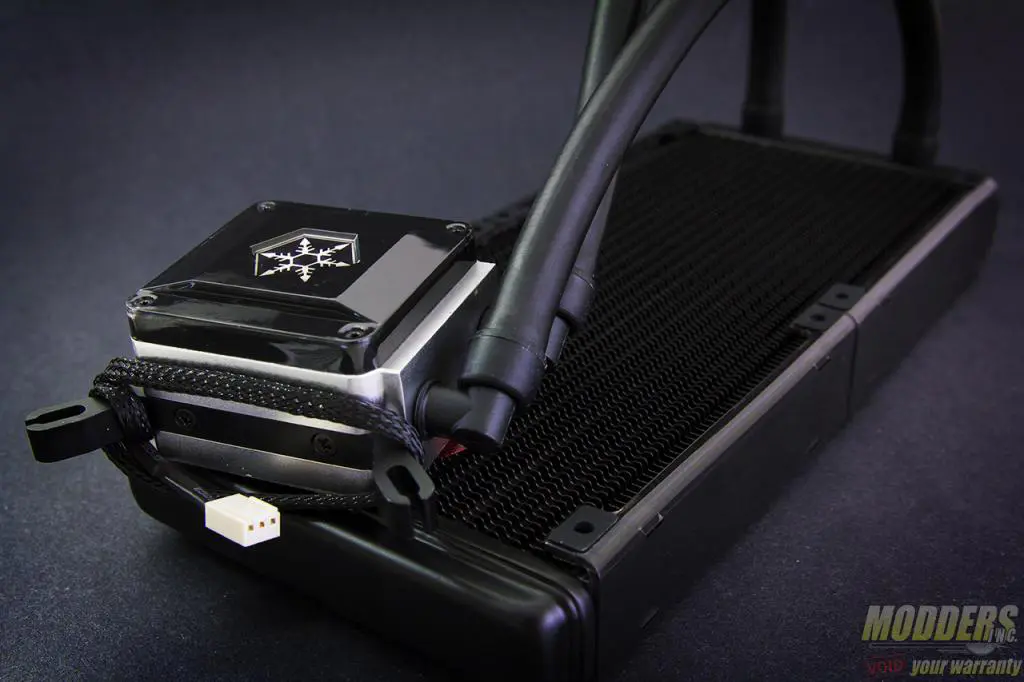

The Tundra TD02-E is a 240mm AIO solution that is part of Silverstone’s high-end line, marked by its “-E” designation in the name.  Silverstone also offers -LITE coolers as entry level solutions and -SLIM coolers for those with stricter clearance requirements. The Tundra TD02-E replaces the original TD02 which was their first foray into AIO cooling solutions, now with a thinner radiator for better compatibility and rubberized hose for better versatility.

[sc:sponsor sponsor=”Silverstone” product_link=”http://www.silverstonetek.com/product.php?pid=546″ product_name=”Tundra TD02-E CPU Cooler” product_price_link=”http://amzn.to/1R9DOKL” product_price=”$89.99 (Amazon)” ]

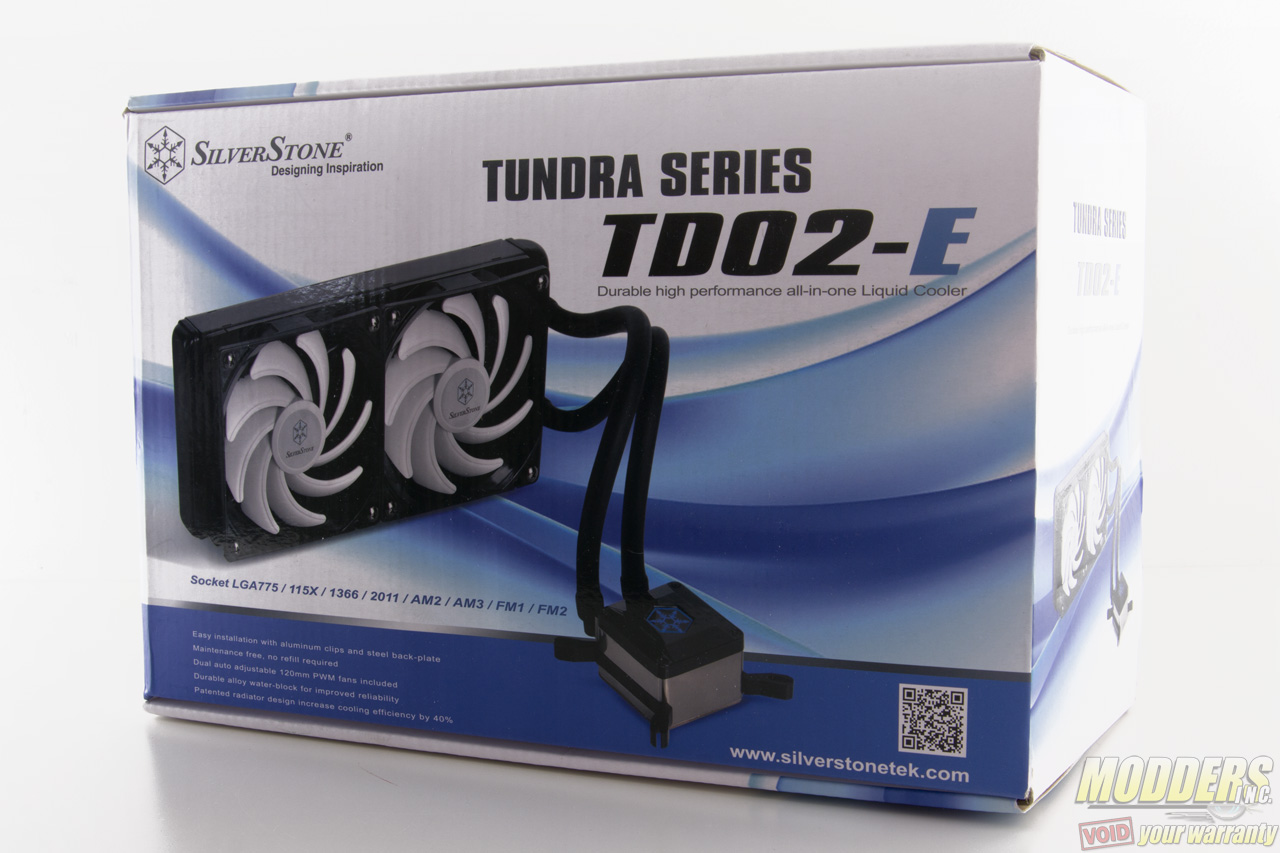

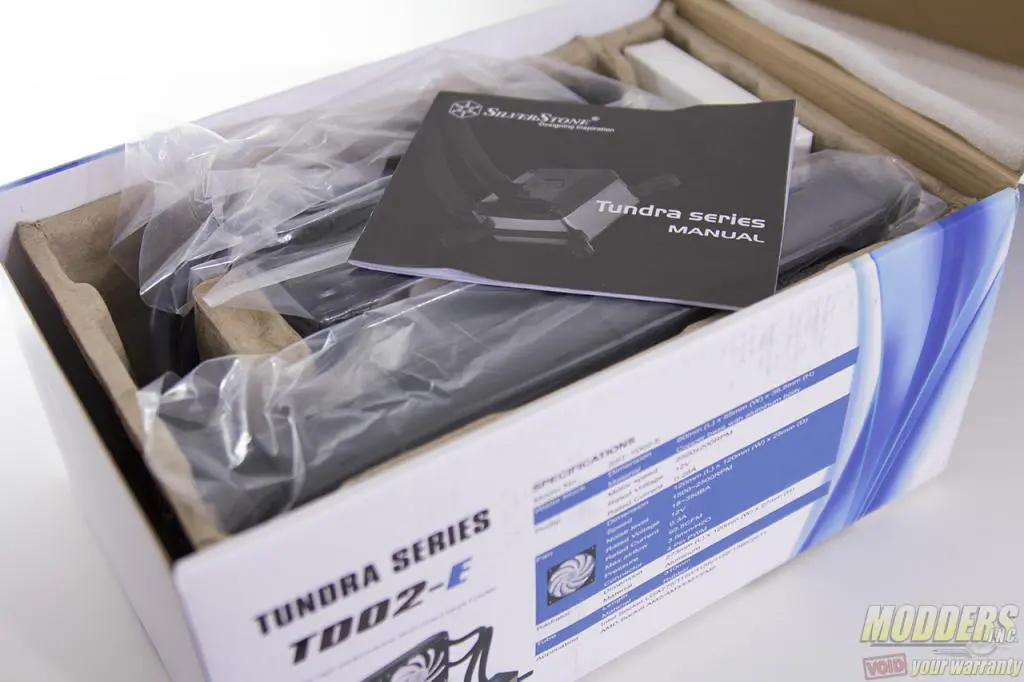

Its packaging is fairly standard for a liquid-AiO, sporting blue accents on a white box. Photos of the TD02-E are all over with measurements printed on the side so there is no mistaking what kind of radiator the buyer is getting from the store. The Silverstone Tundra TD02-E and its accessories are packed within a compartmentalized recycled cardboard holder. Each piece is covered with plastic to prevent scratches and most of the scratch-sensitive surfaces on the TD02-E unit also has further film protection.

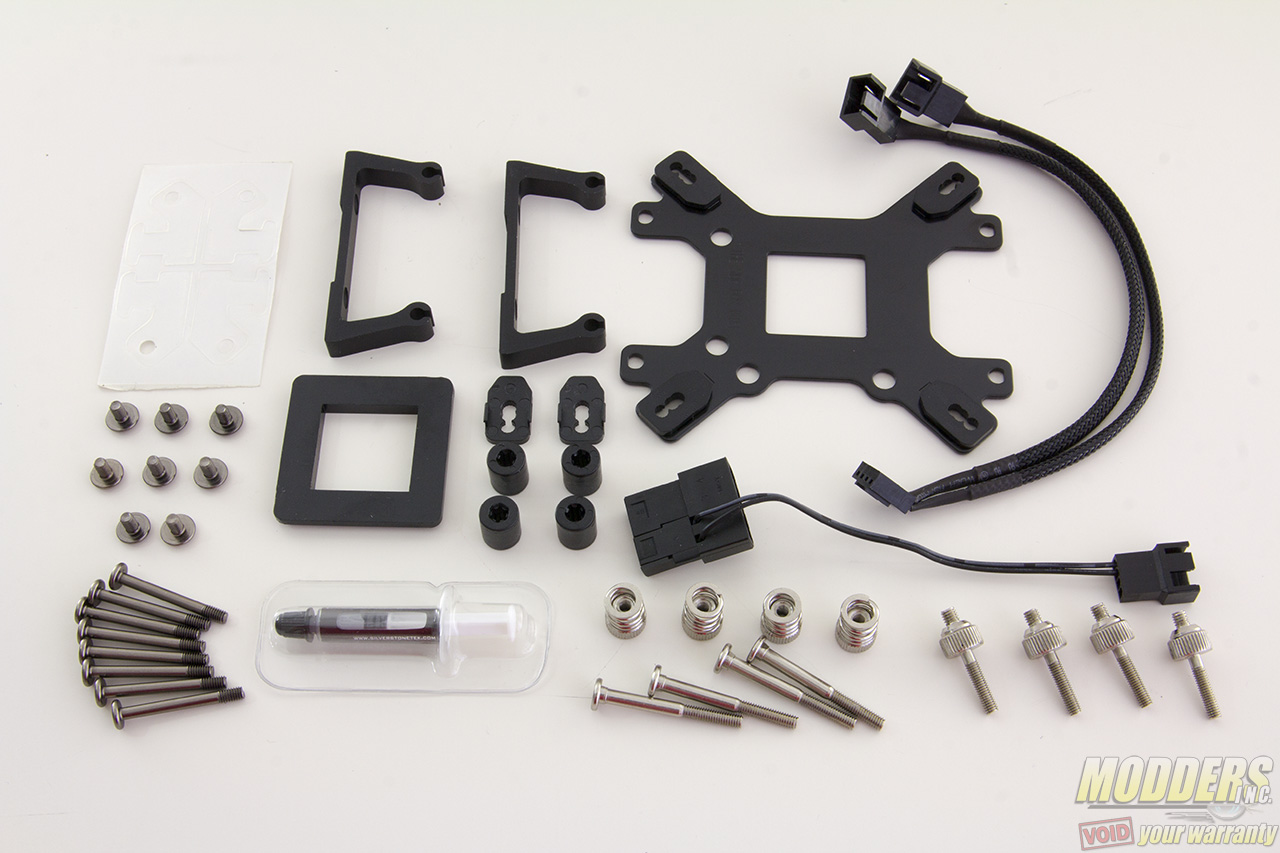

Accessories include:

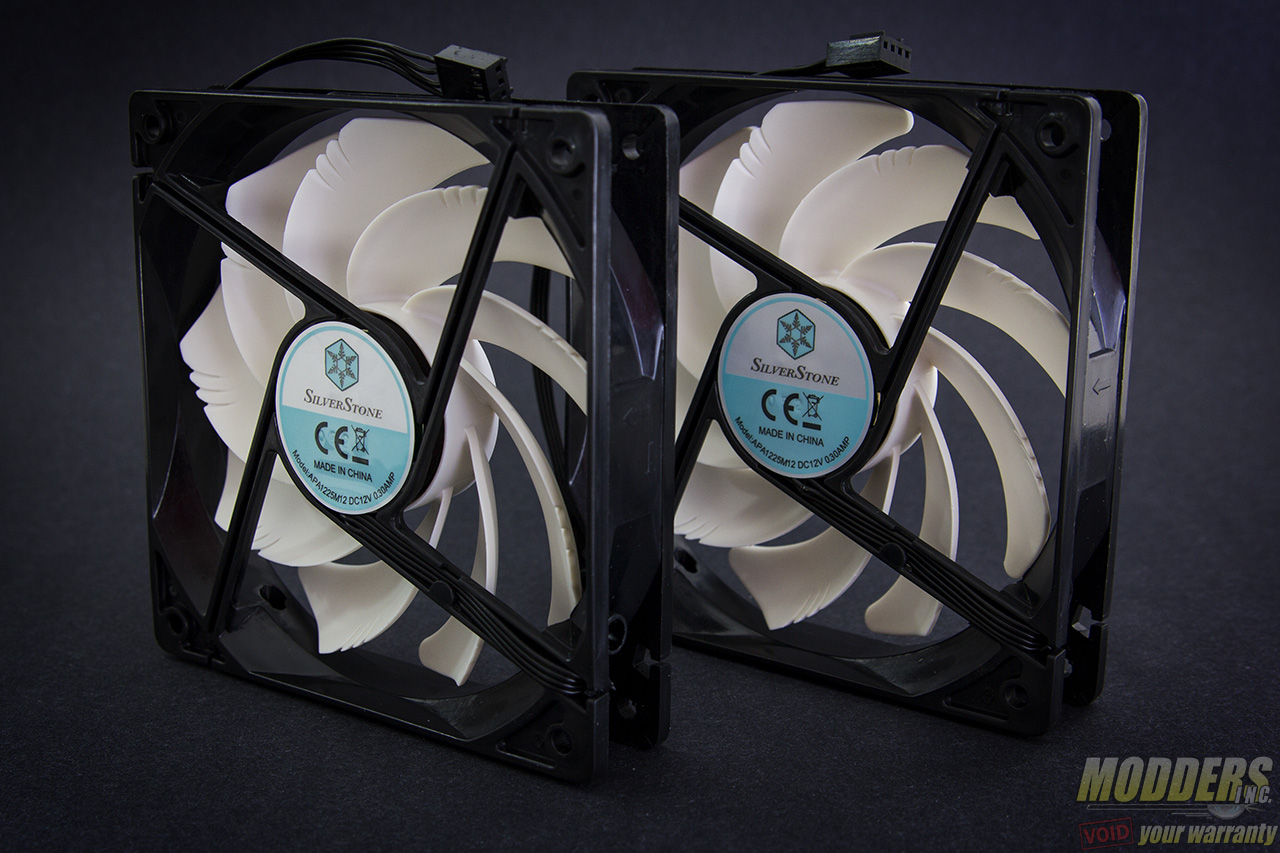

  • 2x 120mm PWM fan
  • 2x AMD mounting bar
  • 1x Universal Intel/AMD backplate
  • 1x 4-pin PWM fan splitter
  • 1x 4-pin MOLEX to PWM fan connector
  • 4x Intel LGA2011 standoffs
  • 2x alternate plastic insulator for backplate
  • 1x thermal interface material in tube form
  • 4x spring-loaded locking nuts
  • 4x metal backplate posts
  • 4x insulating standoff posts
  • 1x (4-pieces in total that peel off) AMD adhesive mounting insulation
  • 8x short radiator mounting screws (for mounting rads directly to case)
  • 8x long radiator mounting screws (for mounting rads through fan)
  • 1x LGA775 backplate spacer

Specifications:

Model No. SST-TD02-E
Water block Dimension 60mm (L) x 55mm (W) x 33.5mm (H)
Material Copper base with nickel-plated aluminum unibody
Pump Motor speed 2500±200RPM
Rated Voltage 12V
Rated Current 0.28A
Fan Dimension 120mm (L) x 120mm (W) x 25mm (D)
Speed 1500~2500RPM
Noise level 18~35 dBA
Rated Voltage 12V
Rated Current 0.3A
Max airflow 92.5CFM
Pressure 3.5mm/H2O
Connector 4 Pin PWM
Radiator Dimension 278mm (L) x 124mm (W) x 27mm (H)
Material Aluminum
Tube Length 310mm
Material Rubber
Application Intel Socket LGA775/115X/1366/2011/2011-v3
AMD Socket AM2/AM3/FM1/FM2
Net Weight 1501g
