Sapphire PURE Black X58 Intel Motherboard

Page 2 »

We will be taking a look at a brand new motherboard and I believe direction for SAPPHIRE. This board is quite different than what they have done in the past and on top of that it is an Intel CPUbased motherboard. Loaded with lots of extras and features this board could show that Sapphire is ready to challenge other manufactures.

Sapphire PURE Black X58 Intel Motherboard Intel, Motherboard, Sapphire PURE, X58 1

Sponsor: Sapphire

[hr]

First Look – Packaging and Information

Sappire Pure Black x58

SAPPHIRE has created a distinctive and out-of-the-norm looking retail box for themselves to promote the PURE Black X58 Motherboard. All the other boxes that I have seen from SAPPHIRE have been brightly colored and flashy with some sort of figure to grab your attention. This box is lacking all of that, but the sleekness gives you a more stylish classy impression.

Sappire Pure Black x58



Sappire Pure Black x58

The one thing that SAPPHIRE did not change was supplying enough information on the box telling you all about the features that make this motherboard stand out from the rest.



Sappire Pure Black x58

Even when you open the packaging and see the box that holds the motherboard and extras you are meet with a different look than the standard cardboard box. An all black box continues the theme that was started from the outside.



Sappire Pure Black x58

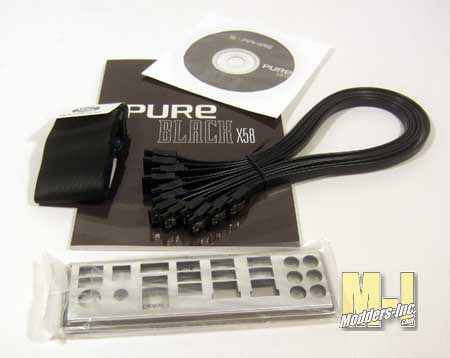

Includes in the box, along with the motherboard, is your normal accessories such as the manual, driver disk, I/O port plate and cables. What is really nice here is that you get six SATA cables, and they are black. not blue, not red, or yellow, but black. Even though it goes along with the PURE Black theme I think that other manufactures should follow suit and just give us black cables. The manual has just the basic information inside which includes the board layout, how to install the CPU, where and how to connect the power cards, SATA, and front panel wires. To get the full manual you will have to get it off the drivers disk.



Specification
CPU Supports Intel LGA1366: Intel Core i7 Series processors
Chipset Intel® X58 Express Chipset + ICH10R Chipset
Memory 6 slots 240-pin DDR3 800/1066/1333/1600+ non-ECC ,un-buffered memory
24 GB Max.
Expansion Slots 3 x PCI Express 2.0 x16 slots
1 x 32-bit PCI slots
1 x PCI Express x16 slots
Storage 2 x Serial ATA III 6Gb/s connectors
5 x Serial ATA II 3Gb/s connectors
Supports HDDs with RAID 0, 1,5,10 functions
1 x Ultra DMA 133 IDE connector
Audio Realtek ALC892 HD Audio CODEC with 8-Channel
Ethernet LAN Marvell 88E8057 PCI-Express Gigabit LAN
Rear Panel I / O 8 x USB 2.0 port
2 x USB 3.0 port
1 x 1394a port
1 x SPDIF Coaxial OUT
1 x Audio I / O ports
1 x SPDIF Optical Out
0 x Supporting Bluetooth® 2.1 + EDR by Atheros AR3011
1 x e-SATA port
PS/2 KB/MS combo port
Internal I / O 1 x USB 2.0 headers
CPU 4 pin PWM Fan connectors
3 Pin Chassis Fan connectors
24-pin ATX Power connector
8-pin ATX 12V Power connector
Control (Front) panel headers
SPDIF In/out header
1 x 1394a headers
Special Features Voltage measure PAD
Power on Button with Power LED
Reset Button with HDD access LED
Clear CMOS button
Diagnostic LED with CPU temperature monitor
Dual BIOS with select Jumpers or switch
100% Japanese Solid Capacitor
Form Factor ATX, Size 12″ x 9.6″
OS support Windows Vista (32/64) bit
Windows 7 (32/64) bit
