Raijintek Triton Review: A Bold Alternative

« Test System and Review Methodology | Final Thoughts »

Benchmarks

While I do not have a large bank of 240mm AiO’s to compare, in fact only one at this moment (Nepton 240M), these tests are designed to show a range of behaviour so users can see how the Raijintek Triton behaves across fan speeds with noise levels measured for each. A Noctua NH-D15 is provided in the initial default fan benchmark as a baseline reference, being a high-end CPU air cooler that is well-known to all. 240mm AiO comparison lot will be increased further as more units are reviewed.

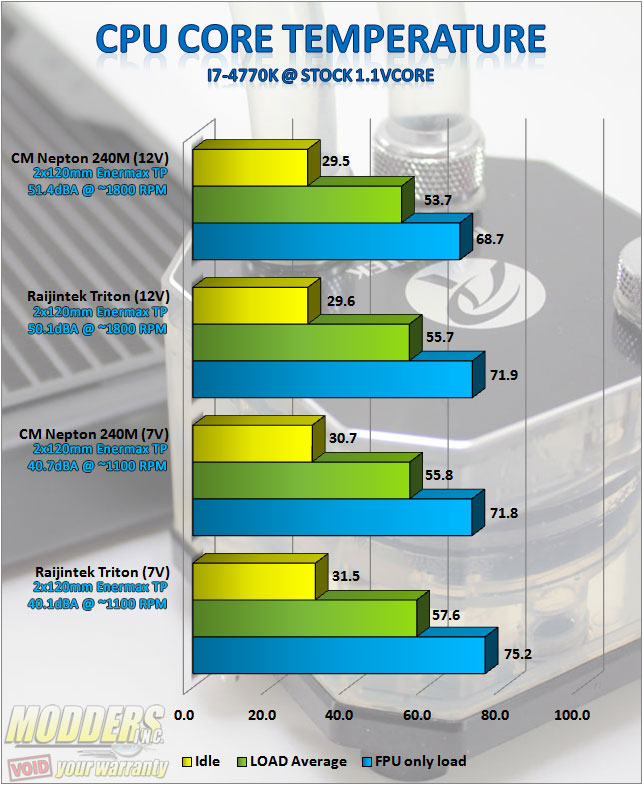

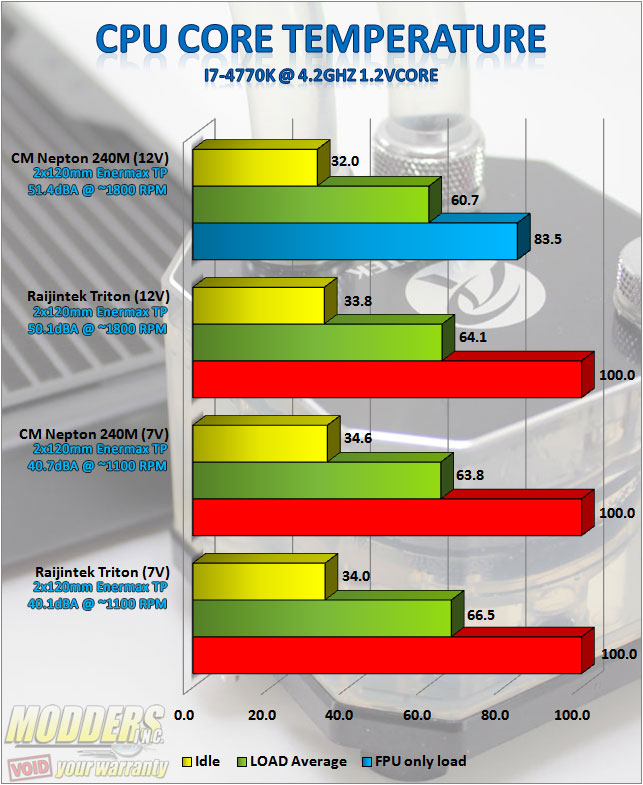

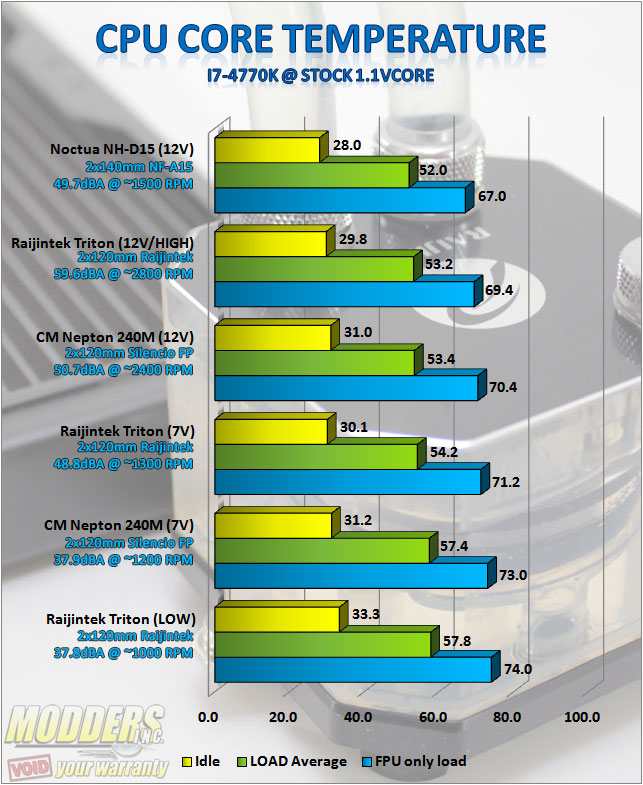

Bundled fan performance (push only):

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 1

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 2

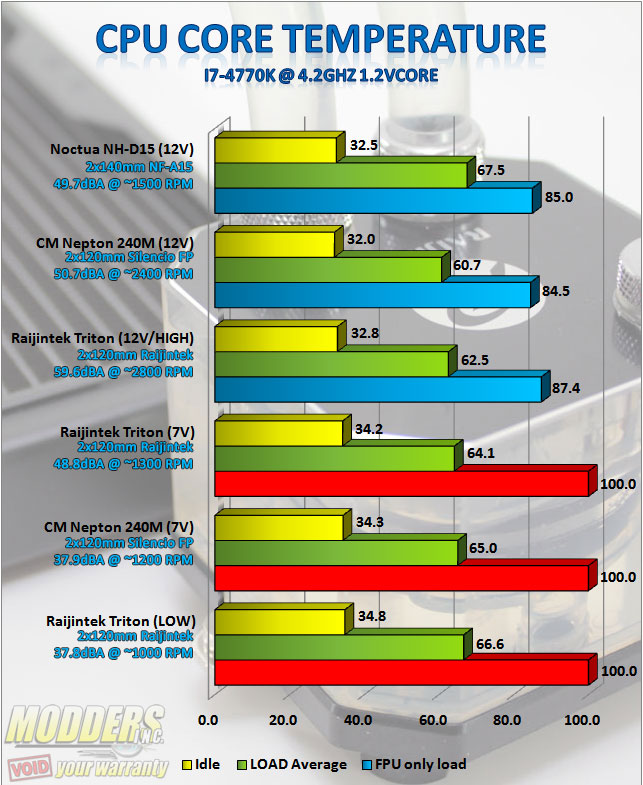

Standardized fan comparison (push only):

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 3

Related Articles

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 4

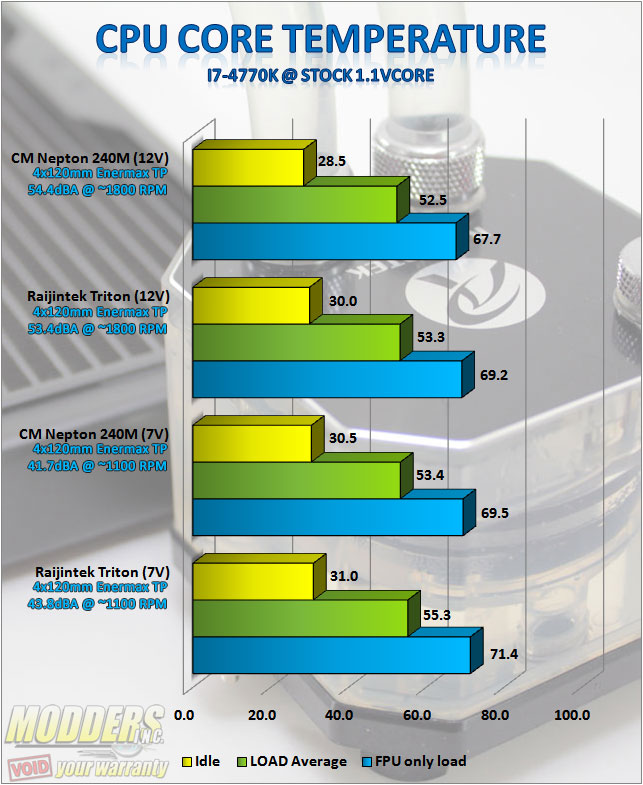

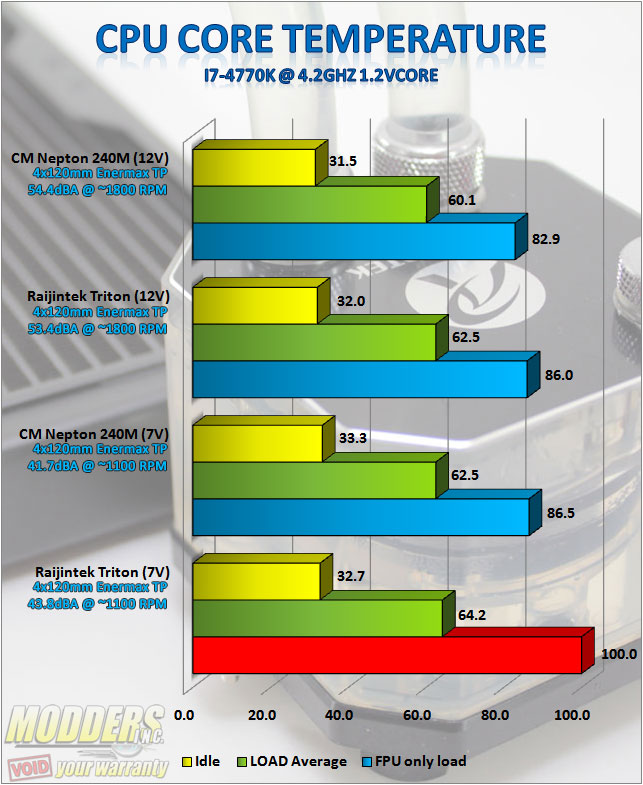

Standardized fan comparison in push + pull:

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 5

Raijintek Triton Review: A Bold Alternative 240mm, AlphaCool, coolant, Enermax, glycol, nepton, radiator, Raijintek, triton, triton core 6

Sound Profile:

2x default Raijintek fans on Raijintek Triton radiator:

Fan Speed 2x Raijintek Triton fans
RPM dBA
2800 59.6
~1300 48.8
1000 37.9
pump only 35.7

Enermax Twister Pressure on Raijintek Triton radiator:

Fan Speed 2x Enermax Twister Pressure in push 4x Enermax Twister Pressure in push-pull
RPM dBA dBA
1800 50.1 54.4
1600 46.5 50.9
1400 44.1 48.2
1200 41.2 43.8
1000 39.7 40.4
800 38.9 37.3
600 38.5 36.2
pump only 35.7 35.7
