RAIJINTEK Asterion Classic Aluminum Chassis

A Closer Look at the Raijintek Asterion Classic Aluminum Chassis »

RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 1

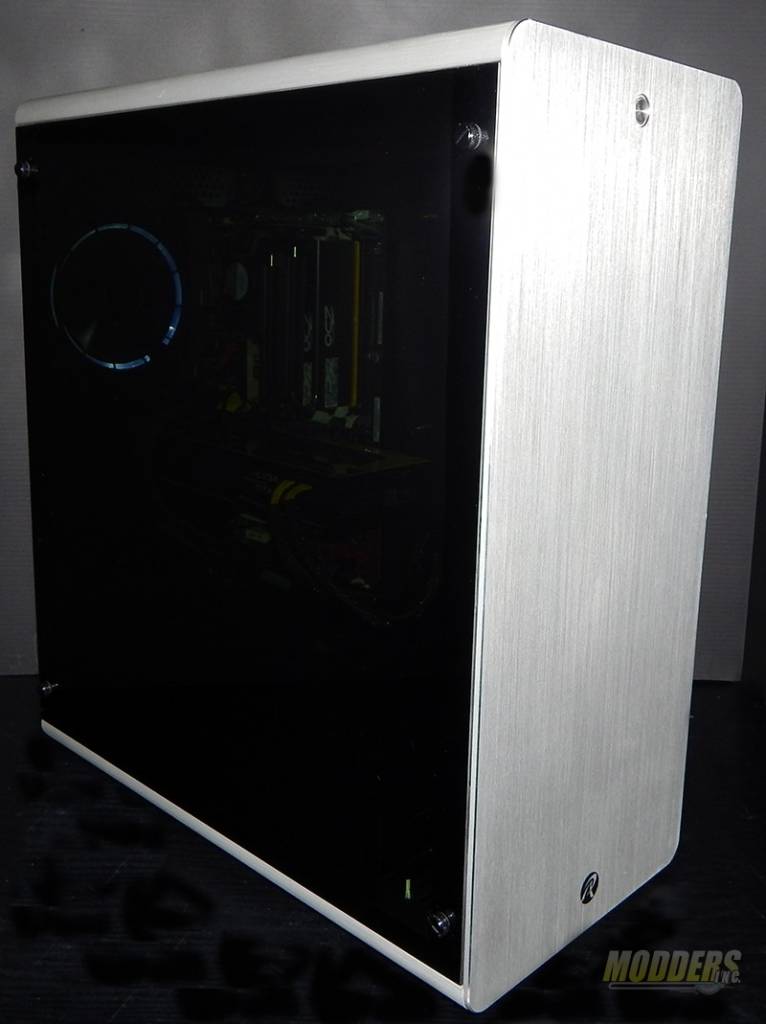

Raijintek Asterion Classic Aluminum chassis is on the bench for review.  This case can fit up to the E-ATX standard plus all kinds of of cooling options such as able to handle up to 7 fans and radiators from 240-360mm. That should satisfy the air cooling and water cooling groups for sure. For your reading pleasure we are going to break down the Raijintek Asterion Classic Aluminum chassis for you.





Features and Specifications

Related Articles
  • Aluminum chassis series for E-ATX/ATX/Micro ATX/Mini ITX
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Aluminum color hair-silk anodized appearance design
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 24×USB 3.0 super speed port
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 23pcs 12025 O-Type LED fan pre-installed
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Whole black coated interior

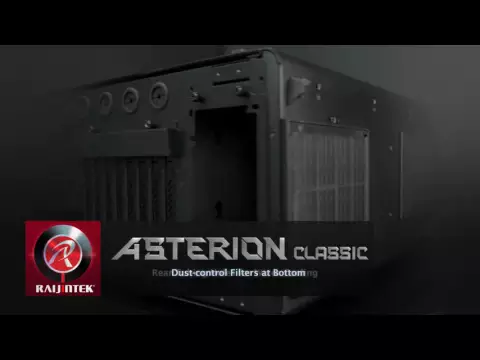

  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Dust-control filters at bottom
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Accommodate an internal 360 mm radiator at the front and top
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Rear tubing holes for water cooling
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Tool-free system for PSU and 3.5″HDDs
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Supports up to 7 fans and 6 HDDs (3.5″ + 2.5″)
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Supports 180mm height cooler
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Supports VGA card up 340mm
  • RAIJINTEK Asterion Classic Aluminum Chassis Case, Raijintek 2Tempered glass side panel
SPECIFICATION
Product Name ASTERION CLASSIC
Product Number 0R200047 / 0R200048
Dimension [W×D×H] 230×464×525 mm
Weight 10.4 kg [N.W.] 12.1 kg [G.W.]
Material Aluminum [Surface]; SPCC 1.0mm [Internal]
Color Black/Silver; Hair-silk Anodized
M/B Support E-ATX/ATX/MICRO ATX/MINI ITX
Drive Bay Internal 3.5″ ×3 or 2.5″ ×3 [Tool-Free, Removeable]
Internal 2.5″ ×3
Expansion Slot PCI Slots ×8
I/O Panel USB3.0×4, HD Audio×1
Power Supply PS/2 [Internal Bottom-mount]
CoolingSystem Front Fan: 140mm×2 or 120mm×3 [120mm×2 Pre-installed] or 240/280/360mm Radiator [Option]
Rear Fan: 140mm×1 or 120mm×1 [Pre-installed]
Top Fan: 140mm×2 or 120mm×3 or 240/280/360mm Radiator [Option]
CPU Cooler Height 180mm [Max.]
Graphic Card Length 340mm [Max.]
Side Panel Style Tempered Glass
