Hardware Installation and Clearance Compatibility

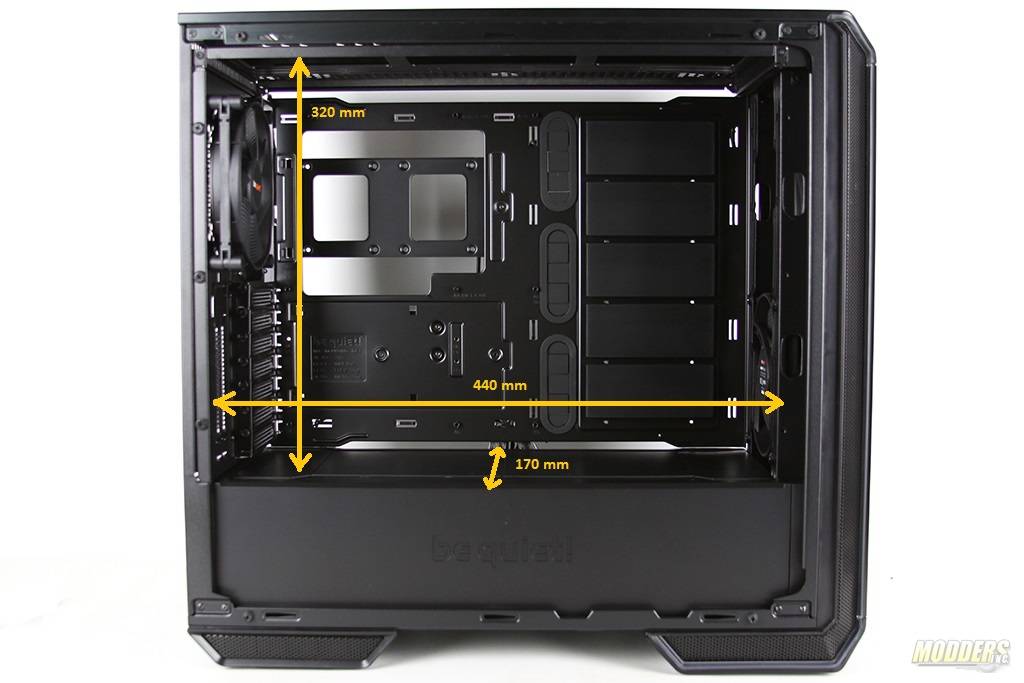

  • Internal length: 440mm.
  • Internal height: 320mm.
  • Internal depth: 170mm.

Front mounted:

  • 1 Front : 140mm SilentWings 3 PWM Fan. (included)
  • Radiator support for 120/140/240/280/360 mm.

Rear mounted:

  • 1 Rear: 140mm SilentWings 3 PWM Fan.
  • Radiator support for 120/140 mm.

Top mounted:

  • Radiator support for 120/140/240/280/360 mm.
  • Maximum top radiator recommended thickness is 30 mm.

Power Supply:

  • There is no removable plate. Installing my PSU.

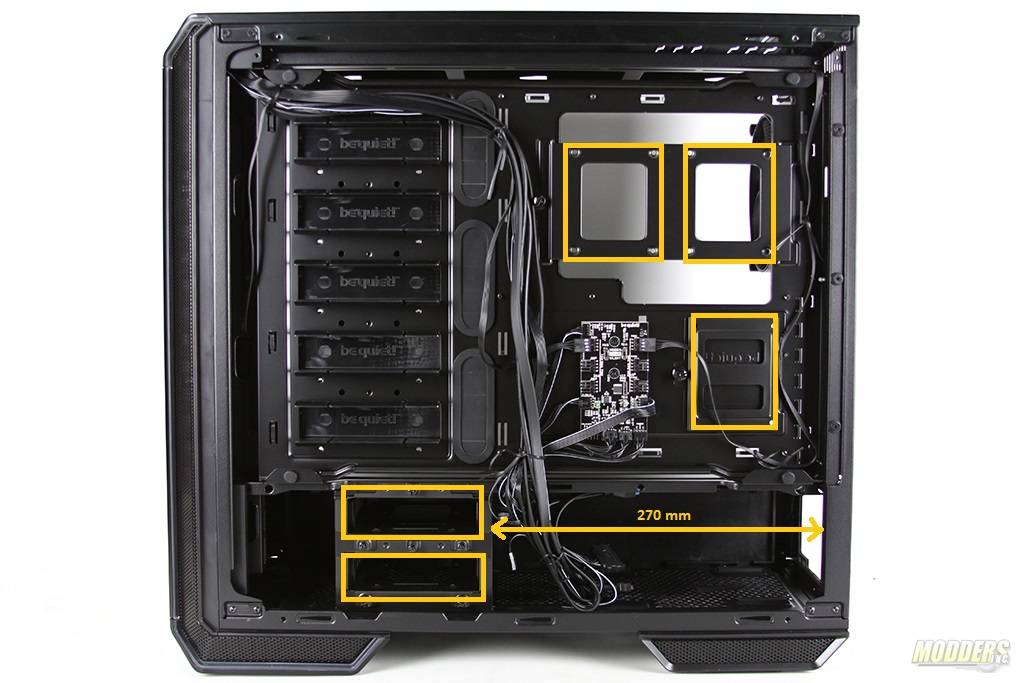

  • 270mm Clearance for Power Supply installation.

Video Card clearance:

  • There is 430mm of clearance before the reaching the front fan mounting area.

CPU Tower coolers:

  • CPU heat-sink height clearance is about 180mm.
  • Large CPU back plate cutout.

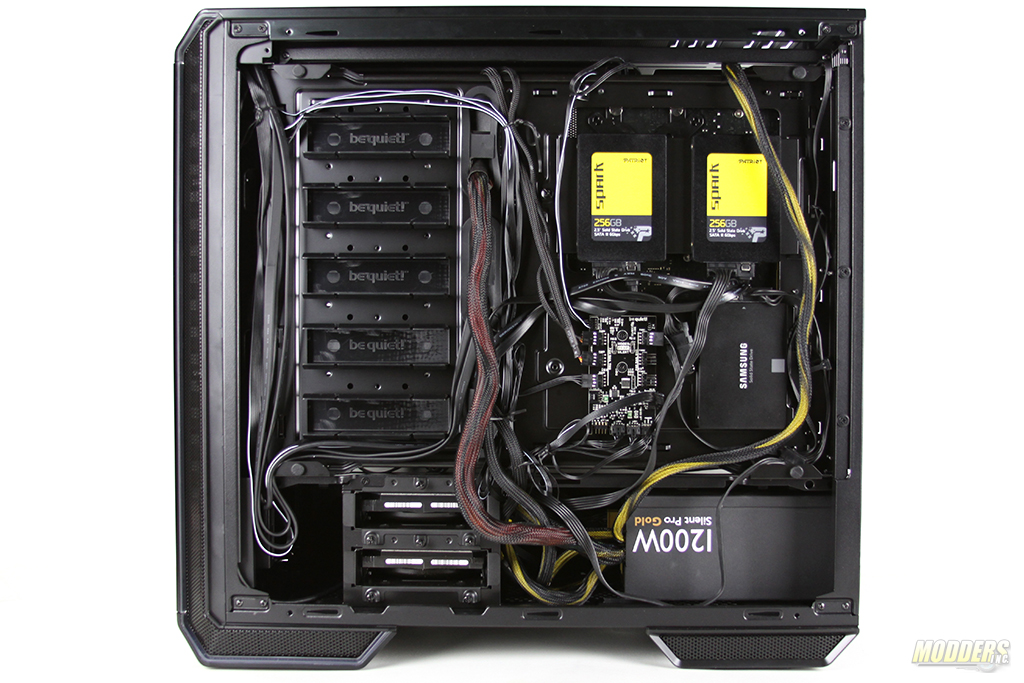

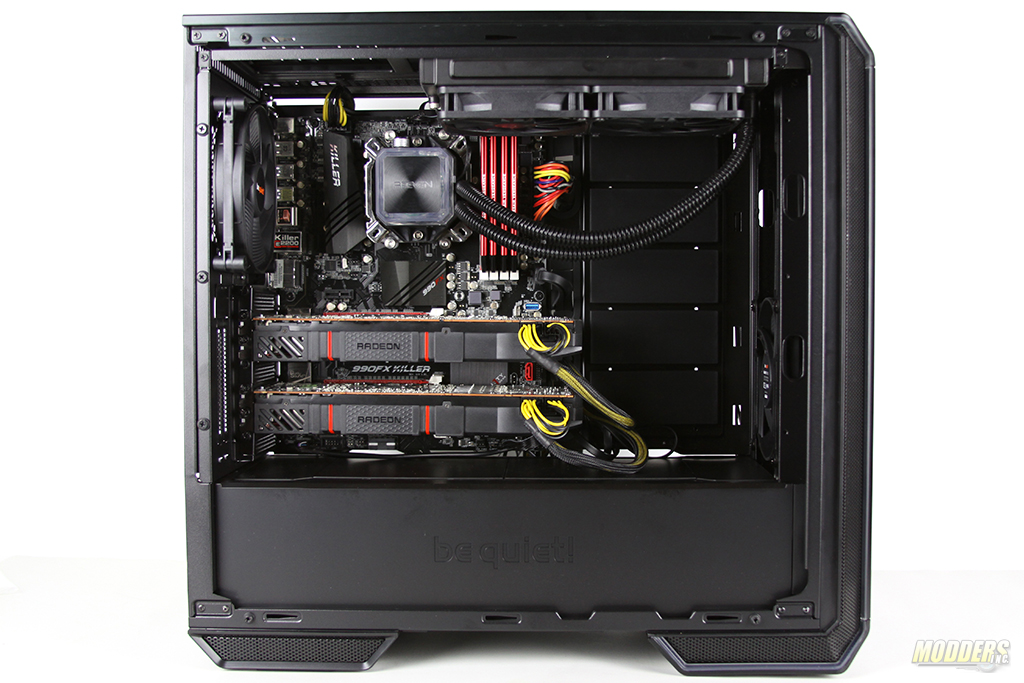

Putting together a test system wasn’t too difficult and as you can see there is plenty of space for any custom water-cooling loops that you might want to do with in this case. Most difficult part was the cable management in the back. No matter what I tried I just couldn’t get my cables in order. Maybe I should start using custom made cables? But the back cover keeps everything out of sight so I wasn’t really concerned with the rear cable management.

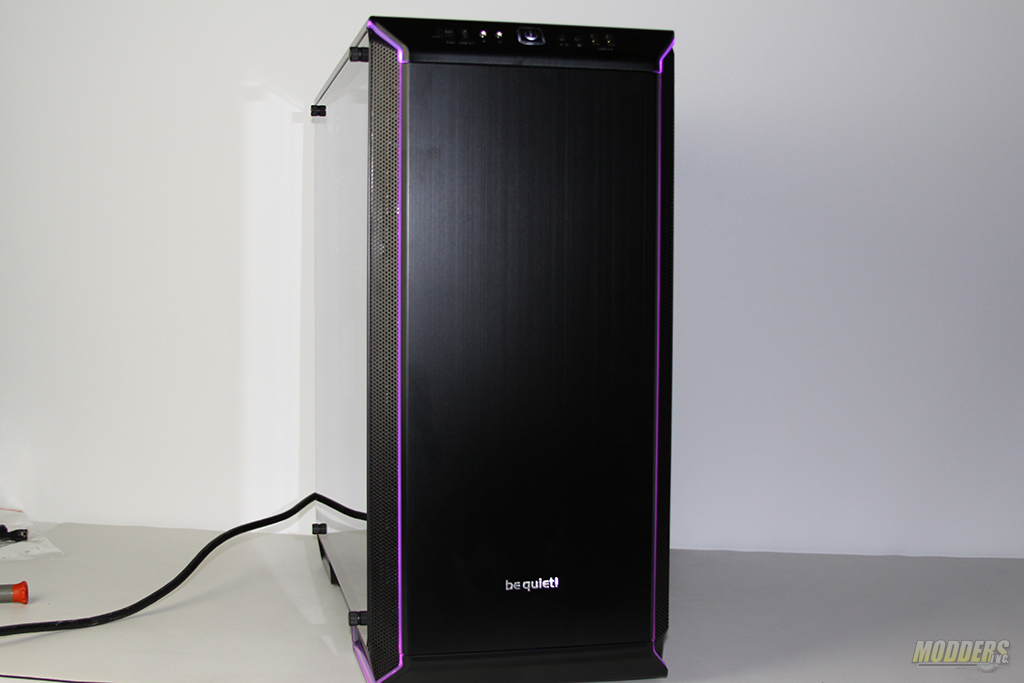

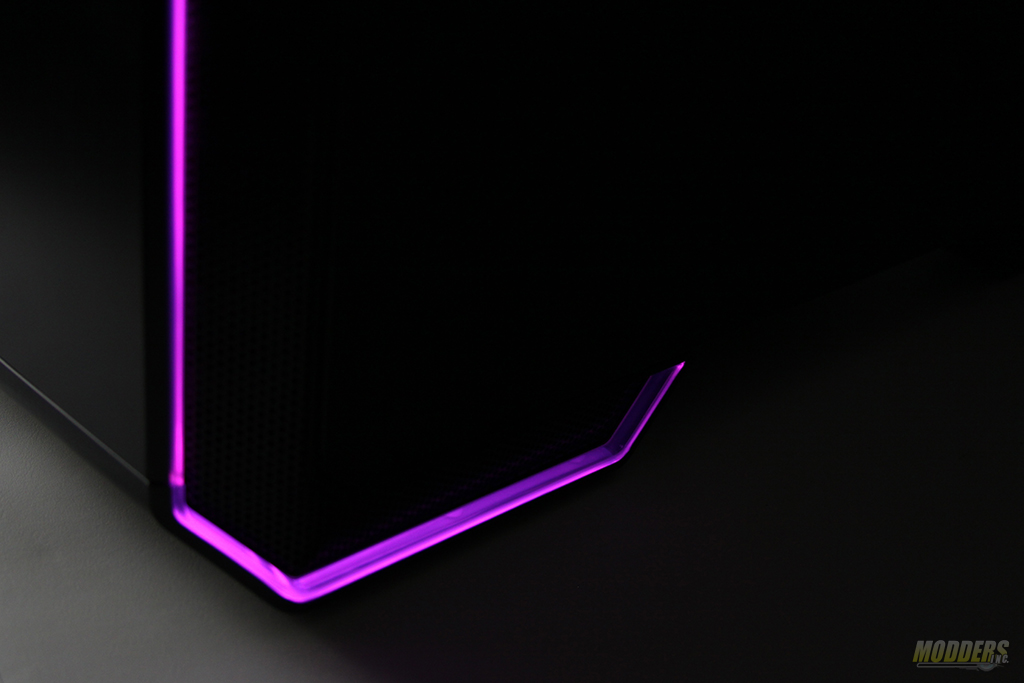

Once powered on, the system has some nice RGB LED settings which could be cycled through from the top I/O panel. Featured and non-customizable mode of operations are White, Red, Green, Blue, Orange and Purple. Each of these colors are complimented with optional ‘breathing’ effect for that additional ‘eye candy’.
