Phanteks Enthoo EVOLV Micro-Tower PC Chassis Review
The way we look at PC cases is forever changed thanks to the modders and the modding community. When people started to mod their beige PC cases, manufacturers took notice and changed. They changed what their cases looked like, they changed the materials used in the manufacturing process and most importantly, they changed the options available. In today’s market, there is not a “true” standard for what a PC case should look like. The only standard that is used (for the most part) is the size of the motherboard. It is true, there are still full and mid tower cases and there are still micro tower cases but it is the evolution of the PC case that is so exciting. Using small form factor (SFF) components no longer means that you have to sacrifice performance in order to get a smaller foot print. SFF components have changed and so have the cases. Phanteks recently released the Evolv PC chassis as part of the Enthoo line. This micro-tower boasts a ton of features, has the ability to add large radiators and has a sexy exterior to boot. But, does form meet function in the Evolv? Is it easy to assemble? What is the fit and finish on this case? Phanteks has a reputation for building top-notch products. Let’s take a look at the Enthoo Evolv.
[sc:sponsor sponsor=”Phanteks” product_link=”http://www.phanteks.com/enthoo-evolv.html” product_name=”Enthoo Evolv” product_price=”$129 USD (Black)/$139USD (White)” ]
The Enthoo Evolv box gives a nice teaser on the front. A clear image of the case housed inside along with the words Enthoo Evolv are the only things that adorn the front.
The back of the box for the Enthoo Evolv is a different story. Clear images are present and detail the highlights of this case.

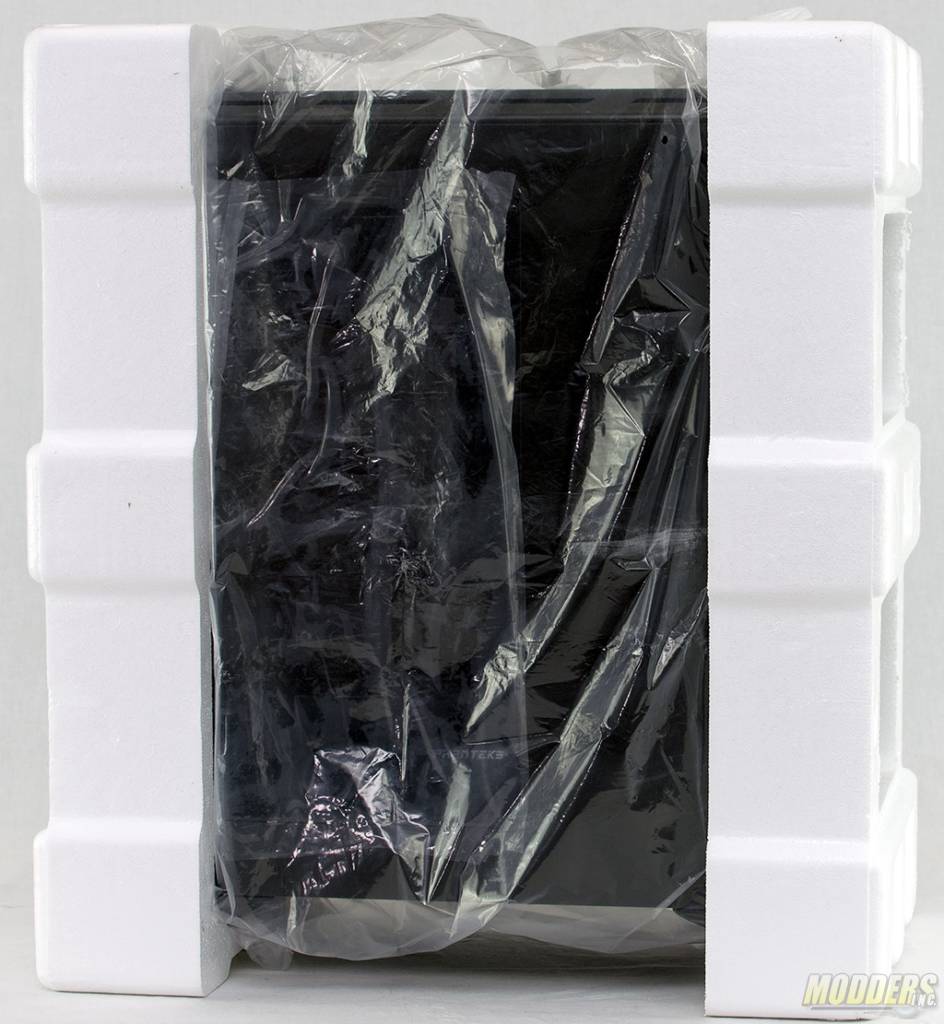

Wrapped in plastic and rigid foam is the Enthoo Evolv PC chassis. The rigid foam helps protect the case from dents and dings while the plastic helps protect the finish from scuffs and scratches.

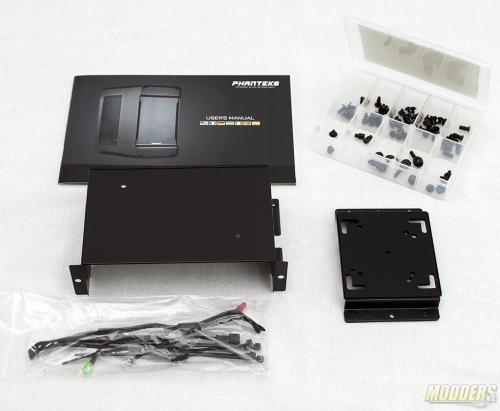

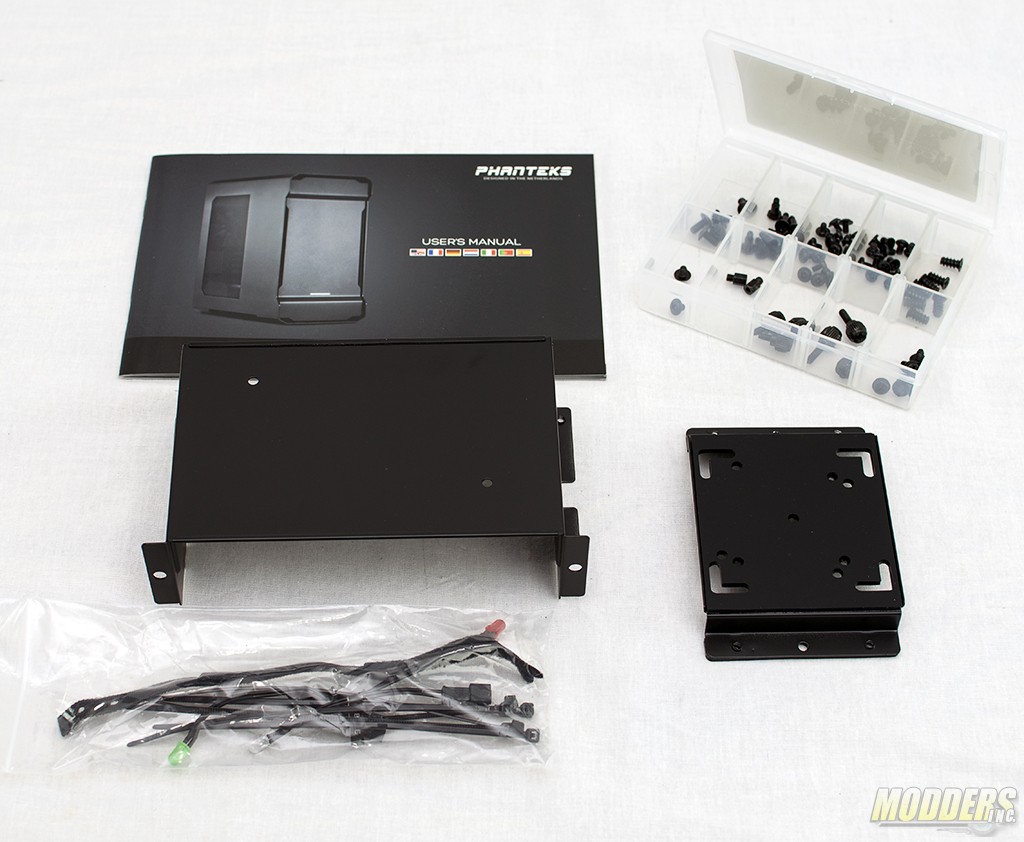

Packed away in the innards of the case is the installation kit. The kit includes a manual, a hard plastic container that separates the screws needed for installation, a optical drive bay, a water pump mount, extra velcro straps and different color power LEDs that can be swapped out.
|
||||||||||||||
Case Specifications
|
||||||||||||||
Dimension
|
230 mm x 450 mm x 400 mm (W x H x D)
|
|||||||||||||
Form Factor
|
Micro Tower Chassis
|
|||||||||||||
Material(s)
|
Aluminum Exterior, Steel Chassis
|
|||||||||||||
Motherboard Support
|
uATX, mITX
|
|||||||||||||
Front I/O
|
2x USB 3.0, Mic, Headphone
|
|||||||||||||
Side Window
|
Yes
|
|||||||||||||
Expansion & Drive Bays | ||||||||||||||
Expansion slots
|
4
|
|||||||||||||
External 5.25″
|
1 (modular)
|
|||||||||||||
Internal 3.5″
|
3
|
|||||||||||||
Internal 2.5″
|
5 (1 slot for upgrade)
|
|||||||||||||
Cooling
|
120mm fan
|
140mm fan
|
200mm fan
|
|||||||||||
Front
|
2x
|
2x | 1x (included) | |||||||||||
Top
|
2x
|
2x | – | |||||||||||
Rear
|
1x
|
1x (included) | – | |||||||||||
Liquid Cooling
|
120mm radiator
|
140mm radiator
|
||||||||||||
Front
|
Up to 240
|
140 | ||||||||||||
Top
|
Up to 240
|
Up to 280 | ||||||||||||
Rear
|
120
|
140 | ||||||||||||
Clearance
|
||||||||||||||
Graphic card
|
318mm
|
|||||||||||||
PSU |
216mm (remove Midplate cover for PSU longer than 180mm)
|
|||||||||||||
CPU cooler
|
192mm
|
|||||||||||||
Cable management
|
24mm (216mm below midplate)
|
|||||||||||||
Radiator (Top)
|
68mm to Motherboard (offset)
|
|||||||||||||
Packaging Information
|
PH-ES614L
|
|||||||||||||
Package Dimension
|
308mm x 540mm x 463mm (WxHxD)
|
|||||||||||||
Net Weight
|
9 Kg
|
|||||||||||||
Gross Weight
|
10 Kg
|
|||||||||||||
Warranty
|
||||||||||||||
Length
|
5 Years Limited
|
