Benchmarking
| System Configuration | |
| Case | Open Test Table |
| CPU | Intel Core i7 9700K |
| Motherboard | EVGA Z390 FTW |
| Ram | (2) 8GB Corsair DDR4-3200 CMW16GX4M2C3200C16 |
| GPU | MSI RTX 2080 SUPER GAMING X TRIO |
| Hard Drives | Corsair Force MP510 NVMe Gen 3 x4 M.2 SSD (480Gb)
Patriot Viper VPR100 NVMe Gen 3 x4 M.2 SSD (1TB) |
| Power Supply | Thermal Take Tough Power RGB 80 Plus Gold 750W |

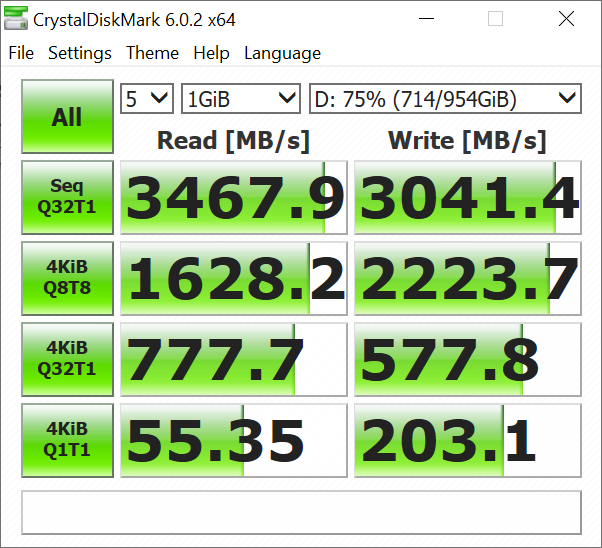

Crystal Disk Mark benchmark at 1GB test size:

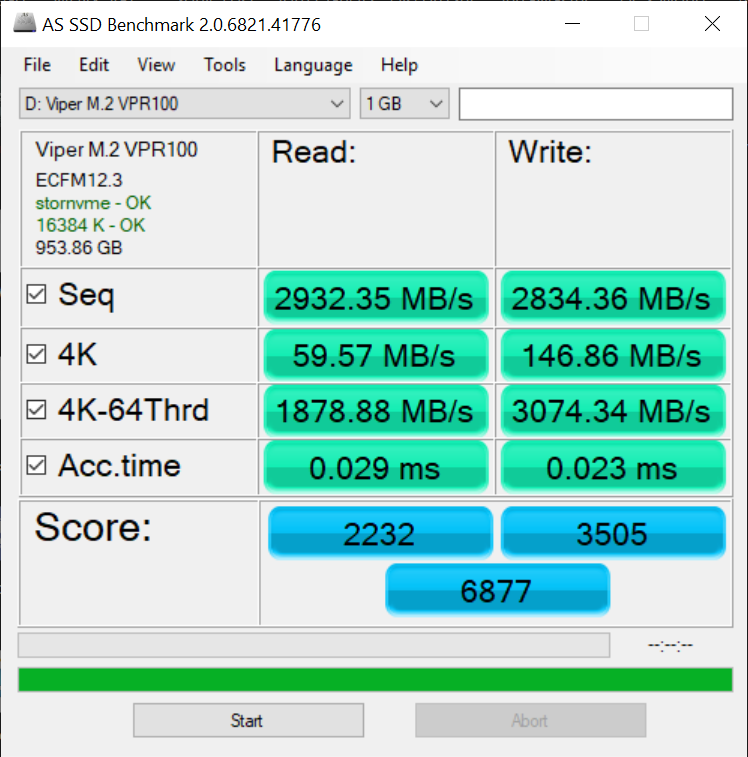

AS SSD uses incompressible data for benchmarking and can measure read/write performance in MB/s or in IOPS. AS SSD also has a Copy Benchmark which simulates ISO, Game and program performance, providing both speed and access time results.

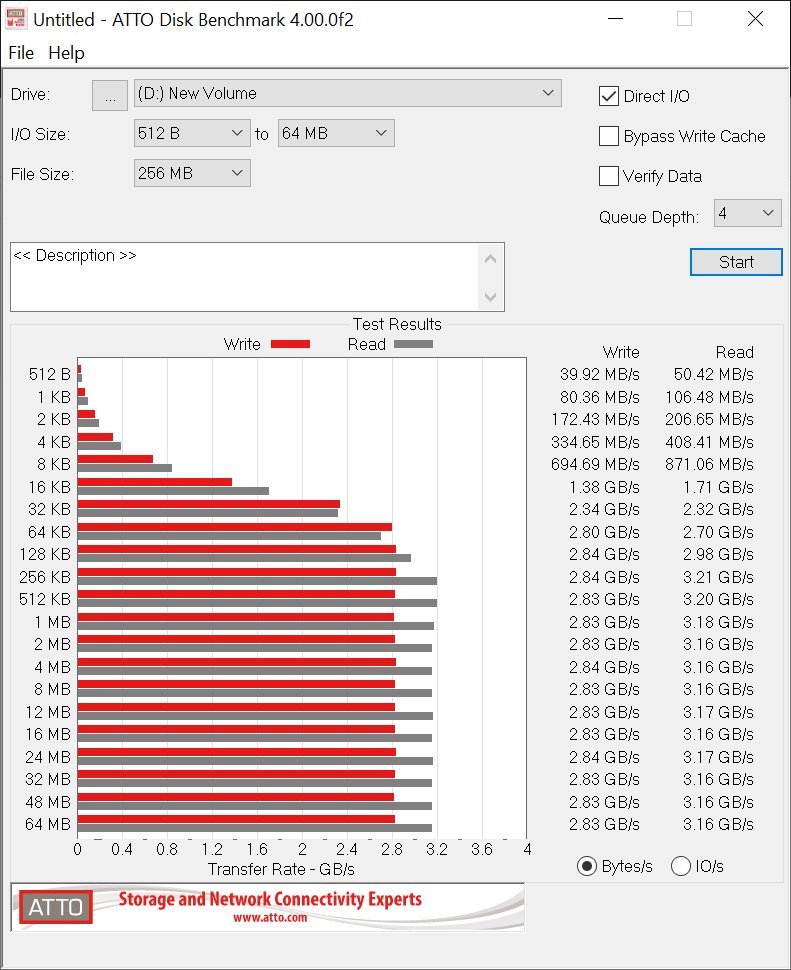

Unlike AS SSD, the ATTO disk benchmark is a 32-bit compressible data benchmark that measures read and write speeds across various file transfer sizes from 512B to 64MB to show SSD behavior.

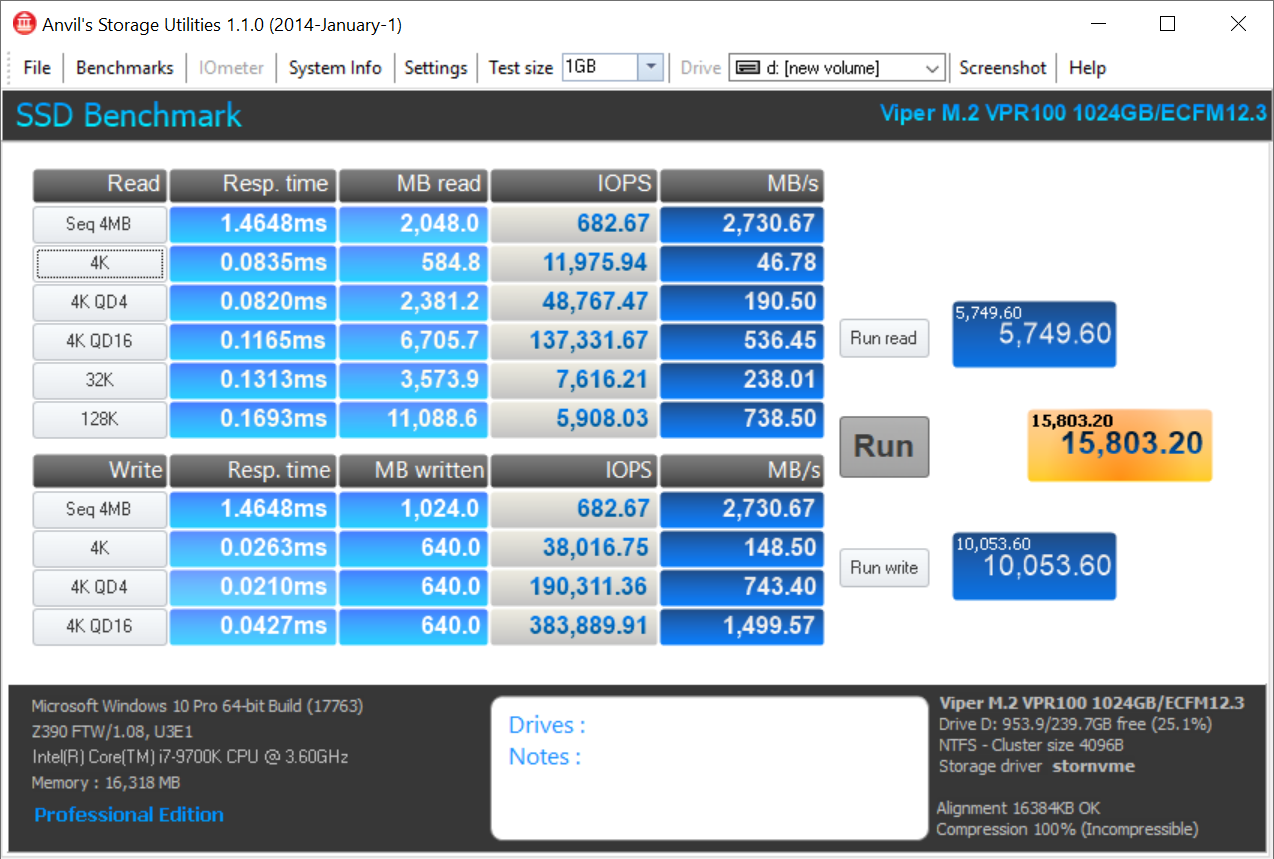

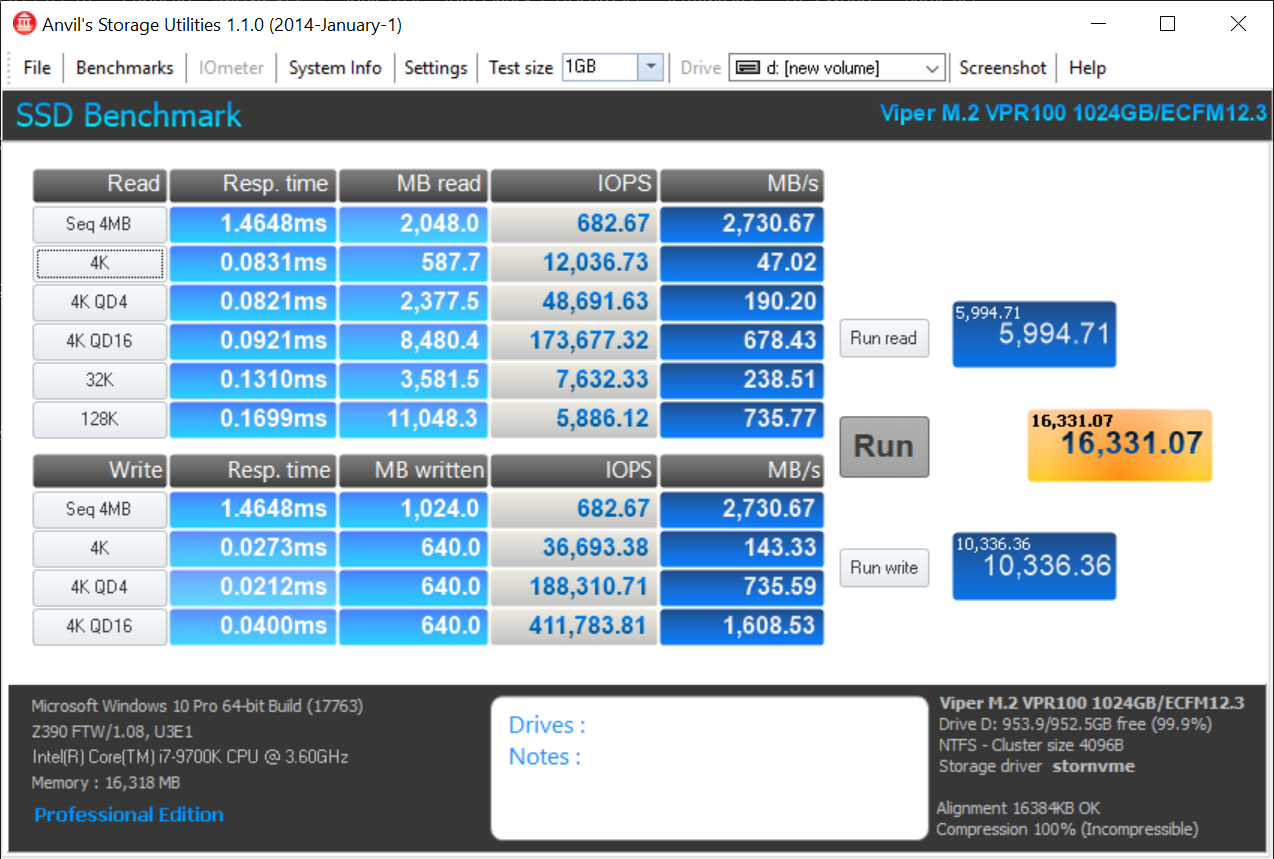

Anvil Storage Utilities is a comprehensive storage testing program that provides plenty of information and option for each test. For this review, the SSD test was selected.

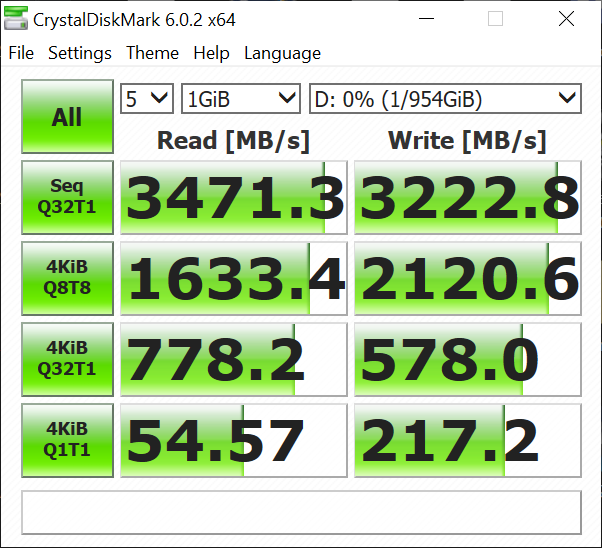

Crystal Disk Mark benchmark at 1GB test size with RGB SYNC on.
