Benchmarking
System Configuration | |
Case | Open Test Table |
CPU | Intel Core i7 8700K |
Motherboard | Gigabyte AORUS Z370 ULTRA GAMING |
Ram | (2) 8GB Corsair DDR4-3200 CMW16GX4M2C3200C16 |
GPU | MSI GeForce® RTX 2080 SUPER™ GAMING X TRIO |
Drivers | NVIDIA 431.60 |
Hard Drives | Corsair Force MP510 NVMe Gen 3 x4 M.2 SSD (480Gb) |
Power Supply | Thermal Take Tough Power RGB 80 Plus Gold 750W |

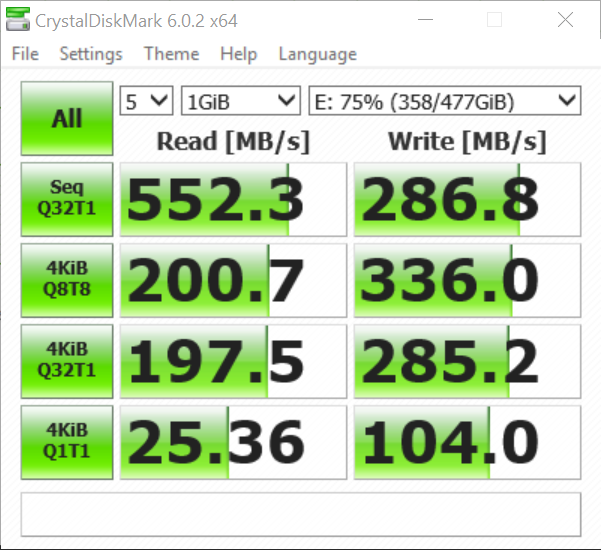

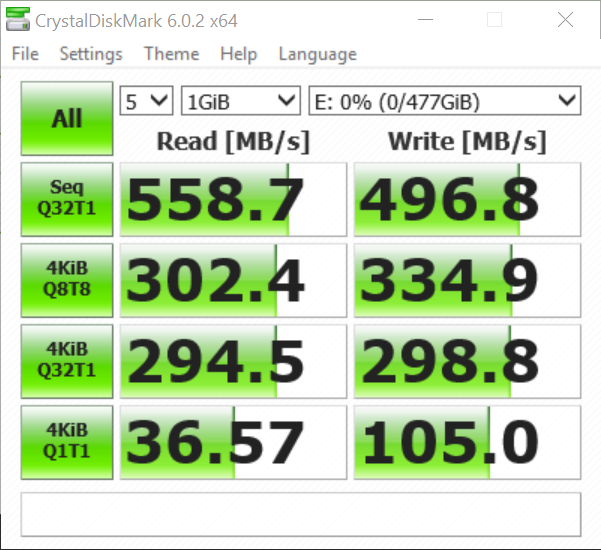

Crystal Disk Mark benchmark at 1GB test size:

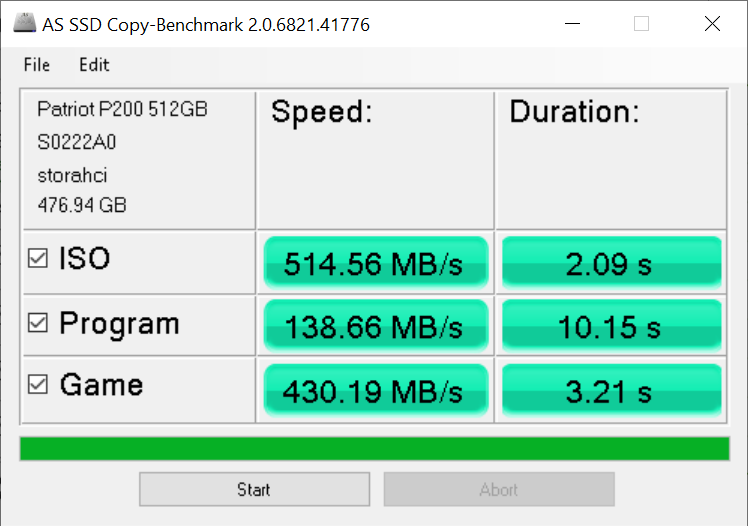

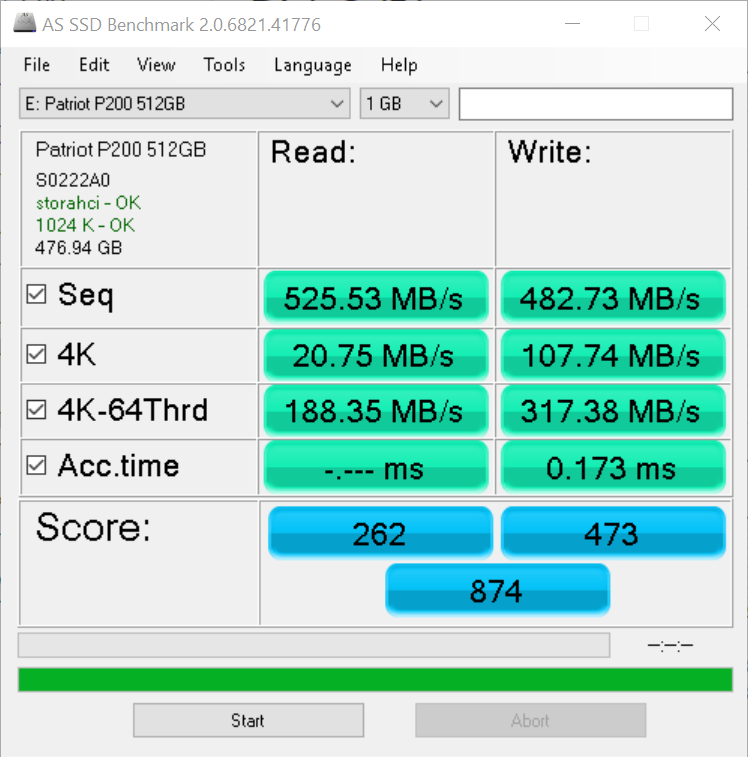

AS SSD uses incompressible data for benchmarking and can measure read/write performance in MB/s or in IOPS. AS SSD also has a Copy Benchmark which simulates ISO, Game and program performance, providing both speed and access time results.

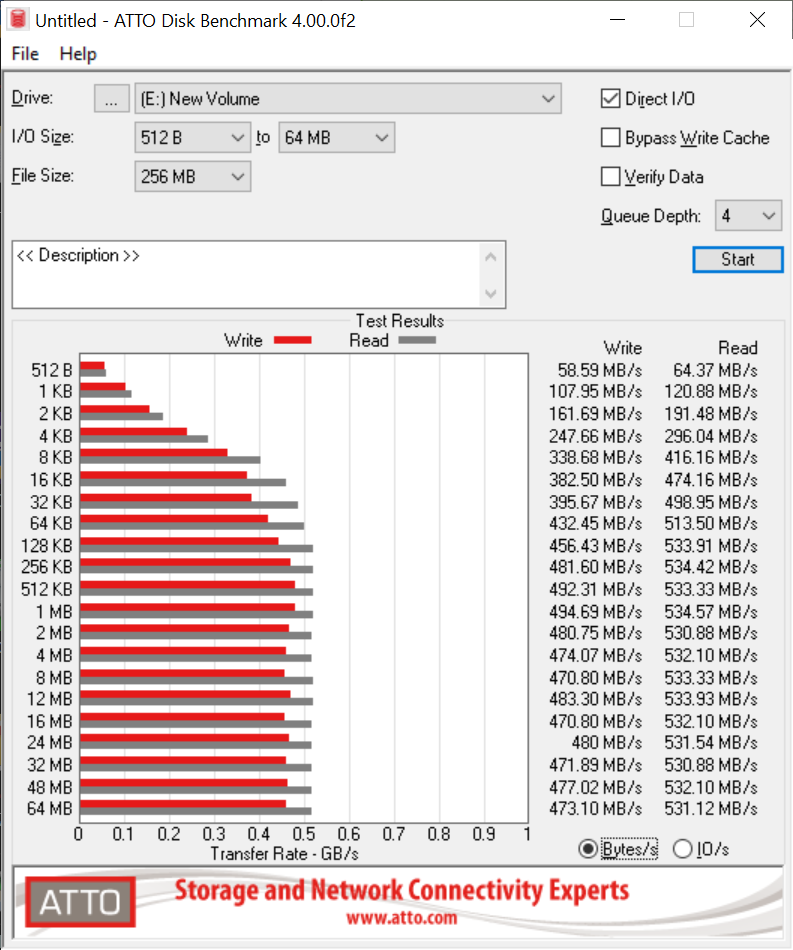

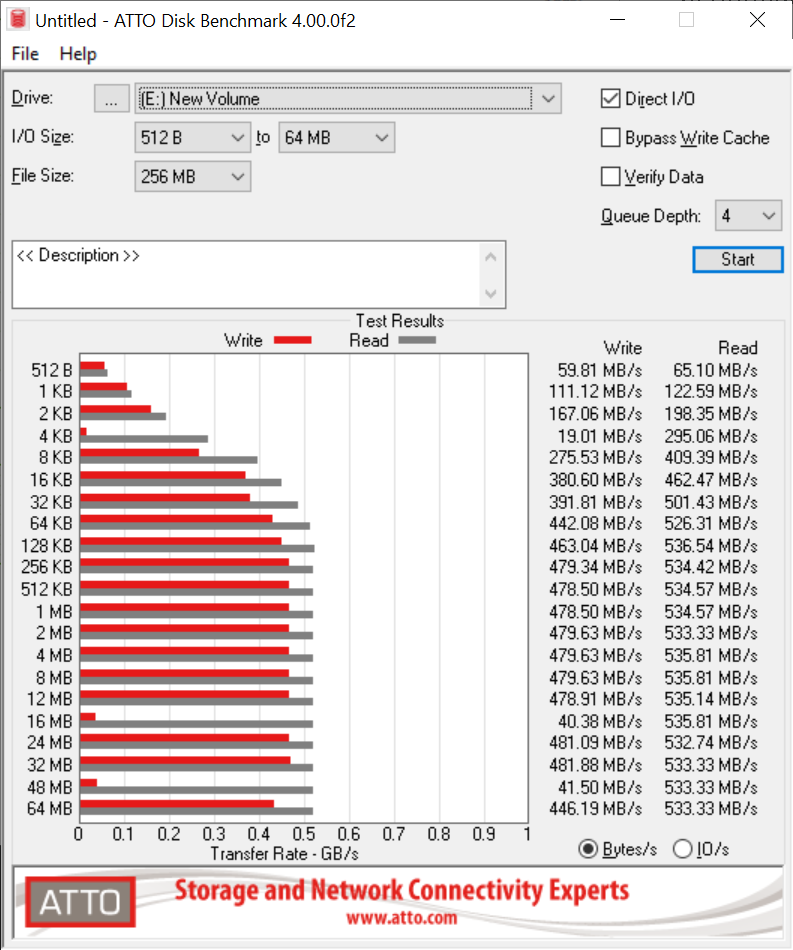

Unlike AS SSD, the ATTO disk benchmark is a 32-bit compressible data benchmark that measures read and write speeds across various file transfer sizes from 512B to 64MB to show SSD behavior.

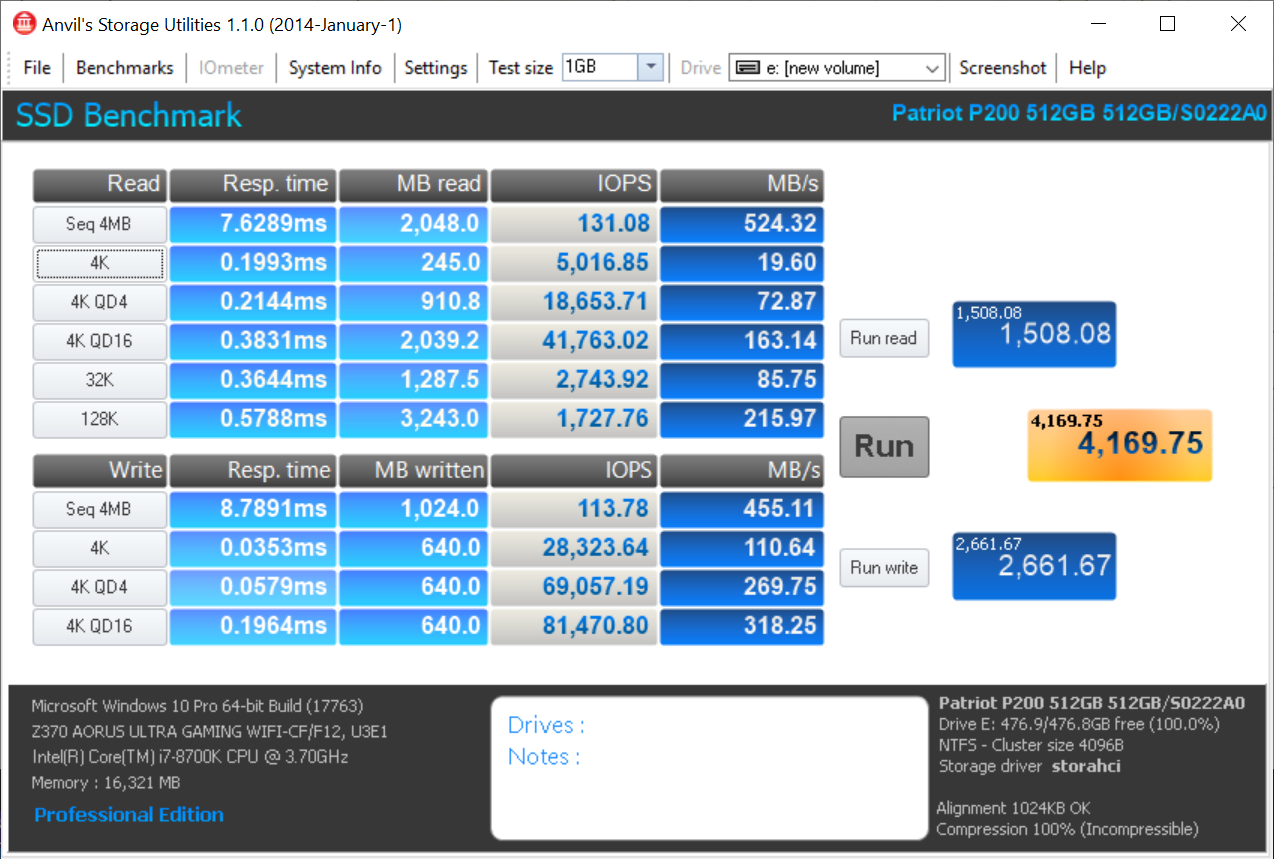

Anvil Storage Utilities is a comprehensive storage testing program that provides plenty of information and option for each test. For this review, the SSD test was selected.

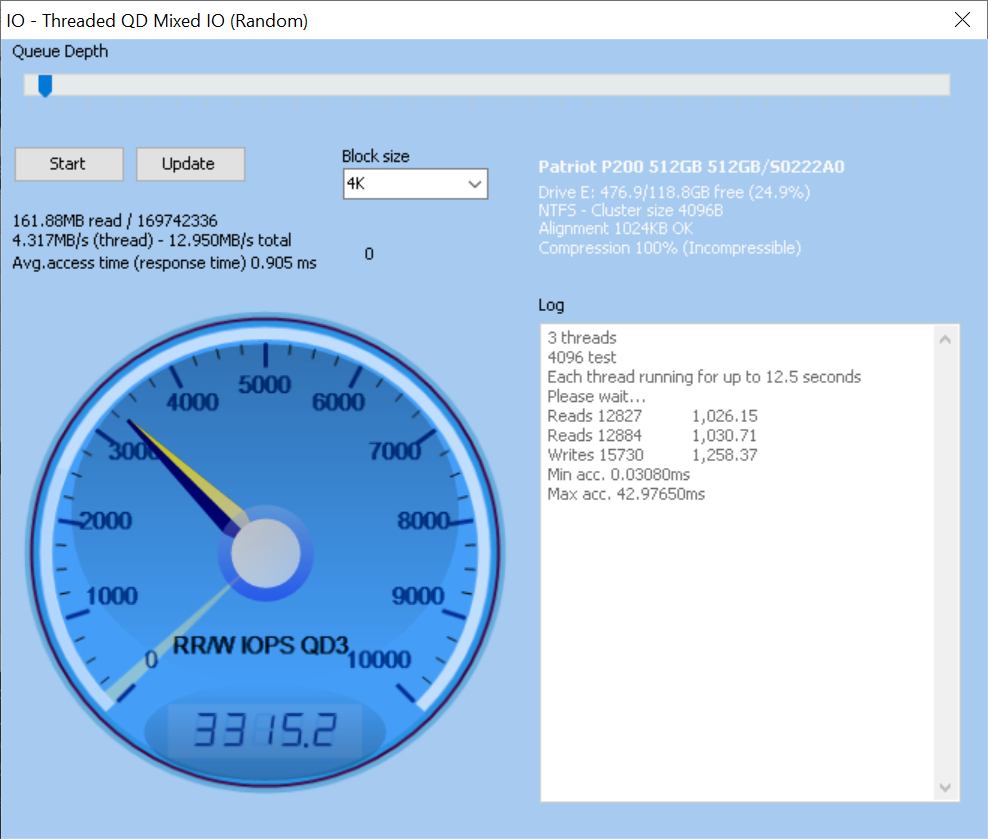

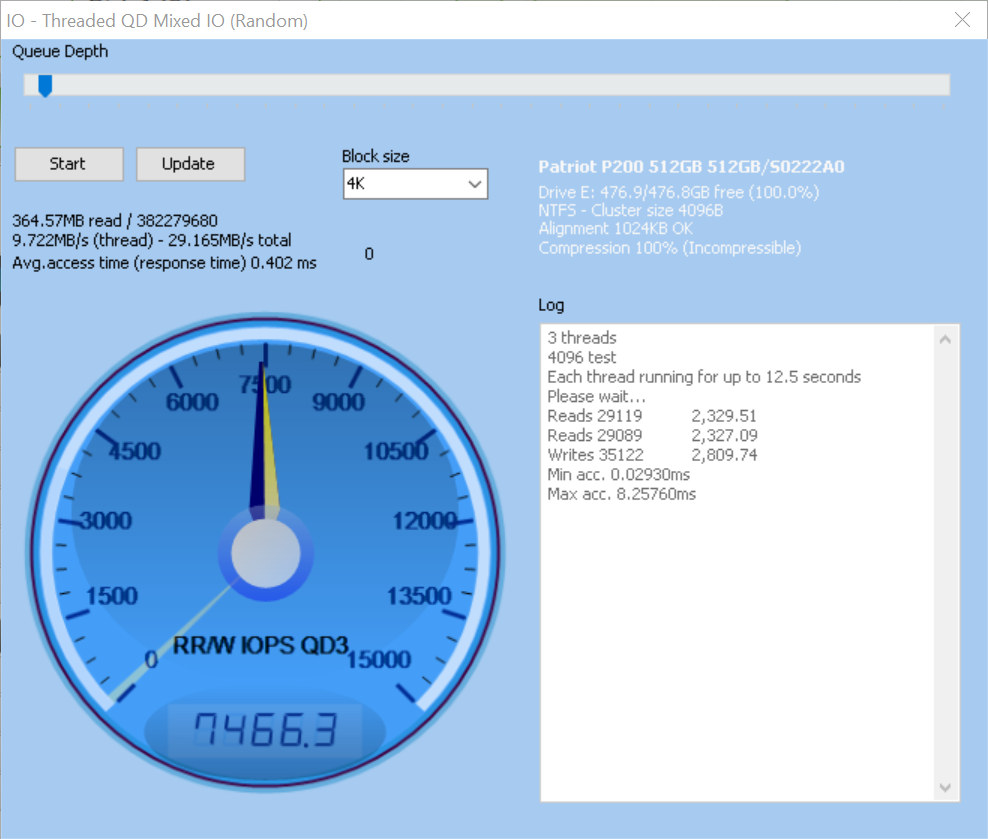

Random Threaded IO

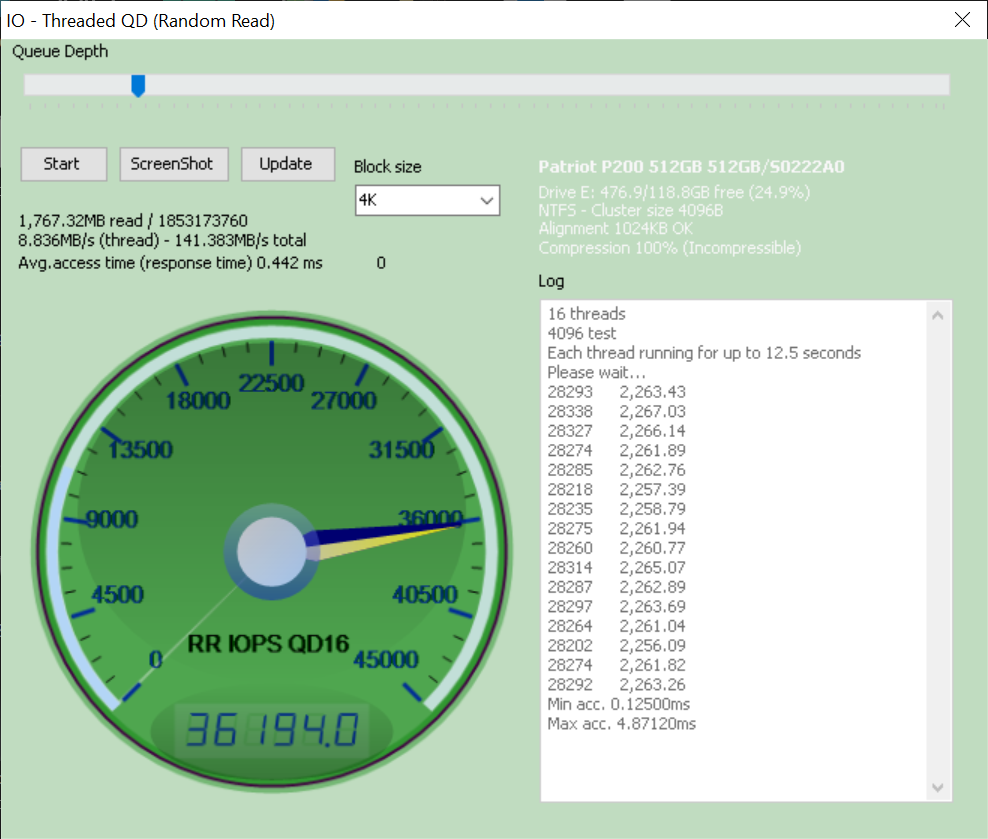

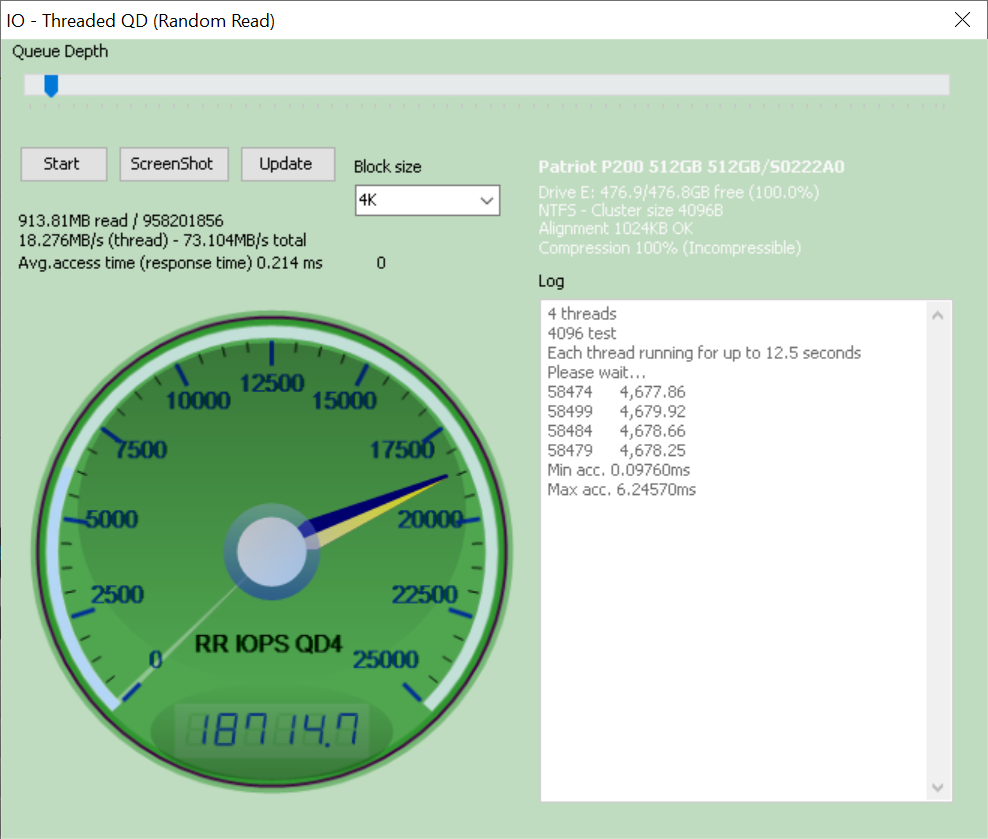

Random Threaded IO Read Only

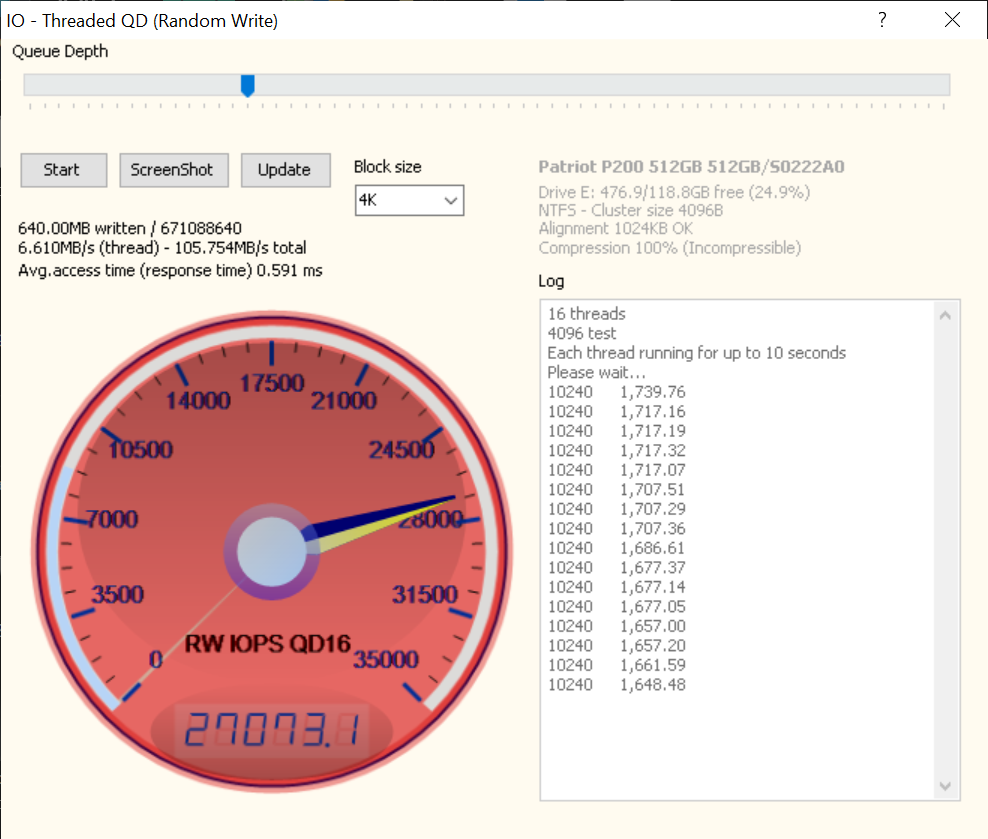

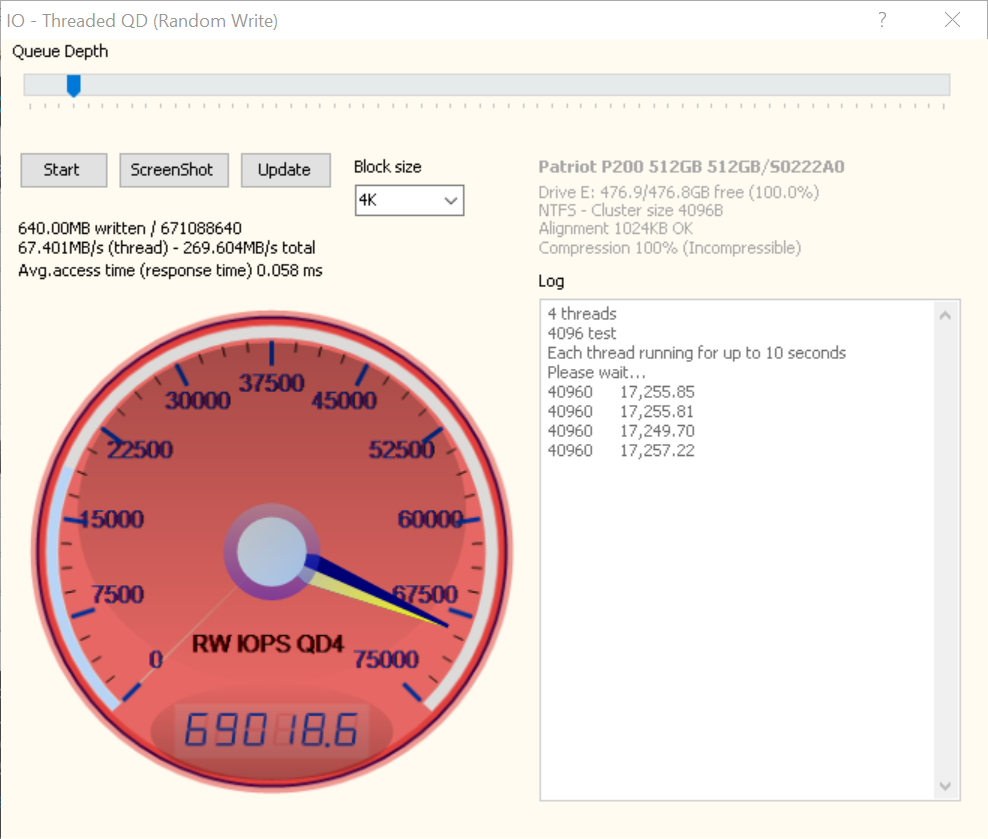

Random Threaded IO Write Only
