NZXT Hale 90 V2 1000 Watt Power Supply

« Page 2 | Page 4 »

Exterior Features

NZXT Hale 90 V2 1000 watt power supply NZXT Hale 90 V2 1000 watt power supply

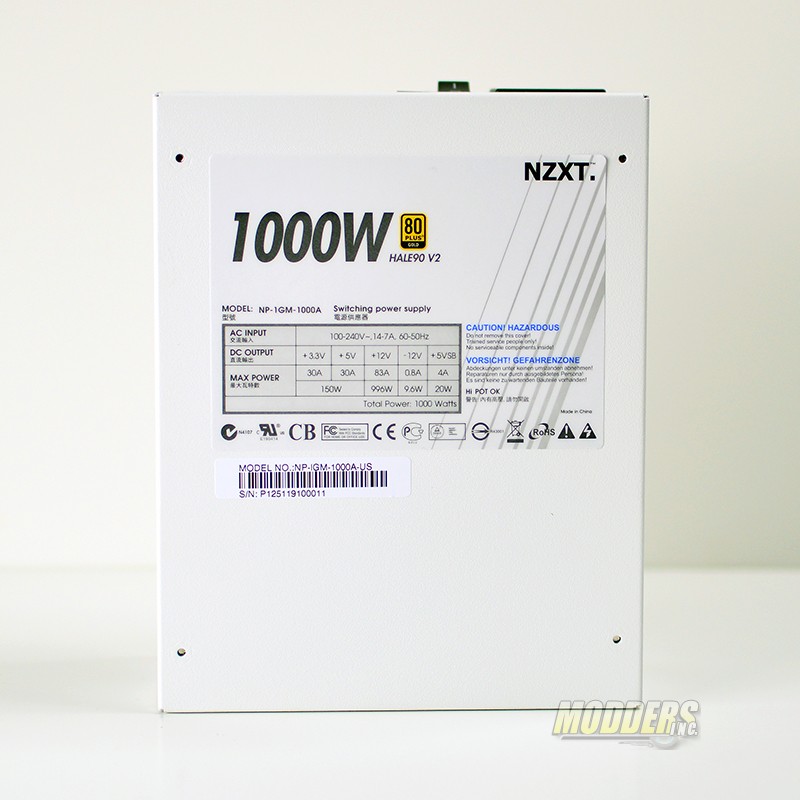

 The top portion of the power supply details the electrical specifications. The design of the NZXT Hale 90 V2 1000 watt power supply is a single rail. This means that power comes from a single source inside the psu and does not split. The 12v portion of the rail, which includes all the PCIE, SATA and motherboard connections can support a maximum load of 996 watts. In order to continue to be the work horse of the PC the power supply has to be kept cool and the cooling is provided by a 140mm fan. As the load on the power supply increased so does the fan speeds. At “normal” load the fan is nearly silent.

 NZXT Hale 90 V2 1000 watt power supply NZXT Hale 90 V2 1000 watt power supply

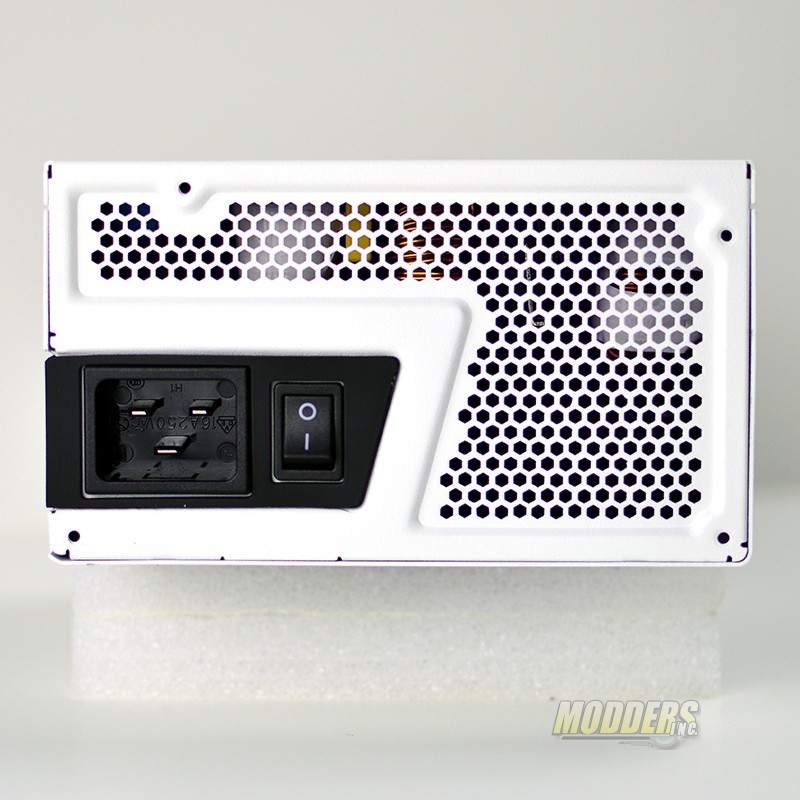

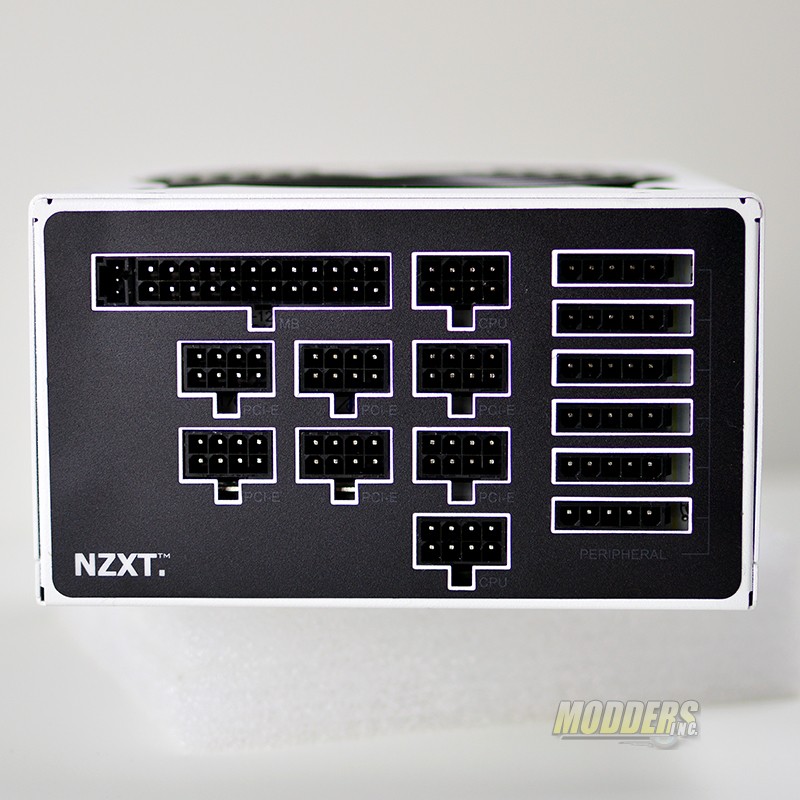

 The NZXT Hale 90 V2 1000 watt power supply is a fully modular design. This means that every cable can be removed from the power supply. This comes in handy for cable management. The other end of the unit houses the power connector and switch. The higher amerage C19 connector is used so a standard PC power cable will not work. The waffle vent design is used in conjunction with the fan to help maximize cooling.
