Noctua NH-U9S CPU Cooler Review: Undersized but Over-performs

« Closer Look at the Noctua NH-U9S | Test System and Benchmarks »

Installation of the Noctua NH-U9S

noctuau9s07 noctuau9s08

Before proceeding with installation, lay out all accessories and cross reference the package content with the illustrated user’s guide.

AMD Installation

AMD Installation Noctua

NH-D15 AMD Installation AMD Installation Noctua

AMD installation is universal since the mounting holes remain unchanged for several years now since AM2 all the way to AM3+ and FM2+ except with the new AM1 socket.  The motherboard’s backplate is utilized but the plastic brackets and screws have to be removed.  Simply place the white plastic spacers on the small protruding piece of the backplate, then place the mounting bars and secure them with the four long screws. It is easy to do with the motherboard outside of the case horizontally, although installing with the motherboard already installed vertically on a case will take a bit of effort as the spacers can fall off.  The NH-U9S can only be installed in a standard horizontal push (or push-pull) configuration on AMD systems.

Intel Installation

Noctua Intel LGA2011 Installation

Installation on LGA2011 motherboards with integrated locking mechanism does not require a backplate or spacers but requires the NM-IB2T bolts to be hand-screwed in place first.  Installation on older LGA775 and LGA1366 is not supported, but mounting kits for these are available free of charge from Noctua with a valid proof of purchase (such as a receipt).

noctuau9s17

noctuau9s18 noctuau9s19

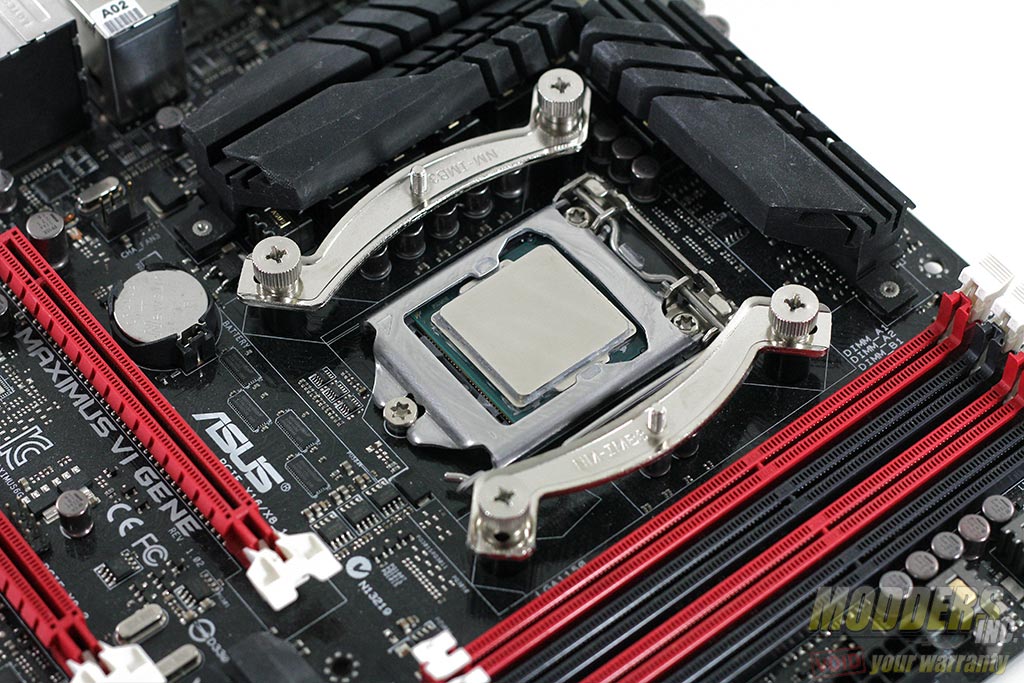

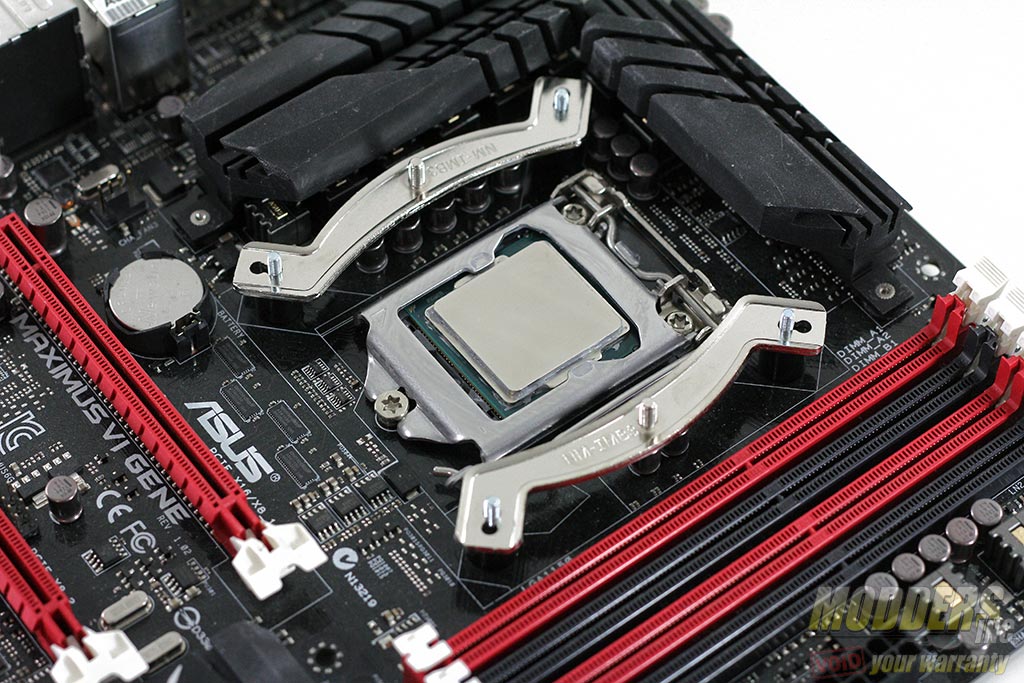

Installation on LGA115x first requires the backplate to be positioned through the mounting hole, now made simpler since the posts are integrated into the plate itself unlike in previous generation Noctua coolers. The spacers can be placed next with the mounting bar pair going on top to be secured with the four thumbscrews. This last part with the mounting bar is identical to the LGA2011 installation. Make sure to position the mounting bar with the curve facing away from the CPU area. Use the outer holes for LGA2011 mounting and use the inner holes for LGA115x mounting.  Unlike the AMD mounting system, users can orient the mounting bars for either horizontal or vertical heatsink mounting since Intel mounting holes are equidistant from each other.

noctuau9s20 noctuau9s21

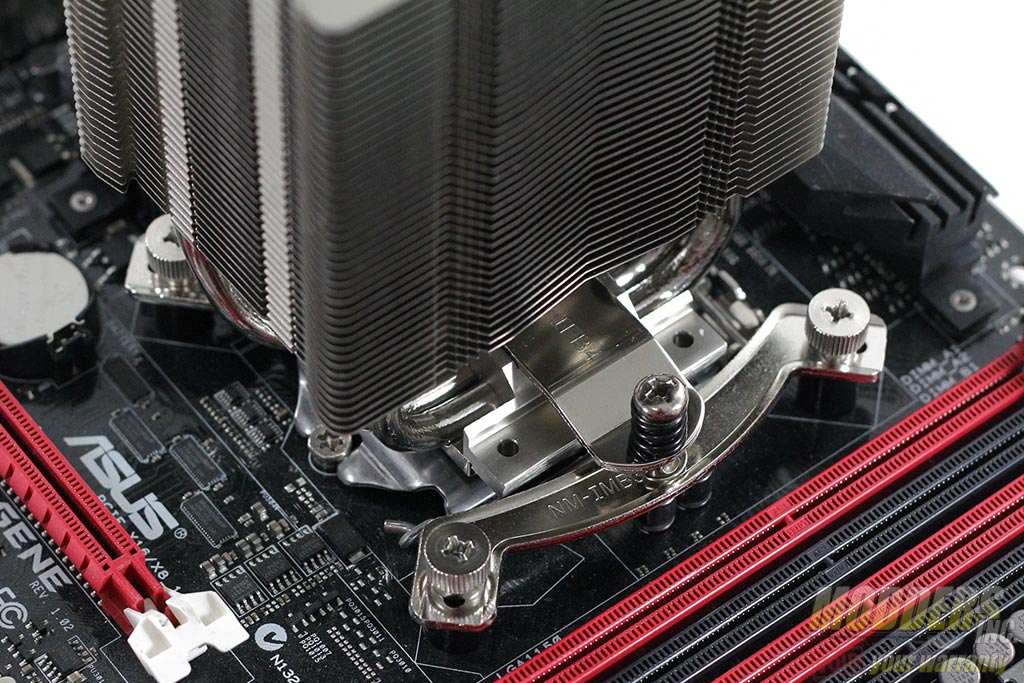

Apply the desired thermal compound quantity then simply align the NH-U9S screws to the mounting bar’s center male protrusion. The center screw holding the pre-installed bracket can be loosened by dropping the screw driver in the center hole and unseating the screw in the middle which should aid some users who may not be able to screw the bracket normally, although personally, I did not have to do that and was able to secure the NH-U9S directly on the two posts.

noctuau9s22

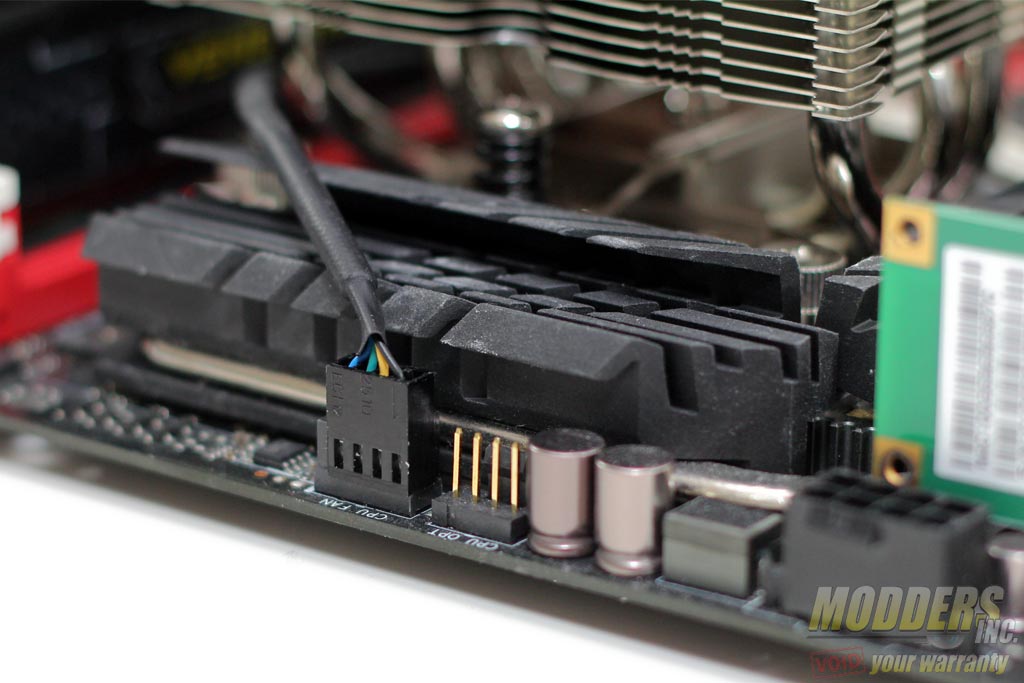

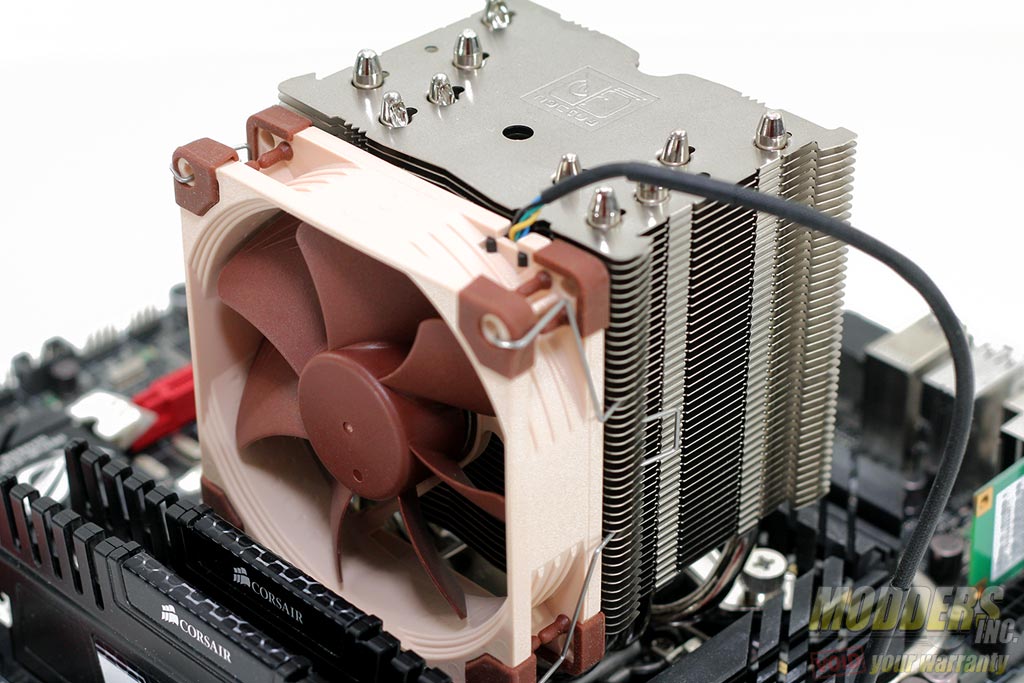

The last step is re-attaching the fan with the wire clips and plugging in the 4-pin connector to the header.  Make sure to change the settings in the BIOS/UEFI to a lower fan speed alarm setting or to set it to “ignore” completely as Noctua fans run at a very low speed and will trigger the fan speed alarm upon boot-up.

noctuau9s25 noctuau9s24

Compatibility and Clearance Issues

RAM, motherboard and video card clearance is dependent on your motherboard’s design. Thankfully, Noctua keeps a comprehensive list on each heatsink’s product page for reference: http://www.noctua.at/main.php?show=compatibility_gen&products_id=105&lng=en

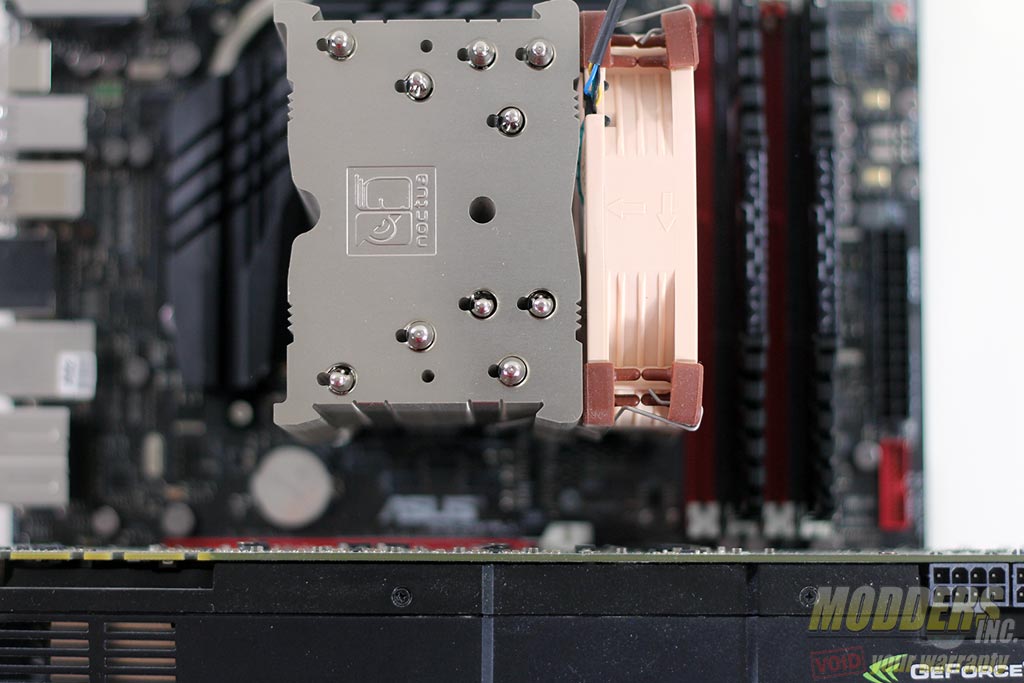

The test system motherboard is an ASUS Maximus VI Gene motherboard with a 28.5mm clearance between the CPU socket and the first DIMM slot and has a 45mm gap between the CPU socket and the topmost PCI-E x16 slot. Mounting the NH-U9S in Type A or front intake/rear exhaust position provides the maximum clearance for RAM, able to comfortably populate the first DIMM slot even with a tall RAM modules. PCI-E clearance is also a non-issue on the Type A mounting. The optional rear fan can be moved upwards for motherboards with MOSFET heatsinks taller than 33mm.

noctuau9s23 noctuau9s28

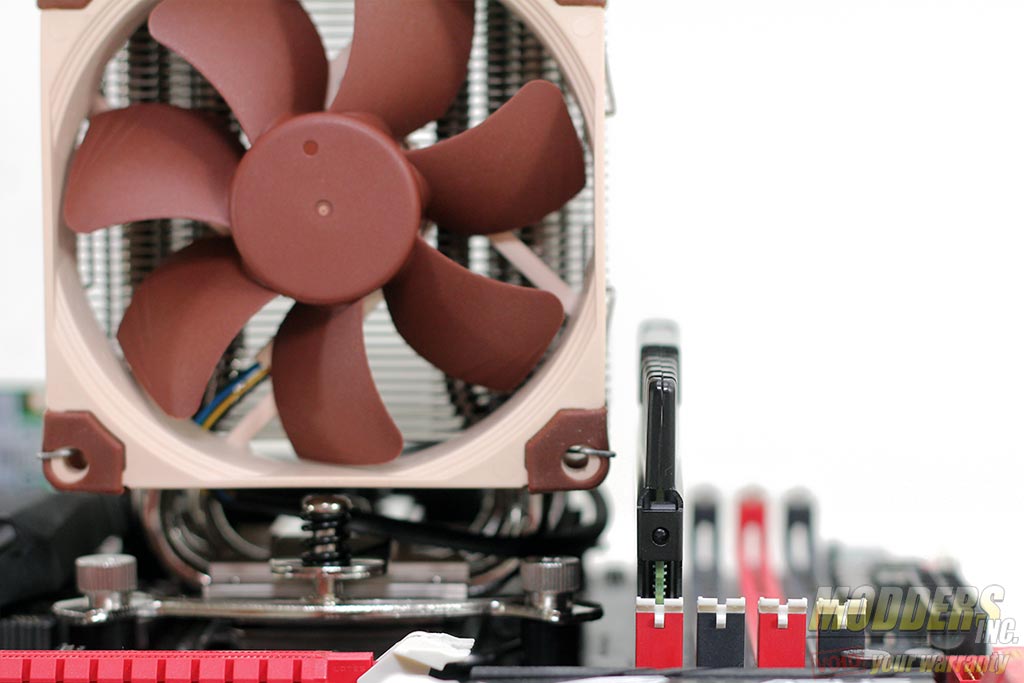

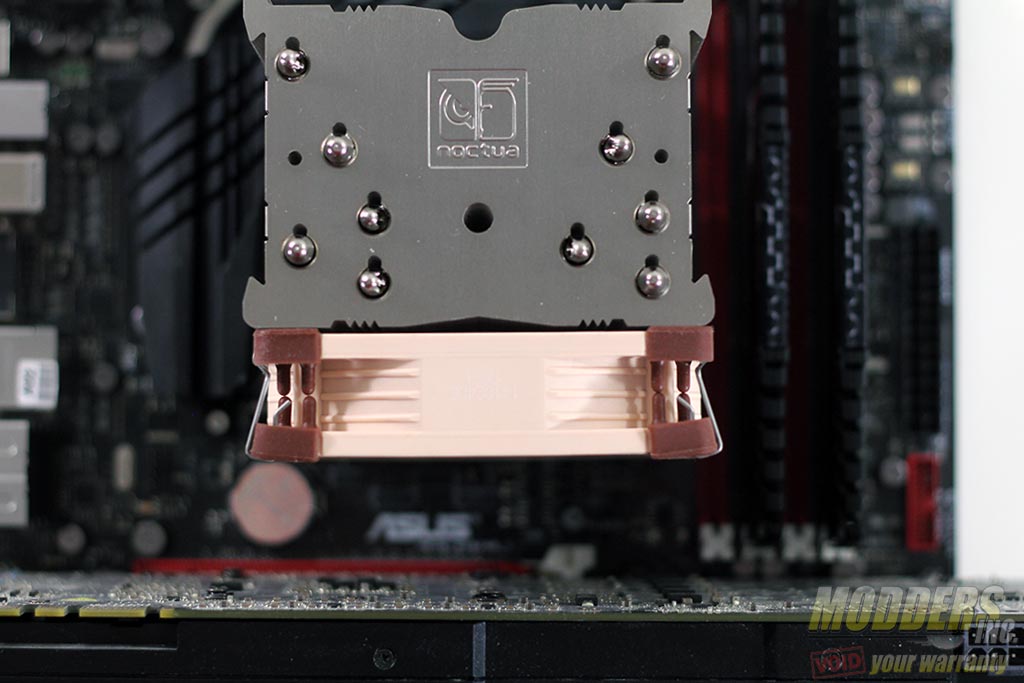

There is no visible RAM or PCI-E clearance issues observed in the Type B mounting as well.

noctuau9s27 noctuau9s29
