PC Water Cooling

Monsoon Modular Reservoir System (MMRS) Review

« Packaging & Specs | Construction & Conclusion »

Closer Look

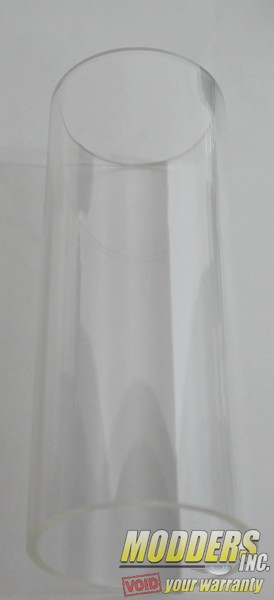

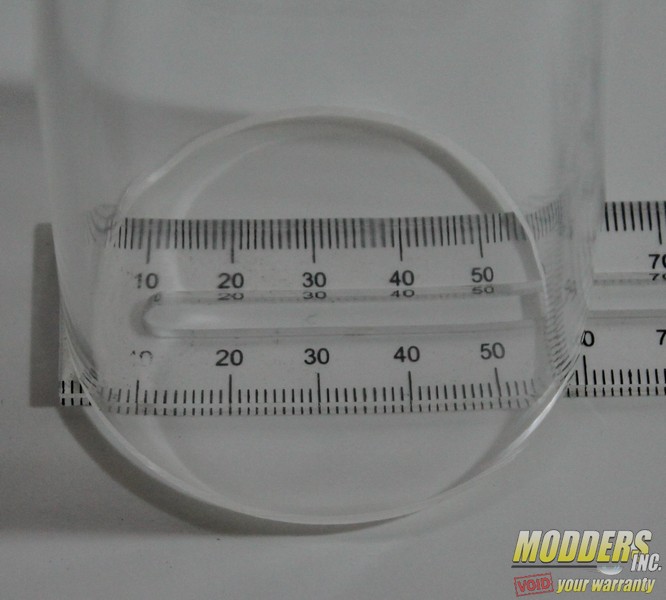

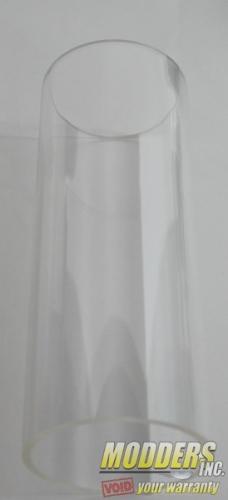

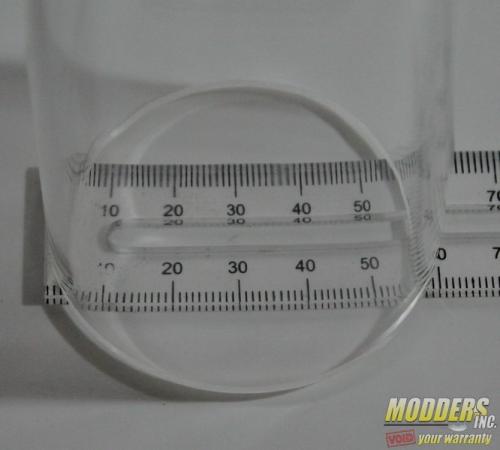

The tube is crystal clear acrylic. They come in all the colors Monsoon fittings come in. There is also a frosted and fusion (partially frosted) version as well.

IMG_5192

Each end cap is made of Delrin has the six holes around the edge for the six tension rods. There are however, a multitude of options when it comes to ports: everything from none or up to five ports. There is also a coupler piece that allows you to stack multiple tubes if you would like.

IMG_5193

Each port has been tapped into the Delrin for G1/4 fittings and are deep enough to accommodate some of the longer threaded fittings.

IMG_5197

Related Articles

Around on the back of each of the end caps are three sets of mounting holes. One for the back and for each side.

IMG_5199

The D5 Pump top piece has the six holes for the tension rods, a large hole in the middle with a chamfer to feed the pump and there is a single port for the outlet.

IMG_5198

The underside of the pump top has the threads for the pump motor cover. Six cut out for the tension rod fasteners.

IMG_5200

The D5 pump motor cover is made of two pieces of aluminum.

IMG_5201

The main body piece is held in place with threads and is ribbed. There are two small Allen head screws that hold the bottom plate in place.

IMG_5202

The reverse side of the bottom plate has padding for absorbing vibration and there are two notches for the cables.

IMG_5203

The aluminum tension rods are square at the ends where they get inserted into the end caps.

IMG_5209

Each tension rods comes with two Allen head fasteners painted to match.
