2 Front: 120mm Fan Support. (1 120mm fan Included)
2 Front: 140mm Fan Support.
Radiator support for 240mm and 280mm.
Rear mounted:
1 Rear: 120mm Fan Support.
Radiator support for 120mm.
Side mounted:
2 Side: 120mm Fan Support.
Radiator support for 240mm.
Top mounted:
N/A.
Power Supply:
There is no removable plate.

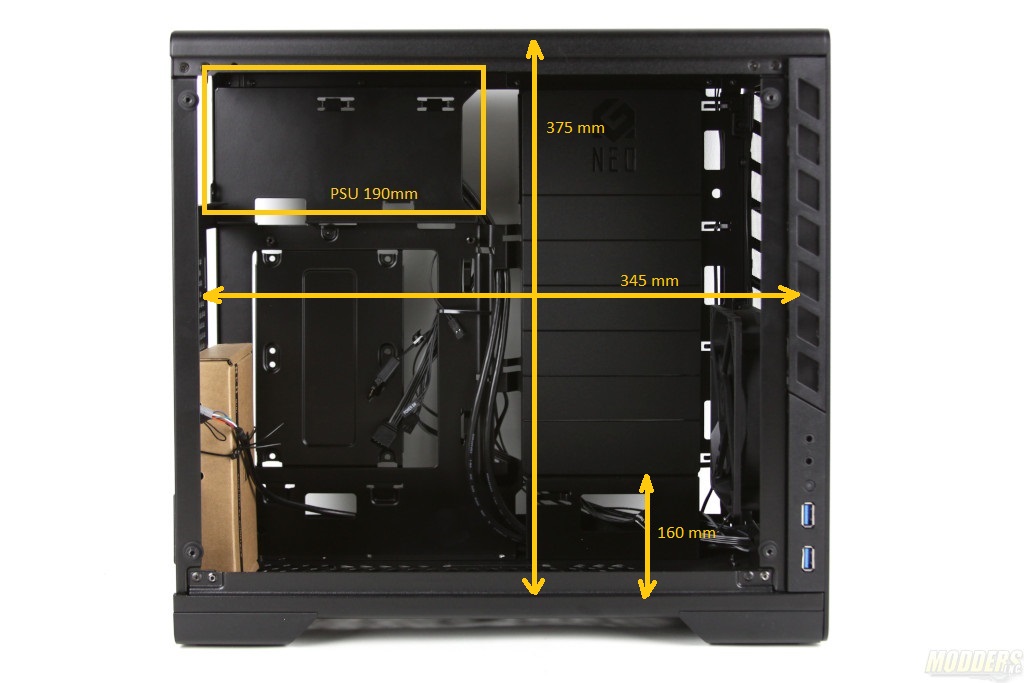

190mm Max Clearance for Power Supply installation.
Video Card clearance:
There is 345mm Max of clearance before the front fan mounting area.
CPU Tower coolers:
CPU heat-sink height clearance is about 160mm (from the motherboard tray to the glass).
Large CPU backplate cutout.

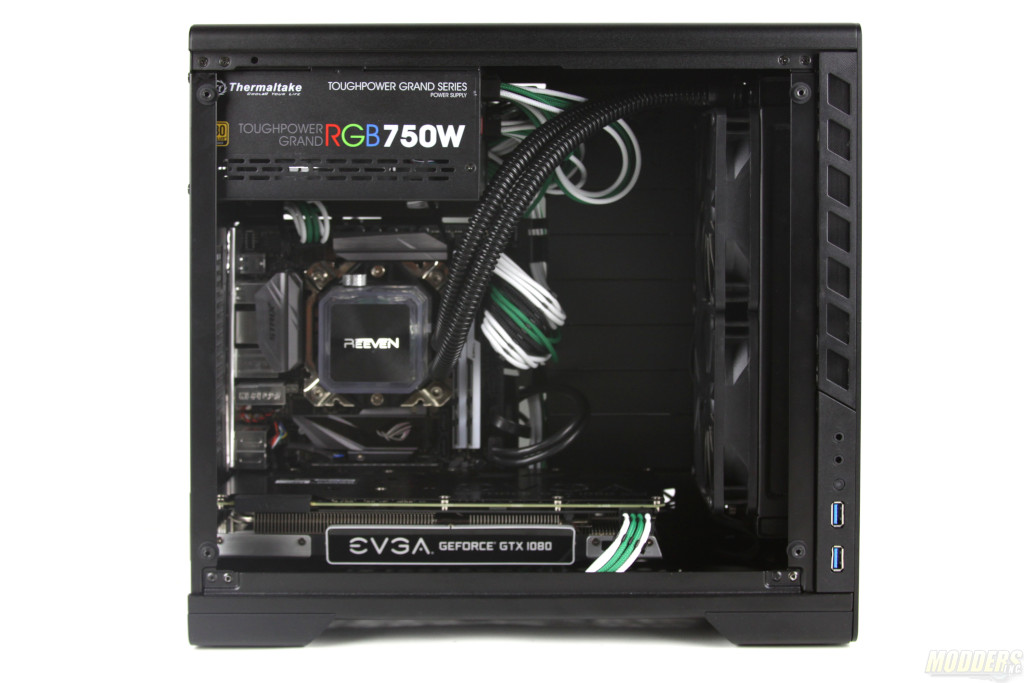

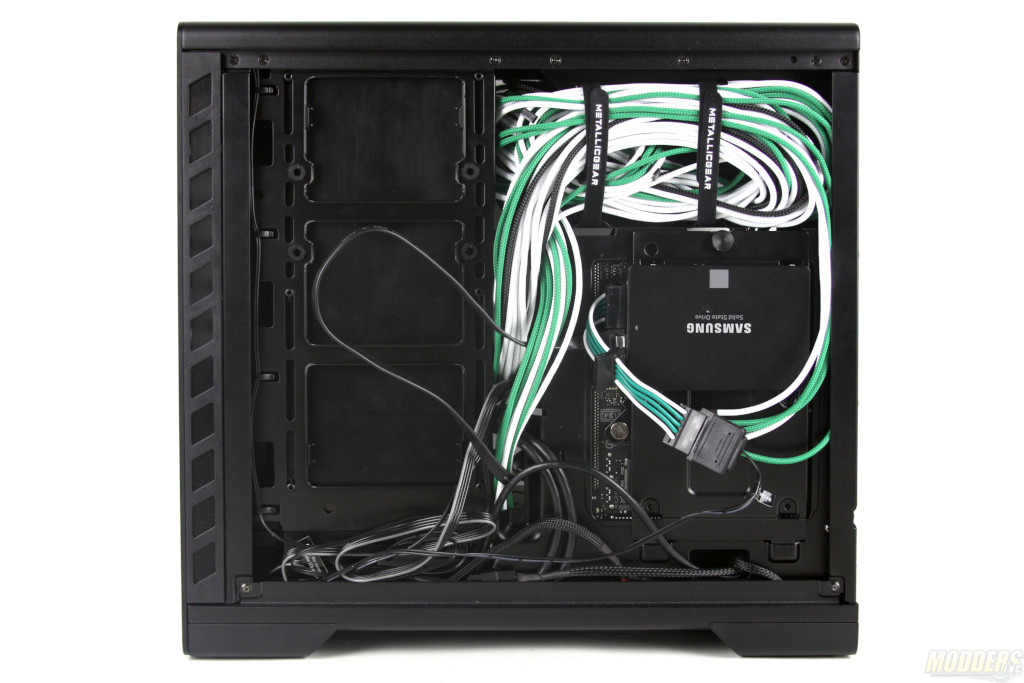

Cable management in this particular chassis is a little difficult to handle. As you can see, I am using custom cables here and managing them is a challenge. The case does have a pair of Velcro ties but because of the shallow depth of the case from the side, it is difficult to manage cable. In this build, I am using Reeven all in one cooler with 240 mm radiator. I had no issues of mounting it to the front of the case.

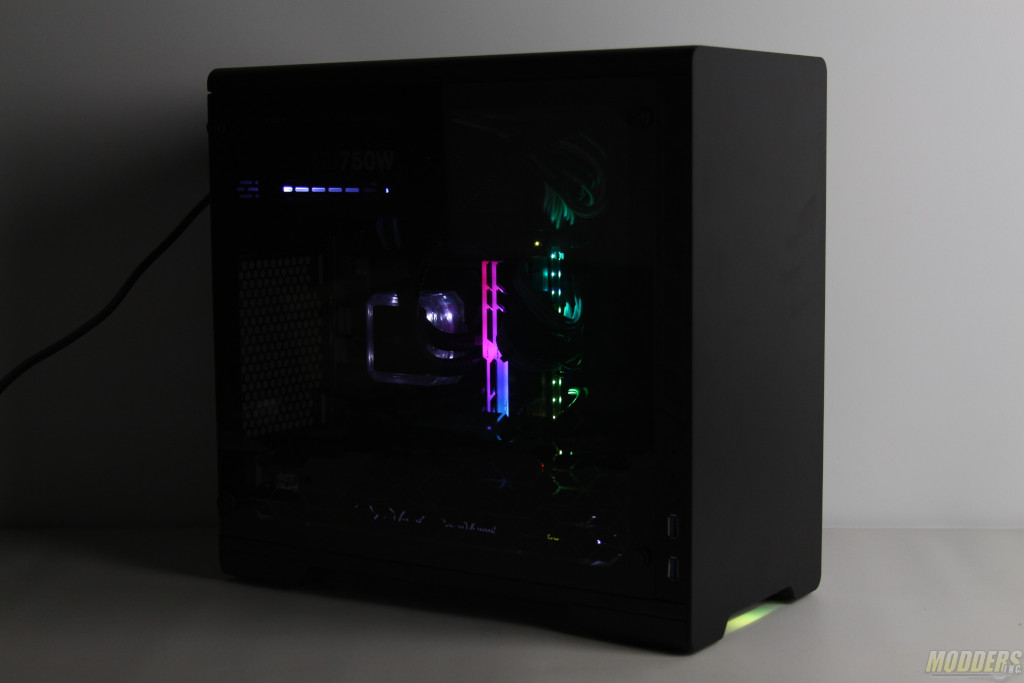

Once the system is turned on you can use a small RGB button on the side of the case to adjust the front color of the bezel LED.
