Lian Li PC-V700 Mid Tower Case

« Page 2 | Page 4 »

At this point I will be taking you through the inside of the case and all the features that it has to offer, which is quite a few of them.

LianLi_PC-V700-11

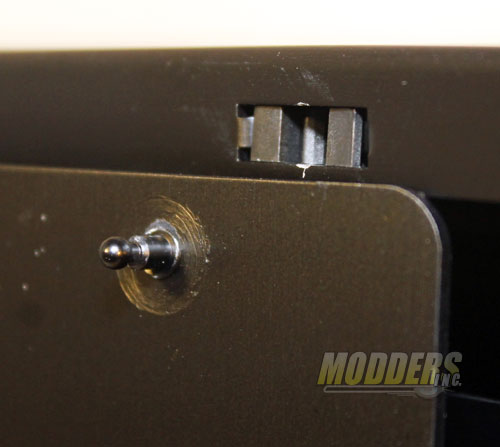

In order to see the inside we must first remove the side panels and starting here we something different than most cases. A series of pins are attached to the the inside of the panels. These pins have a counter part hasp that is embedded into the edge of the case that make a snap sound once they have been fully seated in to the position.

LianLi_PC-V700-13

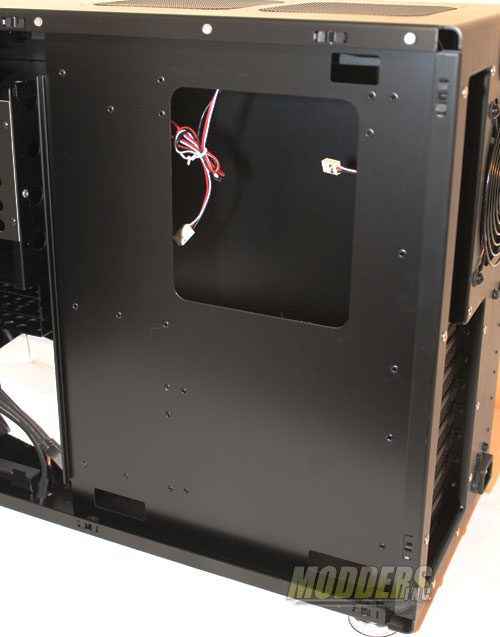

With the right side panel removed you can see that the motherboard plate has a nice size access window to allow you to swap out your CPU with ease without having to remove the motherboard. There is also a fair amount of space available to allow you run cables and hide wires.

Related Articles





LianLi_PC-V700-12

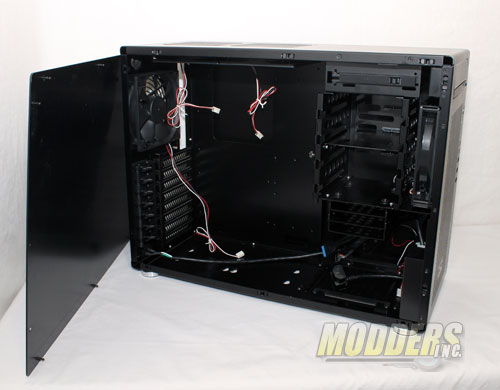

Here it is your first look into to the Lian Li PC-V700. Our sample came with a fully anodized black interior while some of the production models do have a non-anodized motherboard tray, hard drive cage, and I/O card covers.

LianLi_PC-V700-14

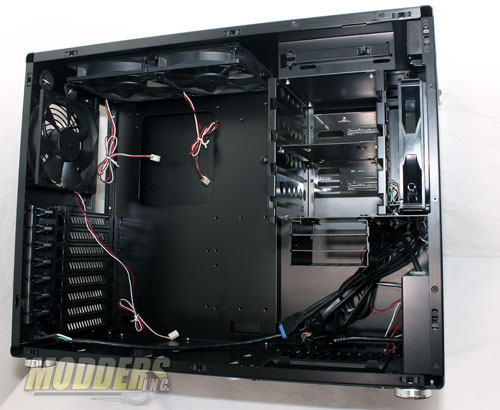

 From this vantage point we can see where three 129mm fans are located inside the case. We also get a glimpse of the front multi-media port cables that connect to the motherboard.

LianLi_PC-V700-15

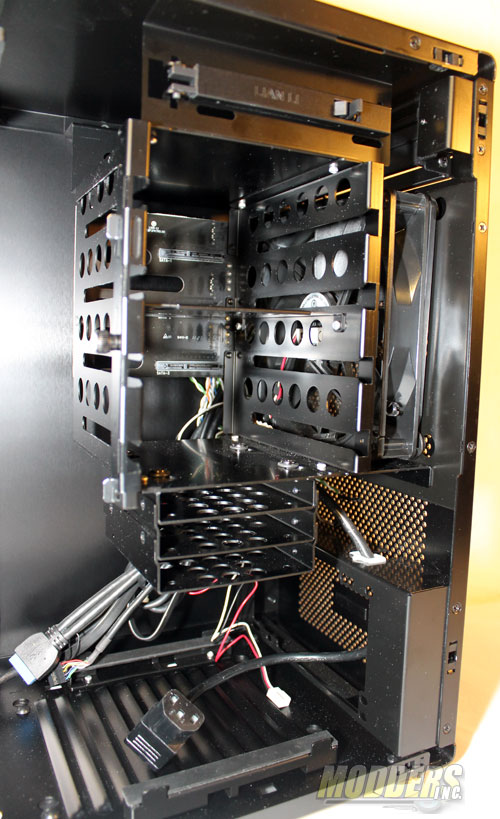

Looking at the hard drive cage we see that we have enough space to add three full size SATA hard drives and three Solid State Drives (SSD) in a removable drive cage. Right in front of the larger cage there is a 140mm fan and filter to ensure that the case is kept well ventilated.

LianLi_PC-V700-16

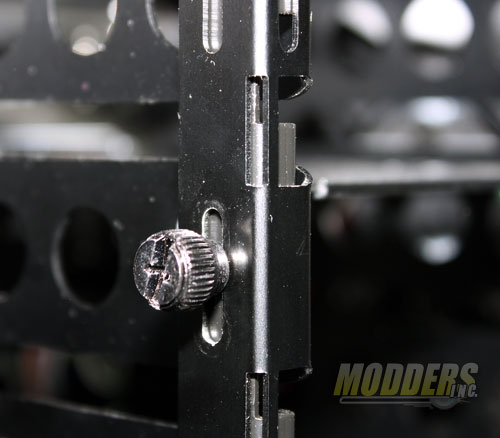

To keep with the tool less design a locking mechanism is used to keep all the drives securely in place. A thumb screw is used to unlock and lock a sliding latch in place.
