Jetway Hummer HI06 Intel H55 Motherboard

Page 2 »

The one item in your PC that makes everything work together is the motherboard. It is also one of the items that you look at closely when it is time to upgrade your PC. You want to make sure that you are getting all the features that you want and hopefully a few extras, but at price you are willing to pay. Jetway is not a well known name like MSI, Gigabyte and others but they do offer motherboards with plenty of the needed features. Let’s jump in and take a look at their H55 HI06 board, the Hummer HI06.

Jetway Hummer HI06 Intel H55 Motherboard HI06, Intel H55, Jetway Hummer, Motherboard 1

Sponsor: Jetway

[hr]

First Look and Information

The packaging for the Jetway Hummer HI06 gives you enough information about the product that you want to learn more about it.  It does give you some of the highlights about the motherboard that include what type of processor, chipset and multiple video card setup it can use.
Jetway Hummer H106 Intel Motherboard

The back of the box it rather basic and I think that it could use more detail about the motherboard. I mean you have all this space so why not use it up. They again give you information on what type of CPU it can use, but this time in 10 different languages and some other small snippets about the motherboard.


Jetway Hummer H106 Intel Motherboard





Specifications



CPU
  1. Support INTEL® LGA1156 Processors
Chipset
  1. INTEL® H55 Express Chipset
Memory
  1. Dual Channel DDR3 memory technology
  2. 4 * 240-pin DDR3 DIMM slots
  3. Supports DDR3 1333/1066 non-ECC ,un-buffered memory
  4. Max.16GB
Expansion Slots
  1. 1 * PCI Express x16 slot by 16-lane
  2. 1 * PCI-Express x16 slot by 4-lane
  3. 1 * PCI Express x1 slots
  4. 2 * PCI slot
Storage

Embedded INTEL H55 Chipset:

  1. 6 * Serial ATA2 3Gb/s connectors
Audio
  1. Realtek ALC888 8-Channel HD Audio CODEC
Ethernet LAN
  1. Realtek RTL8111DL PCI-E Gigabit LAN
USB
  1. Embedded 10 * USB 2.0/1.1
Special Features
  1. Advanced Power Design that supports the latest LGA 1156 Processors
  2. “IMAGE IT!” System Backup Software and “ProMagicPLUS!” System Recovery System
  3. Support 3D Audio Technology
  4. D.I.Y Switch x3 & G.P.I function
Rear Panel I / O
  1. 4 * USB 2.0/1.1 ports
  2. 1 * PS/2 keyboard/MS port
  3. 1 * Coaxial_OUT port
  4. 1 * RJ-45 ports
  5. 1 * Audio I/O ports
  6. 1 * VGA Port & 1 * DVI Port & 1 * HDMI(HDMI, VGA and DVI-D ports can only be enabled when installing Intel CPU with embeded graphics chip.)
Internal I / O
  1. 3 * USB 2.0/1.1 headers for 6 USB 2.0/1.1 ports
  2. CPU / Chassis Fan connectors
  3. 1 * 8-pin ATX 12V Power connector
  4. 1 * 24-pin ATX Power connector
  5. 1 * COM port & 1 * IR header
  6. 1 * HDMI_SPDIF header
  7. 1 * MINI PCI-E Connector(Optional PCI-E X1)
BIOS
  1. 32MB Flash ROM
Form Factor
  1. ATX Form Factor(305mm X 245mm)
  1. The specification and accessories of the products are subject to irregular update. Please refer to the actual articles and accessories or consult the local distributors. Jetway reserves the right to change.
  2. The name and trademark mentioned in product specification belong to their respective owners.

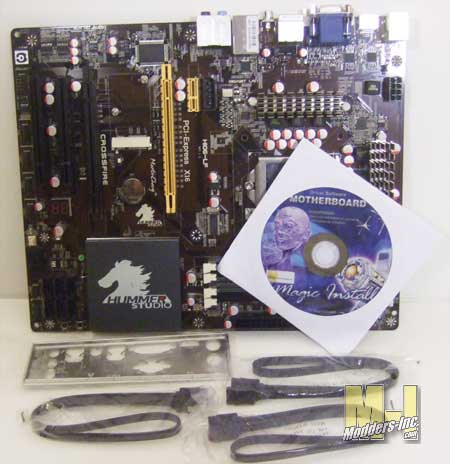

Inside the box we found that along with the motherboard we are presented with a Driver/Utility CD, I/O black plate and some SATA cables. Oh, and of course, the manual that somehow I left out of the image. If you want to browse the manual you get it right here Download Link.

Jetway Hummer H106 Intel Motherboard
