Fractal Design Meshify S2 Black Tempered Glass Edition

A Closer Look At The Meshify S2 »

Fractal Design Meshify S2 Black Tempered Glass Edition ATX, eatx, Fractal, Meshify, Water Cooling 1Fractal is launching the new version of the Meshify case line which is all about airflow, the Fractal Design Meshify S2. Fractal tends to build a more subdued case. Lacking from Fractal’s line up are RGB LED-laden chassis. Don’t get me wrong, there’s a time and a place for RGB LEDs. Fractal has taken lessons learned from their other lines and has incorporated those features in the Meshify S2.

With airflow over aesthetics being the priority for the series, it is easy to see why it is quite popular with enthusiasts and overclockers alike. The Meshify takes what was good about the original design and attempts to improve on it.



Technical Specifications

Meshify S2 Black Tempered Glass Edition
Model Name FD-CA-MESH-S2-BKO-TGL
Front Panel Color Black
Dimensions (mm) L538 x W233 x H455mm
Material Steel, Metal Mesh, ABS, Tempered Glass
M/B Type EATX (up to 285mm wide), ATX, mATX, ITX
Front Ports 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Drive Bays 5.25″ 0
3.5″ 2 (Convertible to 2.5″ bay)
2.5″ 5 (2 x Converted from 3.5” bays)
Expansion Slots 7 + 2 vertical
Fan Slots Front 3 x 120/140mm (2 x Dynamic X2 GP-14 included)
Rear 1 x 120/140mm (1 x Dynamic X2 GP-14 included)
Top 3 x 120/140mm
Bottom 2 x 120/140mm
Radiator Support Front 120/240/360mm
Rear 120mm
Top 120/240/360mm
140/280/420mm (max 35 mm MB component height)
Bottom 120/240mm
140/280mm
PSU max length 300mm
Maximum Compatibility VGA Card Length: Max 440mm with front fans mounted
CPU Cooler Height (From M/B to side panel): 185mm
Cable routing space 23mm



Packaging

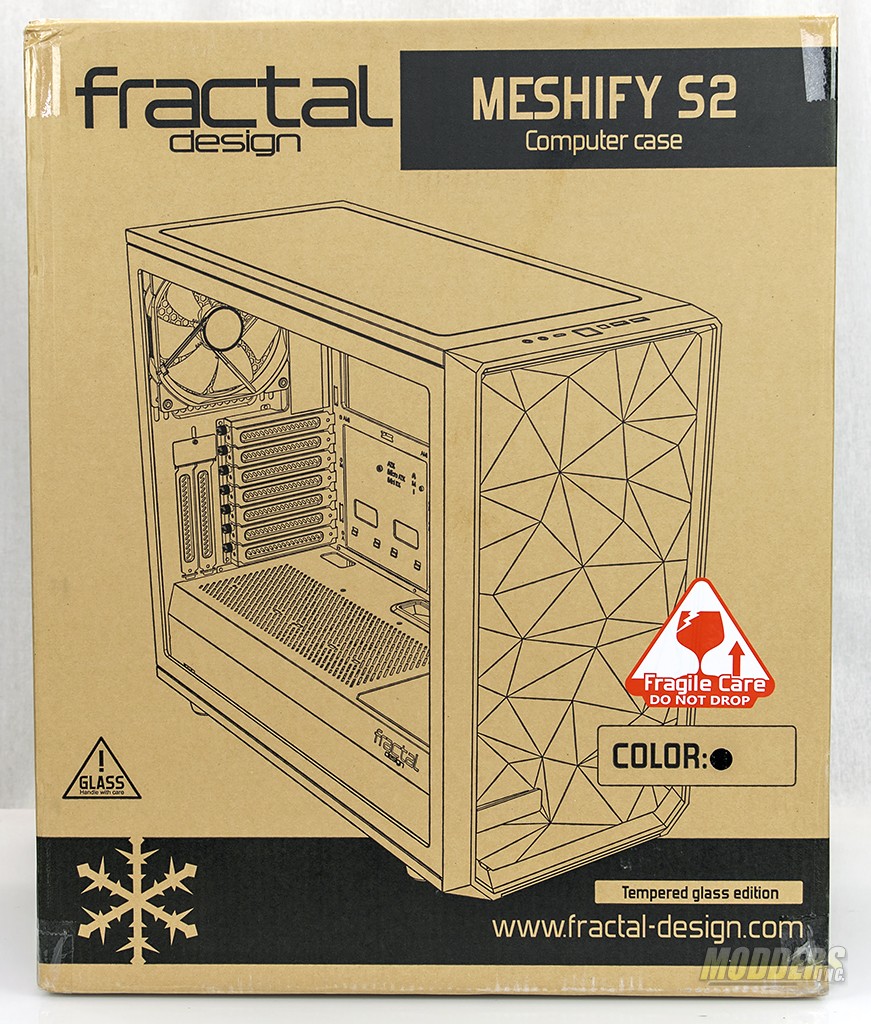

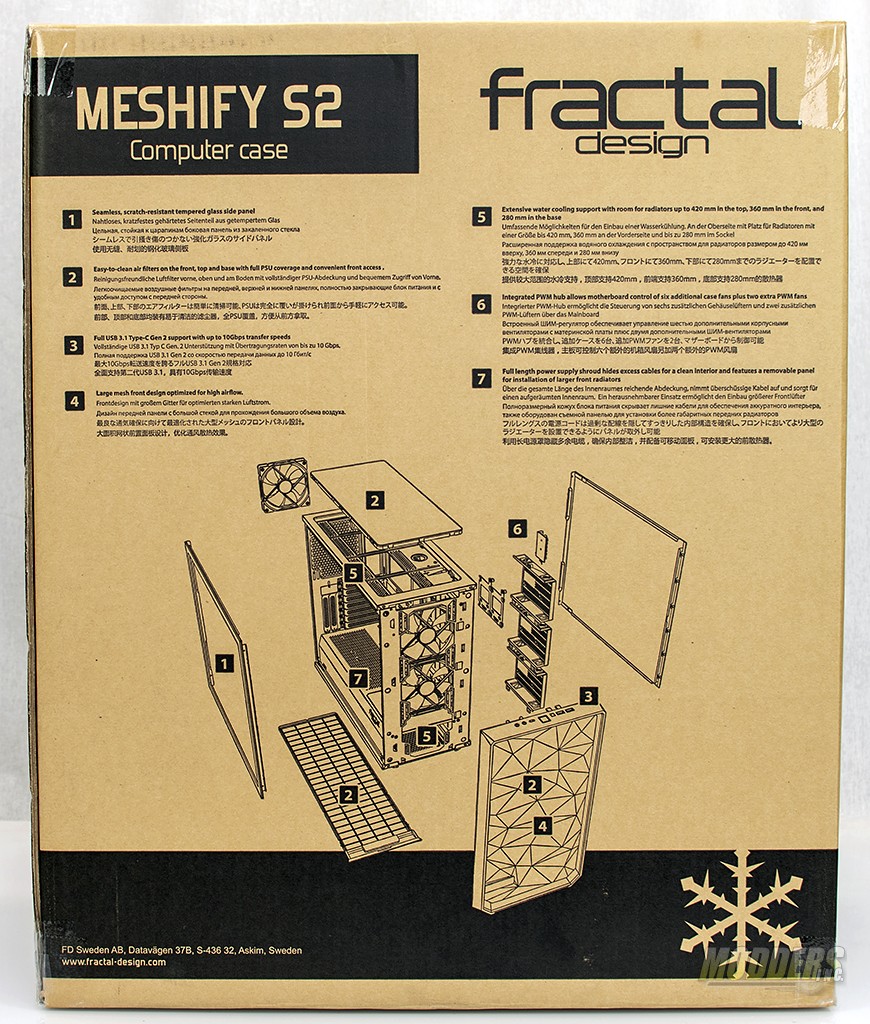

The Meshify S2 ships in a thick cardboard box. On the front of the box is a line art depiction of the case as well as the color indicator. Black and White are available at launch. On the rear, an exploded view is available. The sides of the box list the additional features.

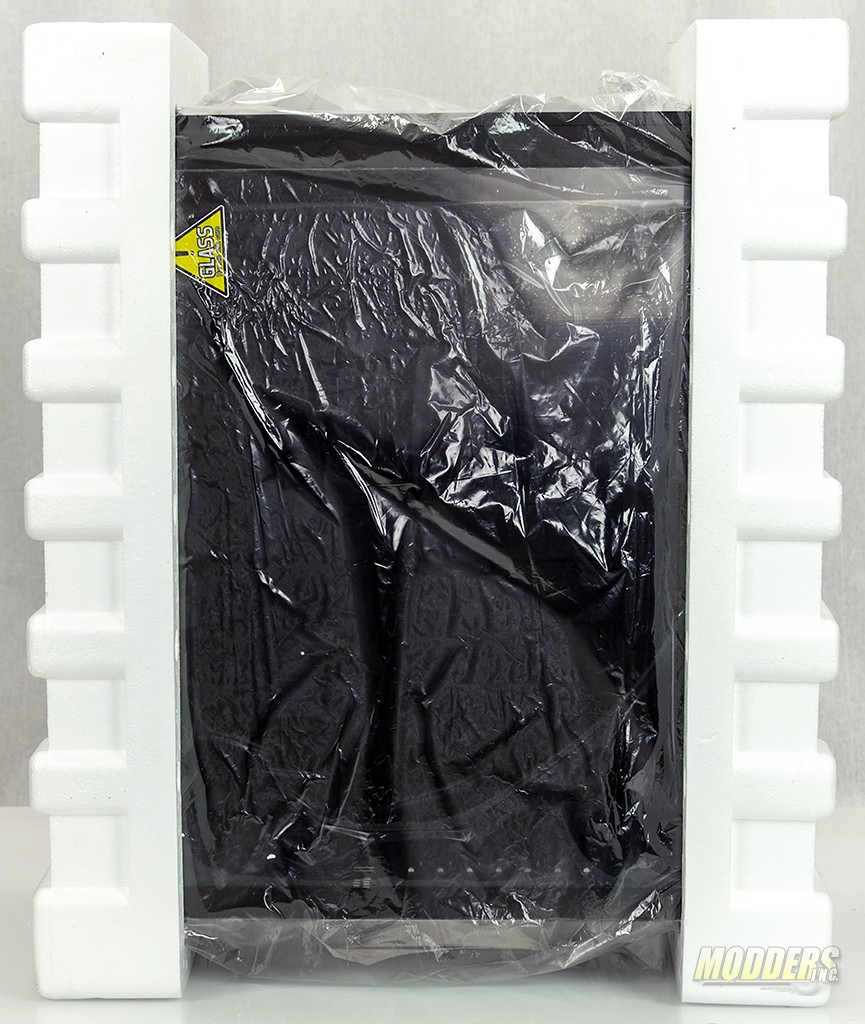

Internally, the Meshify S2 is protected from damage during shipping as it is capped with large pieces of Styrofoam. A thin plastic bag covers the case underneath the Styrofoam to protect the case’s finish from scuffs and scrapes.
Fractal Design Meshify S2 Black Tempered Glass Edition ATX, eatx, Fractal, Meshify, Water Cooling 4

Related Articles

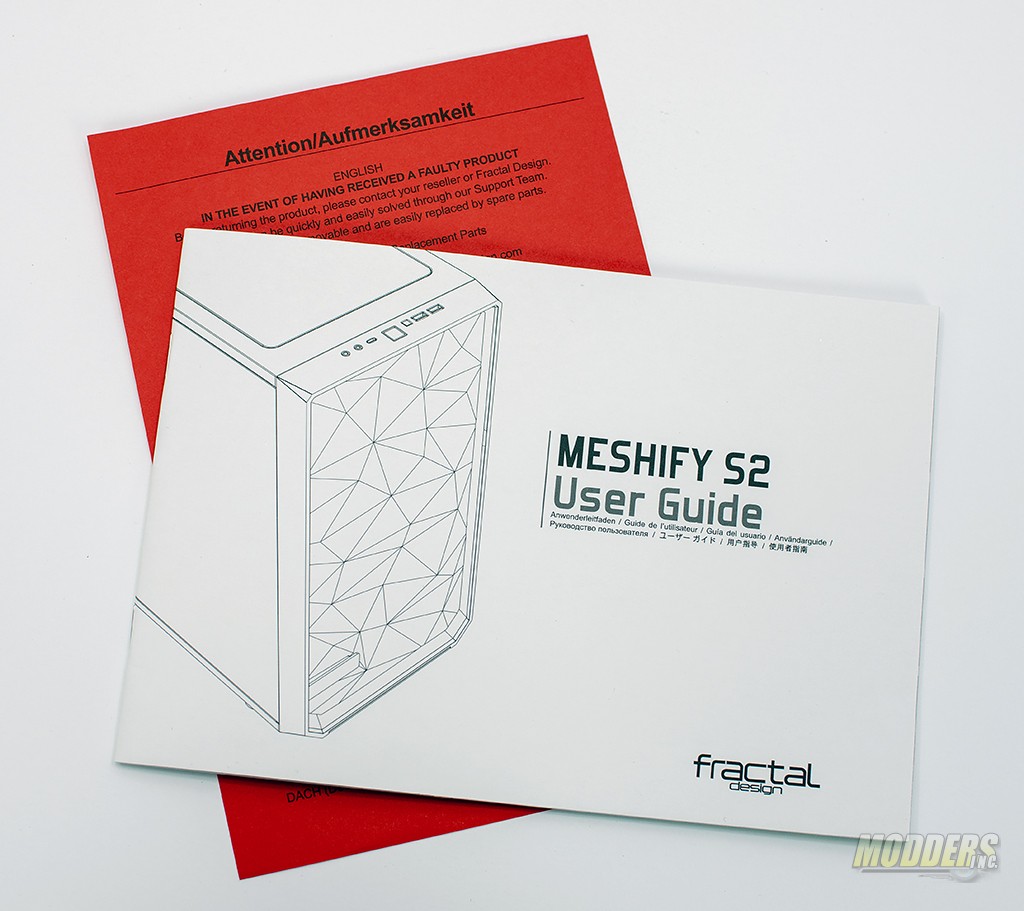

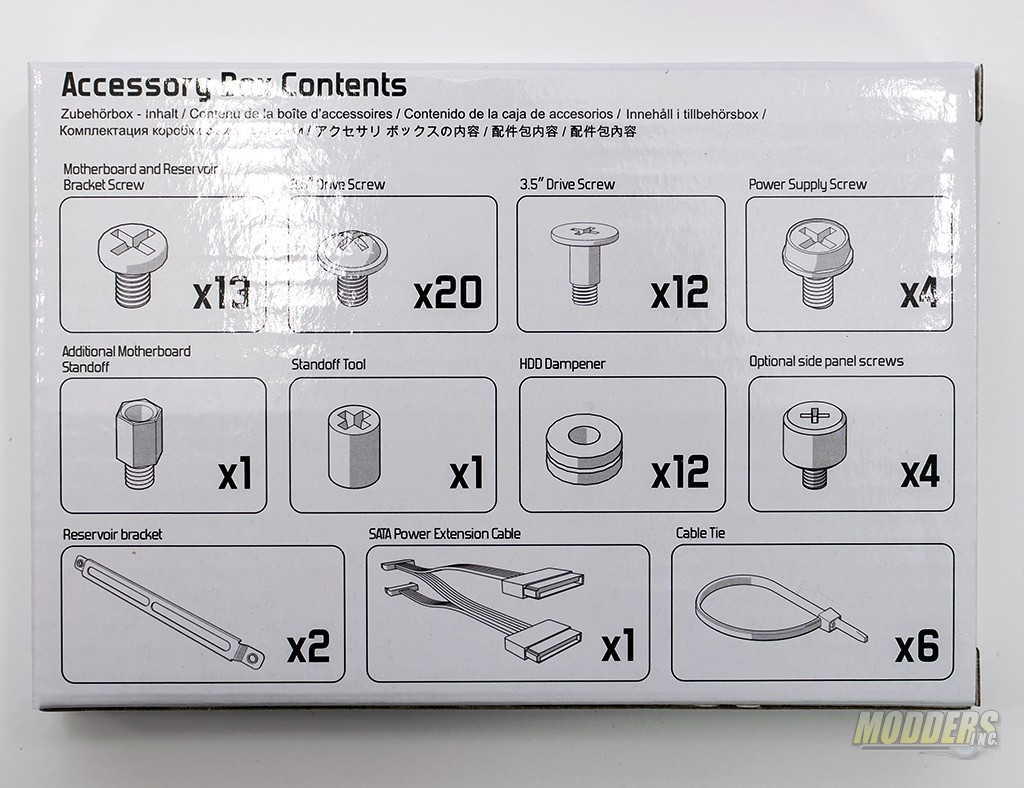

The installation kit is tucked away in one of the 3.5″ drive bays on the back of the case. Fractal includes enough screws, zip ties, hard drive dampeners, and other accessories to get your system installed in the case. A user guide and warranty instructions are also included.
