Fractal Design Launching new Core X3 Cases
The Core family of cases have always been centered around providing the core features and performance of Fractal Design’s case lineage at an aggressive price point. Core has undergone an evolution thanks in part to the valuable feedback from our customers.
The new x3 Series of the Core Family of cases are liquid cooling ready, featuring superb airflow and an innovative vertical drive mounting system. Able to support up to six drives. The unique design of the vertical hard drive bracket ensures that it will not restrict optimum airflow. For added versatility the drive bracket is fully removable, allowing the end user incredible flexibility for mounting liquid cooling radiators up to 280mm in size.

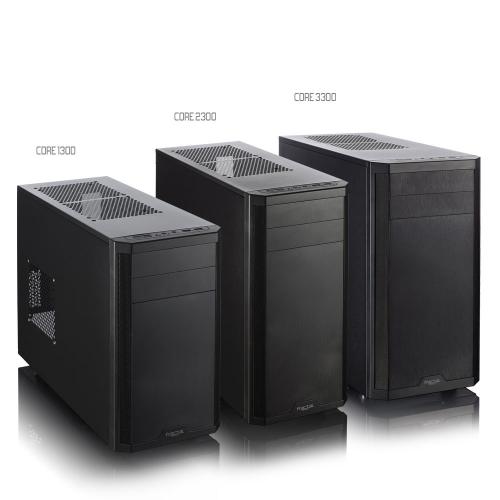

The X3 series is comprised of 4 different models, each addressing the needs of the most popular end-user usage scenarios.
Fractal Design Core 3300
The Core 3300 is the Wide-body ATX Mid Tower of the x3 Series. It offers many benefits typically only seen in significantly more expensive cases, such as great cable management, multiple radiator support, and superior ease of use.
It comes with two pre-installed 140mm fans, and can support up to two 240mm radiators or both a 240mm and a 280mm radiator.
An innovative vertical hard drive bracket can fit a total of six drives – three 3.5″ drives and three 2.5″ drives. In addition, two additional SSD drive can be placed behind the motherboard tray.
A beautiful build is easy to achieve with the black/white contrasted interior and well-designed cable routing capabilities.
Key Features Core 3300
A Wide Body mid tower case with bottom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support, supporting one 240/280mm radiator in the front and a 240mm radiator in the top
Featuring a 140mm rear exhaust fan for optimal cooling
Total 7 fan slots with two Silent Series R2 140mm fans included
Smart cable management with 22mm of space behind the motherboard plate for clean installations
Supports extremely tall tower CPU coolers, up to 185mm in height
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Innovative vertical HDD bracket, which simultaneously holds three 3.5″ drives and three 2.5″ drives
Two additional SSD positions behind the motherboard plate
MSRP:
USD: $69,99
EURO: €59.99
GBP: £54.99
SEK: 549 kr
Model
Core 3300 Black
Fractal Design Core 2300
The Core 2300 is the compact ATX Mid Tower of the x3 Series that combines a clean, modern exterior design with great cooling and component compatibility. It comes with two pre-installed fans, and great radiator support for its size
The case is equipped with two pre-installed 120mm fans and can support both 280mm and 240mm water cooling radiators.
An innovative vertical hard drive bracket can fit a total of six drives – three 3.5″ drives and three 2.5″ drives. An additional 2.5″ SSD mounting is available behind the power supply position.
A beautiful build is easy to achieve with the black/white contrasted interior and well-designed cable routing capabilities.
Key Features Core 2300
A compact full-ATX case with bottom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support for its size, supporting one 240/280mm radiator in the front and a 240mm radiator in the top
Featuring a 120mm rear exhaust fan for great cooling
Total 7 fan slots with two 120mm fans included
Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
Supports tall CPU cooler towers, up to 162mm in height
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Innovative vertical HDD bracket, which simultaneously holds three 3.5″ drives and three 2.5″ drives
One additional SSD position behind the PSU area with easy installation and access
MSRP:
USD: $49.99
EURO: €44.99
GBP: £39.99
SEK: 399 kr
Model
CORE 2300
Fractal Design Core 1300
The Core 1300 is the extremely compact micro ATX Mini Tower of the x3 Series Designed for exceptional airflow and cooling.
The case is equipped with two pre-installed Silent Series LT 120mm fans and can support both 280mm and 240mm water cooling radiators.
An innovative vertical hard drive bracket can fit a total of four drives – two 3.5″ drives and two 2.5″ drives. An additional 2.5″ SSD mounting is available behind the power supply position.
A beautiful build is easy to achieve with the black/white contrasted interior and well-designed cable routing capabilities. All at an attractive price point.
Key Features Core 1300
An extremely compact micro ATX case with bottom-mounted PSU, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
Superior water cooling support for its size, supporting up to two 240mm radiators
Featuring a 120mm rear exhaust fan for exceptional cooling
Supports tall CPU cooler towers, up to 162mm in height
Total 7 fan slots with two 120mm fans included
Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior
Innovative vertical HDD bracket, which simultaneously holds two 3.5″ drives and two 2.5″ drives
One additional SSD position behind the PSU area with easy installation and access
MSRP:
USD: $49.99
EURO: €44.99
GBP: £39.99
SEK: 399 kr
Model
CORE 1300

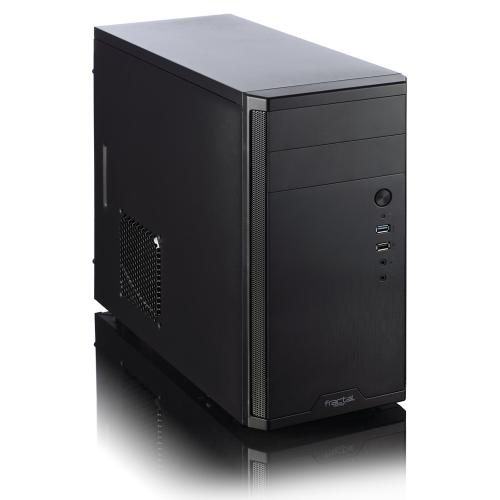

Fractal Design Core 1100
Despite its extremely small outer dimensions, the Core 1100 mATX case provides everything you need. The stylish, Scandinavian exterior design is matched by the fully painted interior, complete with the signature white details of Fractal Design.
The case is optimized for airflow with a straight cooling path, and comes equipped with a pre-installed 120mm fan. The front panel is equipped with dust filters.
An innovative vertical hard drive bracket can fit either two 3.5″ drives, three 2.5″ drives, or one drive of each size. Both the 3.5″ drive slots come with silicone vibration dampening grommets.
Key Features Core 1100
An extremely compact micro ATX case, designed for exceptional airflow and cooling
Brushed aluminum-look front panel with a sleek, three-dimensional textured finish
One Fractal Design 120mm fan included
Easy access I/O on front panel, with audio and both USB 3.0 and USB 2.0 ports
Front panel dust filters and closed top and bottom panels help maintaining a dust free interior
Innovative vertical HDD bracket, which can hold two 3.5″ drives or three 2.5″ drives, or one drive of each size
Vibration-dampened mounting for both 3.5″ drive slots
Fully painted interior, with Fractal Design signature white details
MSRP:
USD: $39.99
EURO: €34.99
GBP: £29.99
SEK: 299 kr
Model
CORE 1100
For more information, please visit www.fractal-design.com
