Fractal Design Introduces New Define S Case

Fractal Design’s new Define S Case is redefining what an elegant silent mid-tower case is supposed to be. Forging 5.25″ external drive support and conventional HDD trays, the Define S is able to support extensive water cooling options such as 360mm radiators for the front and top with additional support for mounting reservoirs. Drive storage is moved behind the left side panel for a streamlined and cleaner look. To further dampen noise, the Define S is outfitted with several of Fractal Design’s Modu-Vent covers and bundled with dynamic GP-14 140mm fans out of the box. For more photos and full information, watch the official overview video and read the full specifications below:

$Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 1$

Specifications

ATX, Micro ATX, Mini ITX motherboard compatibility
7 expansion slots

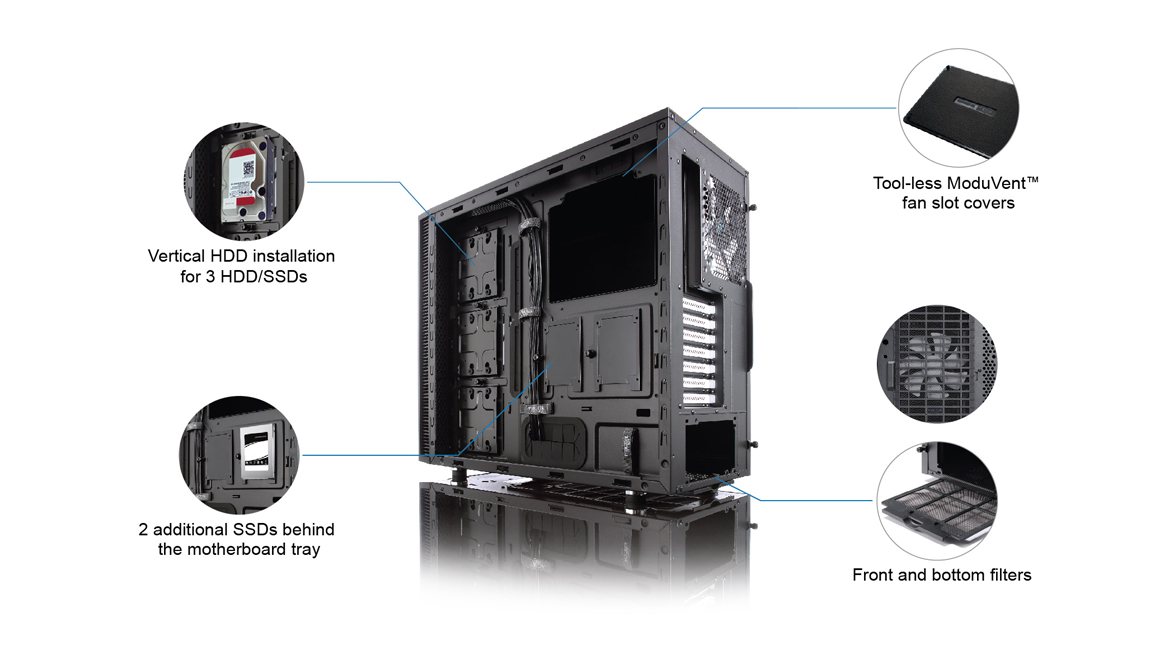

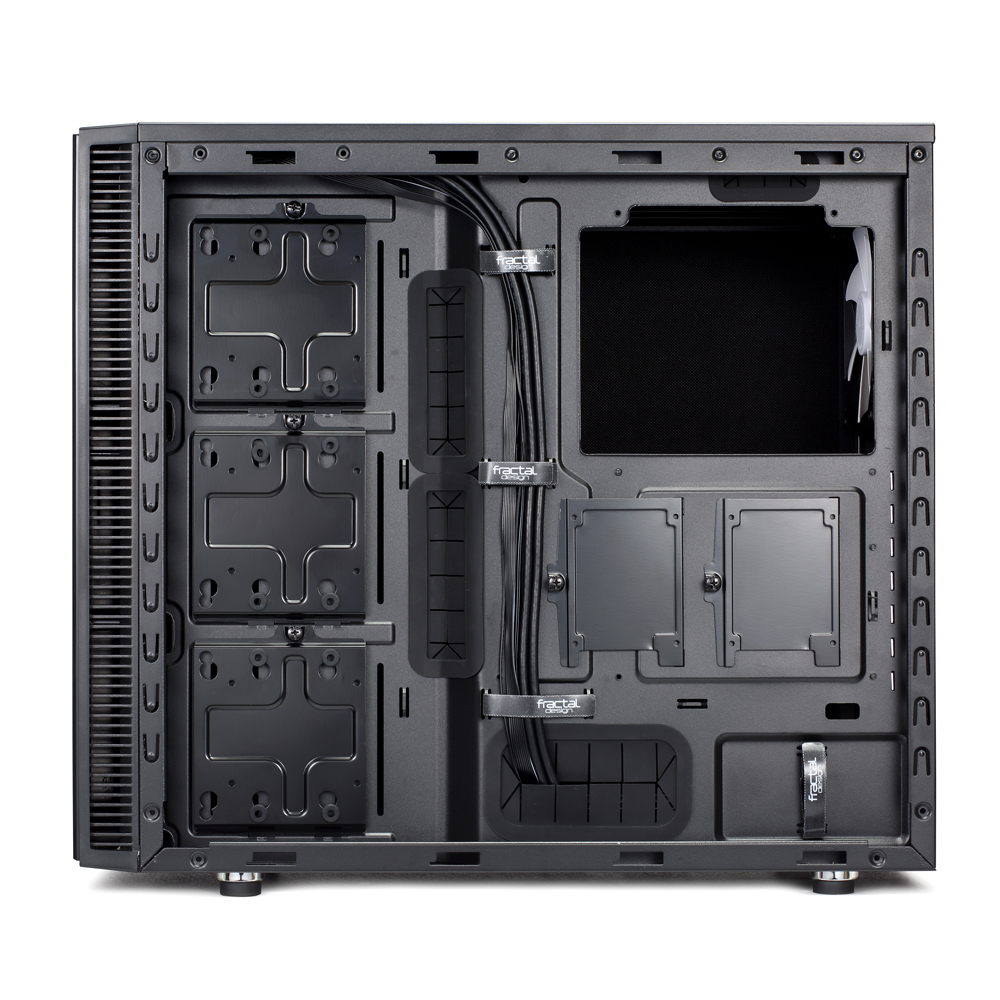

3 – 3.5″ HDD positions (can also accommodate 2.5″ units); 2 – 2.5″ dedicated SSD/HDD unit positions
9 – Fan positions (2 Fractal Design Dynamic GP14 140mm fans included); 8 fan positions on window model

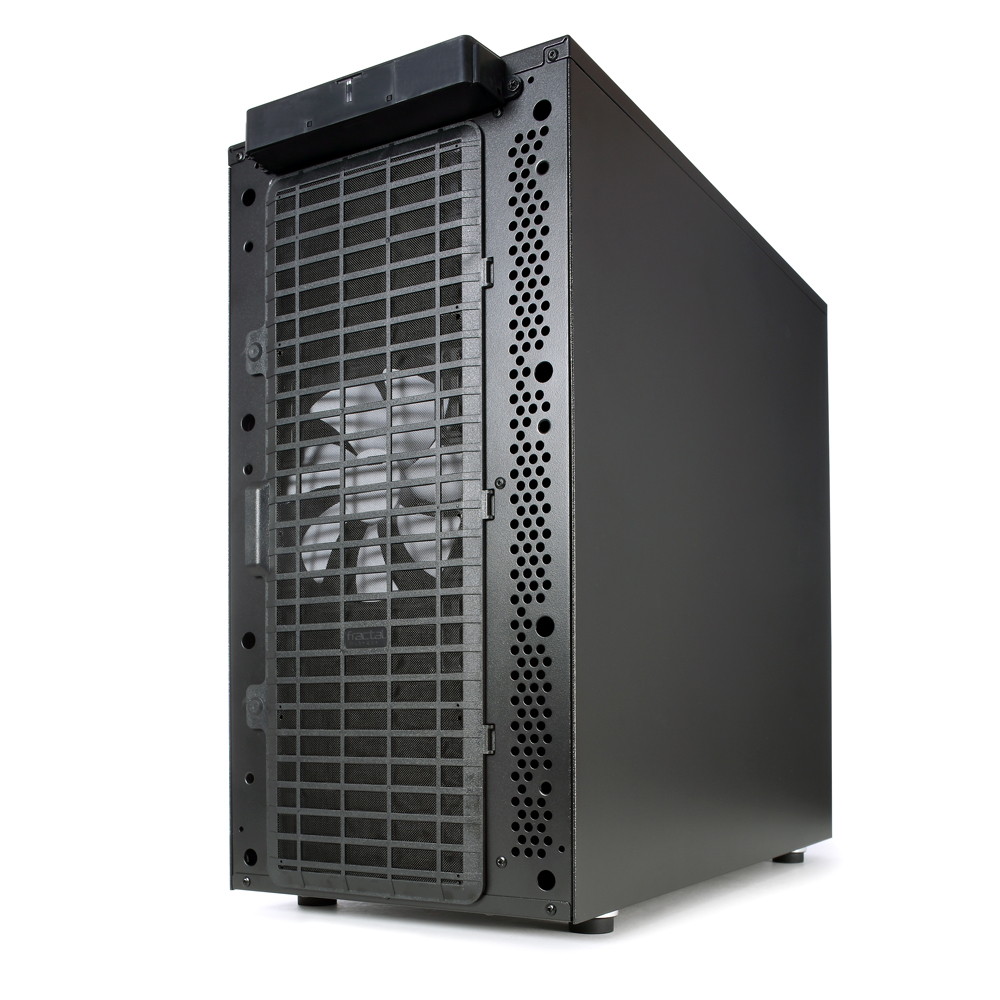

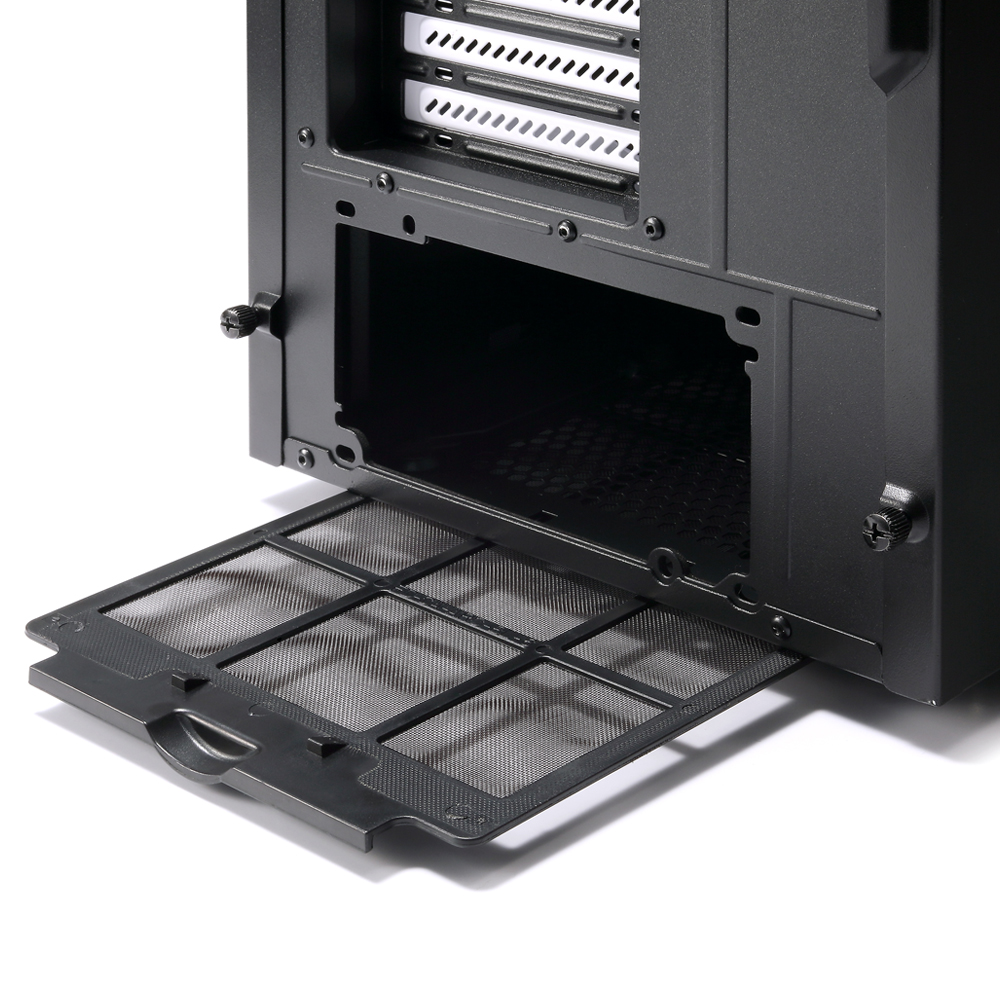

Filtered fan slots in the front and bottom
CPU coolers up to 180mm in height
ATX PSUs up to 180/170 mm with a bottom 120/140mm fan installed; When not using any bottom fan location longer PSUs up to 300mm can be used
Graphics cards up to 425 mm in length with front fans installed, without compromising HDD capacity; Graphics cards up to 450mm in length without front fans installed directly in line with the GPU
With a front radiator, maximum graphics card length is reduced by the radiator thickness

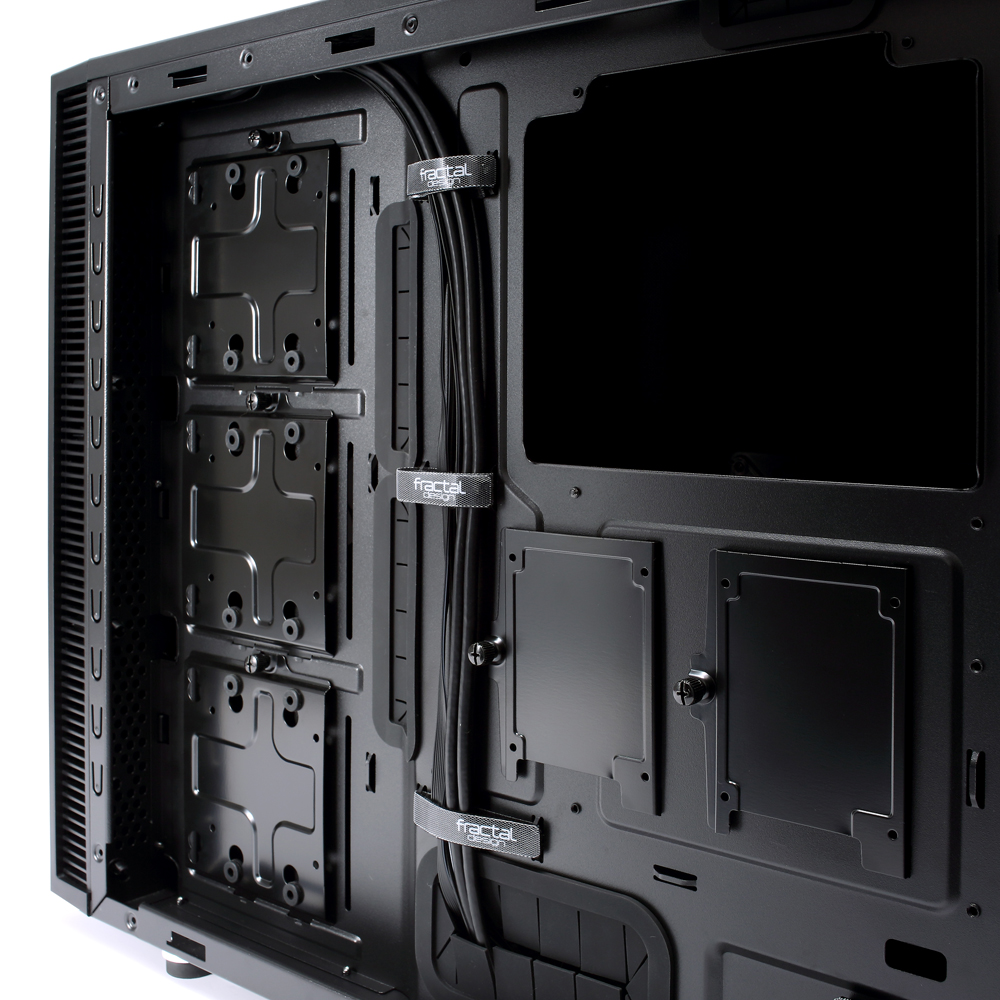

20 – 40 mm of space for cable routing behind the motherboard plate
Velcro straps included for easy cable management
Both side panels feature smart captive thumbscrews so no thumbscrews are lost
Colours available: Black
Case dimensions (WxHxD): 233 x 451 x 520mm
Case dimensions – with feet/screws/protrusions: 233 x 465 x 533mm
Net weight: 9.1 kg
Package dimensions (WxHxD): 322 x 615 x 535mm
Package weight: 10.8 kg

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 2

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 3

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 4

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 5

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 6

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 7

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 8

Fractal Design Introduces New Define S Case 5.25", Case, define s, fractal design, silent 9

Cooling system

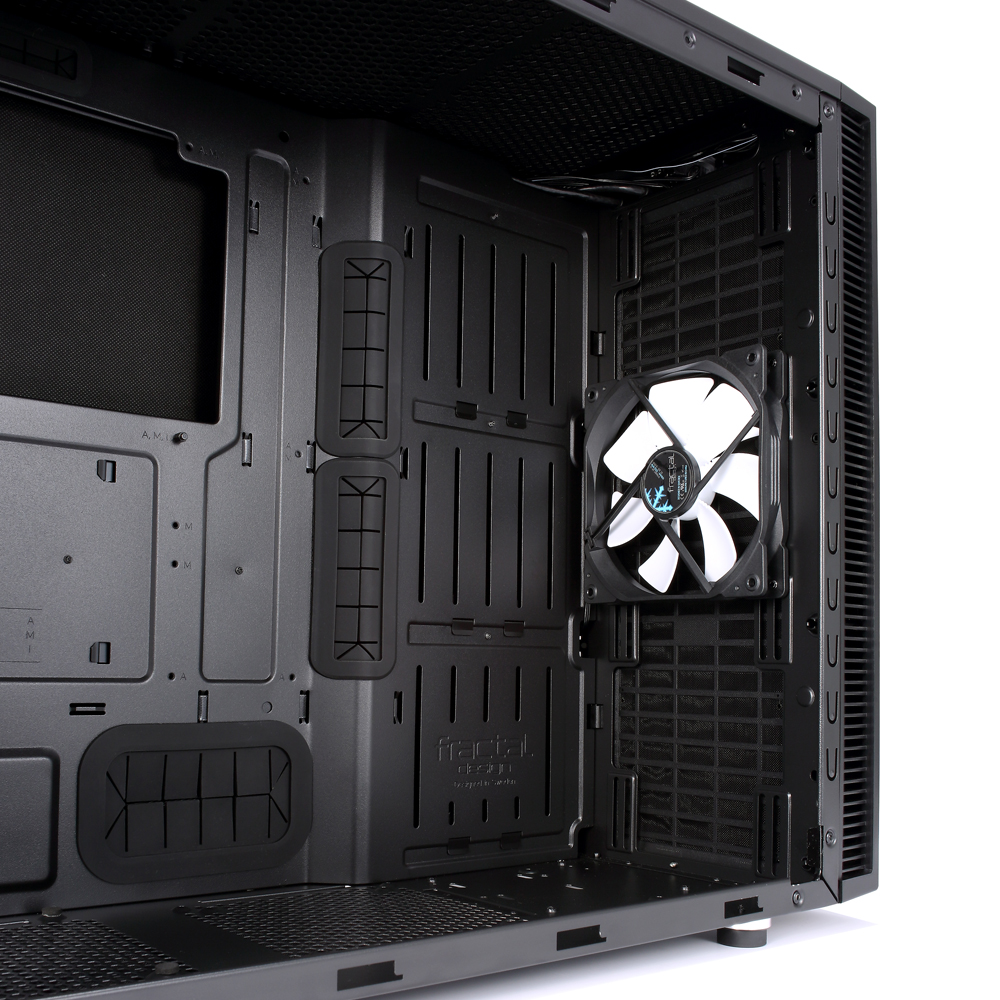

Front: 3 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1200 RPM speed)
Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1200 RPM speed)
Top: 3 – 120/140 mm fan (not included) or 1 – 180 mm fan with 165mm hole spacing (not included)
Bottom: 1 – 120/140 mm fan (not included)
Side: 1 – 120/140 mm fan (not included)
Dust filters: Bottom and front intakes

Water cooling compatibility – Radiators

Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses
Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators)
Bottom – 120 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
Rear – 120 or 140 mm radiator

Water cooling compatibility – Pumps

Pre-drilled holes on the bottom panel, supports many DDC and D5 variants

Water cooling compatibility – Reservoirs

Adjustable mounting brackets allow for almost any rectangular mounting screw pattern
Maximum distance between the mounting bracket screw positions: 350mm height / 80mm width
