Define 7 Hardware Installation

I decided I am going to water cool the CPU in this build and leave the GPU on air.

Define 7

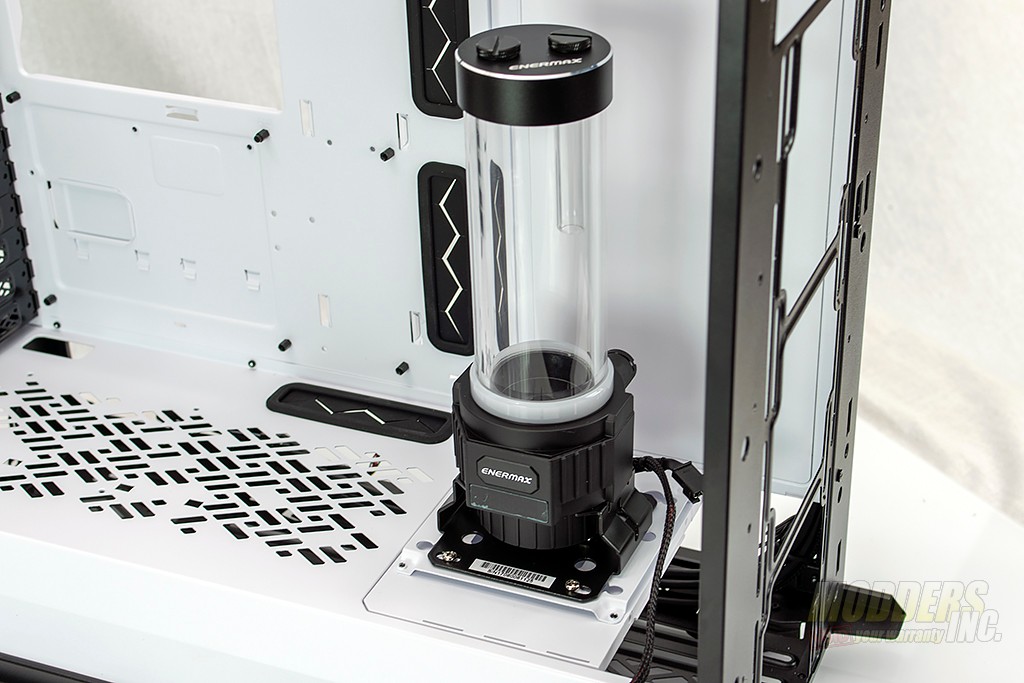

First up, I installed the Enermax reservoir and pump. to do this, I utilized the multipurpose bracket. I lined up the holes and the bracket with the bracket on the pump and attached them using the screws proved by Enermax. Next, I took the pump and bracket assembly and attached it to one of the plastic panels that cover the front of the power supply shroud. This then snaps back into place. I found it handy as I could install and remove the assembly as needed when building this system in the Define 7.



Define 7

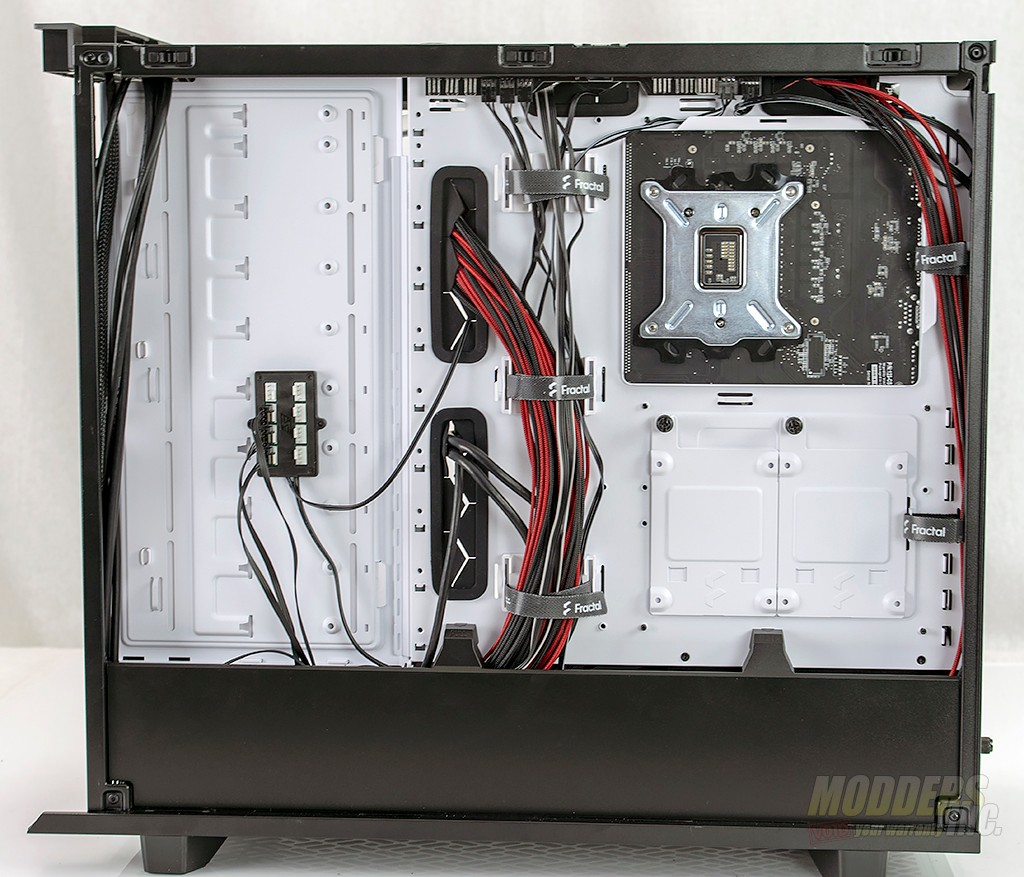

The motherboard, power supply, fans, etc are all easy to install, I used the EVGA Z390 FTW motherboard and it installed without too much issue. The 90° connectors on the motherboard did prove a challenge here and there but overall not difficult, however, this is an EVGA specific issue. Non-rotated connectors shouldn’t pose too much of an issue.  On the backside of the case, I was intentionally was a bit lax on the cable routing and management and it still turned out decent. I was able to hide connectors and a bit of a mess of extra cables behind the power supply basement cover. I also added a Swiftech PWM hub as the fan cables on the 360mm radiator were a bit short to reach the included fan hub or the motherboard.

Related Articles



Define 7

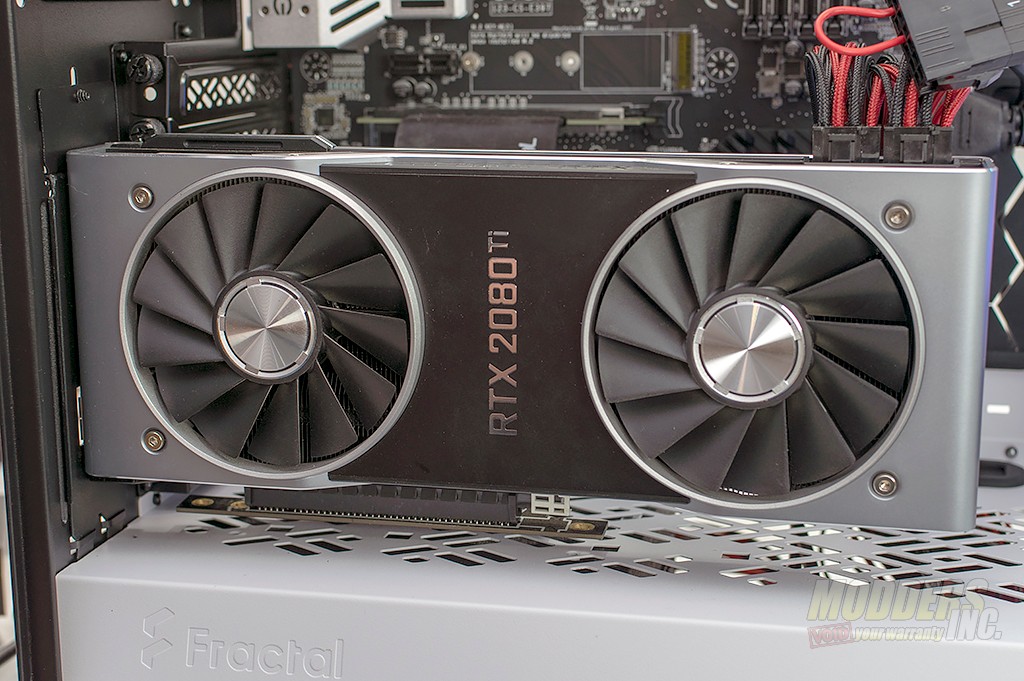

I lack the mounting hardware to properly attach fractals VRC-25 PCIe riser cable. The I/O panel of the case takes all the weight and doesn’t cause the GPU to sag nor does the back of the case deform under the weight.





Define 7

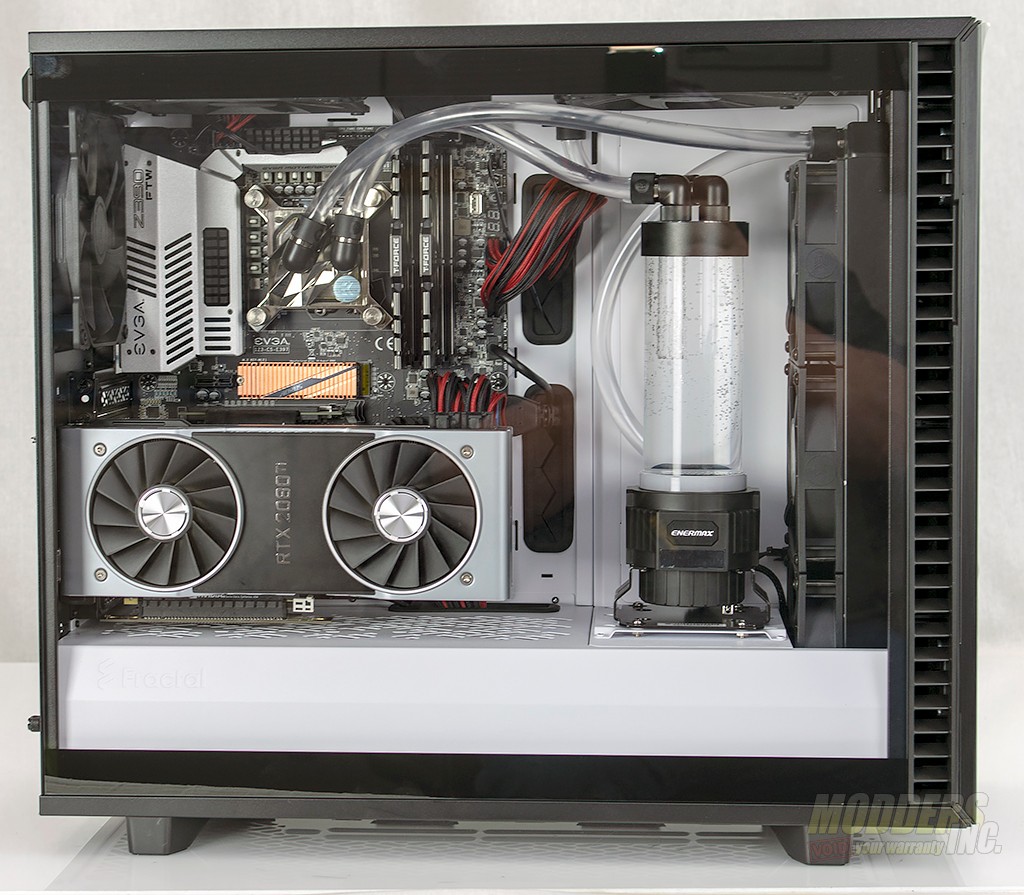

Overall, I’m pleased with the build. The clear tempered glass panels show off any mistakes you may have made. On the plus side, it shows off some beautiful hardware. I used a few more 90° adapters than I thought I would but that comes with planning a loop in any chassis, not just the Define 7.



Previous page 1 2 3 4 5Next page
