EVGA X99 Classified Motherboard Review Featuring Kingston Hyper-X Fury DDR4 2400MHz

« System Benchmarks (CPU, Memory, Compression, Multimedia) | Conclusion »

Subsystem Testing and Gaming Benchmarks

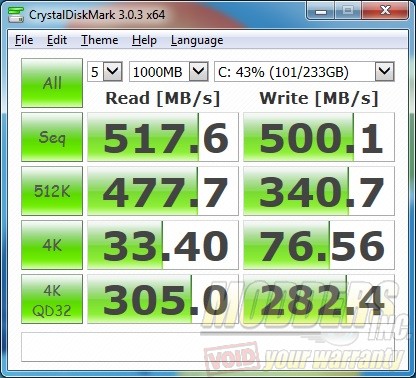

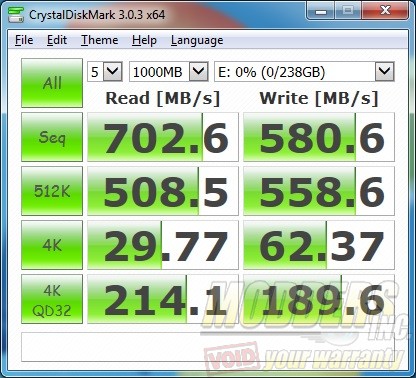

Ten SATA3 connections on the EVGA X99 Classified are provided by the Intel Chipset.

ccm_SSD ccm_m.2

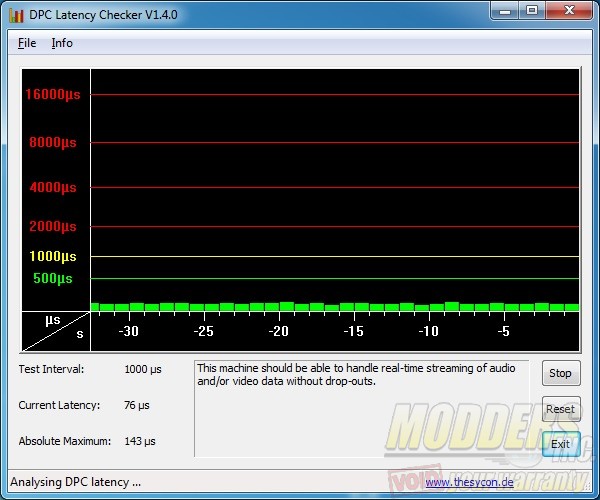

DPC Latency

Before proceeding with audio benchmarks, Deferred Procedure Call latency must be first checked to make sure that the system is capable of producing useable results when the Rightmark Audio Analyzer benchmark was run. DPC is a Windows function that involves prioritizing tasks within the OS and high DPC latencies can be caused by several things including hardware device conflict. The DPC checker graphically displays the latency level of the system in real time so as long as the bars are in the green, the system should be able to handle audio and video streaming without drop outs or stutters.



DPC_Latency

24-bit, 96 kHz
audio-96



Related Articles

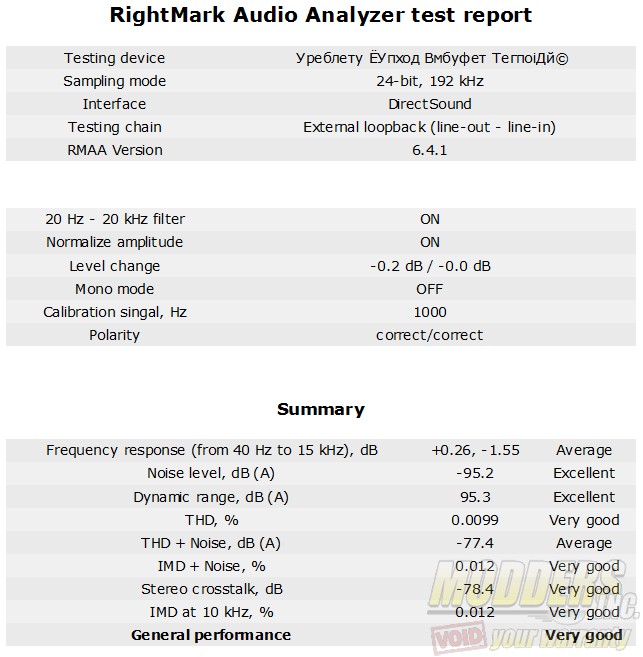

24-bit 192 kHz
audio-192

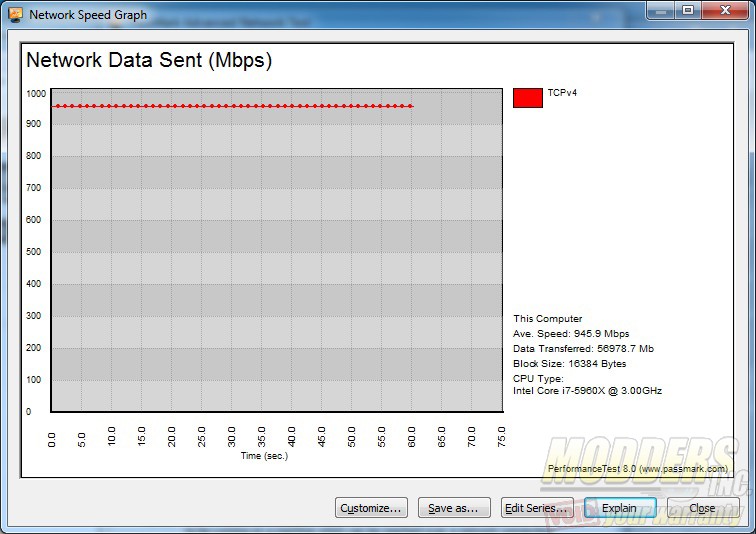

Network Connectivity

network_2

Gaming Tests

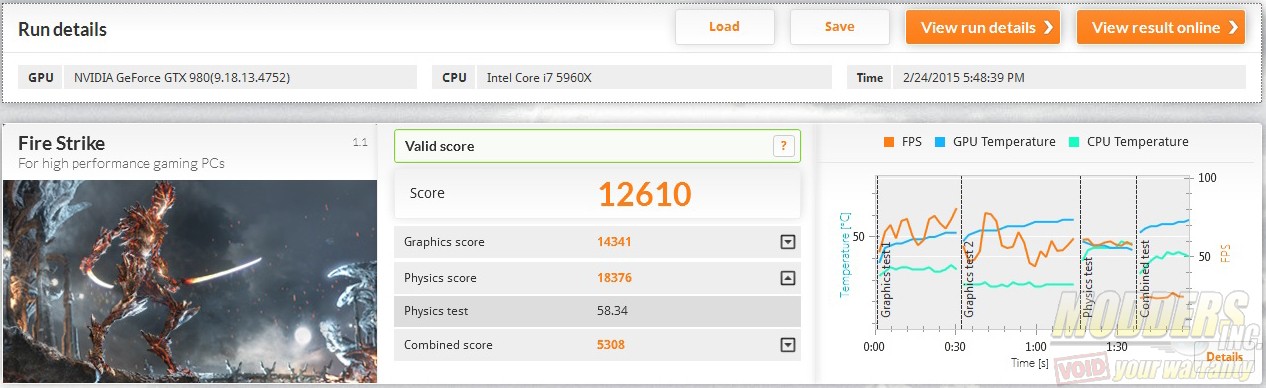

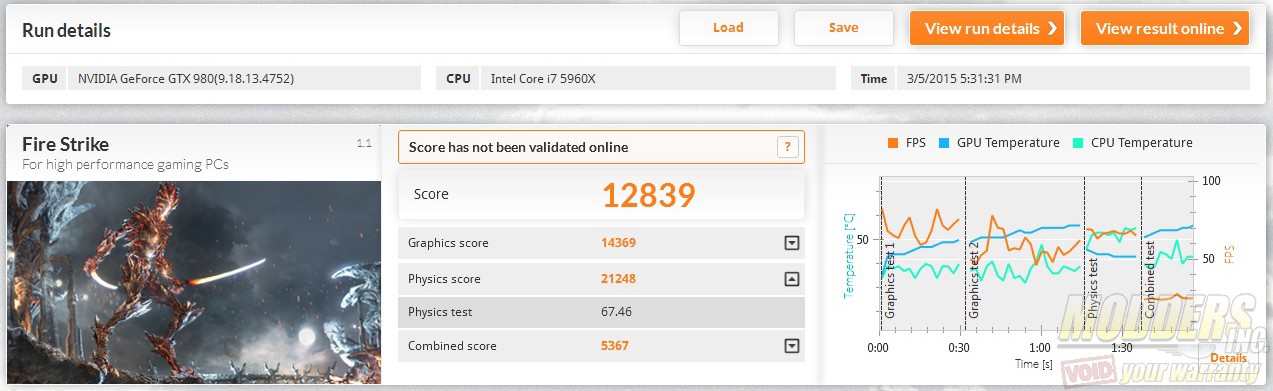

Futuremark’s 3DMark is a semi-synthetic gaming benchmark that calculates both graphics and CPU-bound physics in a controlled series of tests and provides scores that can be compared with other gaming platforms.

3D Mark Stock 3D Mark Overclocked
3dmark 3dmark_oc

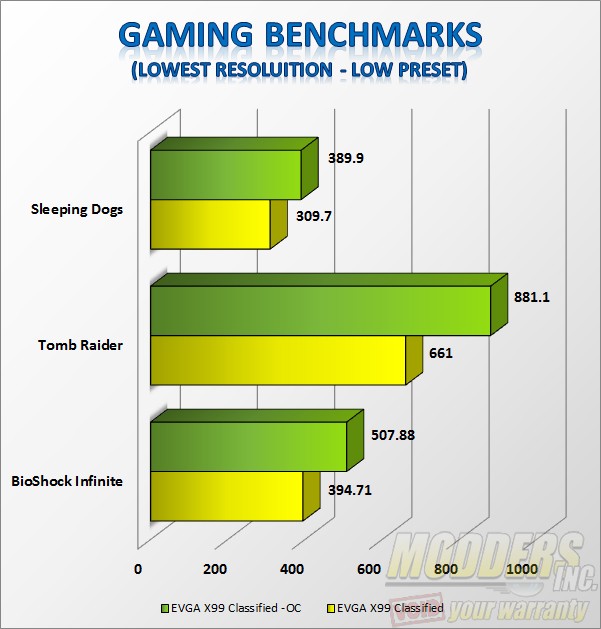

Instead of showing real-world gaming performance, a gaming test at the lowest resolution where CPU performance difference can be gauged due to the reduced reliance on the discrete GPU was conducted.

gaming
