Enermax Thormax GT Full-Tower Case: Big on Ideas

« A Closer Look | Final Thoughts »

Enermax Thormax GT Hardware Assembly and Compatibility Issues

tmgiant35

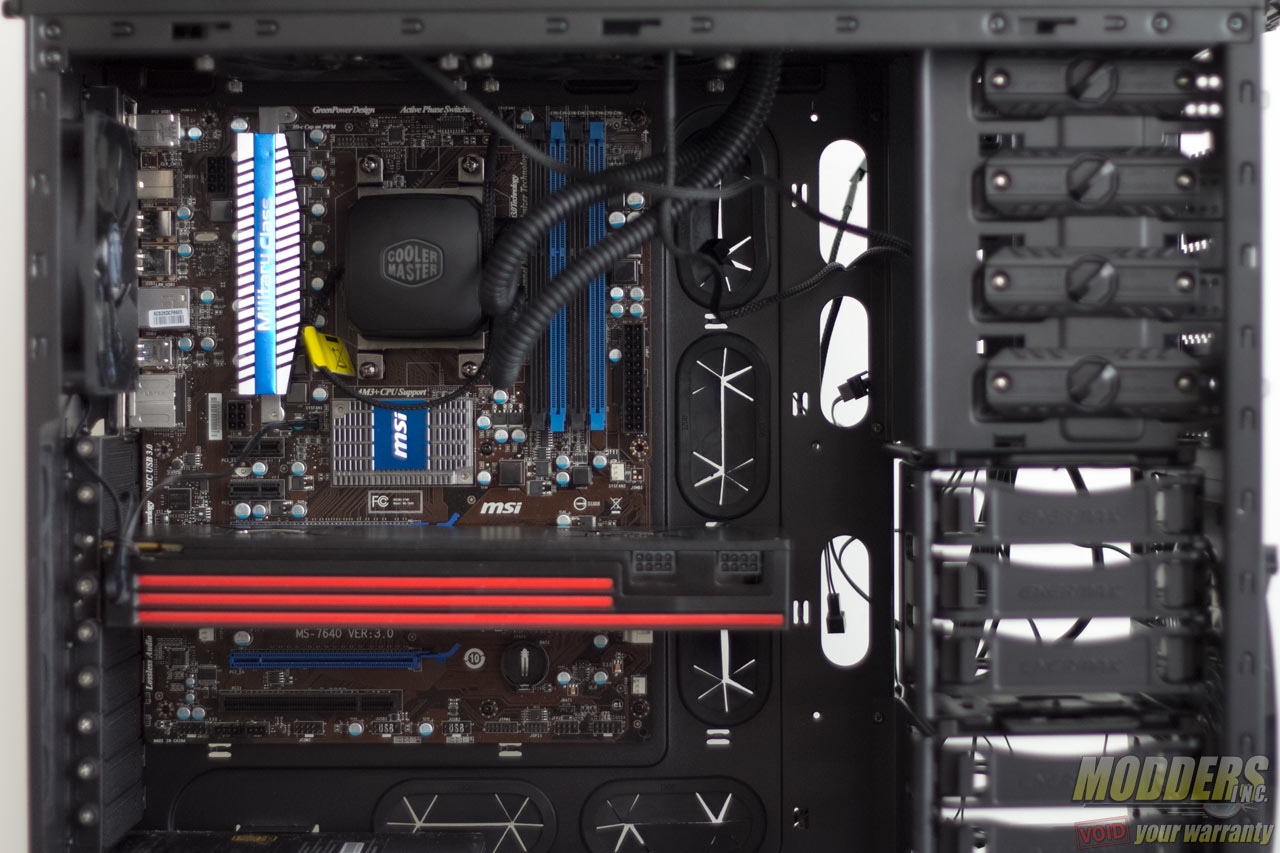

Component Clearance:

  • E-ATX Motherboard Support
  • 194mm maximum CPU Cooler heatsink height clearance
  • 343mm maximum video card length clearance even with full HDD cage (enough to clear even the longest video cards such as the HD6990 pictured above).
  • 481mm maximum video card length clearance without middle HDD cage.
  • Quad-video card support (dual-slot) + 1 slot for extra component.

Rear Mounting:

  • 120 or 140 mm fan/radiator supported.

Front Mounting:

  • 180 or 200 mm fan supported.
  • 180/200mm radiator cannot be mounted without modding as the HDD cage is in the way.

tmgiant40 tmgiant41

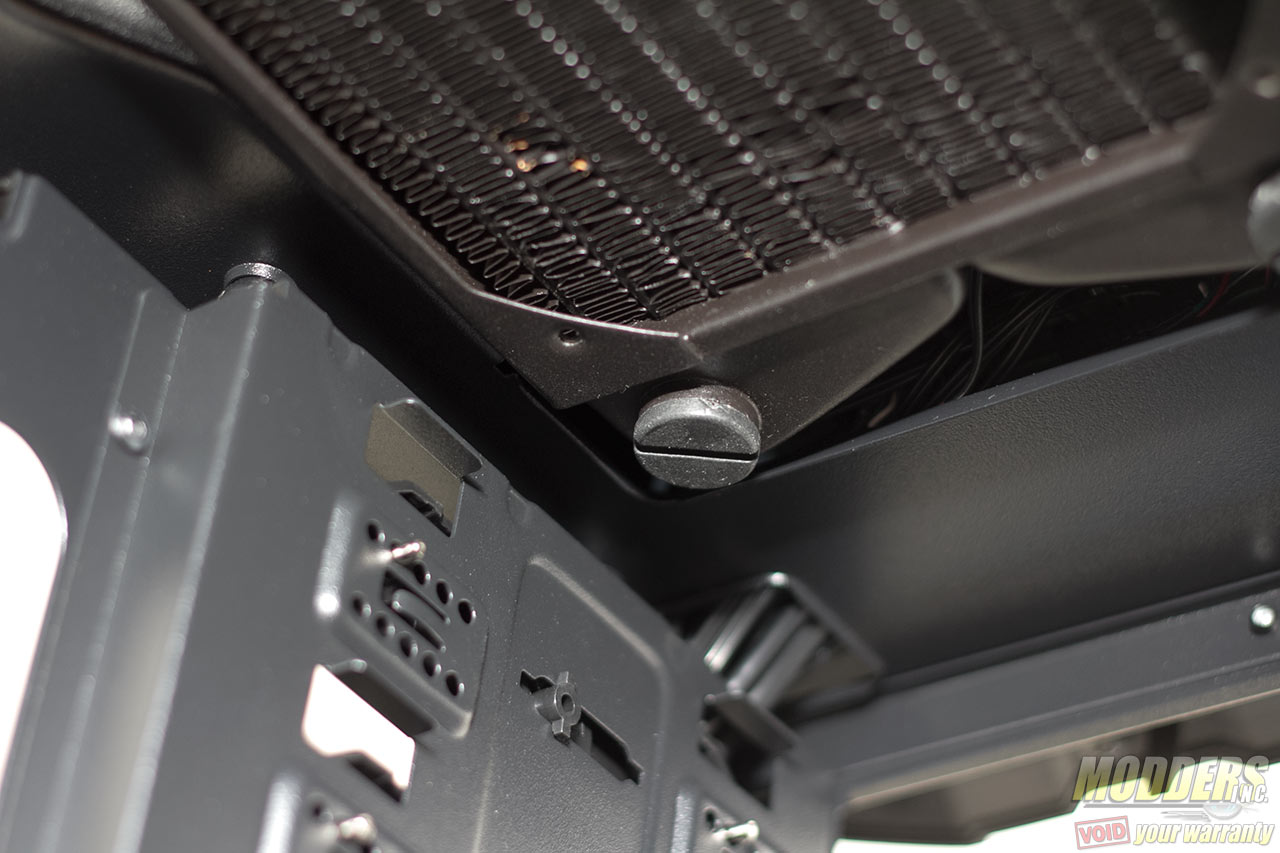

Top Mounting:

Related Articles
  • 2x140mm fan/radiator supported
  • 2x120mm fan/radiator supported
  • Up to 3x120mm fan/radiator supported although the front-most 120mm fan/radiator is partially obscured by the front panel tray.
  • 1x 180mm fan/radiator supported
  • 1x200mm fan/radiator supported
  • 66mm internal roof clearance before motherboard

Bottom area:

  • 2x120mm fan/radiator can be installed with 66mm thickness total clearance.
  • Mounting hole is static type and not sliding.

tmgiant37 tmgiant39

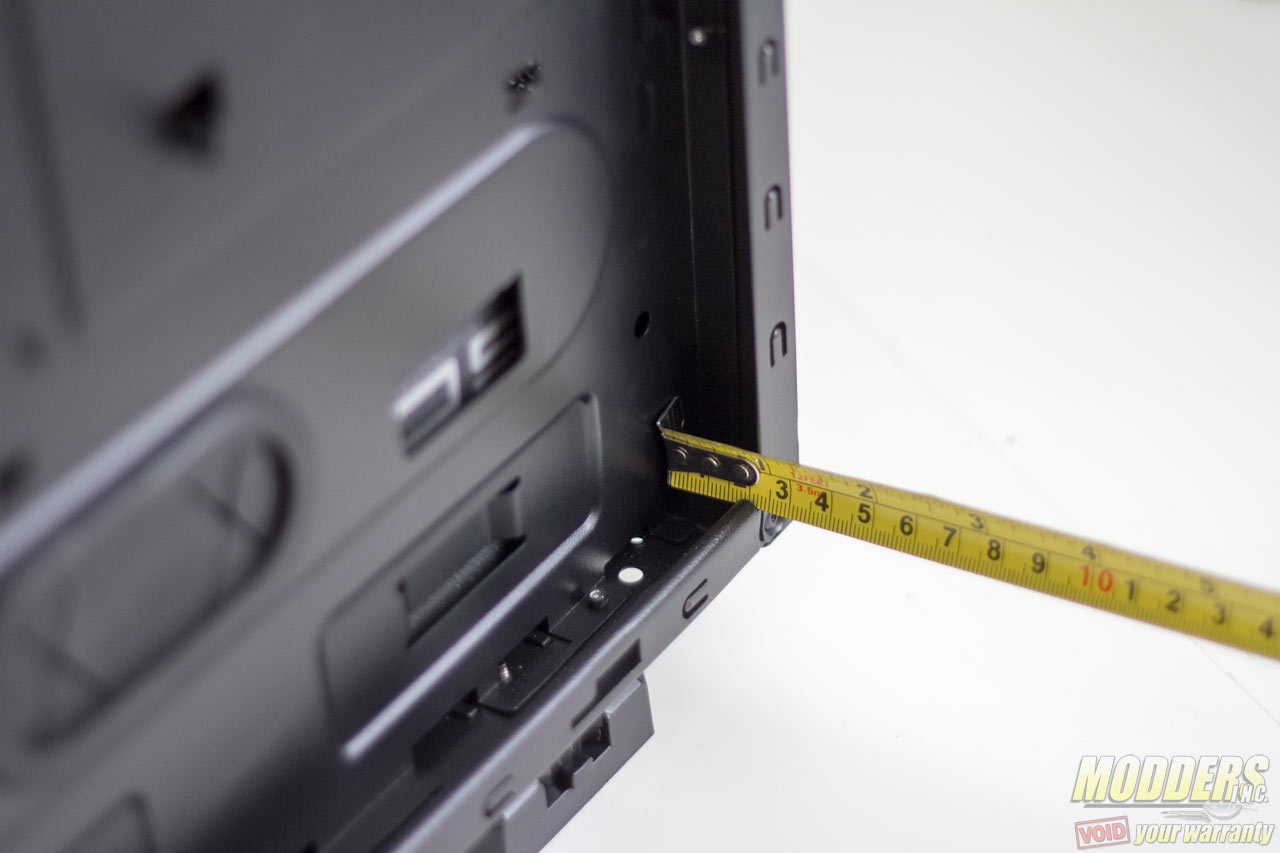

Cable routing and management:

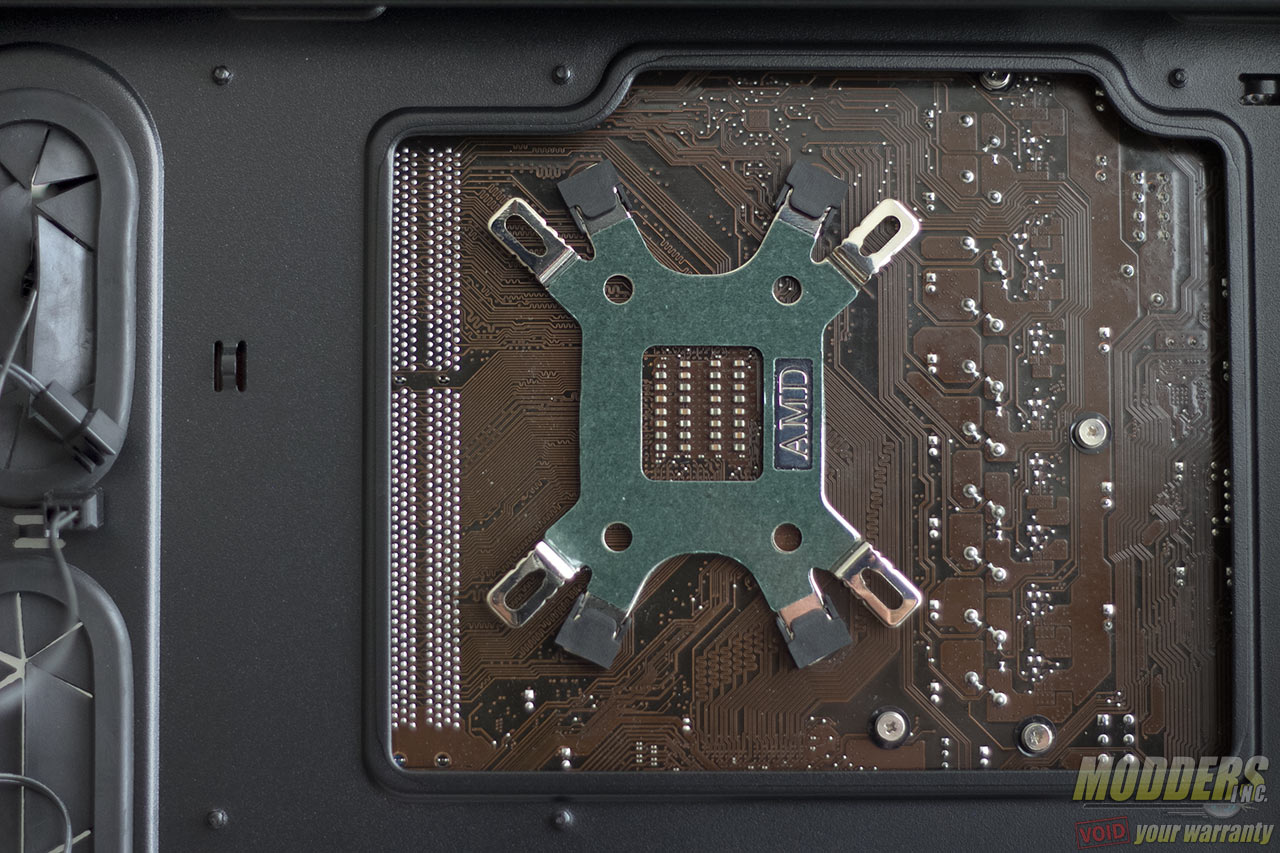

  • Available 20mm clearance at the tightest area behind the motherboard tray for cable routing.
  • A single 4-pin MOLEX power connector powers the built-in fan controller
  • Separate top openings at the upper right hand corner for the 4/8-pin CPU power connector and smaller cables such as for routing fan cables.
  • Excellent distribution of cable loops to tie down cables to the motherboard tray, unlike some cases which only have some on the middle area.
