Unofficial Maximum top radiator recommended thickness is 30 mm.
Power Supply:
There is no removable plate. Installing my PSU.

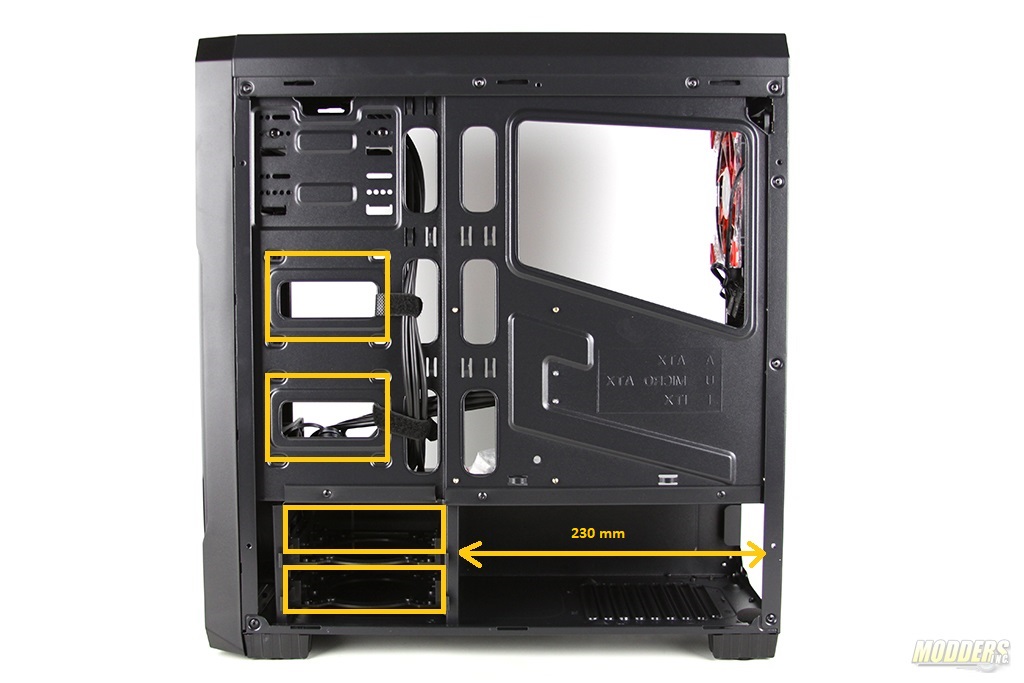

230mm Clearance for Power Supply installation.
Video Card clearance:

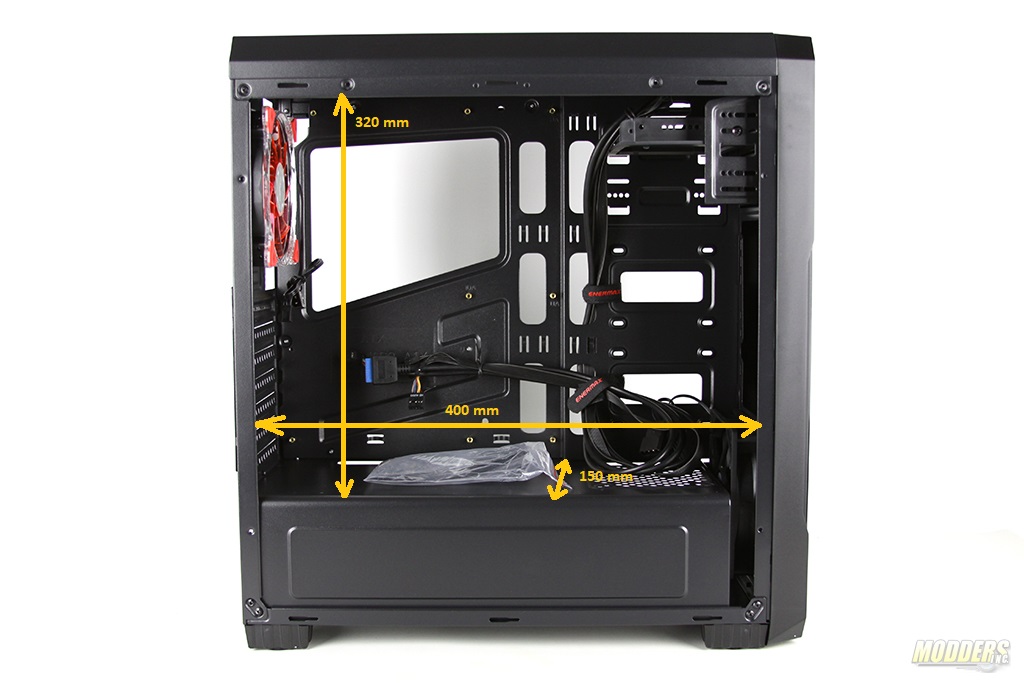

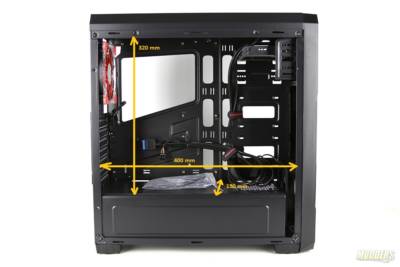

There is 390mm of clearance before the reaching the front fan mounting area.
CPU Tower coolers:
CPU heat-sink height clearance is about 120mm.
Large CPU backplate cutout.

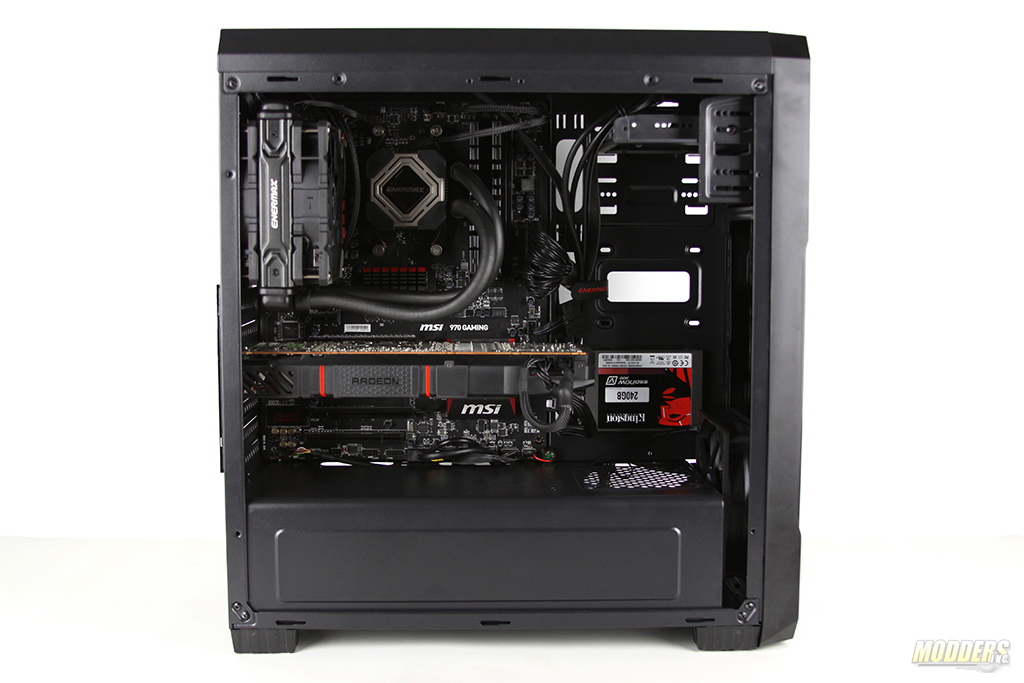

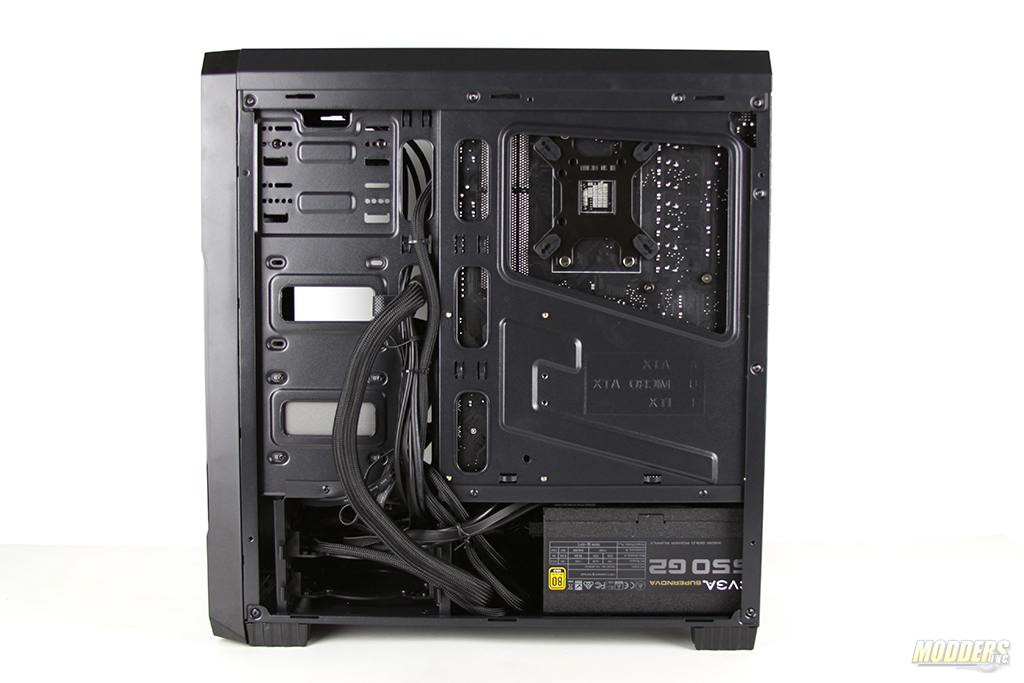

Assembling the system wasn’t too difficult, however, I had a hard time running cables from the back of the case to the motherboard. SSD mounting I found to be somewhat odd however, I made it work. In my case, the distance between the SSD and the motherboard SATA connectors was about 20mm. Bottom fed cables I had no problems with. Everything else was pretty easy to install. Keeping things neat on the back of the case was somewhat challenging. I felt like there wasn’t enough room for PSU cables. One thing I have to mention is the CPU backplate cutout. If you are replacing CPUs without removing the motherboard you might have an issue because of overlapping space between the top right socket and the motherboard tray.
