INTERNAL IMPRESSIONS Pt. 2:
COMPONENT SET-UP

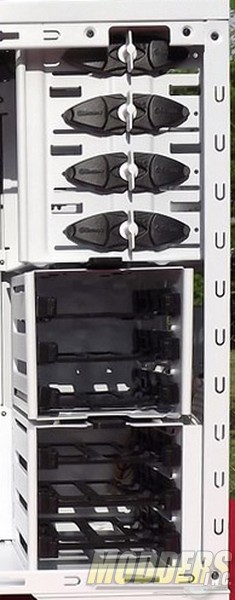

Drive Bays with six slide-out trays for 3.5” HDD and 2.5” SSD mounting holes.
The center three drive bay section is tool-less and removable with the lower three drive bay section riveted in.
Four Upper front access 5 1/4″ drive bays with tool-less mounting for bay peripherals is also riveted to the case frame.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 1

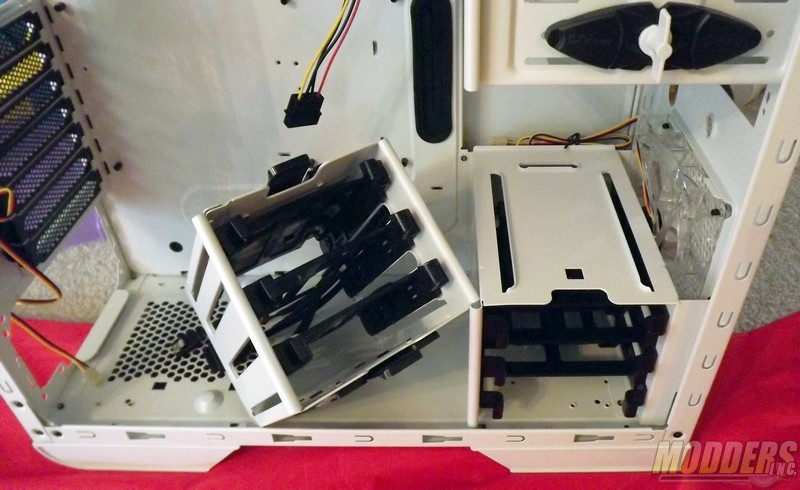

Tool-Less removable center internal HDD/SSD bay section will allow up to 403mm wide GPU card.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 2

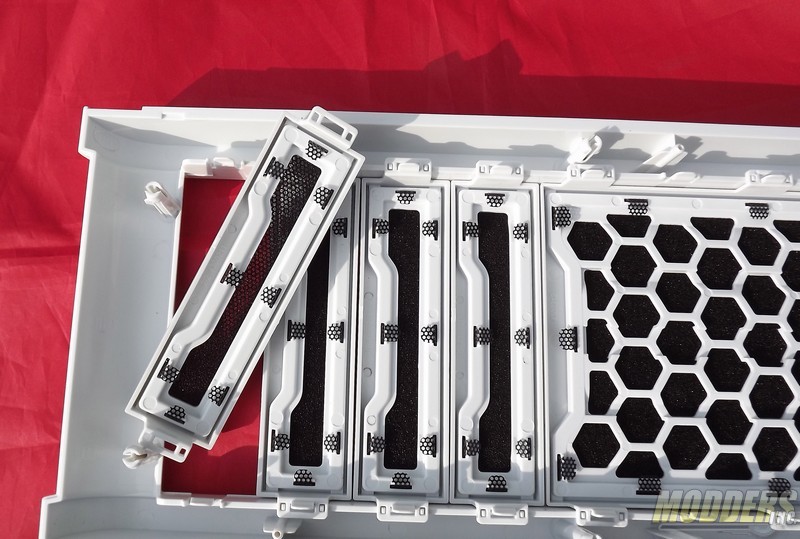

Four front 5 ¼” access bay’s are a tool-less pinch lock covers for front bay device mounting.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 3

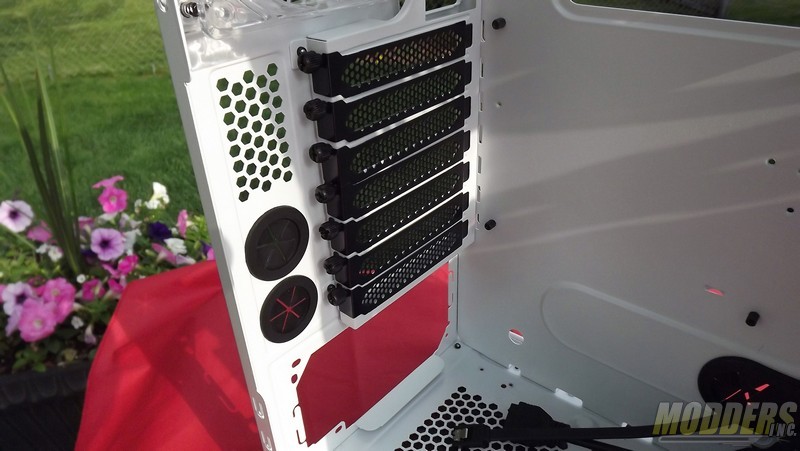

Micro-ATX and ATX Motherboard layout with seven expansion slots and large cable routing holes with rubber grommets.
Mother Board 6/32nds stand off’s come already installed.ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 4

Related Articles

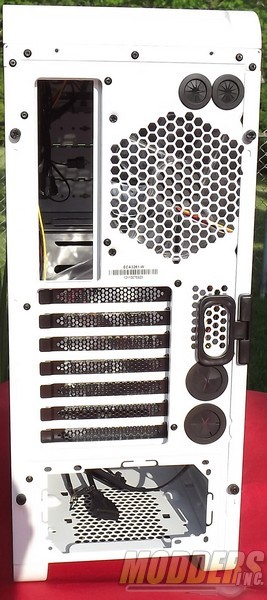

Cable management holes with rubber grommets on motherboard tray and rear case.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 5

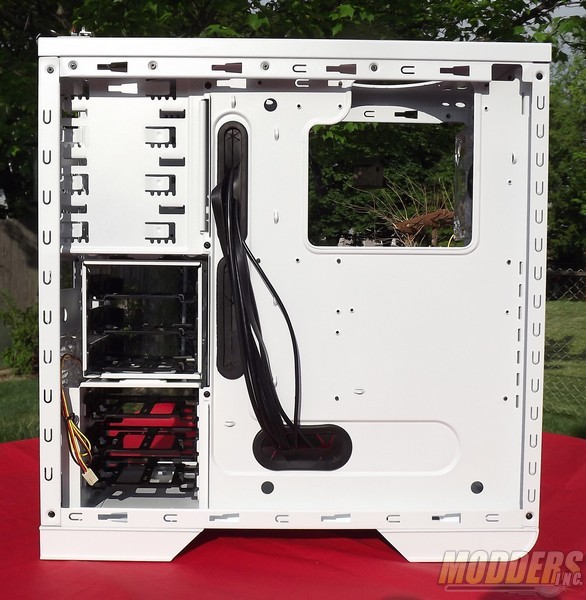

The motherboard tray has a large square cut-out for CPU and Bridge back side access typically needed for mounting cooling blocks. I like the larger cut out giving more exposure to the underside of not just the CPU but also choke strings, bridges and memory, it provides more flow and access. There is 20mm space for cable management between mother board tray and side panel.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 6

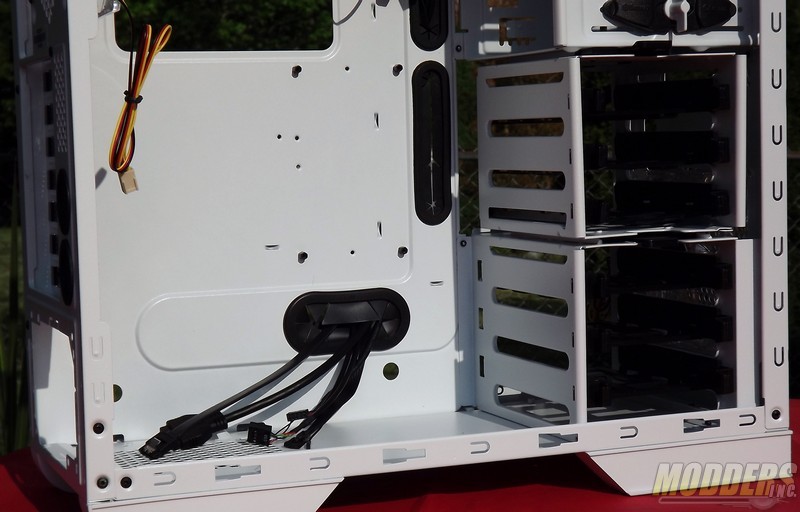

Video cards 286mm (11″) in length will fit as is but if you remove the internal center drive bay it will allow a 403mm (16.1″) card. CPU cooler space allows 167mm (6.6″) MOBO to side panel door and a power supply of 290mm (11.4″) will fit.

ENERMAX HOPLITE ST ECA3261-W ATX Case ATX, Case, Economy Case, Enermax, Mid Tower 7
