ECS Durathon 2 Z270H4-I Motherboard Review

« System Benchmarks (CPU, Memory, Compression, Multimedia) | Final Thoughts »

Subsystem and Gaming Benchmarks

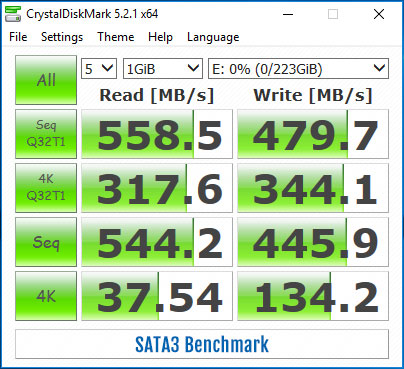

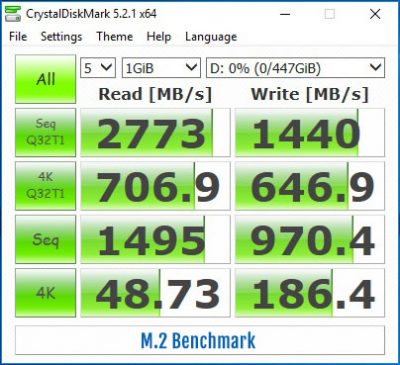

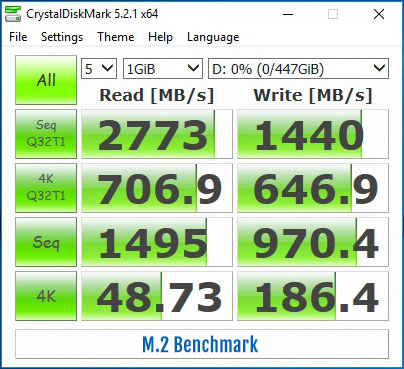

SATA3 6G and M.2 PCIe x4:

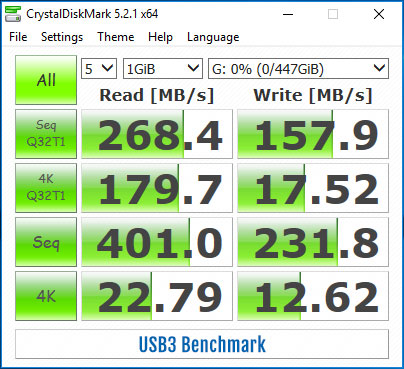

USB 3.1 Gen1 and USB 3.1 Gen2*:

ECS Durathon 2 Z270H4-I Motherboard Review ECS, Motherboard, z270 3

*There are no USB 3.1 Gen2 ports on the ECS Z270H4-I

On-board Audio

Before proceeding with audio benchmarks, Deferred Procedure Call latency must be first checked to make sure that the system is capable of producing useable results when the Rightmark Audio Analyzer benchmark was run. DPC is a Windows function that involves prioritizing tasks within the OS and high DPC latencies can be caused by several things including hardware device conflict. The DPC Latency Monitor graphically displays the latency level of the system in real time.

Related Articles

ECS Durathon 2 Z270H4-I Motherboard Review ECS, Motherboard, z270 4

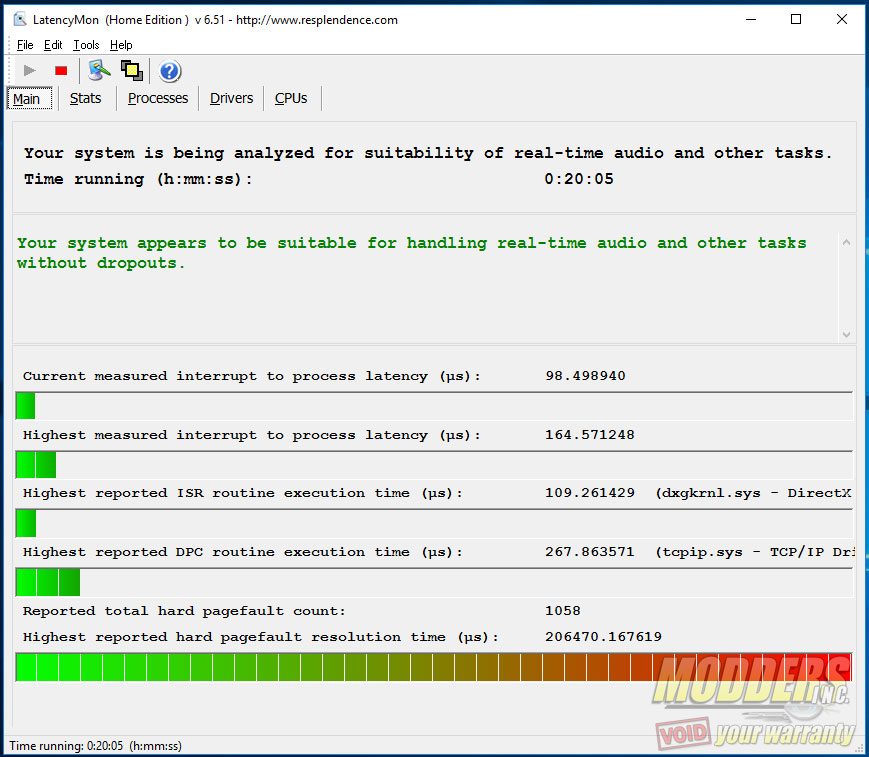

After leaving the system running for 15+minutes, the ISR and DPC routine execution times peaked at 109.26 and 267.86 respectively and are well under the 4000 microseconds range (at which point the system will be unsuitable for real-time audio playback), so the audio tests can proceed.

RightMark Audio Analyzer tests using a short 3-inch 3.5mm audio-loop cable that goes in the rear line-in and line-out ports for a loopback test to objectively test internal audio performance. 16-bit and 24-bit settings are used for all tests and all effects are disabled. Installing the drivers disables the line-in capability for 16/24-bit 96kHz and 192kHz so only the 44kHz and 48kHz results of those are included. Users can still choose 16/24-bit 96kHz and 192kHz playback however. The results without the provided drivers installed is also included for comparison. :

Audio Performance Color Code: Excellent Very good Good Average Poor

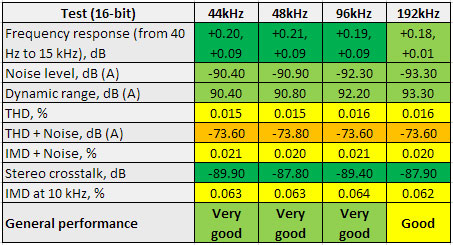

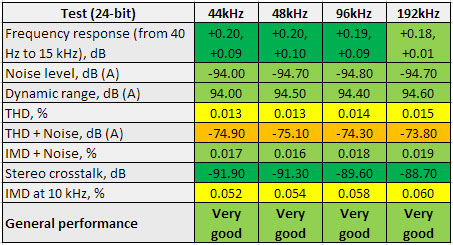

Default No Drivers:

ECS Durathon 2 Z270H4-I Motherboard Review ECS, Motherboard, z270 5ECS Durathon 2 Z270H4-I Motherboard Review ECS, Motherboard, z270 6

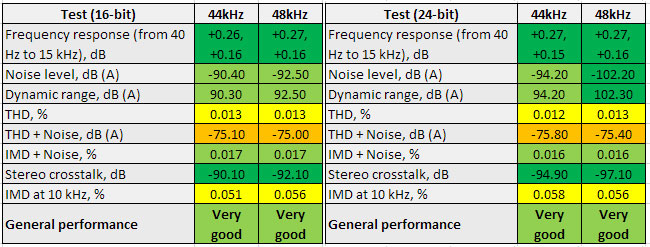

Bundled Drivers Installed:

ECS Durathon 2 Z270H4-I Motherboard Review ECS, Motherboard, z270 7

Network Connectivity

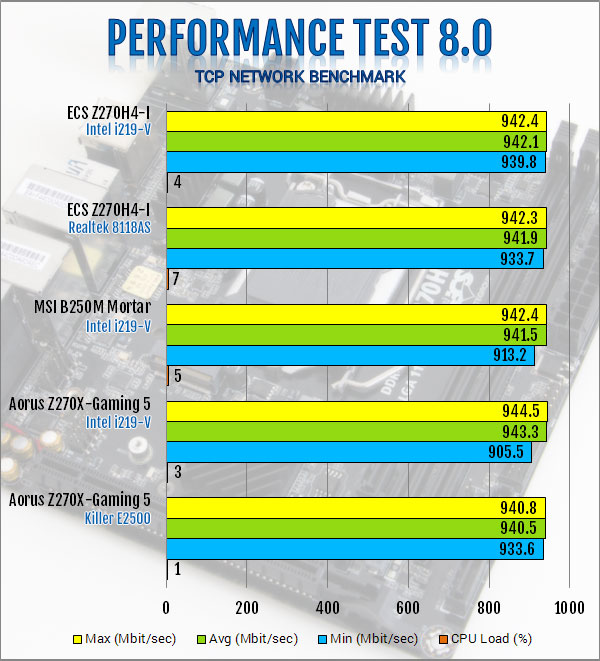

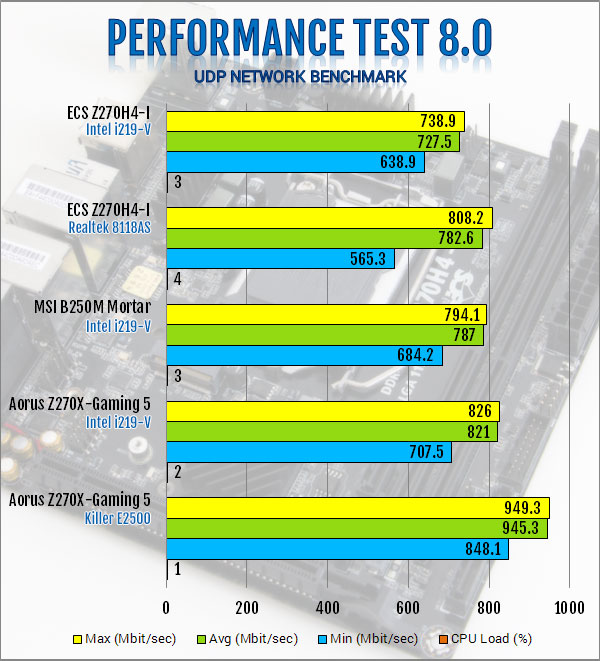

Network testing was conducted with a 4-port Cisco E3200 Gigabit Dual-Band Wireless N router and a pair of 6-ft long Cat5E cables connecting the server PC and the test motherboard. The server system is running an Intel Core i7-5775C processor on an Asrock Z97 Extreme 4 motherboard with an Intel i218V PHY. Interrupt Moderation was disabled, running TCP and UDP tests.

Gaming Tests

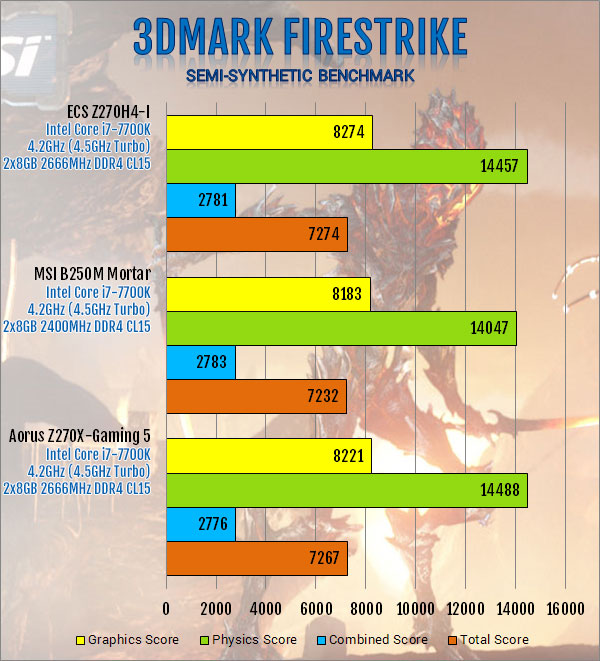

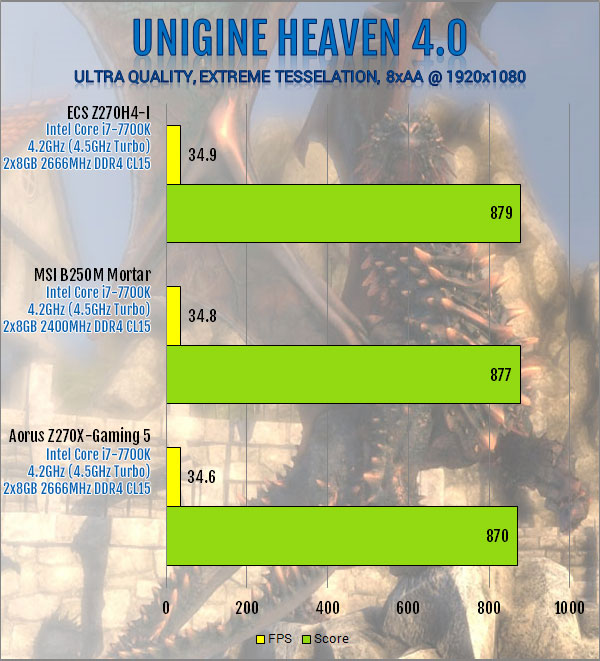

Futuremark’s 3DMark is a semi-synthetic gaming benchmark that calculates both graphics and CPU-bound physics in a controlled series of tests and provides scores that can be compared with other gaming platforms. Unigine Heaven is a synthetic benchmark that is completely GPU bound for testing possible PCI-E graphics performance inconsistencies.

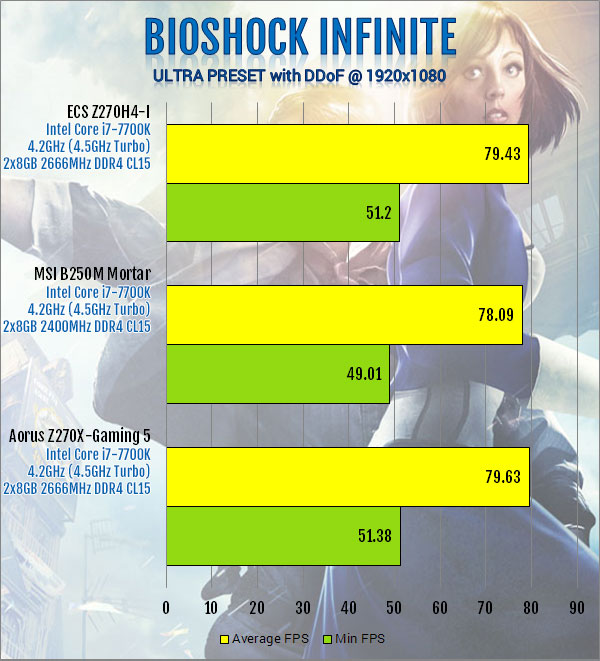

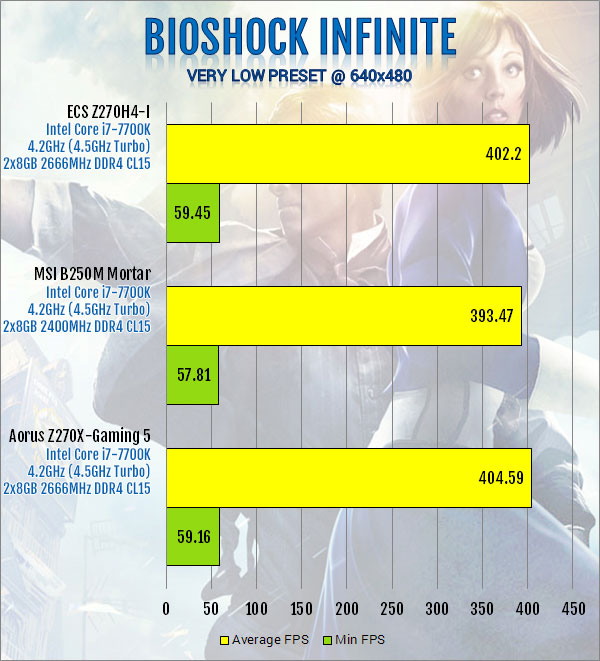

A gaming test run for Bioshock Infinite at the lowest resolution and settings was performed as well as a test with maximum details at a 1920 x 1080 resolution. CPU performance difference can be gauged due to the reduced reliance on the discrete GPU at those low levels theoretically but a high resolution benchmark was also conducted to see if there are inconsistencies with PCI-E graphics performance.
