DimasTech Bench/Test Easy V3.0 Review

A Closer Look »



Dimastech-easy-3-26

The Dimastech Bench/Table Easy V3.0 started of from a hobby of Phase Change Cooling, but that hobby soon turned into a real company. This tells me that Dimastech understands the needs and wants for those who are currently serious about the PC hobby. Using an open air case or otherwise called a test bench can save those that which out hardware on a regular basis a lot of time. Even for those that rarely change out hardware need to look at Dimastech Bench/Table Easy V3.0  for its ease of access, looks and options. Lets jump into the review and I will walk you though the build.

[sc:sponsor sponsor=”Dimastech” product_link=”http://www.dimastechusa.com/bench-test-table-easy-v30″ product_name=”Bench/Test Table Easy V3.0″ product_price_link=”http://www.dimastechusa.com/bench-test-table-easy-v30″ product_price=”169.99″ ]

Dimastech-easy-3-01 Dimastech-easy-3-02

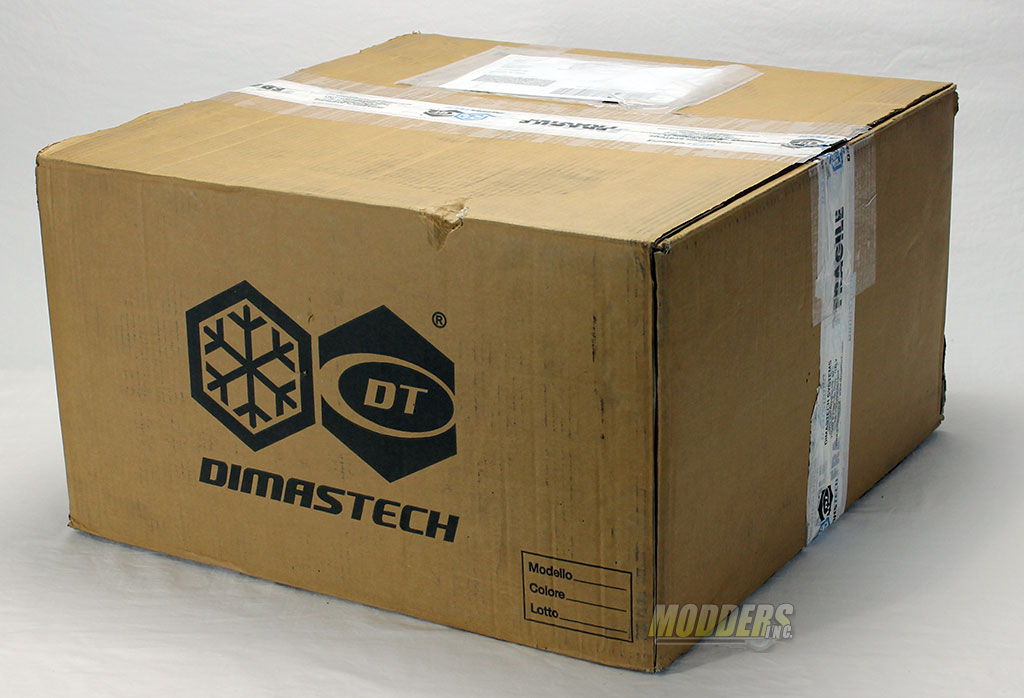

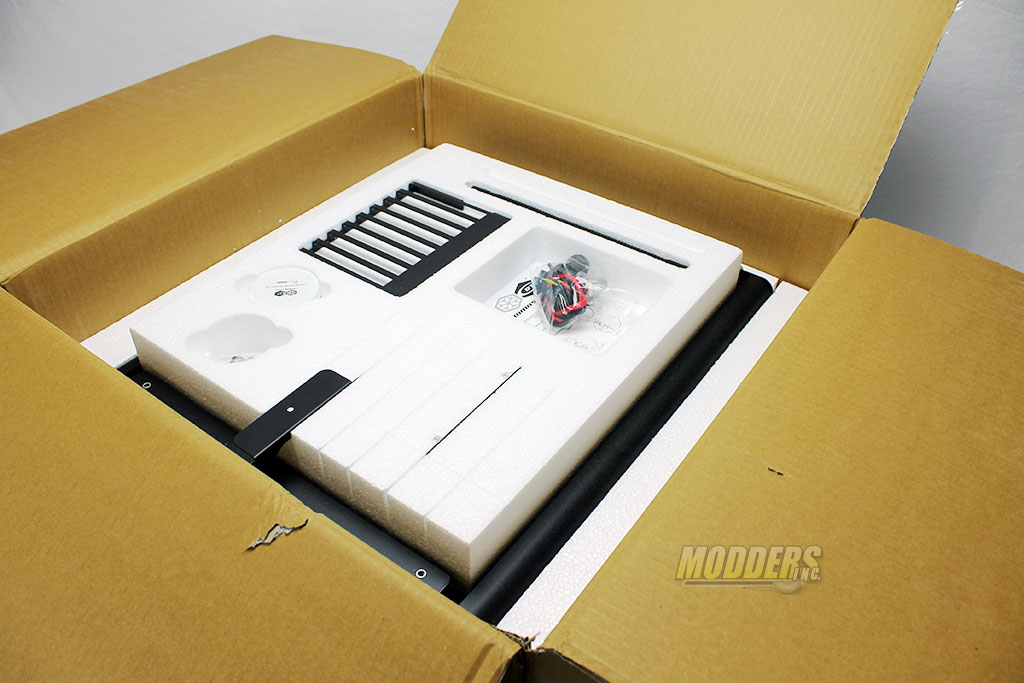

Dimastech ships out the test bench in a very plain cardboard box, but you have already been all through their site and placed your order so why would you need a pretty box.

Dimastech-easy-3-03

Related Articles

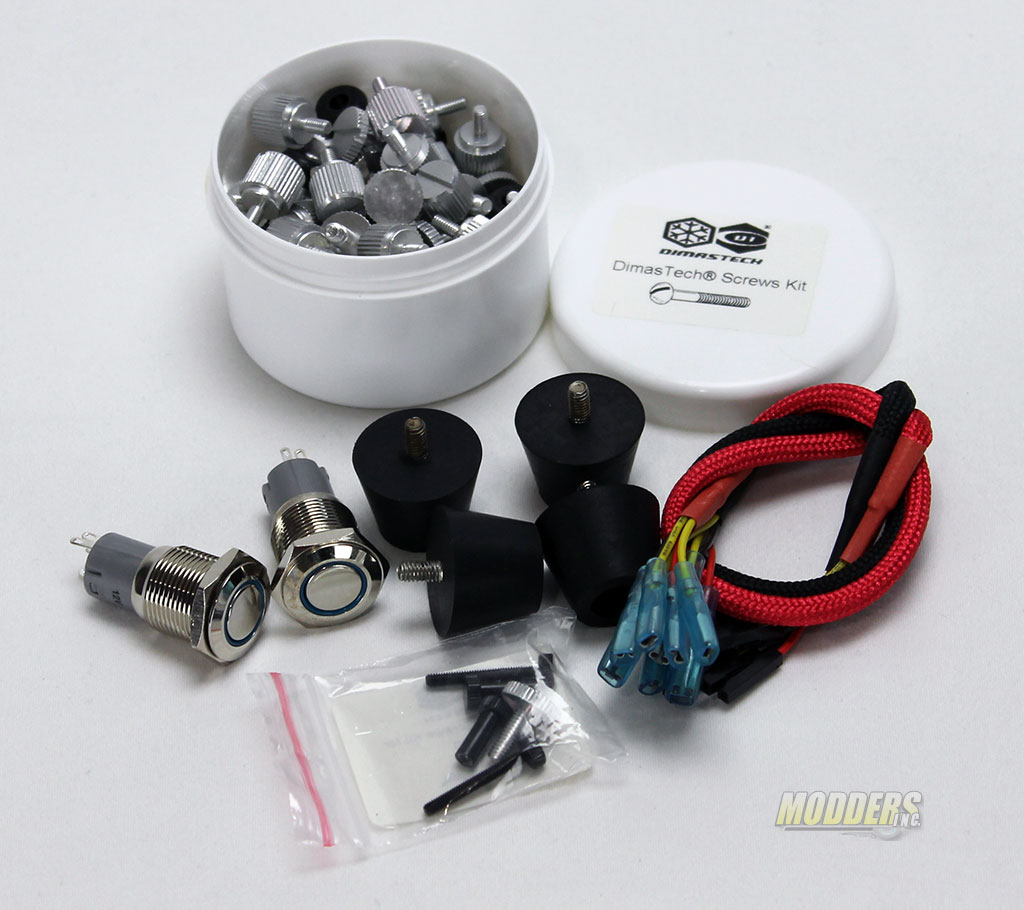

Included in the box are all the items you need to put the Dimastech Bench/Table Easy V3.0 together. A assortment of thumb screws are placed in screw top container. Two lighted push buttons and cables along with four rubber feet round out what was in the box.

Dimastech-1

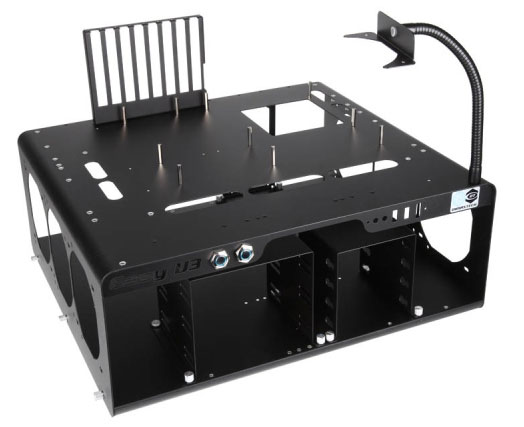

Sneak peek of the Dimastech Bench/Table Easy V3.0

The Dimastech Bench/Table Easy V3.0 that we got for test was black in color, but the same unit is available in blue, grey, red, white and orange.

Dimensions:

  • 430mm Depth x 490mm Width x 205mm Height (Height is measured by considering the Rubber Feet and not considering the 25mm spacers to support the Motherboard and 8 slot Expansion Boards Support)

Production Specifications:

  • CNC Laser Cutting of sheet thickness 1.5 mm
  • Hand Welding
  • Powder Coating
  • Finish and Quality Control Standard in accordance with strict internal regulations
  • “Made in Italy”

Technical Specifications:

  • Motherboard Compatibility ATX, Full ATX, NanoATX, MicroATX, XL-ATX, Mini ATX, MiniITX
  • Installation of up to 3 Devices 5.25 inches
  • Installation of up to 4 Hard Drive 3.5 Inch – (Optional up to 8 Hard Drive 3.5 Inch – BT149)
  • Wide Step Area under the Socket for Heat Sinks removal.
  • New DimasTech® Buttons for Reset and Power Switch with LEDs Ring
  • 8 PCI Slots
  • Compatibility with Power Supplies up to 22cm in length,
  • DimasTech ® Knurled Screws M3 and 6-32 (Step UNC) complete with Knurled Nuts – all made of Anodised Aluminium.
  • Rubber Feet
  • 1 DimasTech ® FlexFan 120 V2.0
  • Lower drawer with sliding track and fixing with ThumbScrews
  • Positioning Supports Peripherals with Quick Release Hardware Antivibration DimasTech®
  • Positioning Devices Supports Modulable
  • Total Elimination of the use of the External Instrument
  • Possibility Mounting Panel – I/O DimasTech® V2.0 (including 2 USB 3.0 ports, 1 Audio IN / OUT 1 Audio, 1 E-SATA) – (Sold separately in the Accessories Section BT163)
  • Compatibility with Radiators up to 360 (Fan 120mmx3) or 280 (140×2) – Radiators 120, 140, 240, 280, 360, and Black Ice Sr 360 (20mm fan space)
  • Pump Support compatible with DDC (DDC 3.25), DCC (DCC 300, 500, DCC-1RT), D5, AQUASTREAM XT, SANSO PD054 (Sold separately in the Accessories Section BT152)
  • Possibility mounting DimasTech® Radext  up to 5 Positions (up to 360) on the upper part of the Bench with fixing system Tooless (on both sides SX and DX and on Frontal) – (http://www.dimastech.it/EN/c/dimastech-waterstations/shrouds/1/ /)
  • Full Compatibility with the Support of the Products Series Mini V1.0

Package Included:

  • DimasTech® Bench / Test Table Easy V3.0
  • 1 DimasTech® HD Support 3,5″  x 4 Slot
  • 1 DimasTech® Support for Optical Drive 5,25″ x 3 Slot
  • 1 DimasTech® Expansion Board Support 8 Slots
  • 1 DimasTech® PSU Support
  • 1 DimasTech® Through Wall Fitting Support for Organizing Tubes 16/17
  • 1 DimasTech ® FlexFan 120 V2.0
  • A Complete Kit of Screws for Hardware, Knurled Screws to Support Expansion Cards, PushButtons (Ring LEDs) and Cables DimasTech ® Reset and Power and DimasTech® Feet.
  • 10 DimasTech® Spacers 25mm
  • 1 DimasTech Sticker ®
  • Installation Manual DimasTech
