Deepcool Updates Dual-tower Assassin CPU Cooler

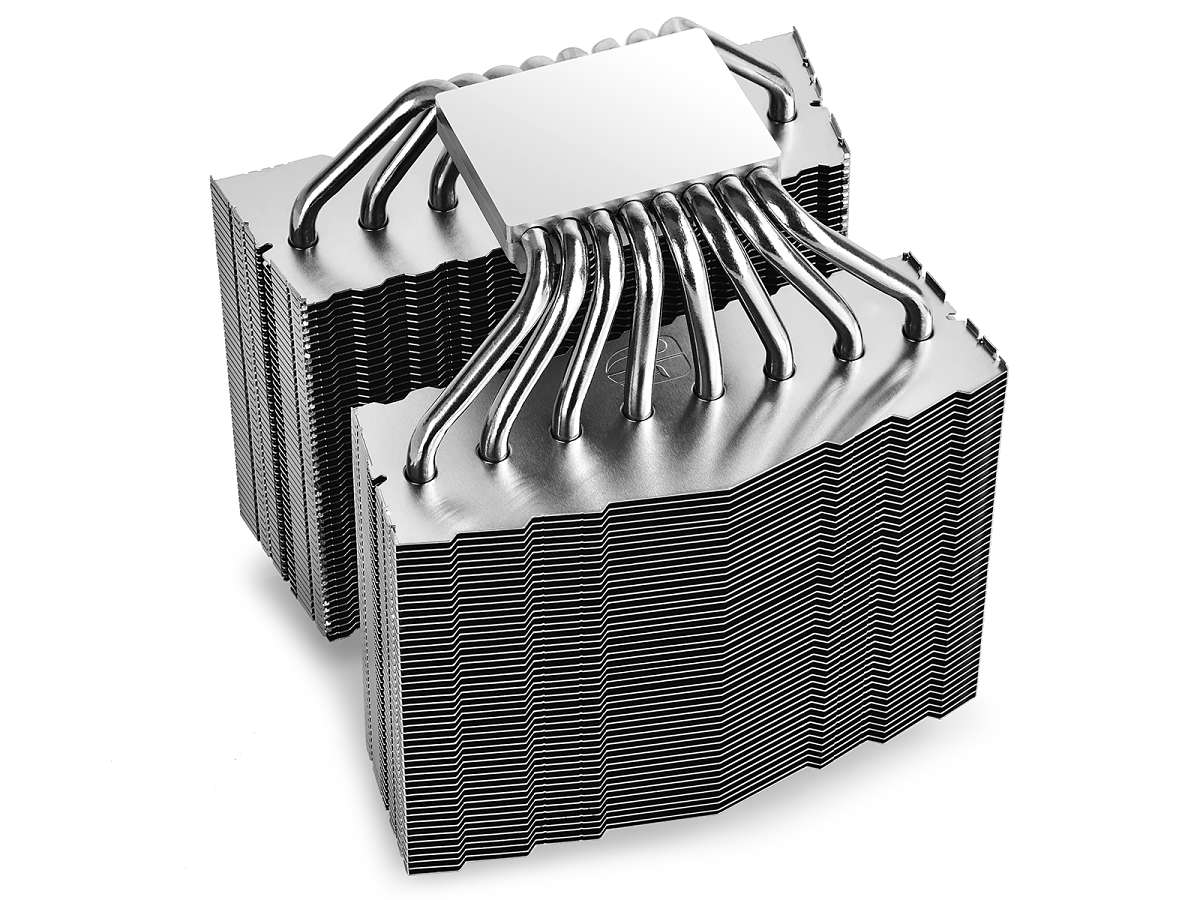

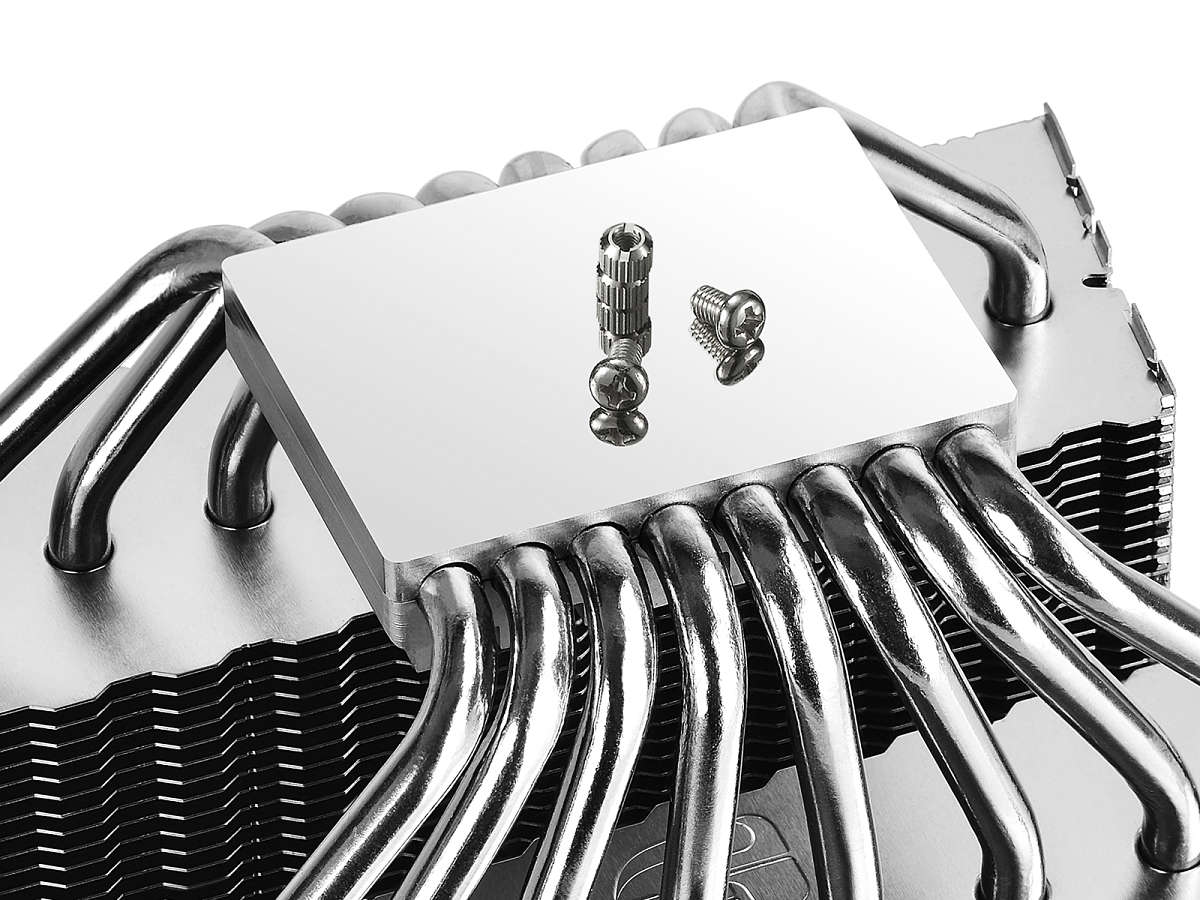

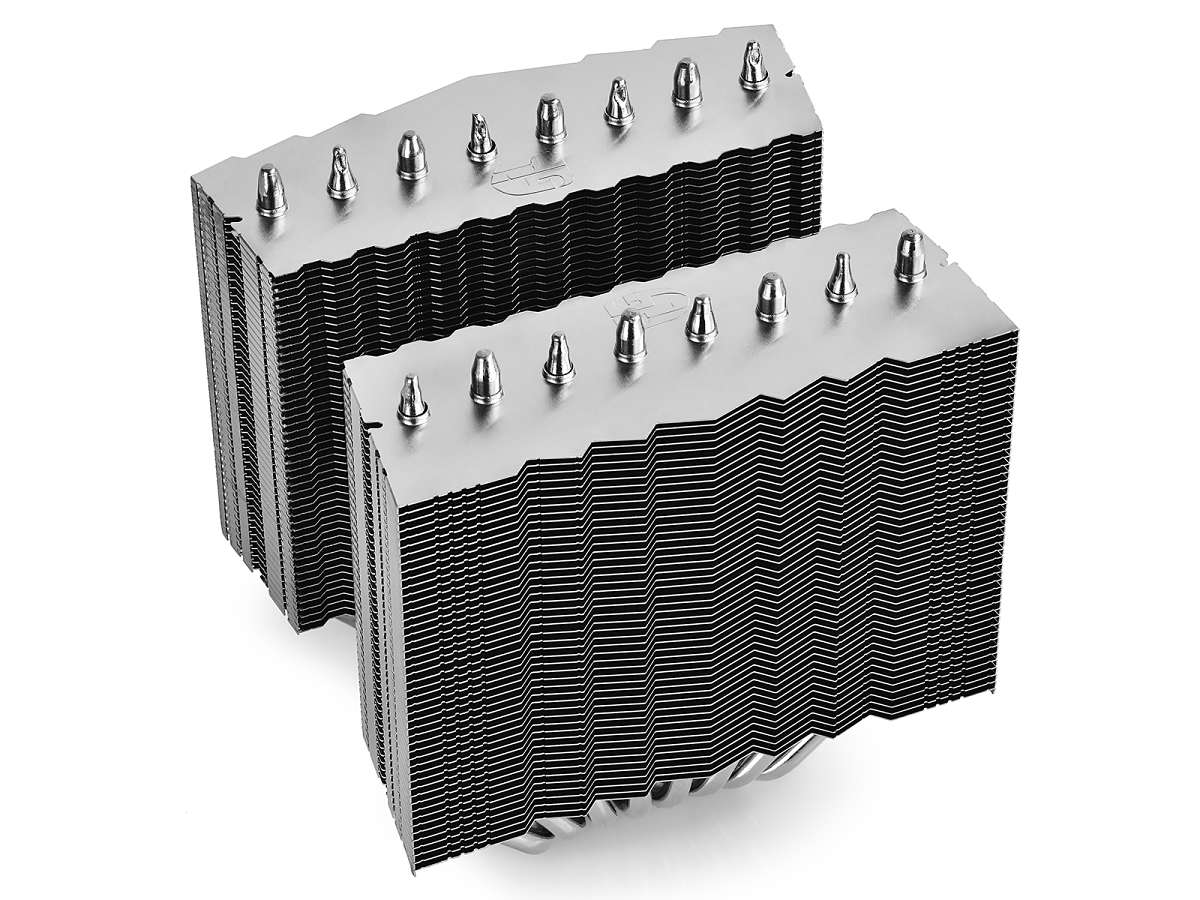

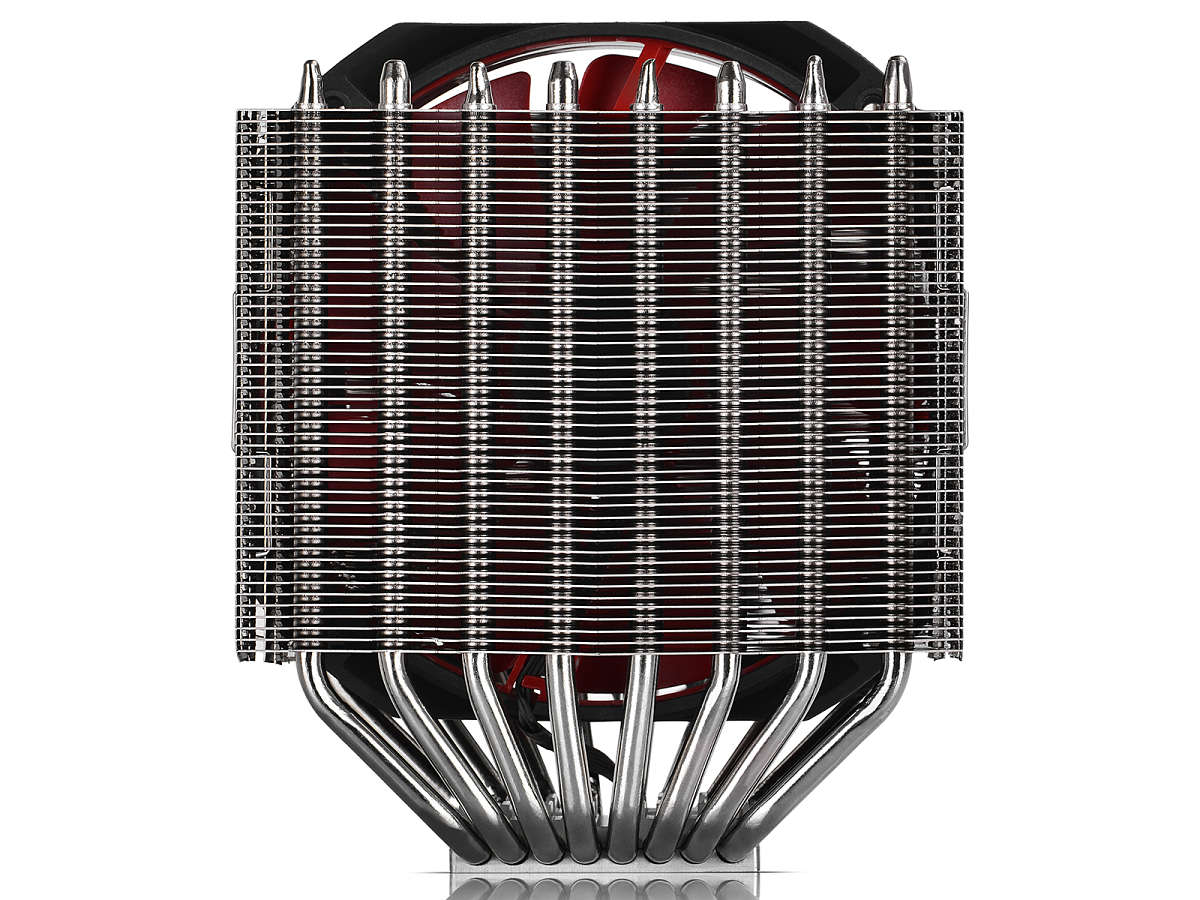

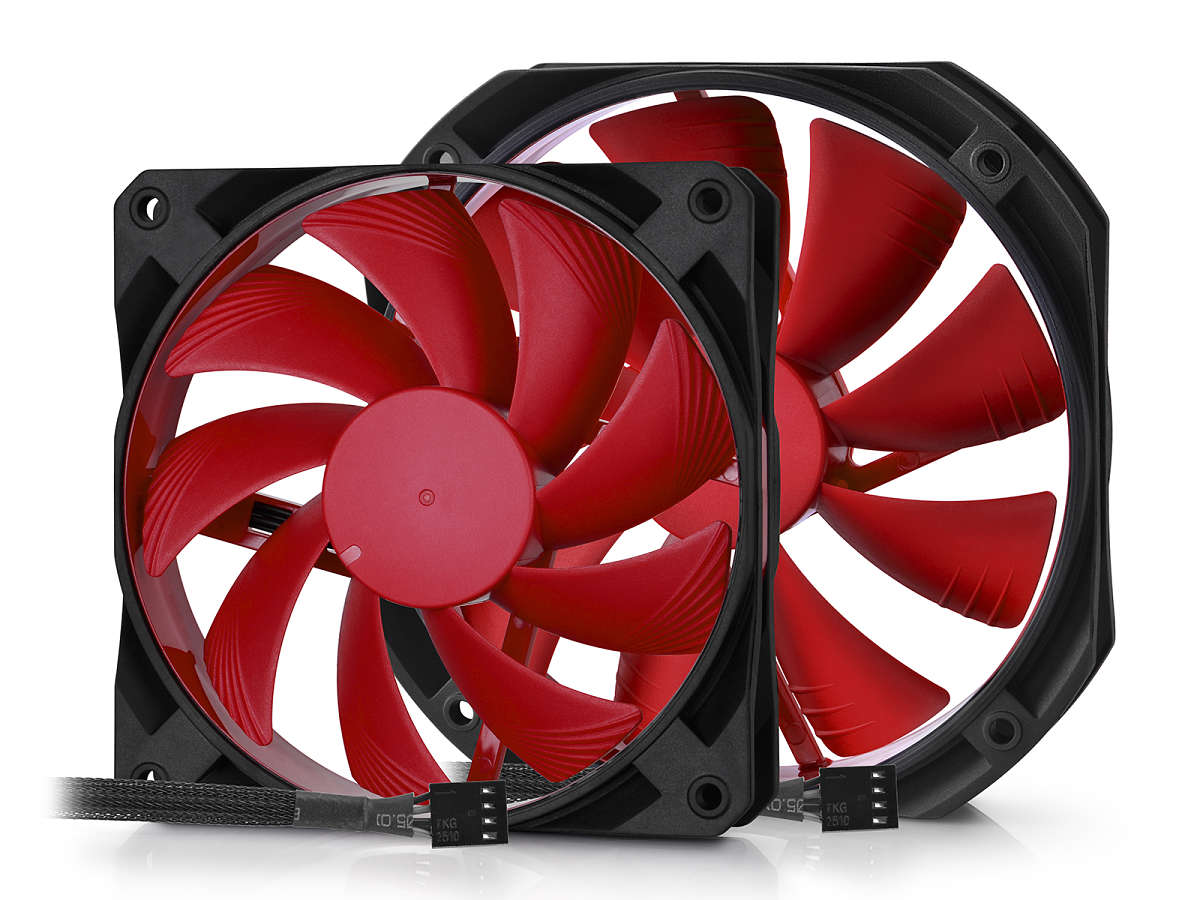

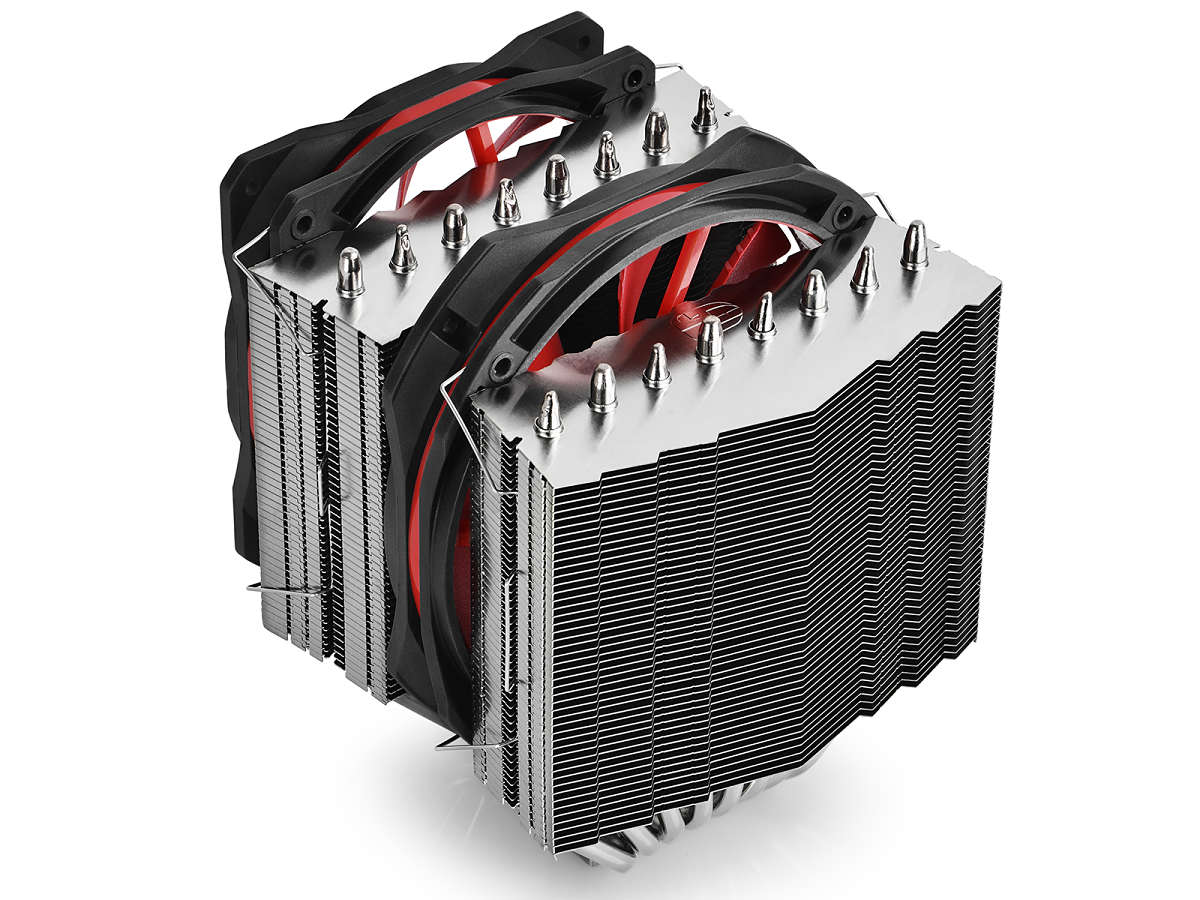

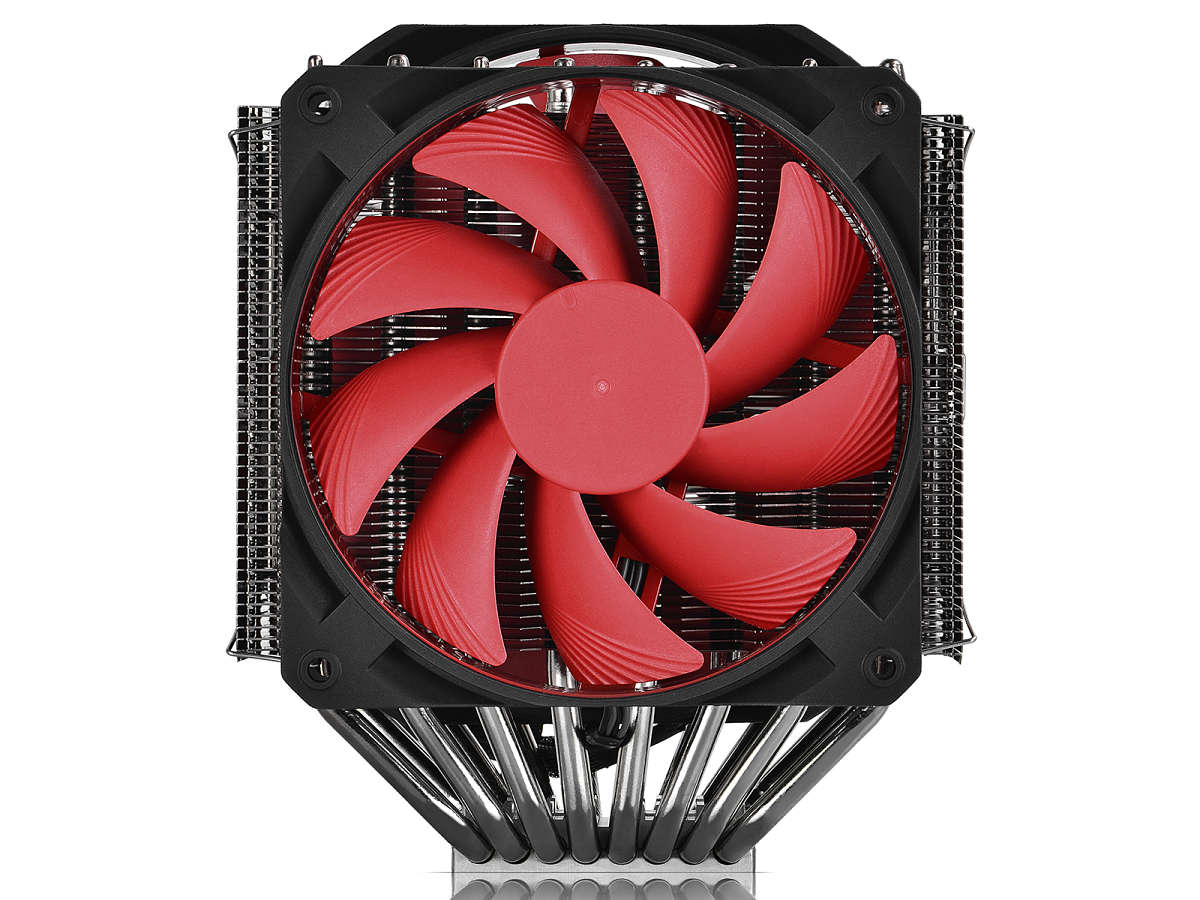

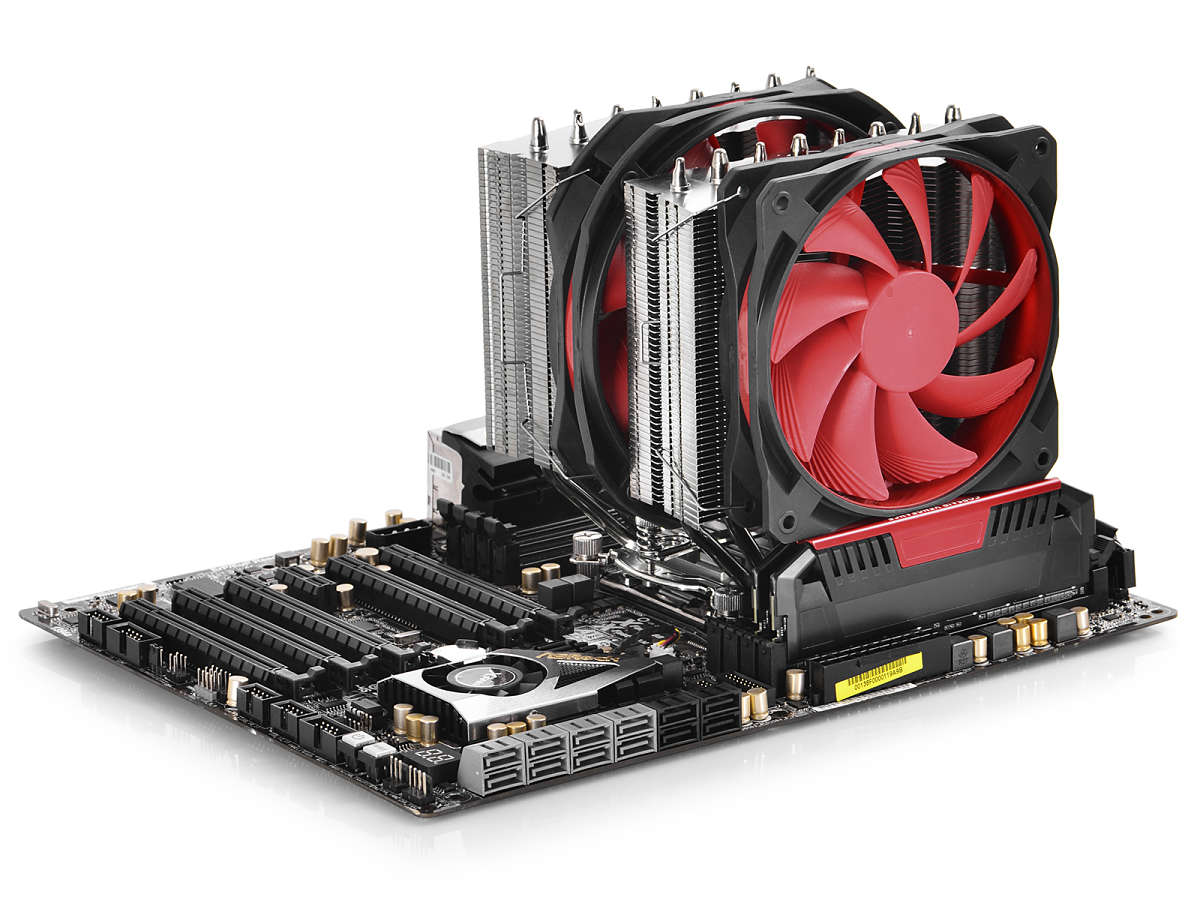

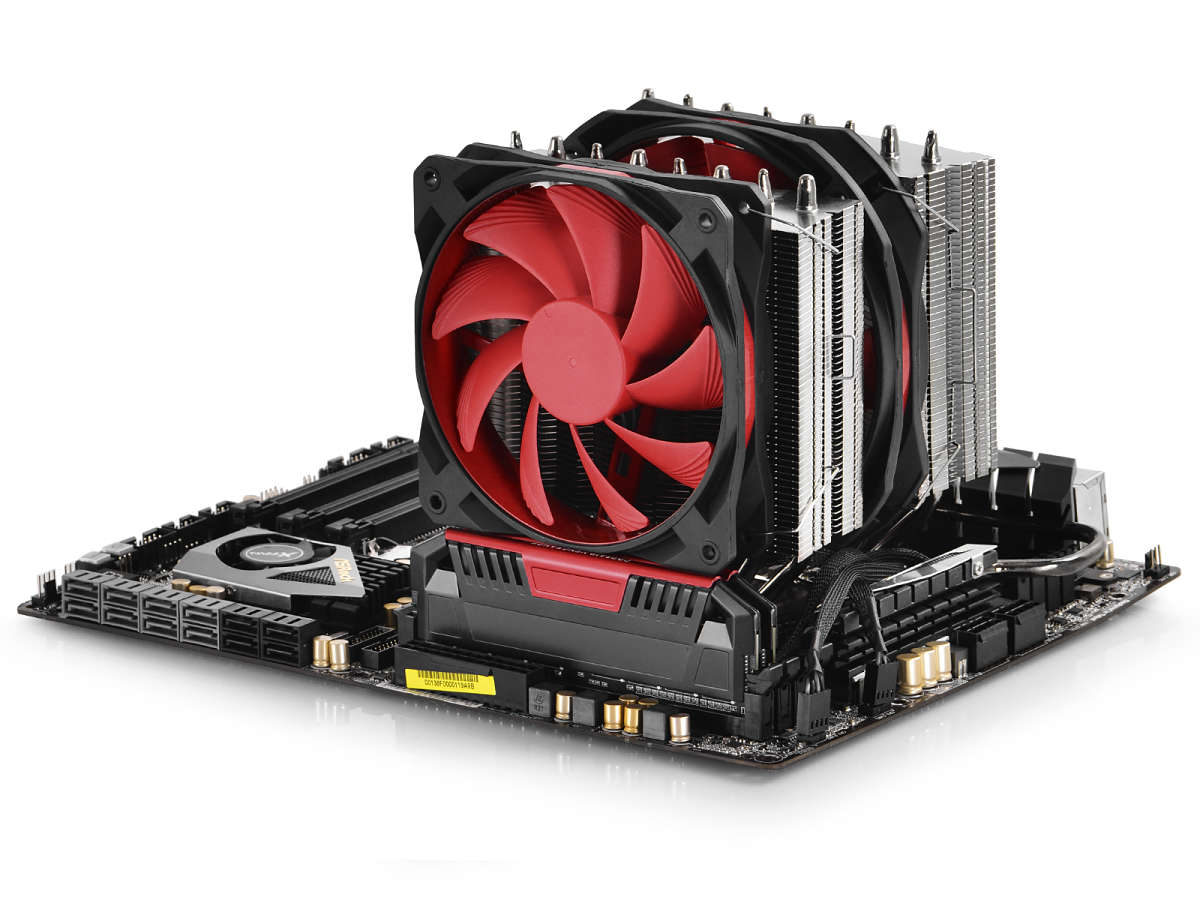

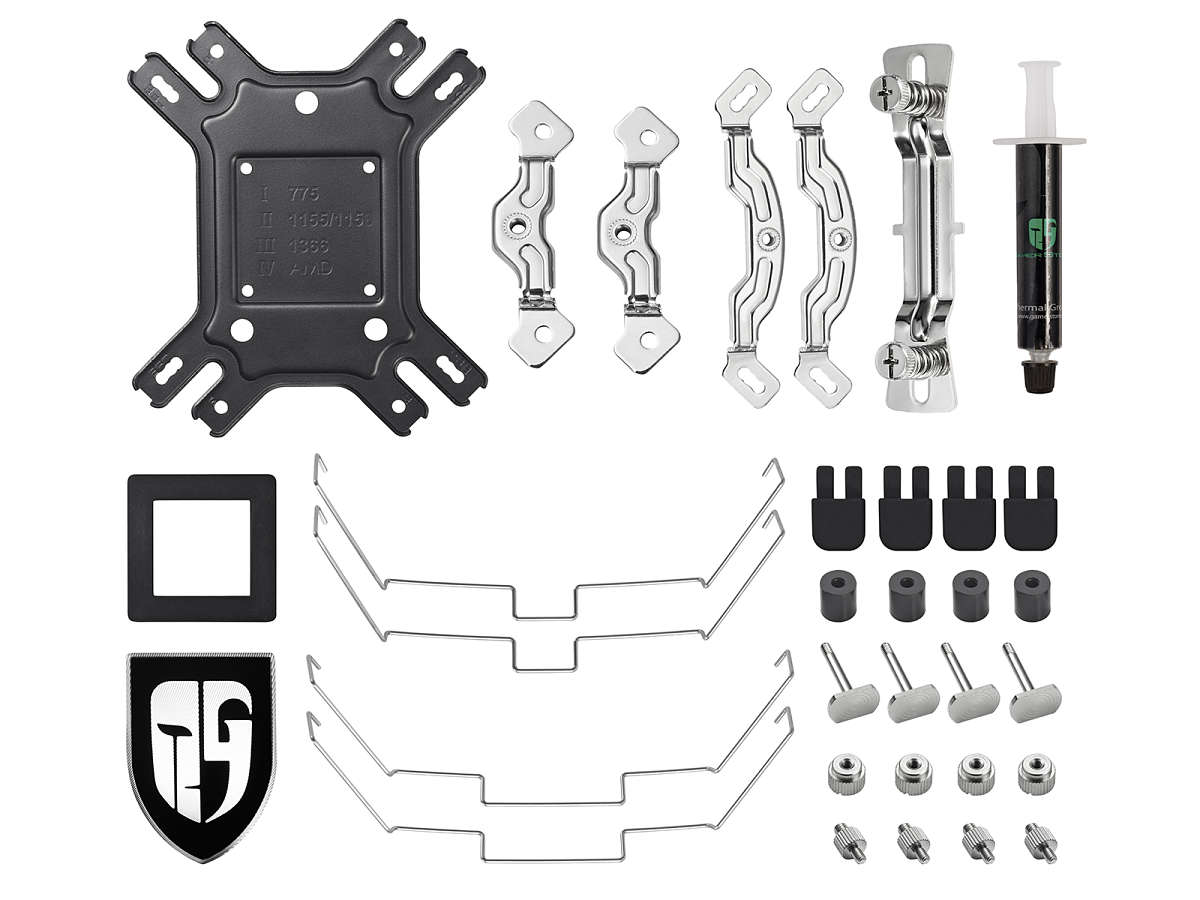

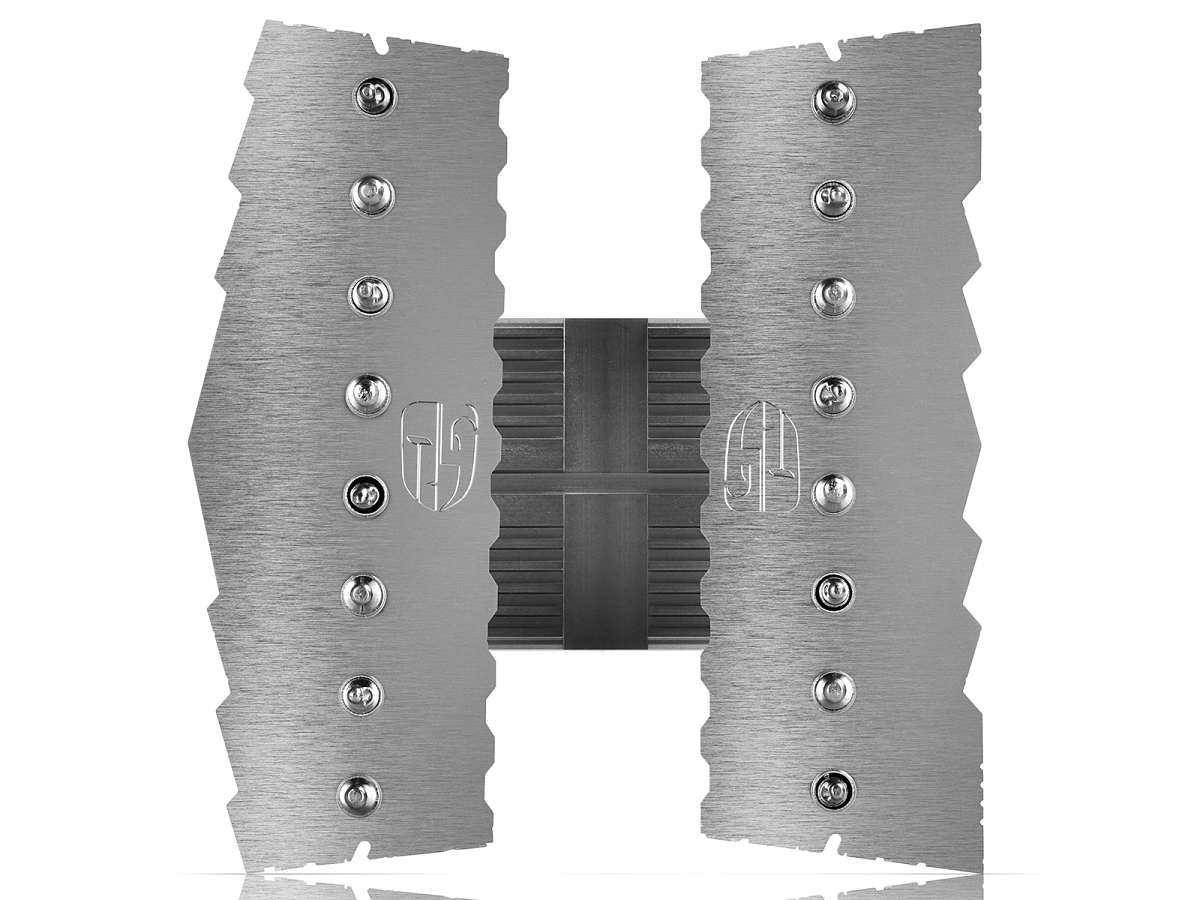

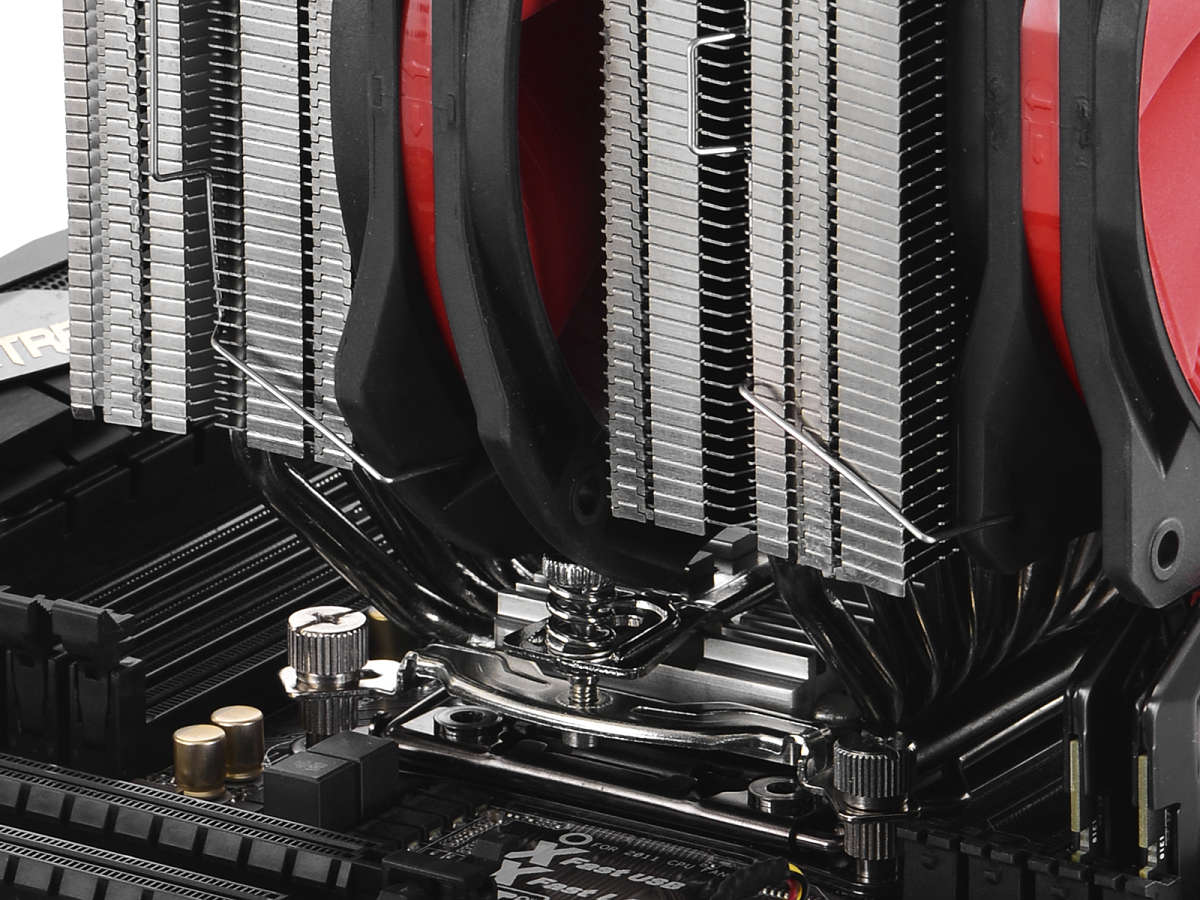

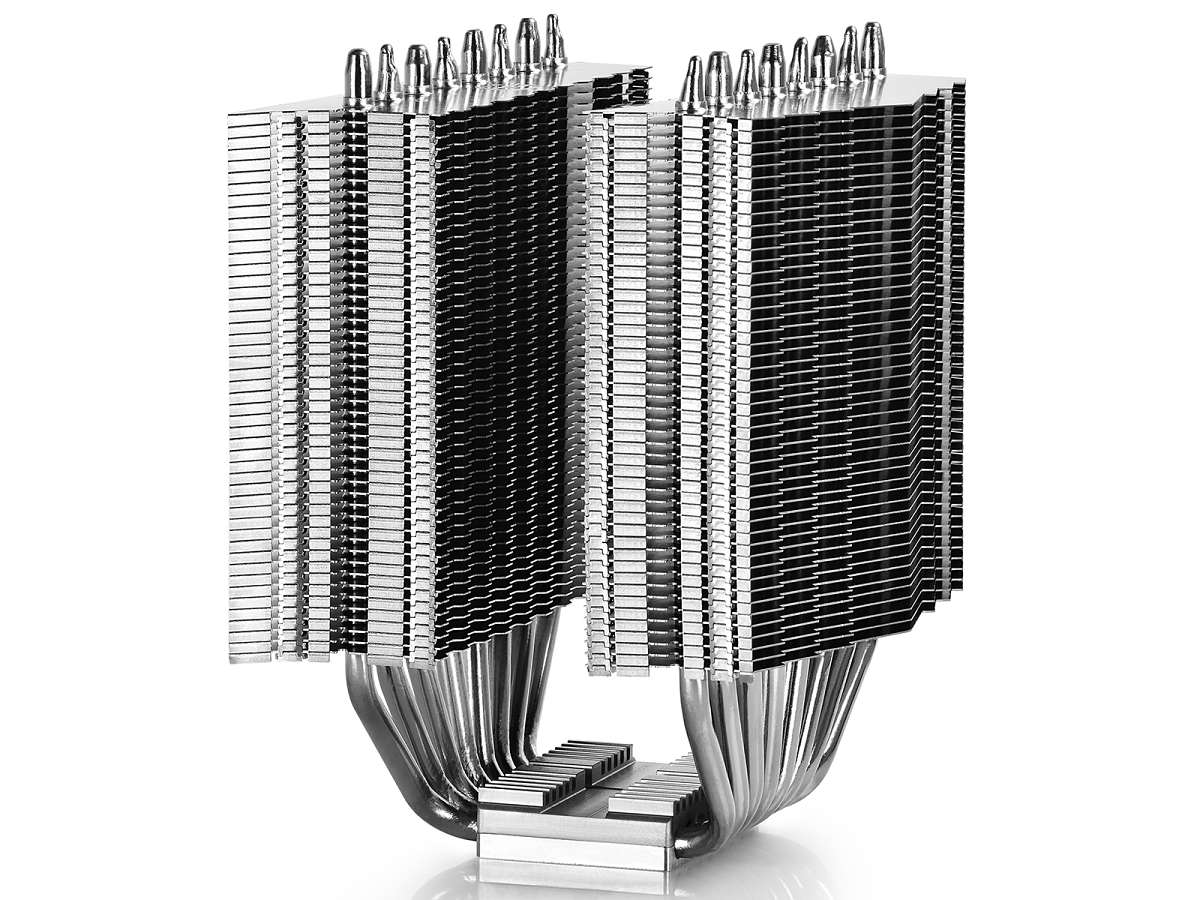

Deepcool’s twin-tower CPU heatsink has been updated to the Assassin II featuring a slightly larger body and outfitted with the latest Gamerstorm GF140 and GF120 FDB fans. The heatsinks total dimension is 143x158x167mm (without fans) and weighs 1479g. The cooling beast has eight U-shaped copper heatpipes and a mirror finished copper base that is fully nickel plated. The fin array now also uses an asymmetric design with the exhaust side having a pointed middle and both edges having shark-teeth patterns. Since it is a high-end CPU air cooler, mounting support is comprehensive as well including support for all AMD FM2/AM3 motherboards as well as Intel LGA775 through LGA2011-v3.

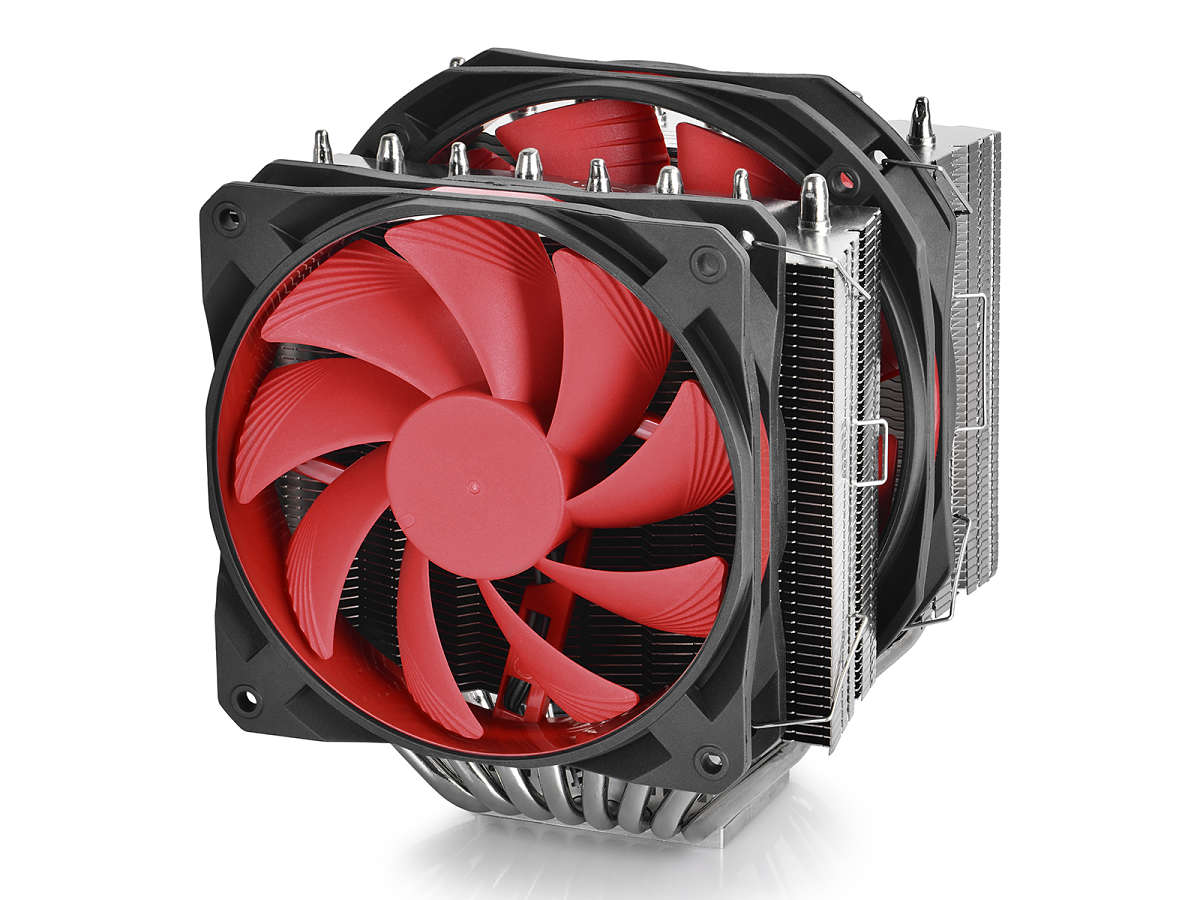

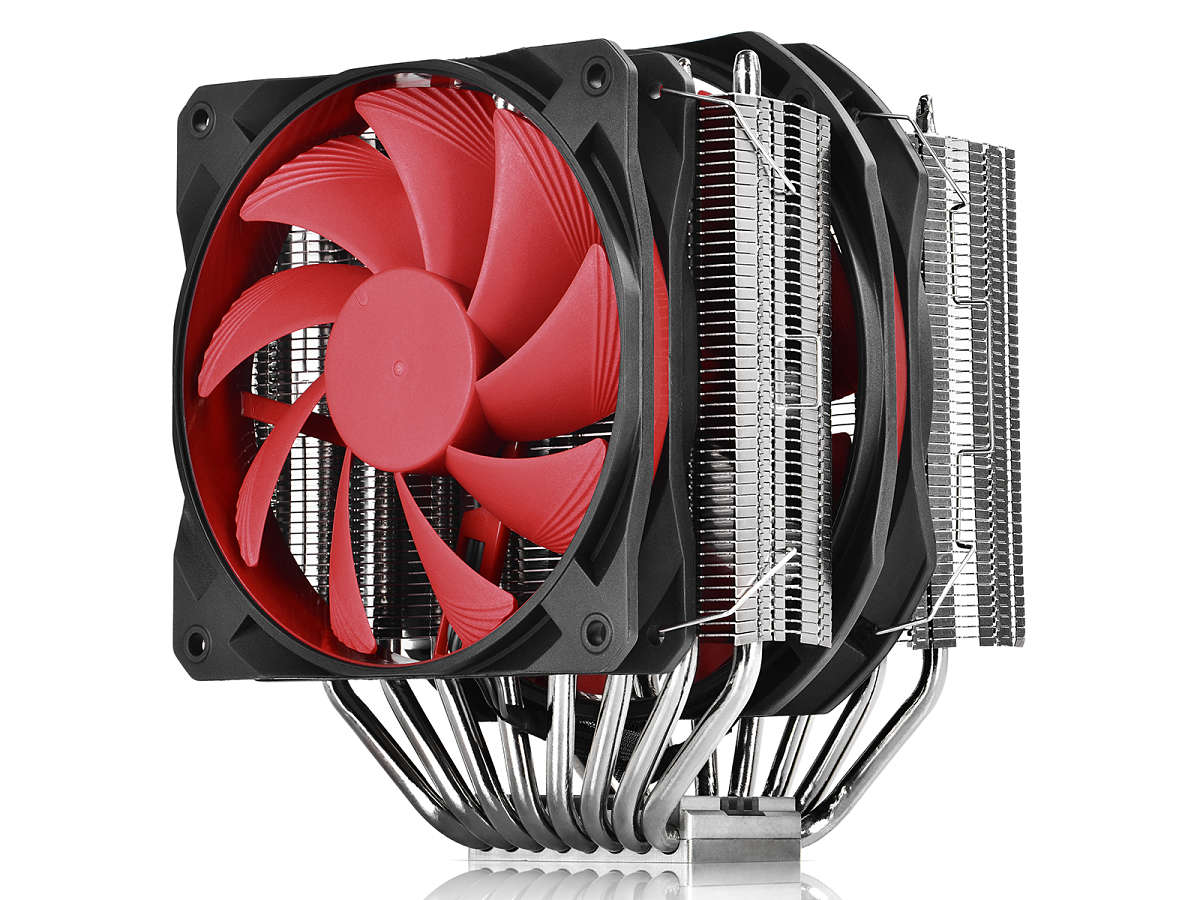

Deepcool Gamerstorm Assassin II



Technical Specifications:

Overall Dimension (Without Fan) 143X158X167mm
Net Weight 1479g
Fan Dimension 140X140X26mm   and 120X120X26mm
Fan Weight 173g and 152g
Fan Speed 300±150~1200±10%RPM and 300±150~1400±10%RPM
Rated Current 0.11±10%A(MAX) and 0.09±10%A(MAX)
Power Input 1.32W and 1.08W
Max. Air Flow 70.08CFM and 68.06CFM
Noise 17.8~26.5dB(A) and 17.8~27.3dB(A)
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Starting Voltage 7VDC
Bearing Type Fluid Dynamic Bearing

Product Compatibility:

Intel Socket

  • LGA2011-v3/LGA2011/LGA1366/LGA1156/LGA1155/LGA1150/LGA775
  • High End Desktop i7
  • Core i7 Extreme/i7/i5/i3
  • Core 2 Extreme/Quad/Duo
  • Pentium/Pentium G
  • Celeron/Celeron G

AMD Socket

  • FM2+/FM2/FM1/AM3+/AM3/AM2+/AM2
  • APU A10/A8/A6/A4
  • FX 8/6/4-Core
  • Phenom II X6/X4/X3/X2
  • Phenom X4/X3/X2
  • Athlon II X4/X3/X2
  • Athlon X4/X2
  • Athlon
  • Sempron
  • Business Class

Product Landing Page: http://www.deepcool.com/product/gamerstorm/2015-02/6_1734.shtml
