DEEPCOOL Tri-Stellar Case Officially Launched

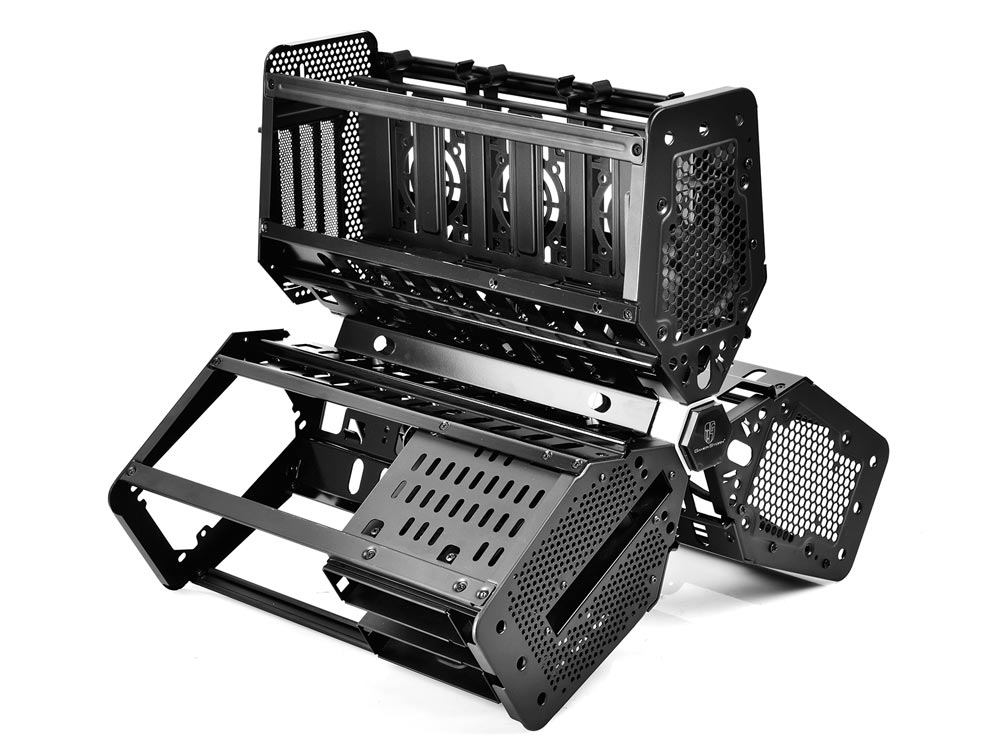

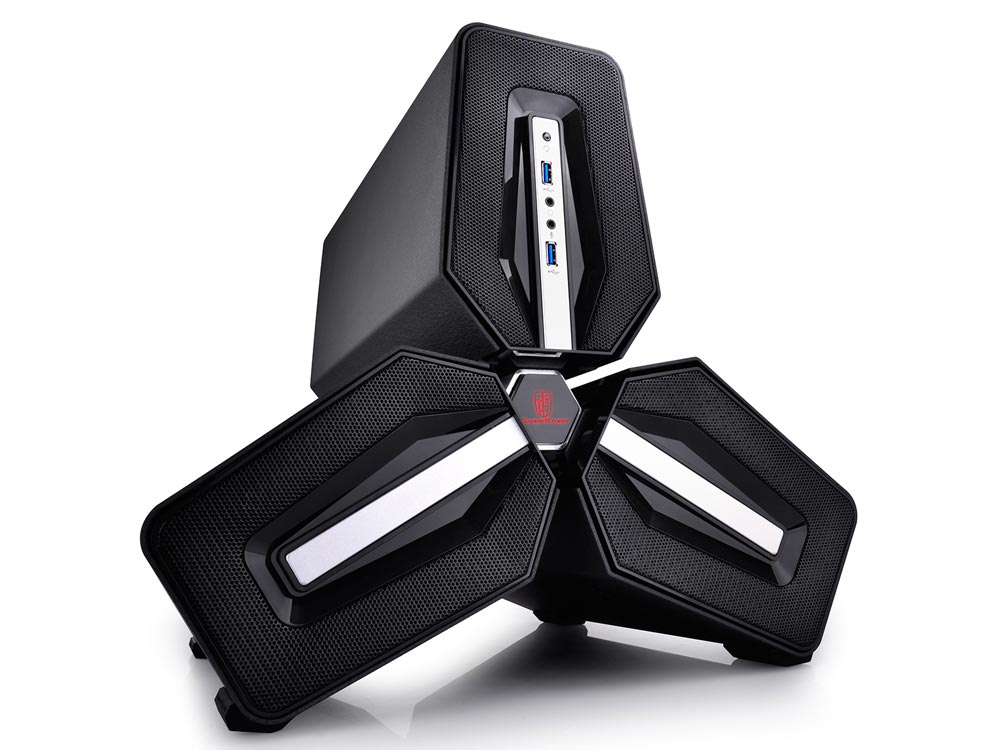

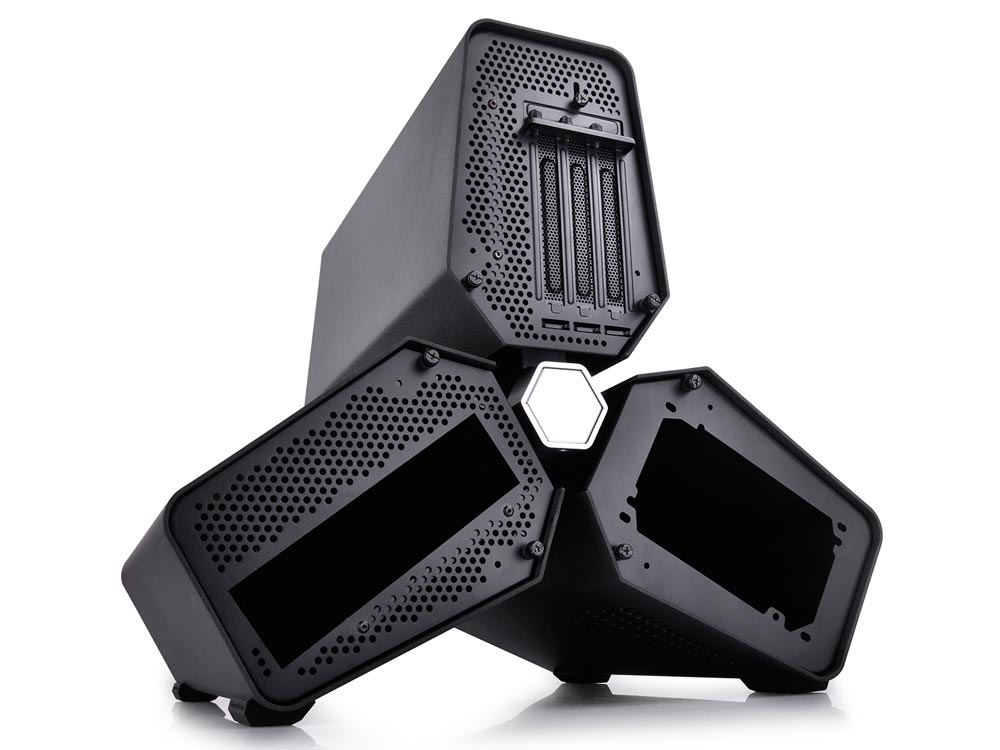

DEEPCOOL’s Tri-Stellar case turned a lot of heads earlier at CES this year with its unique three-chambered mini-ITX design. The prototype displayed at the DEEPCOOL suite had a 2mm thick SPCC cover and surprisingly, the official specs listed on the Tri-Stellar project page shows a 16KG net (19KG gross) weight and 2mm SPCC cover as well. Needless to say, this is quite a substantially heavy case even before the system is loaded. The three-chambered design looks quite spectactular in person however with the video card having its own chamber separate from the power supply and the motherboard chamber. No word on pricing yet. Official specs are available below or on the Tri-Stellar product page: http://www.deepcool.com/product/gamerstorm/2015-04/6_1797.shtml

Technical Specifications:

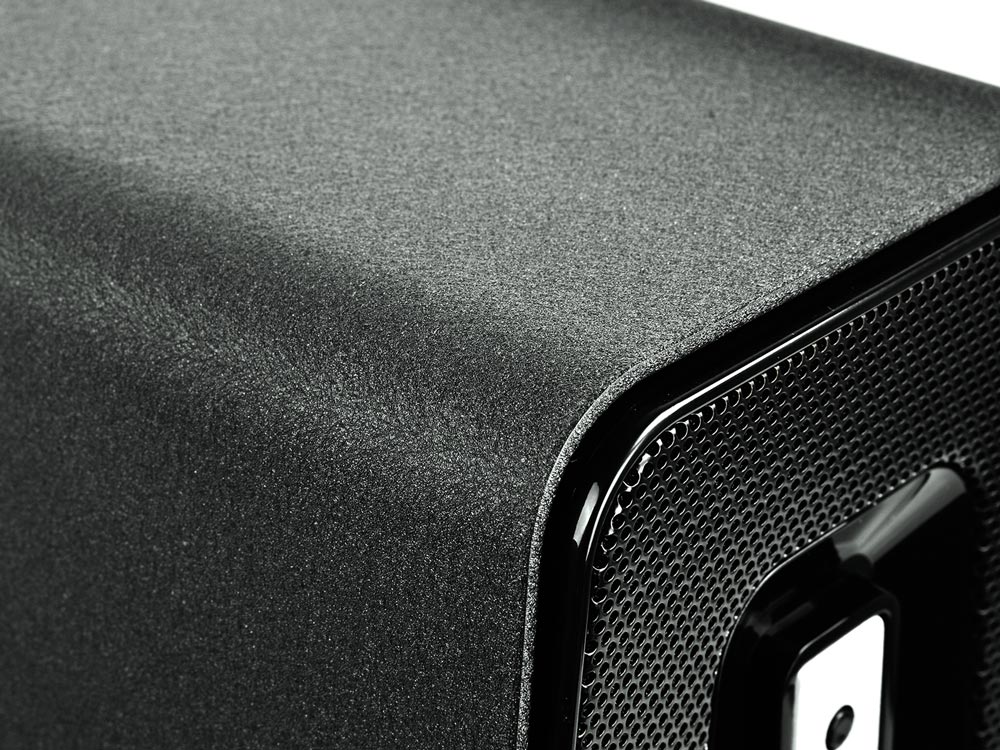

Materials SPCC  (Panel thickness: 0.6mm; Cabin Cover thickness: 2mm)
Product Dimension
Package Dimension
L395*W435*H388mm
L540*W465*H485mm
Weight Net.: 16KG  Gross: 19KG
5.25″ Drive Bays one slot-load Optical Disk Drive Bay
3.5″ Drive Bays 2  (all tool-free installation with hot plugging port)
2.5″ Drive Bays 3  (all tool-free installation with hot plugging port)
I/O Panel 2×USB3.0/Audio×1/Mic×1
Expansion Slots 3 Slots (1 way)
Cooling Fans Included: 1×90mm Black fan in the VGA cabin
Optional:1×120mm fan in the mainboard cabin if liquid radiater not installed. (this fan should blow outward to ensure a good cooling effect)
Power Supply Type ATX PS2
CPU Cooler Compatibility 80mm height
VGA Compatibility 320mm
