darkFlash V22 White Mid Tower ATX Case Review

Unboxing and a First Look »

darkFlash V22 White Mid Tower ATX Case Review Case, darkflash, Mid Tower, pc case, Rotated Layout, Temper, Water Cooling, white 1

Cases with rotated motherboards are still a bit of a rarity, despite not really being a new design anymore.  Because of that, we were intrigued when darkFlash reached out to us about their V22 ATX mid tower case, their take on the rotated motherboard layout.  darkFlash has been developing a new design language for their cases, moving away from the glass and RGB formula of their earlier products to a more refined styling more in line with the likes of Fractal Design and NZXT.  The V22 is their first ATX case to feature this new styling, alongside the MATX DLM21 and DLM22.  darkFlash offers the V22 in white, black, mint green, and pink.  Offering two pastel colors is a bold move from darkFlash, and it sets their cases apart from the vast numbers of black cases on the market.  Is the combination of a new style and an uncommon layout a winner, or has darkFlash missed the mark?  Let’s dive in and find out.







Compatibility

Related Articles

darkFlash V22 White Mid Tower ATX Case Review Case, darkflash, Mid Tower, pc case, Rotated Layout, Temper, Water Cooling, white 2

Included Accessories

Cleaning Microfiber cloth
Dust Protection Front I/O dust covers



Specifications

Material Steel, tempered glass
Front Panel Steel with plastic venting
Left Side Panel Steel
Right Side Panel Hinged tempered glass, lightly tinted
Top Panel Steel with plastic dust filter
Front Ports 2x USB 3.0

2x Front Audio

Weight 15.67 lbs / 7.11 kg
Dimensions 17.3″ (H) x 8.4″ (W) x 17.5″ (D)

440 mm (H) x 215 mm (W) x 443 mm (D)

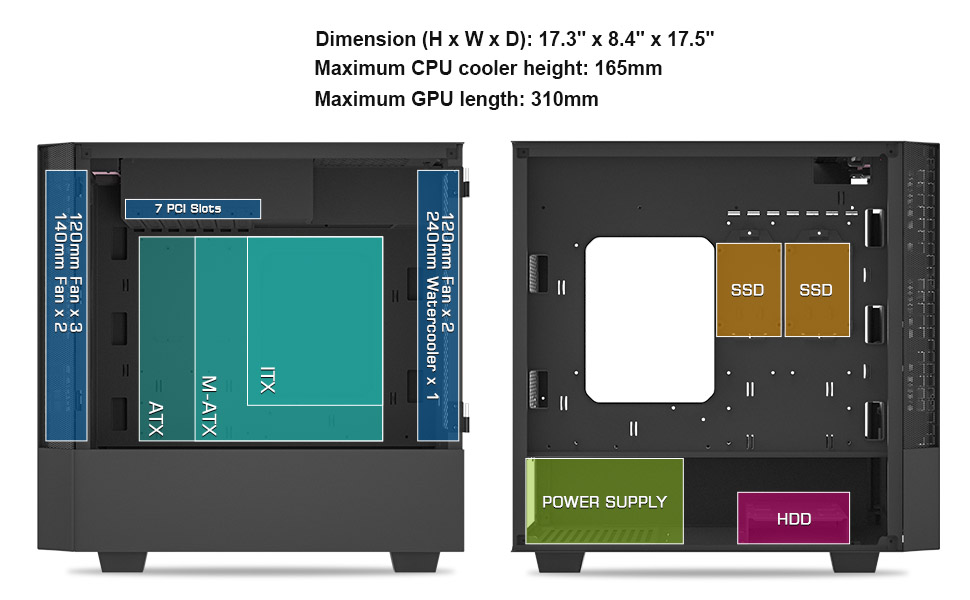

Compatibility

Motherboard Compatibility ATX, MATX, DTX, ITX
CPU Cooler Clearance 6.5″ / 165 mm
Maximum GPU length 12.5″ / 318 mm

11.5″ / 293 mm above drive cage

Power Supply Type ATX
Maximum Power Supply Length 7.9″ / 200 mm
Storage Drive Bays 2x 2.5″ behind motherboard tray

1x 3.5″ in drive cage

1x 2.5″ or 3.5″ on top of drive cage

Expansion Slots 7
Fans Supported Up to 5x 120 mm

Up to 2x 140 mm

Front Fans 3x 120 mm

or

2x 140 mm

Rear Fans 2x 120 mm
Radiator Support 2x 120 mm (rear)
Dust Filters Front, top, power supply
