CRYORIG Launches A Series Hybrid Liquid Coolers

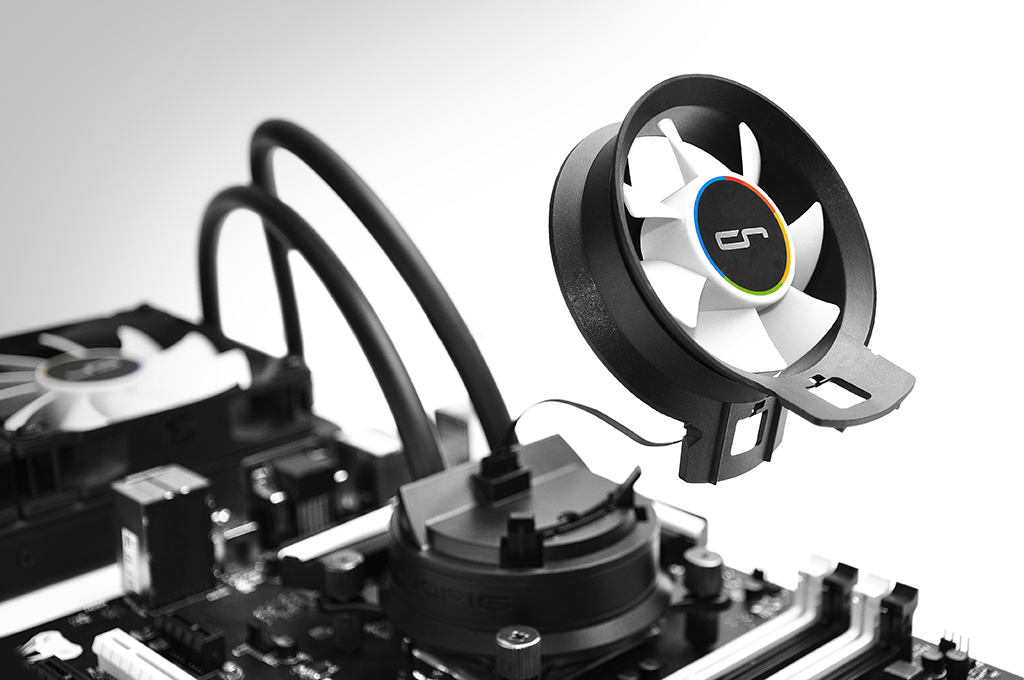

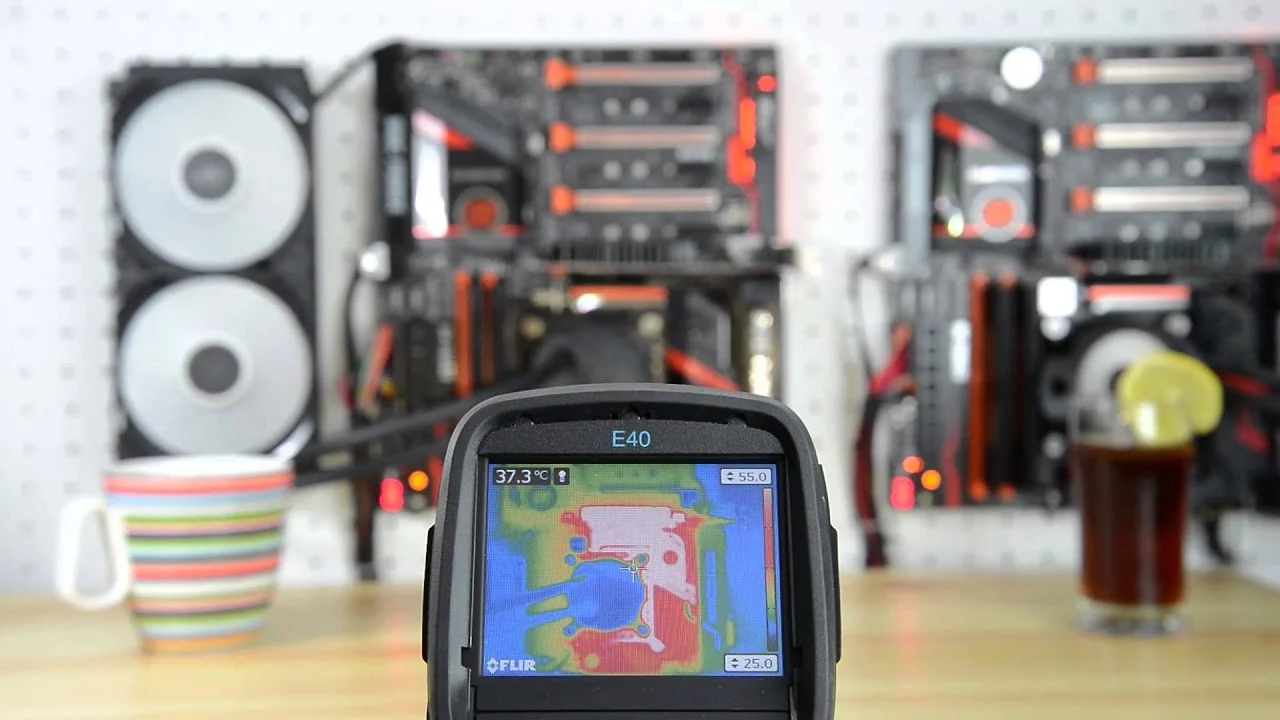

Cooling expert CRYORIG has announced two new hybrid liquid AiO CPU coolers for their lineup: The A40 and A80 coolers. The A series hybrid liquid coolers use the latest Asetek’s 5th generation AiO design but CRYORIG adds an interesting twist to this cooler by integrating a VRM cooling fan on top of the pump for significant MOSFET cooling up to 20% colder. CRYORIG even demonstrates this on video (seen below):

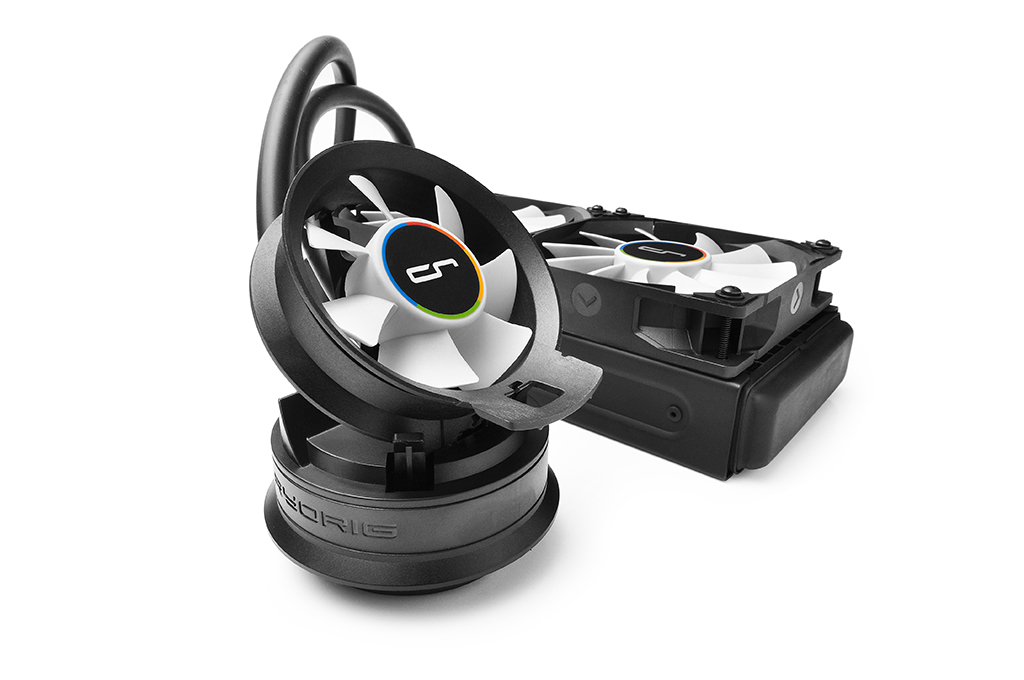

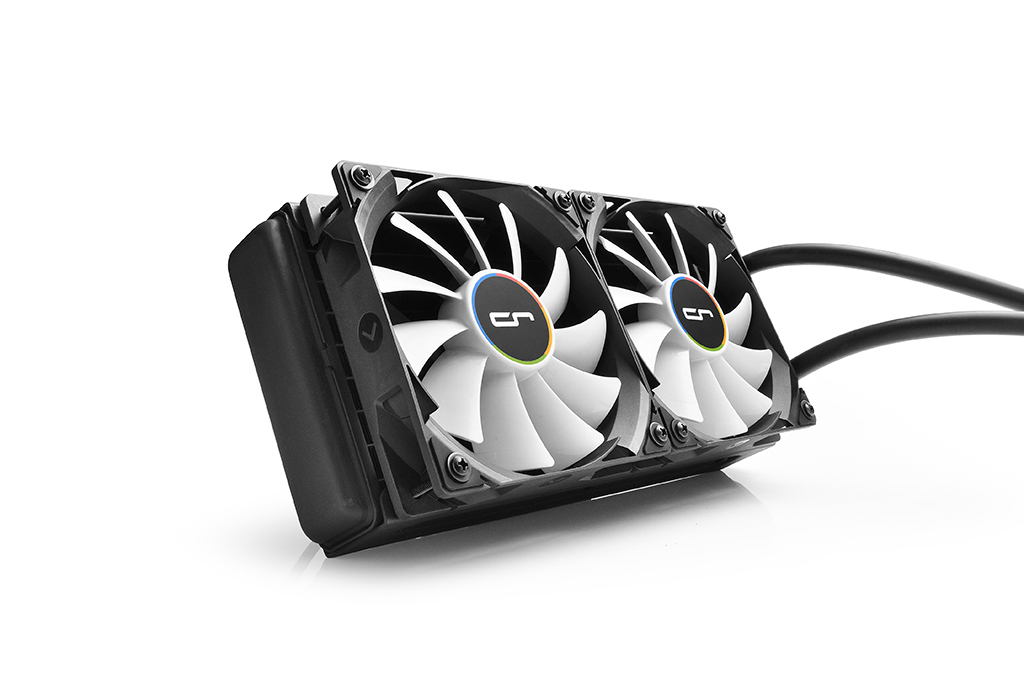

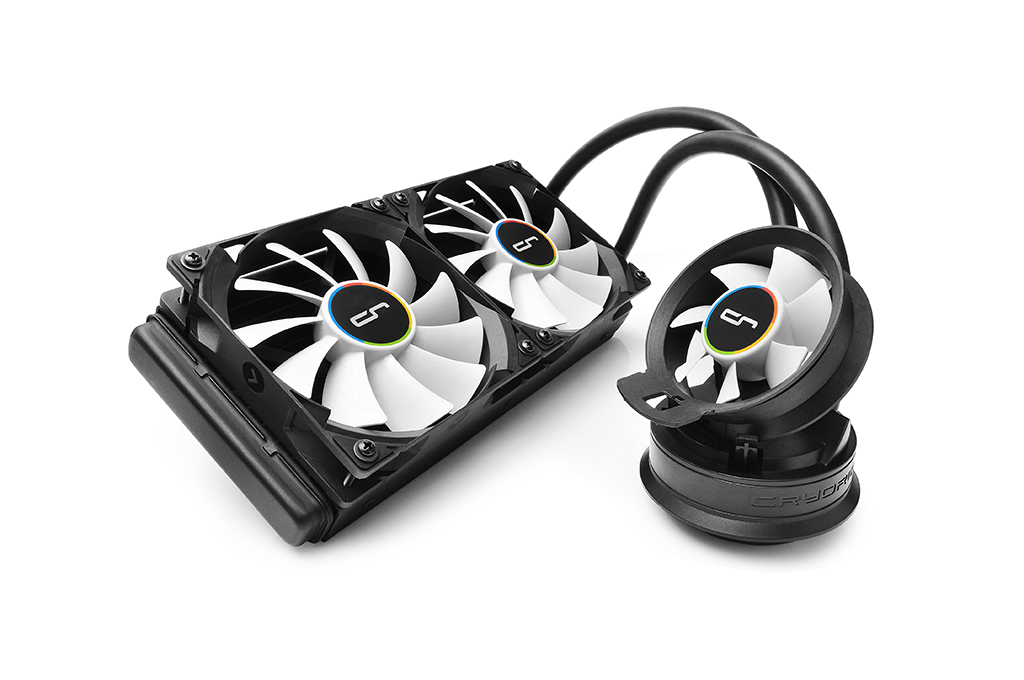

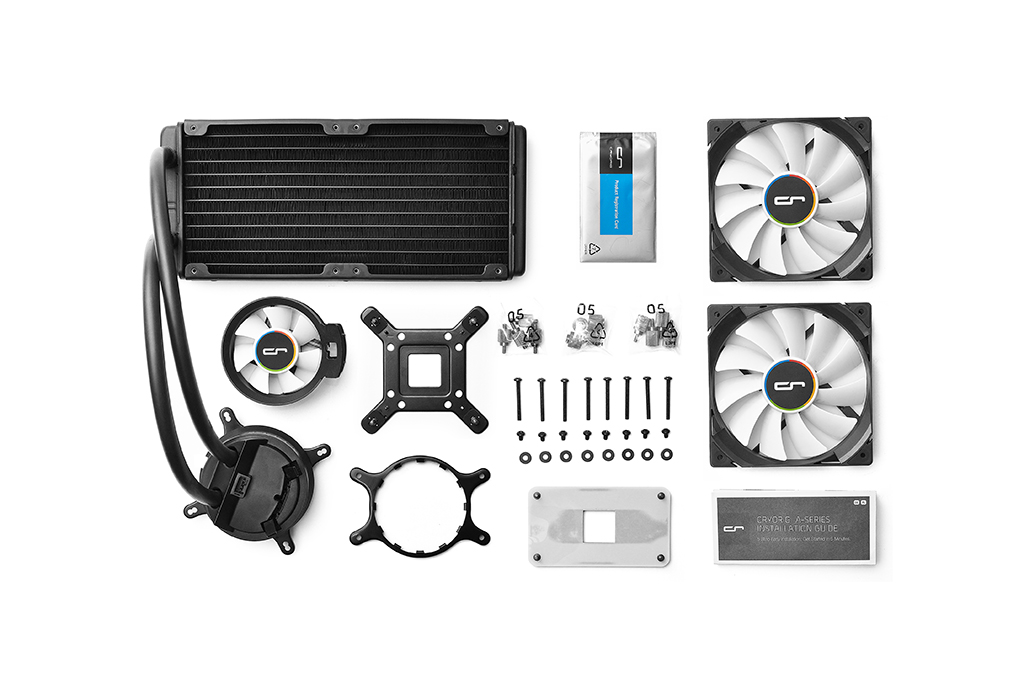

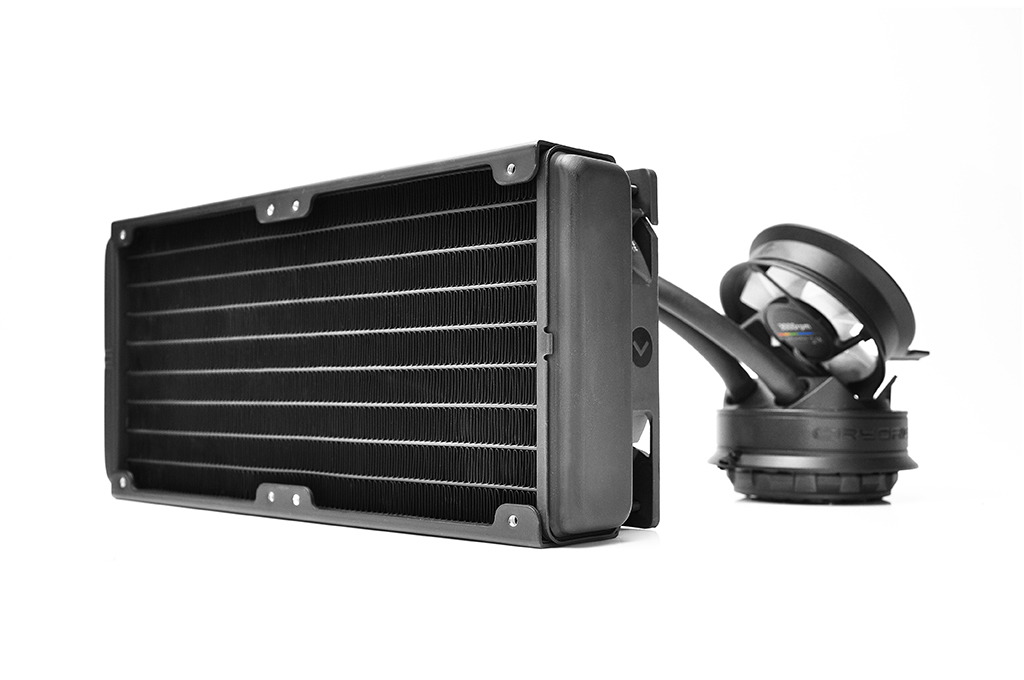

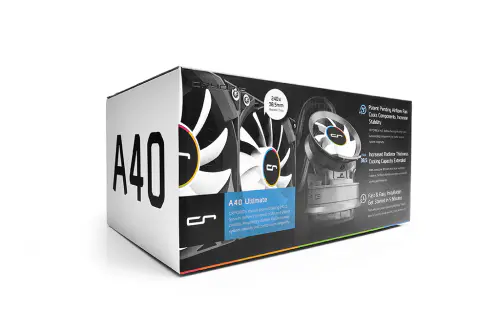

The A40 and A80 CPU coolers will utilize CRYORIG’s MultiSeg mounting system utilizing metal backplates (instead of the plastic Asetek stock). Two versions of the A40 will be available: the A40 which has a 27.5 mm thick radiator and the A40 Ultimate which has a 38.5mm radiator. The CRYORIG A40, A40 Ultimate and A80 will first release in Japan on November the 5th, and released between mid to late November worldwide. MSRP of the A40, A40 Ultimate and A80 is $100 USD, $110 USD and $120 USD (excl. VAT) respectably in North America, and 99,95 Euro, 109,95 Euro, 119,95 Euro (incl. VAT) in Germany.
| A40 | A40 Ultimate | A80 | |
|---|---|---|---|
| Radiator Dimension (LxWxH) |
272 x 120 x 27,5 mm | 272 x 120 x 38,5 mm | 311 x 140 x 27,5 mm |
| Radiator Material |
Aluminum | ||
| Pump Dimension with fan (LxWxH) |
88 x 88 x 116,2 mm | 88 x 88 x 116,2 mm | 88 x 88 x 116,2 mm |
| Pump Dimension without fan (LxWxH) |
88 x 88 x 52,8 mm | 88 x 88 x H52,8 mm | 88 x 88 x 52,8 mm |
| Tube Length | 350 mm | ||
| Tube Diameter | Ø10 mm | ||
| Product Weight | 1.017,5 g | 1.147,5 g | 1.205,5 g |
| Support Processors INTEL |
LGA2011(-3), 1366, 115X | ||
| Support Processors AMD |
FM1, FM2/+, AM2/+, AM3/+ | ||
| Radiator Fan | QF120 Performance | QF140 Performance | |
| Dimension (LxWxH) | 120 x 120 x 25,4 mm | 140 x 140 x 25,4 mm | |
| Weight | 134 g | 159,3 g | |
| Rated Speed | 600 ~ 2.200 RPM ±10 % | 600 ~ 1.850 RPM ±10 % | |
| Noise Level | 13 ~ 37 dBA | 13 ~ 38 dBA | |
| Air Flow | 83 CFM | 128 CFM | |
| Air Pressure | 3,33 mmH2O | 2,12 mmH2O | |
| Ampere (A) | 0,43 A | 0,45 A | |
| Airflow Fan | CR-7025 | ||
| Dimension (LxWxH) | 70 x 70 x 25,4 mm | ||
| Weight | 67,6 g | ||
| Rated Speed | 1.500 ~ 3.000 RPM ±10 % | ||
| Noise Level | 15 ~ 27 dBA | ||
| Air Flow | 25 CFM | ||
| Air Pressure | 3,1 mmH2O | ||
| Ampere (A) | 0,12 A | ||
