Benchmarking
System Configuration | |
Case | Open Test Table |
CPU | Intel Core i7 8700K |
Motherboard | Gigabyte AORUS Z370 ULTRA GAMING |
Ram | (2) 8GB Corsair DDR4-3200 CMW16GX4M2C3200C16 |
GPU | EVGA GTX 1080 (8Gb) |
Hard Drives | Corsair Force MP510 NVMe Gen 3 x4 M.2 SSD (480Gb) |
Power Supply | Thermal Take Tough Power RGB 80 Plus Gold 750W |

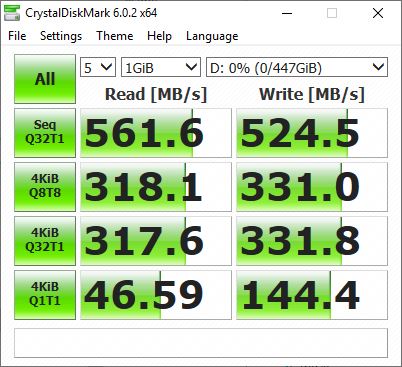

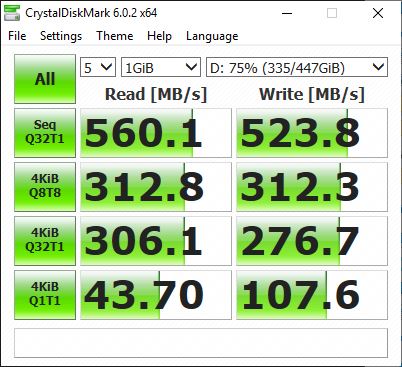

Crystal Disk Mark benchmark at 1GB test size.

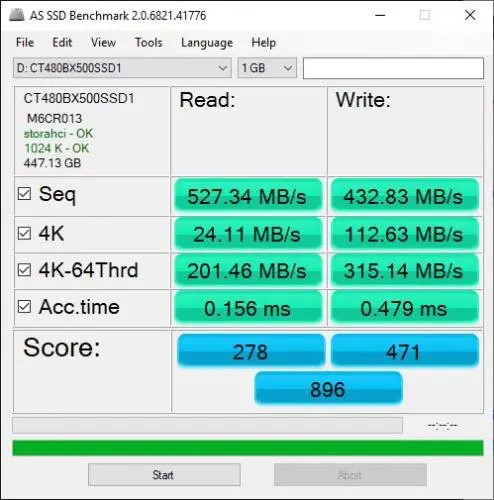

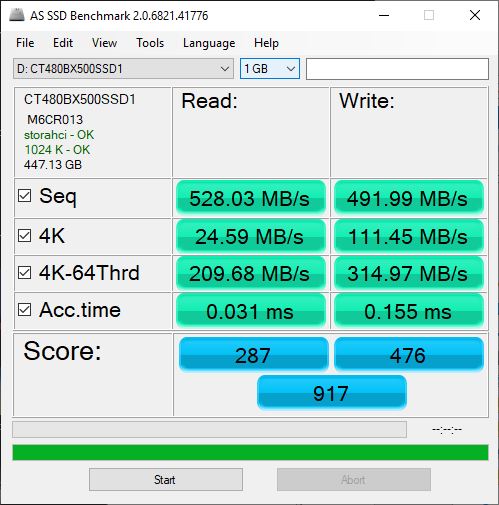

AS SSD uses incompressible data for benchmarking and can measure read/write performance in MB/s or in iops. AS SSD also has a Copy Benchmark which simulates ISO, Game and program performance, providing both speed and access time results.

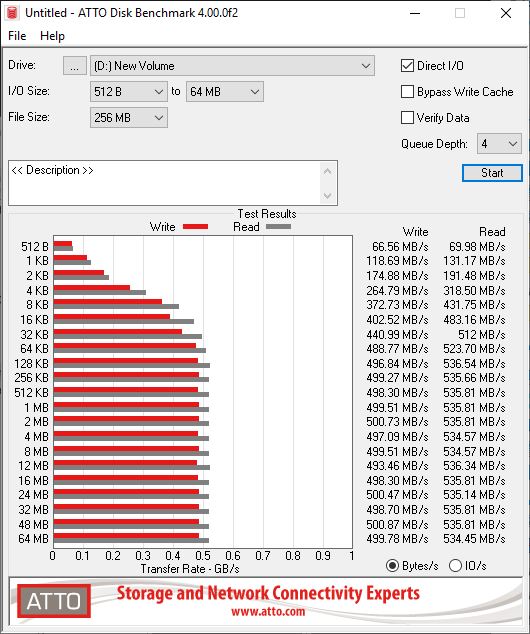

Unlike AS SSD, ATTO disk benchmark is a 32-bit compressible data benchmark that measures read and write speeds across various file transfer sizes from 512B to 64MB to show SSD behavior.

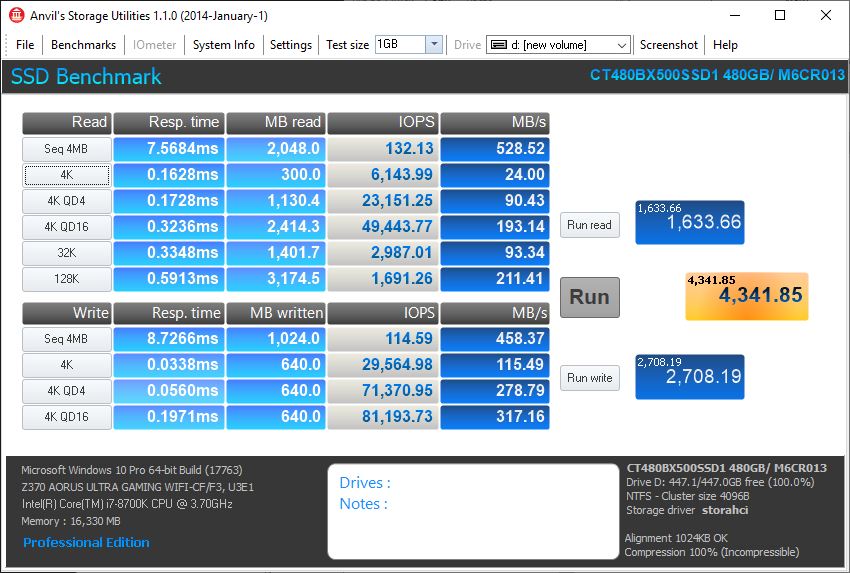

Anvil Storage Utilities is a comprehensive storage testing program that provides plenty of information and option for each test. For this review, the SSD test was selected.
