 Testing

[sc:power_supply_testing_disclaimer ]

Our testing of power supplies is very basic. We do not have a load tester nor do we have an oscilloscope so true load testing and power quality are out of the question. But what I can do is measure voltage both outside the system and inside. To test outside the system, I use a Thermaltake Dr. Power II. Testing during a load is done with the aid of OCCT and Aida 64.

System Configuration
CPU Intel i7 4770K
Ram Adata XPG DDR3 2133 MHz 8 GB
GPU EVGA nVidia GTX 650 TI Boost OC
Hard Drives Kingston HyperX 120 GB SSD
OCZ 120 GB SSD
Power Supply Cougar CMX V3 850 Watt Power Supply



Cougar CMX V3 850W Power Supply

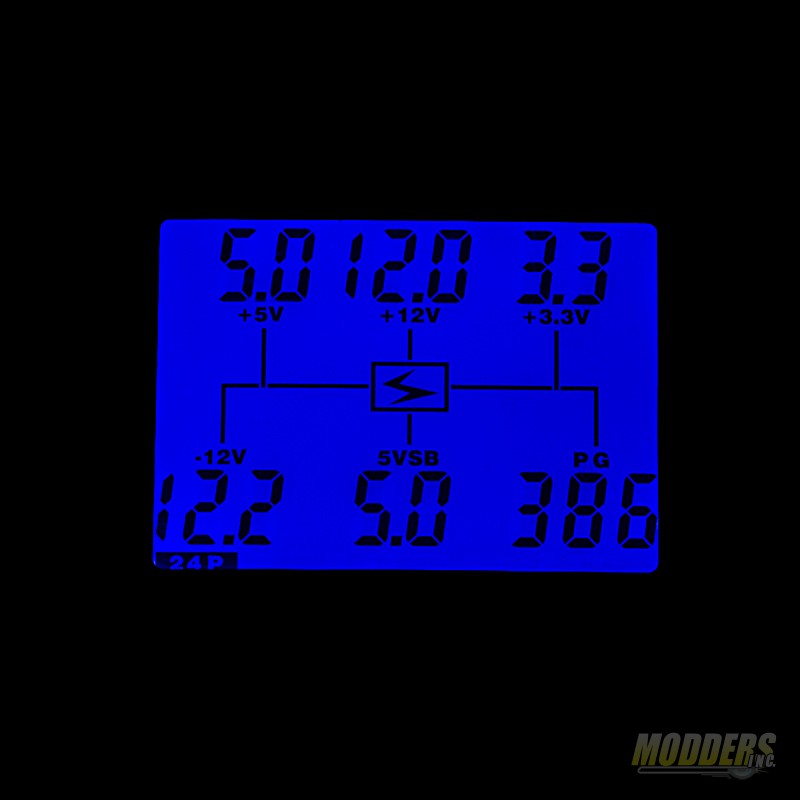

After plugging the Cougar CMX V3 850W Power Supply into the Thermaltake Dr. Power II I switched the power supply on. The initial screen on the Dr. Power II gives an overview. We can see here that all the voltages are within spec. Keep in mind this is no load voltage testing.

Cougar CMX V3 850W Power Supply

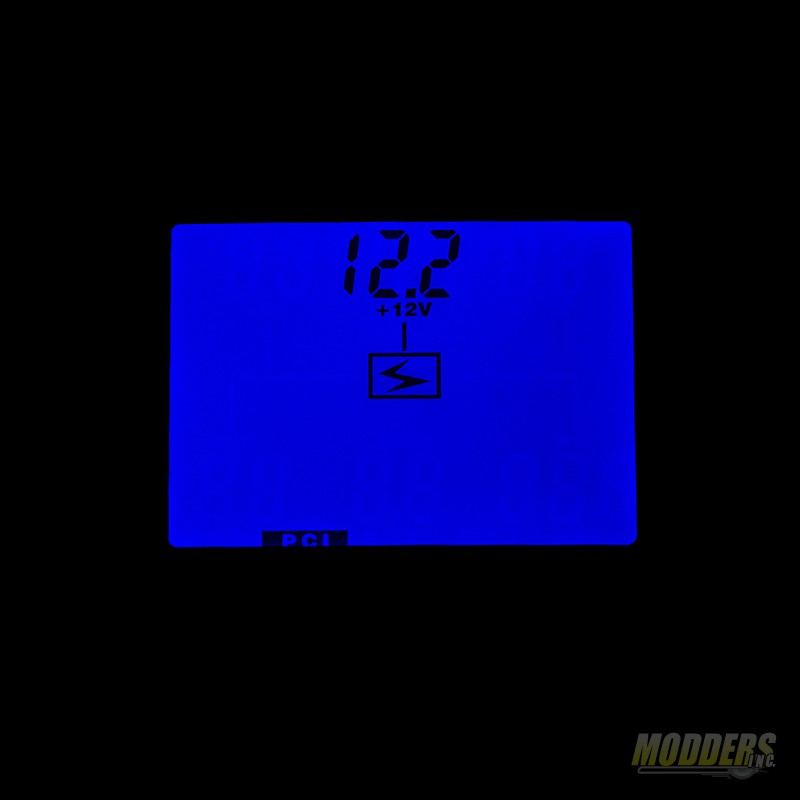

The PCI voltage reading came back with 12.2 volts. This result is within the specifications.

Cougar CMX V3 850W Power Supply Cougar CMX V3 850W Power Supply

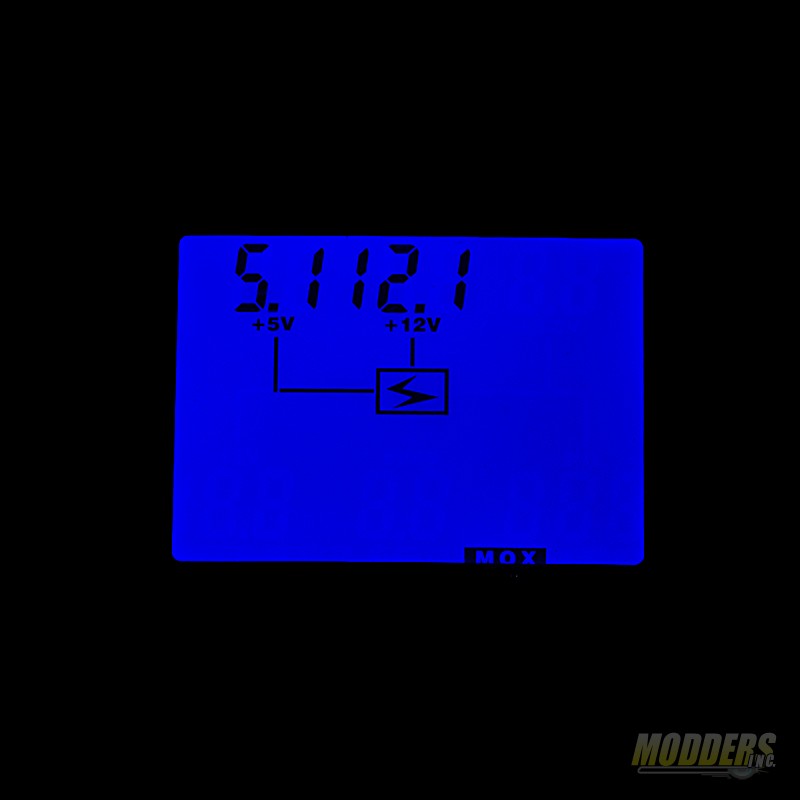

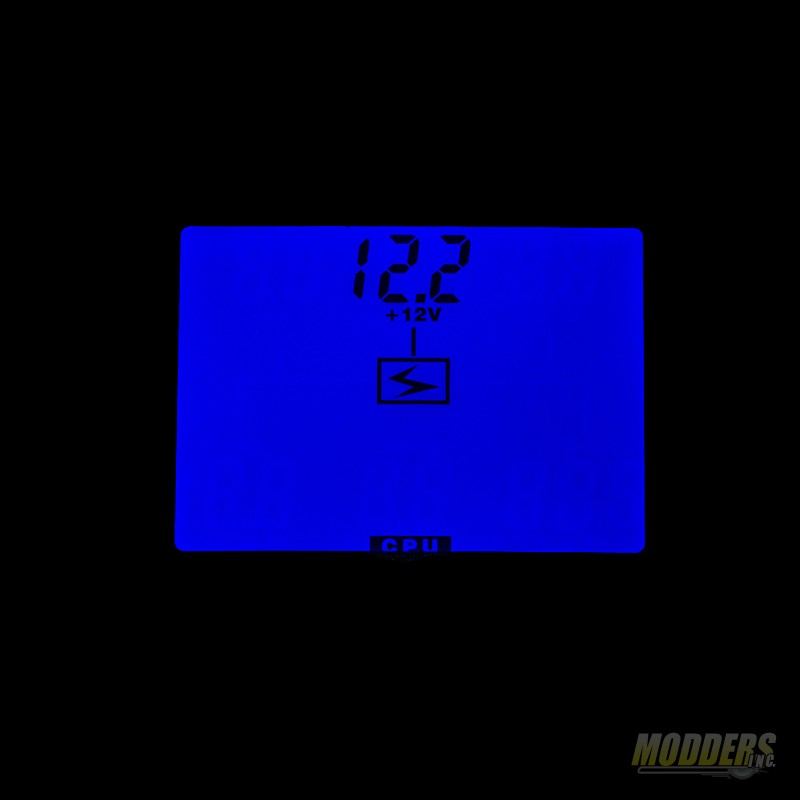

The CPU and Molex tests are next. The CPU voltage came in at 12.2 volts. In the Molex test both the 12 volt and 5 volt rails are read. The 12 volt rail came in at 12.1 volts and the 5 volt rail read 5.1 volts.

Related Articles

Based on my research, the ATX specification allows for a 3% variation in voltages. High quality power supplies will keep this closer to 1 to 2% variation in voltage.

Next up we will test in a complete system. Based on the components chosen for the test rig, I believe I was able to put a load on the power supply of 20-30%.

For the test I installed the Cougar CMX V3 850W Power Supply in my test system and fired up Windows 8.1 Pro. I used OCCT’s power supply test and used the Aida64 plug in to measure voltages. OCCT generated the graphs at the end of the one hour test.

Cougar CMX V3 850W Power Supply

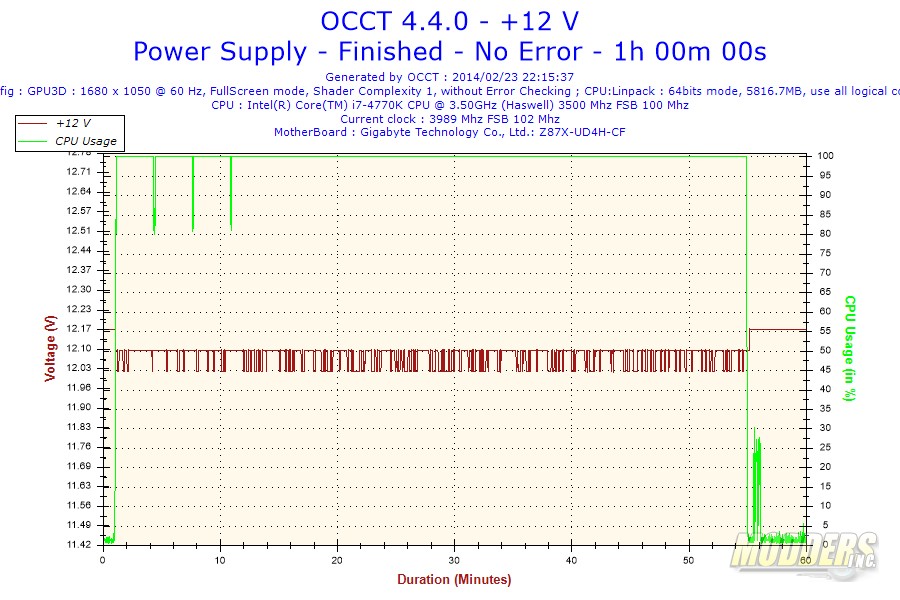

Voltage on the 12 volt rail during the test ranged from 12.03 volts to 12.10 volts as reported by OCCT. Based on the ATX Specification this falls well within specification.

Cougar CMX V3 850W Power Supply

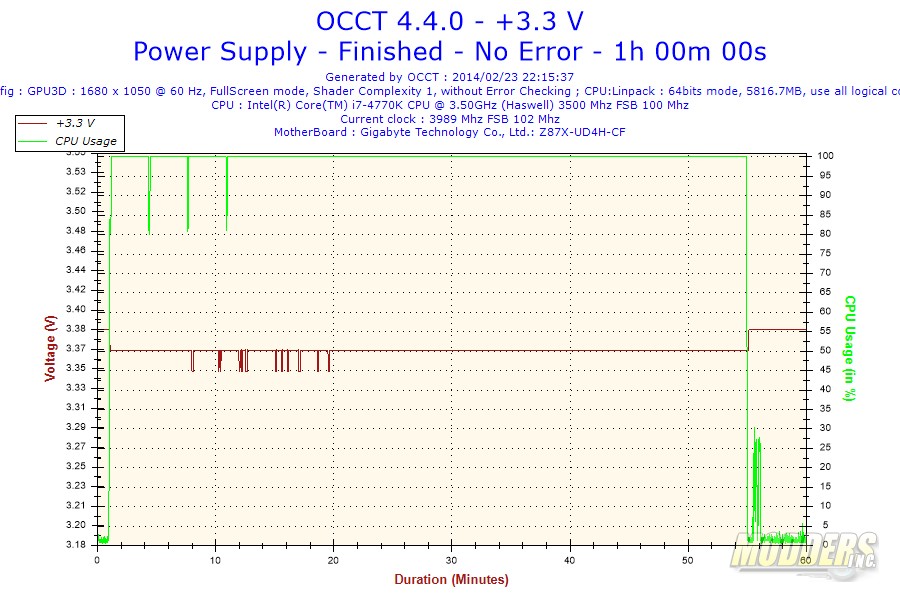

The 3.3 volt rail shows similar results. Voltages ranged from 3.35 volts on the low side to 3.37 volts on the high side during the test.

Cougar CMX V3 850W Power Supply

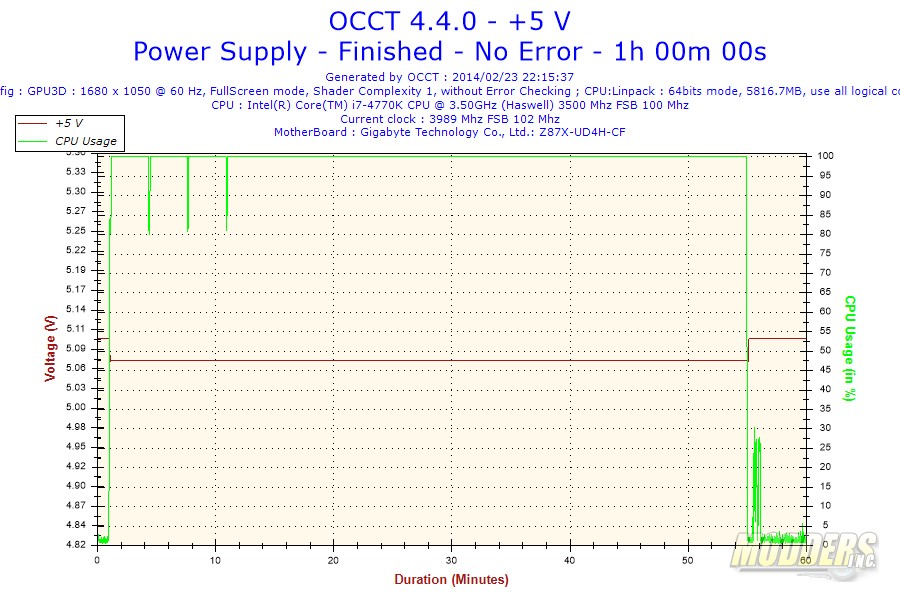

The voltage on the 5 volt rail remained steady during the test as reported by OCCT. Voltage was constant at 5.08 volts.
