Hardware Install:

When I did the install into the Cooler Master Elite 110 Mini-ITX  I used a 2.5 inch and a 3.5 inch drive on the upper bracket to test out some theories, as well as remove potential clutter from the bottom of the case … where unfettered airflow would be ideal.
CM_Elite_lg044

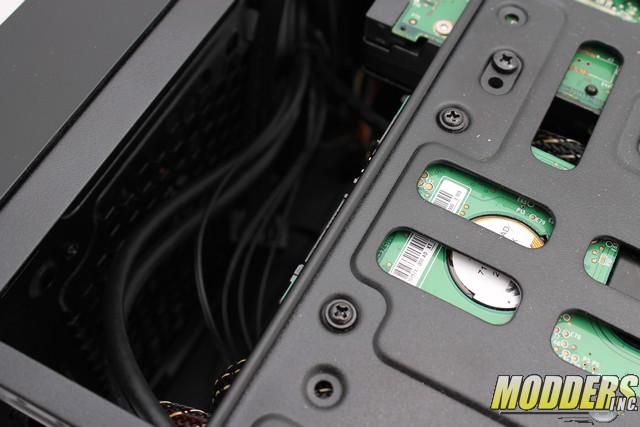

The picture above shows the potential space you will be presented with,  using a 2.5 inch drive.

CM_Elite_lg043
Here you see the USB3 front panel cable attached to the internal USB3 motherboard header. Also notice the USB2 dongle on the same cable.
It should go without being said that you only hook up one of these connectors, and not both simultaneously…
Its an option folks. Either/or, not “and”.

CM_Elite_lg041

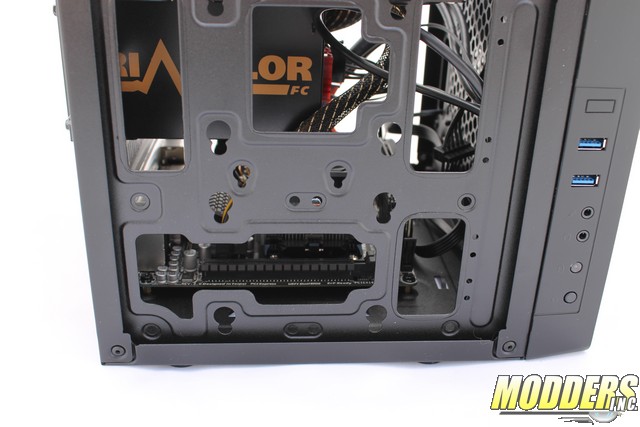

The power supply I am using is an Enermax modular PSU (highly recommend you use a modular PSU on a build in this case, as you only have the cables you need). Space is at a premium here, but also notice that because I have the 2.5 inch drive up top, I am able to take the slack ATX power cable and fold it nicely over the PSU, between it and the 2.5 inch hard drive. If I had my 3.5 over there, this would not be possible. Just a build tip from your crazy Uncle Tech….

CM_Elite_lg036

Related Articles

CM_Elite_lg014

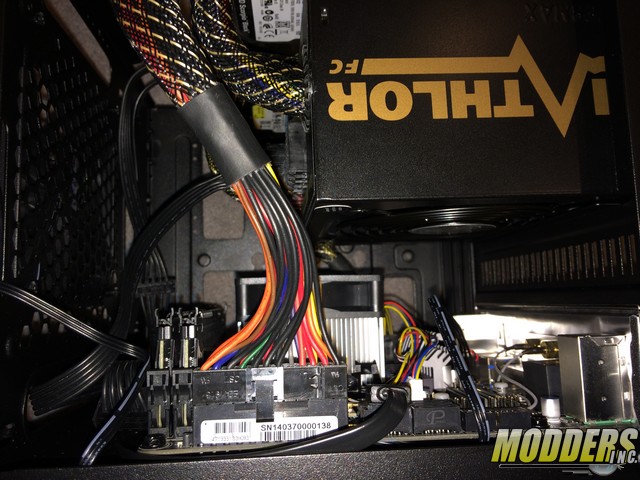

If you use the proper sized power supply, and your memory is in a similar location on your motherboard, you will have ample space for performance heat spreaders on your RAM!

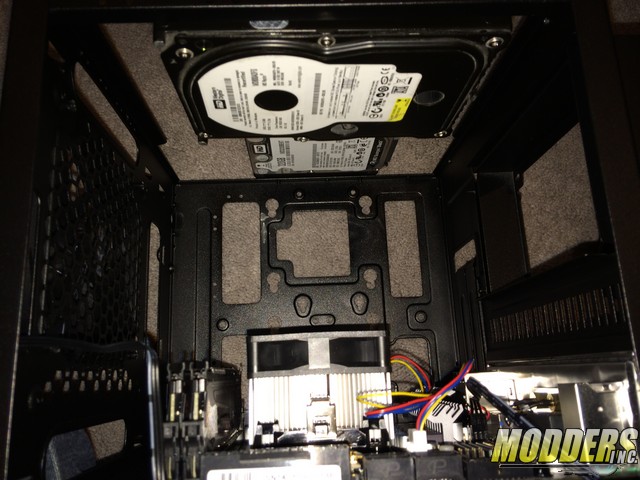

CM_Elite_lg013Here you can see the layout of the hardware prior to installation of the power supply. I actually flipped the locations of the drives.



CM_Elite_lg012

CM_Elite_lg010

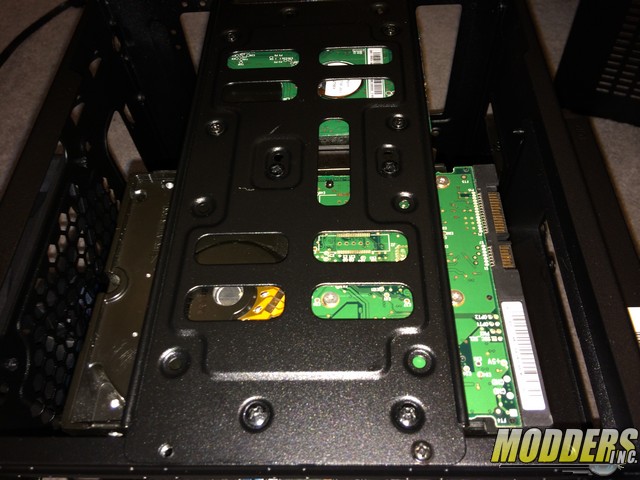

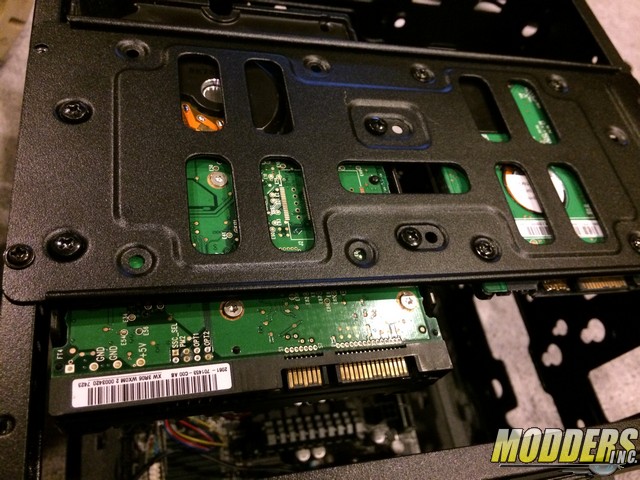

Pay Attention to how you mount your drives and where you are going to feed your SATA and power cables from….
