Cooler Master Elite 110 Mini-ITX Case Review

Page 2 »

CM_elite03

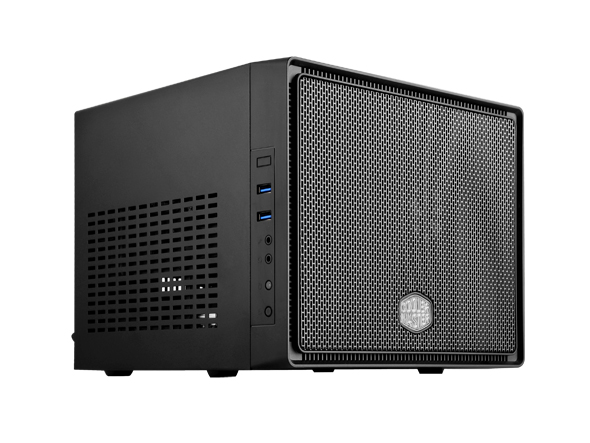

The Coolermaster Elite 110 is a small chassis with a big heart. It has the ability to be many things, but are they the things that you are wanting from the diminutive Mini-ITX sized case? Read on…





[sc:sponsor sponsor=”Cooler Master” product_link=”http://www.newegg.com/Product/Product.aspx?Item=N82E16811119299″ product_name=”Elite 110″ product_price_link=”http://www.newegg.com/Product/Product.aspx?Item=N82E16811119299″ product_price=”49.99″ ]



First Look:
CM_Elite_lg016

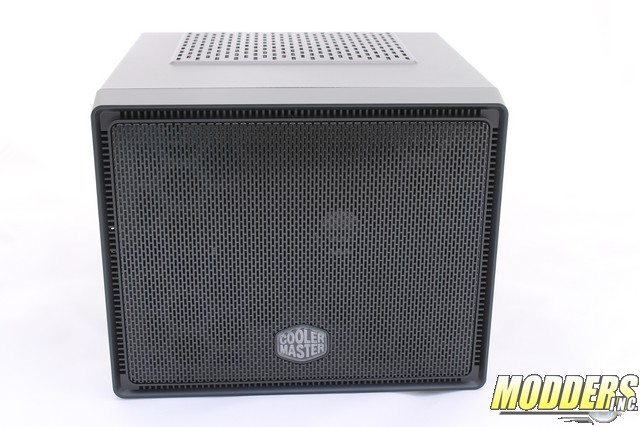

The Elite 110 is a Mini-ITX chassis. So, let’s get this out of the way… it’s small! There… I said it. One of the smallest cases I’ve seen in a long time. Remember the original Shuttle cases? Yeah… about that same form factor, but (I believe) shorter. It is designed for the aforementioned Mini-ITX specification of motherboard, 6.7in x 6.7in (170mm x 170mm) max. Cooler Master recognized that many people were wanting more power and flexibility out of their small form factor builds, thus driving them to create this “under the radar” chassis. Small, but give me options of “I want to put a dual slot video card on this”, or “Don’t obstruct my memory!”, or “Let me water cool my CPU!”…. you know… things like that! Things that enthusiasts bump into when building machines for ourselves or friends.

Related Articles

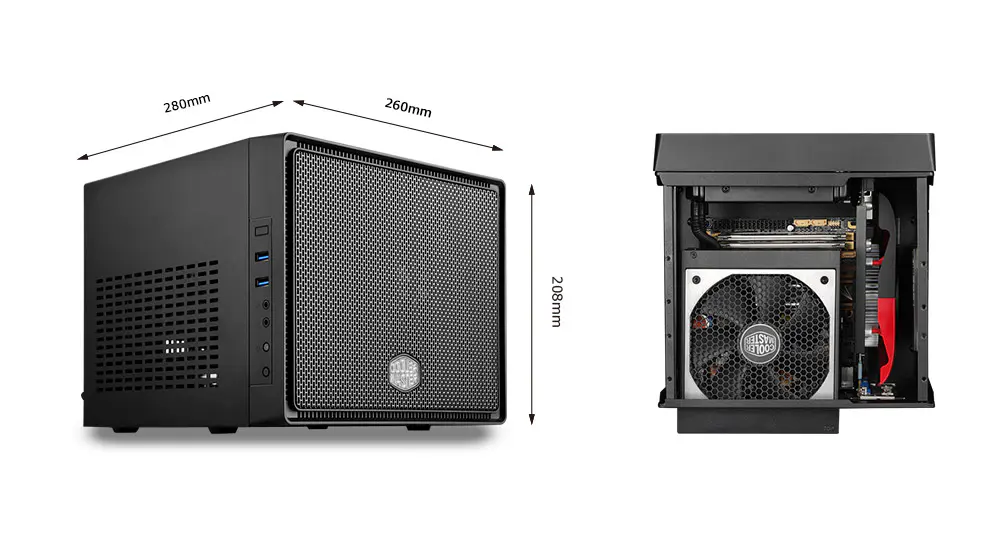

At 260mm wide x 280mm deep x 208mm tall, it is not big, so you need to plan your build well.



CM_Elite110-dimensions

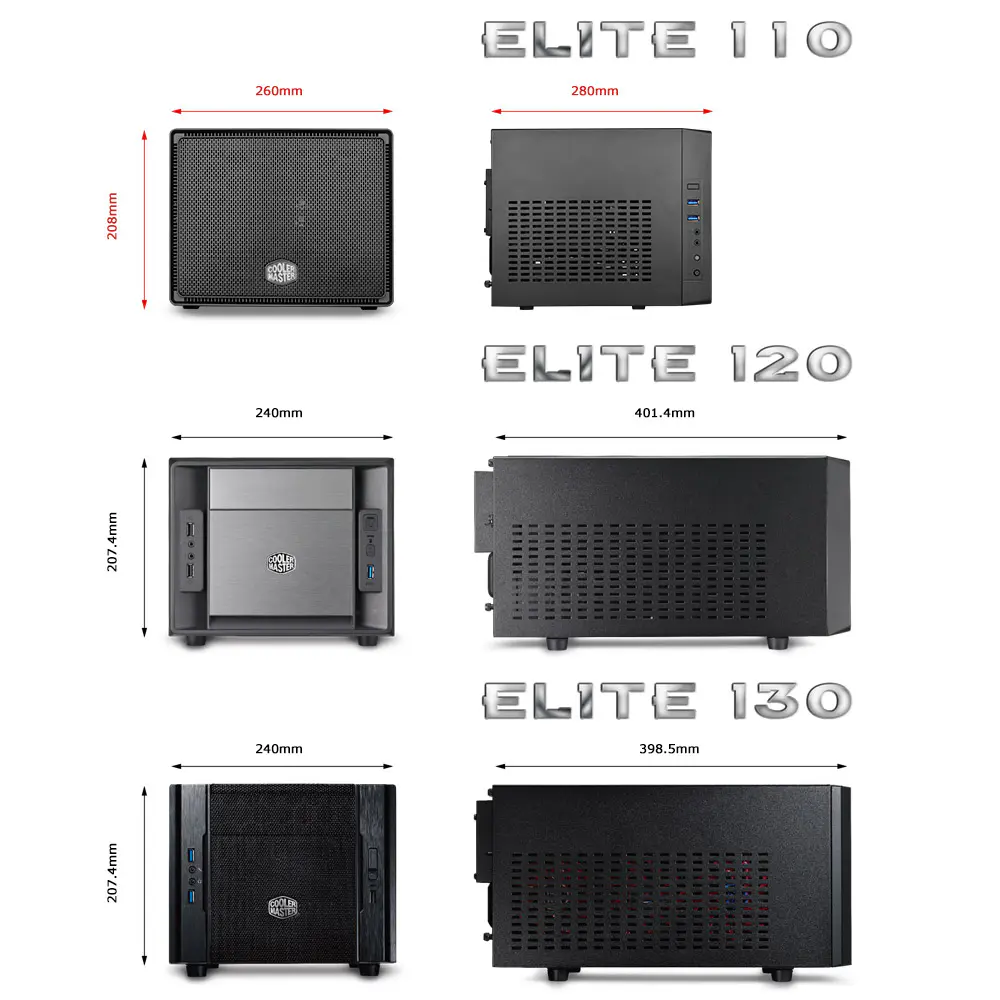

The Cooler Master Elite 110 is actually a member of a family of chassis that are geared toward users wanting more flexibility in a smaller chassis:
CM_Elite110-comparison

The Cooler Master Elite 110 Mini-ITX  is the smallest of the line. Formal things you can expect from the case are as follows:

  • The mini-ITX case with front mesh panel and vents on the top and side panels for better airflow
  • One 120mm fan in the front (included) and Two 80mm fan on the side (optional)
  • Dual Super Speed USB 3.0
  • Supports a 120mm radiator in the front
  • Supports standard length ATX PSU up to 180mm
  • Supports graphic card length up to 210mm
  • Ample storage – up to 3 HDDs / 4 SSDs

Full listing of granular specs are as follows:

Model Number RC-110-KKN2
Available Color Midnight Black
Materials Appearance: polymer front mesh panel
Case body: Steel alloy
Dimensions (W x H x D) 260 x 208 x 280 mm / 10.3 x 8.2 x 11.1 inch
Net Weight 2.65 kg / 5.9 lbs
M/B Type Mini-ITX
3.5″ / SSD Drive Bays 3.5″ HDD x 3,
or 3.5″ HDD x 2 + SSD x 2
or 3.5″ HDD x 1 + SSD x 3
​or SSD x 4
I/O Panel USB 3.0 x 2, Audio In & Out
Expansion Slots 2
Cooling System Front: 120mm fan x 1 (installed, converted to 140mm fan x 1)
Side: 80x25mm fan x 2 (optional)
Power Supply Type Standard ATX PS2
Maximum Compatibility VGA card length: 210mm / 8.3 inch
CPU cooler height: 76mm / 3 inch
PSU length:
180mm/ 7.1 inch (w/ less cable management)
142mm / 5.6 inch (w/ full cable management)
