Installation of the Cooler Master Seidon 120v



Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 1

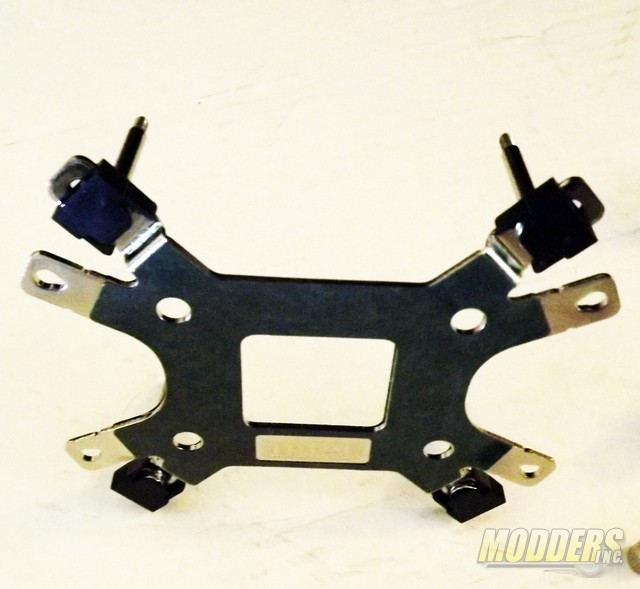

Universal Back Plate for simple configuration and installation, INTEL on side AMD flipside.

Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 2

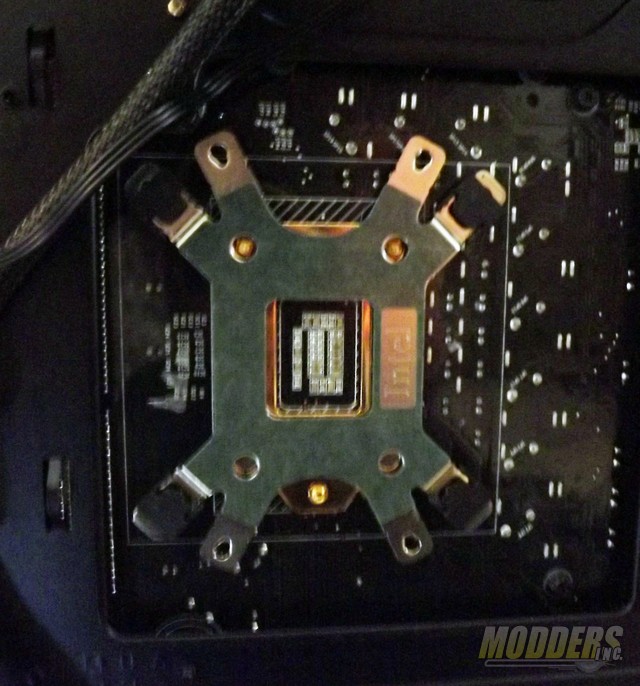

Mounted showing the “INTEL” name with the flipside “AMD” hidden on reverse. Black end caps slip on to lock and hold the mounting screws in proper place for the different spaced mounting needs.

Related Articles

Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 3

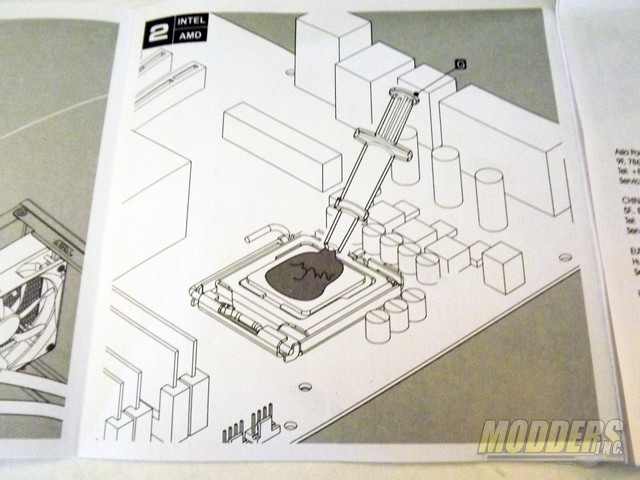

I had to laugh at this illustration and suggest not to use this much thermal compound. It’s not listed if the paste is conductive, I would assume non-conductive but be safe not sorry, only use just what you need and not overflow onto the sides.

Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 4

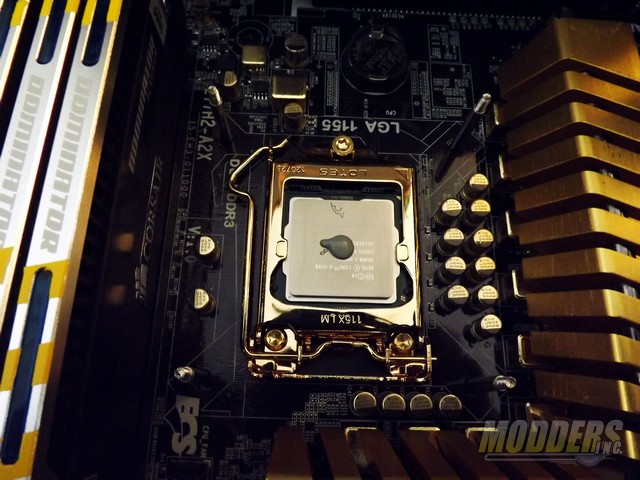

The “Pea Sized” rule works for me every time. The supplied Cooler Master compound is enough for 3 to 4 applications.



Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 5

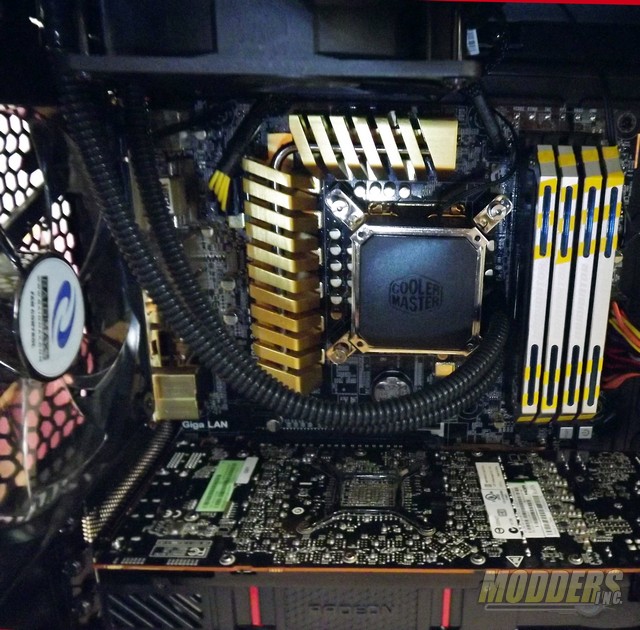

The kit looks very good mounted. The tube to pump mounts are close, tight and rotate for flexible mounting.

Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 6

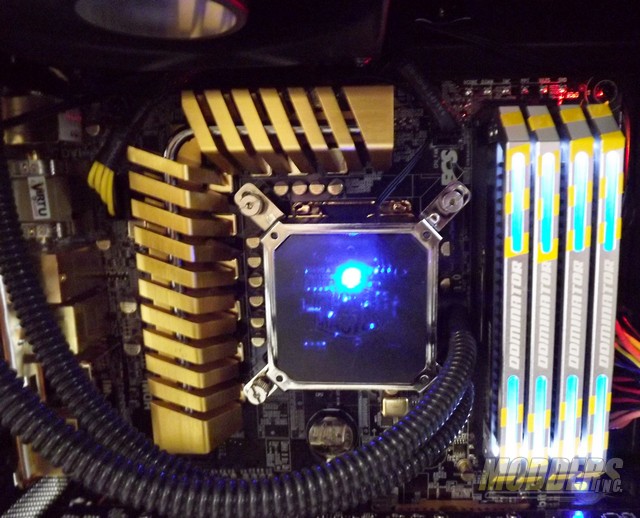

Operational the unit lights up showing a circuit pattern thru the CPU/Block cover.

Cooler Master Seidon 120v All In One CPU Cooler AIO Cooler, Cooler Master, CPU Cooler, Water Cooling 7

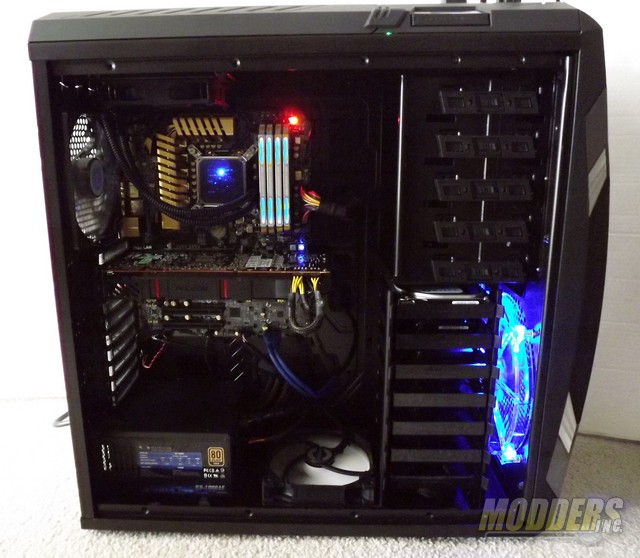

Full view of the Cooler Master Seidon 120V CPU Cooler in operation.
