Cooler Master M2 Silent Pro 1500 Watt Power Supply Overview
Getting Connected

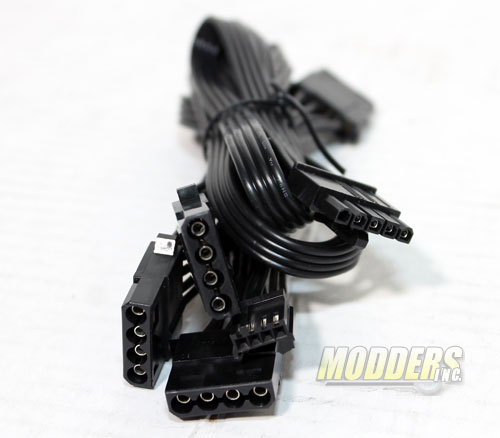

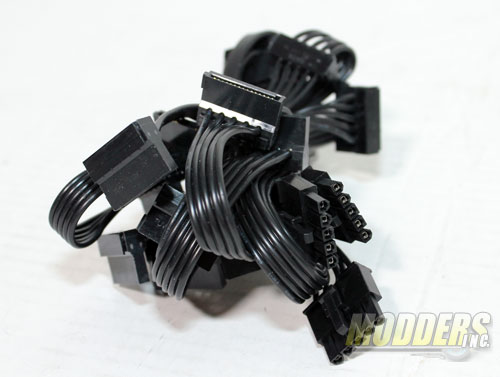

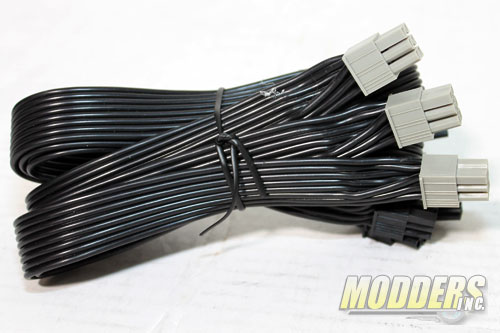

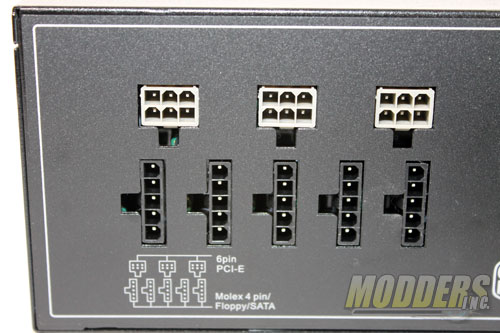

Taking a look at the modular section of the PSU we can see that there are plenty of outlets to use. Show here are the connection plugs for the modular power connectors. The lite grey plug are used for the PCI-e 8 pin and 6+2 Pin cables that would give you a total of six power plugs. Add this to the direct power cables attached to the power supply that has six more PCI-e power plugs this give you a staggering 12 PCI-e plugs! The Molex connections allow you to use a combination of the remaining cables for SATA and Peripheral devices.
 |
|
 |
Click the images above for a closer look

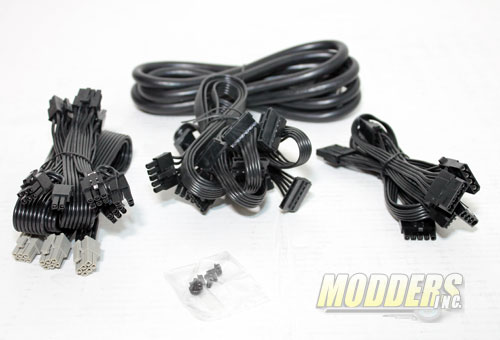

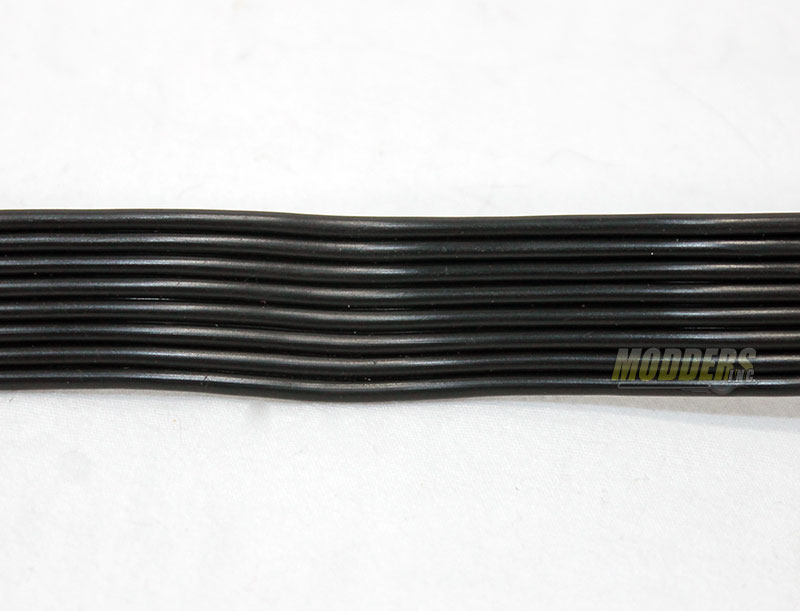

All the modular power cable are what we call a flat cable. This allows for the cable to be easily bent, stacked and routed through-out the case for superior cable cable management.
 |
|

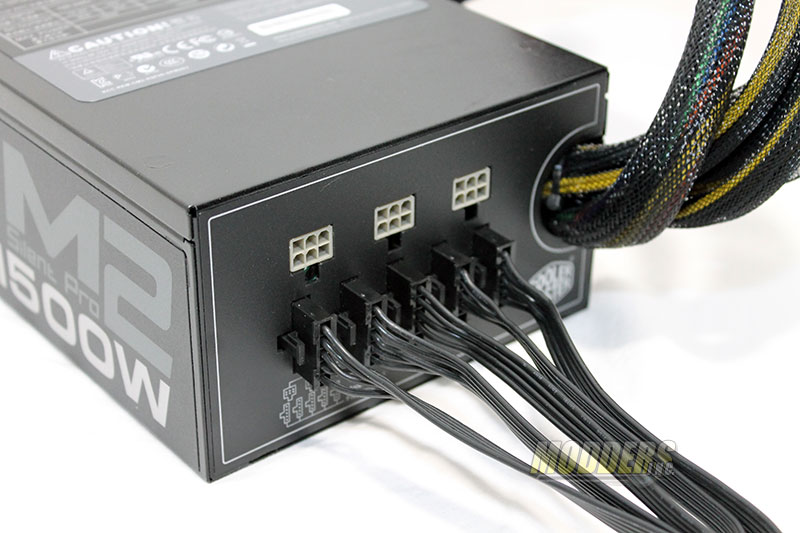

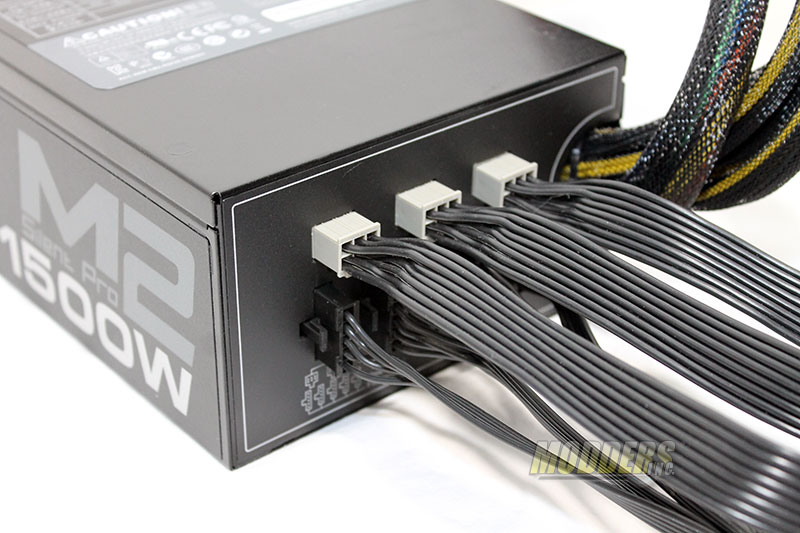

Where the modular cable connect and how it looks when using all the cables.
