Cooler Master HAF Stacker 935 – A New Beginning For Computer Cases
Interior Look of the CM HAF Stacker 935

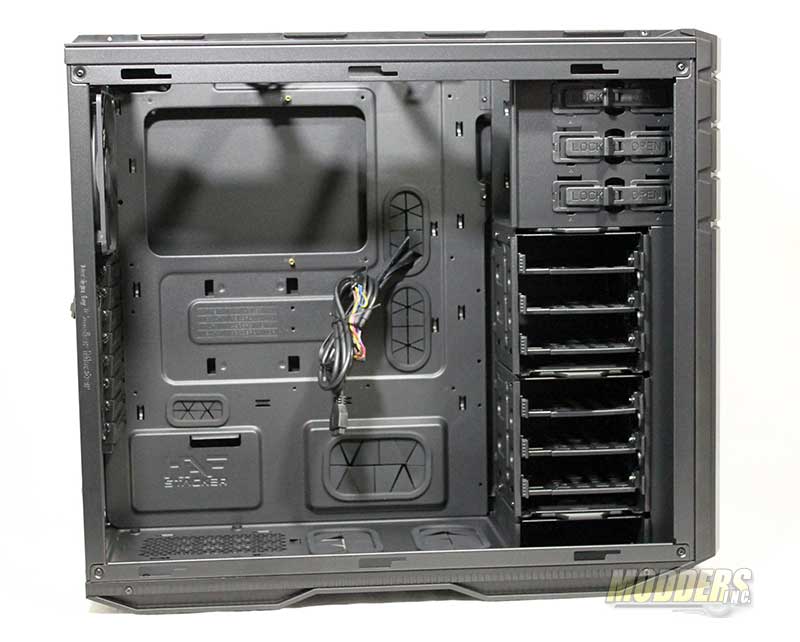

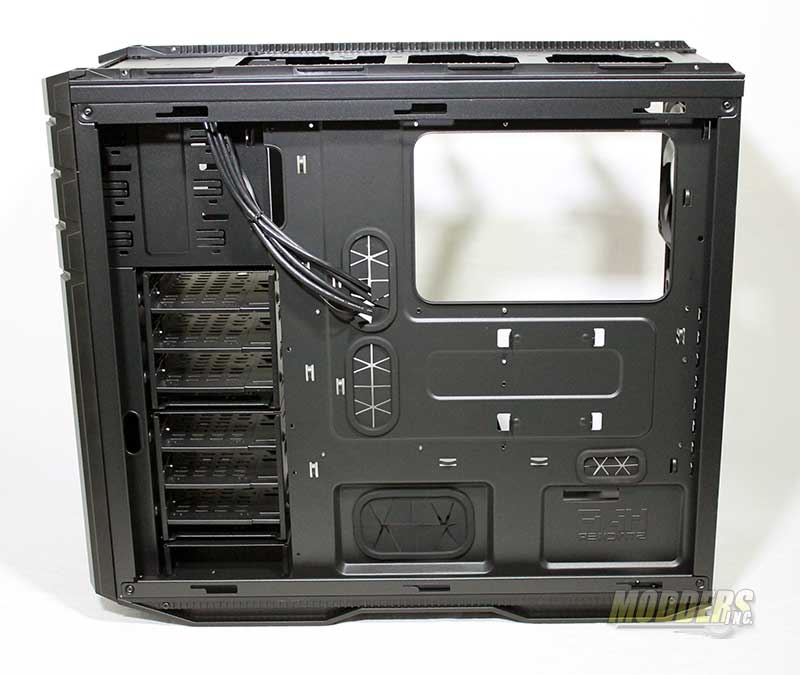

The same matte like color look is carried to the insides of the Cool Master HAF Stacker 935.
The the edges of all the metal is smooth and rounded over so no fear in getting your hands tore up. The grommented access wholes are strategically placed to help you maximize your cable routing.

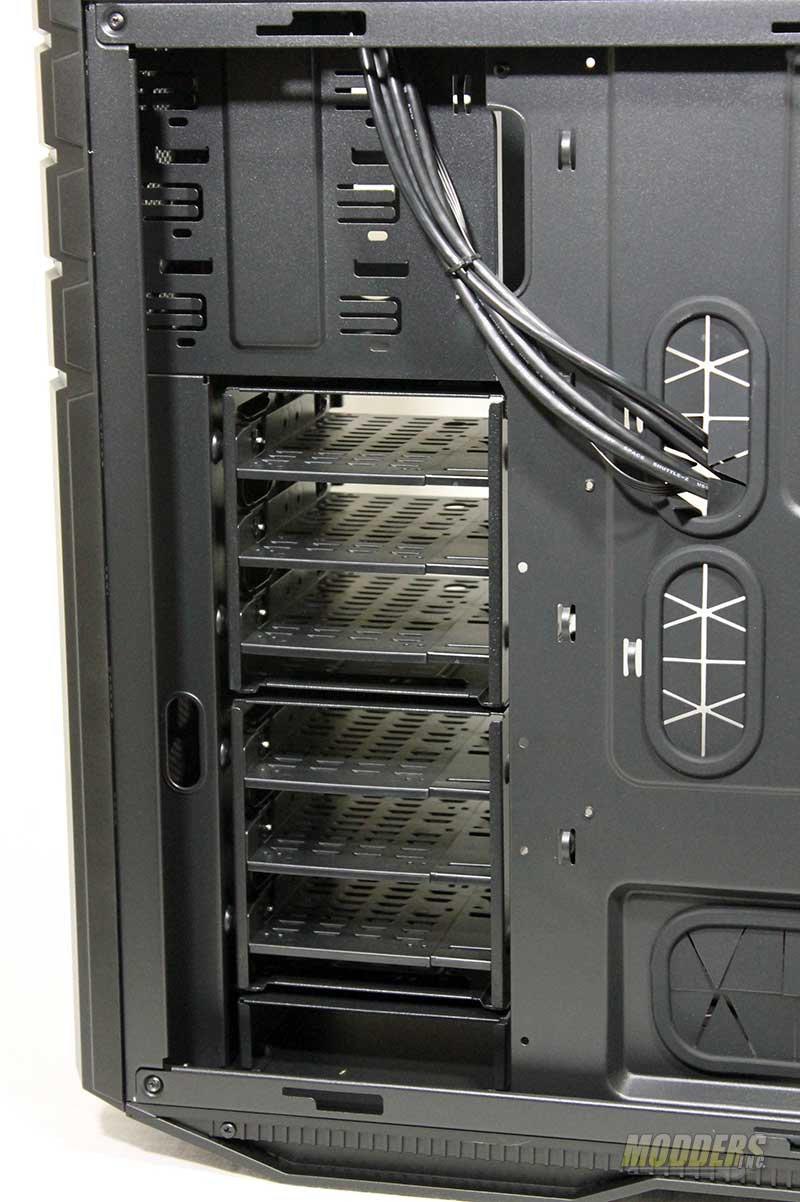

Three ROM drives are available for you to use along with six hard drive carriers. Two racks make up the hard drive storage, but if you need less racks or more room you can remove them both or only use the one you want.

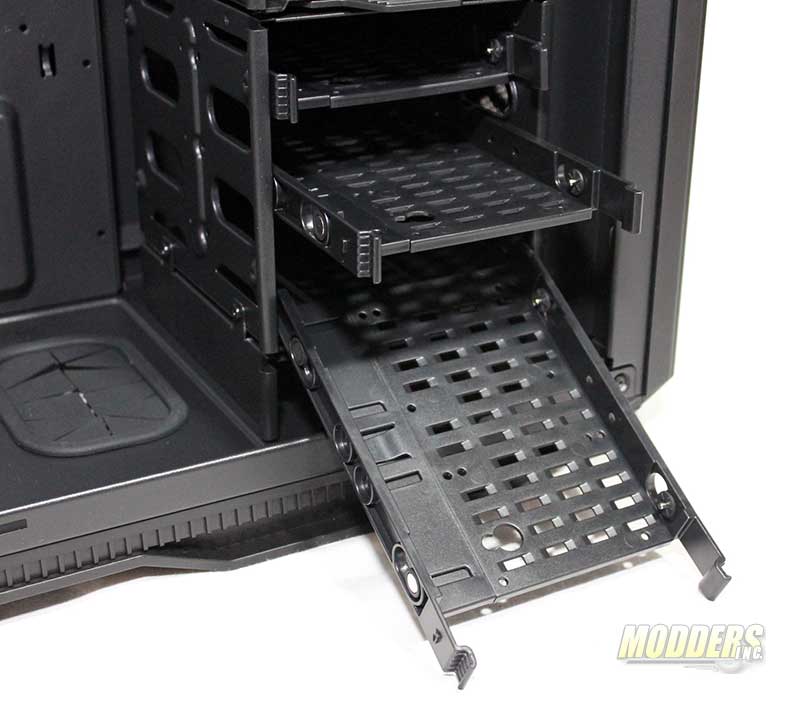

Either a standard hard drive or a SSD can be installed into the carries. The drive carriers are easy out and in with just a pinch of the two tabs. Installing a drive into the carrier is just as easy.

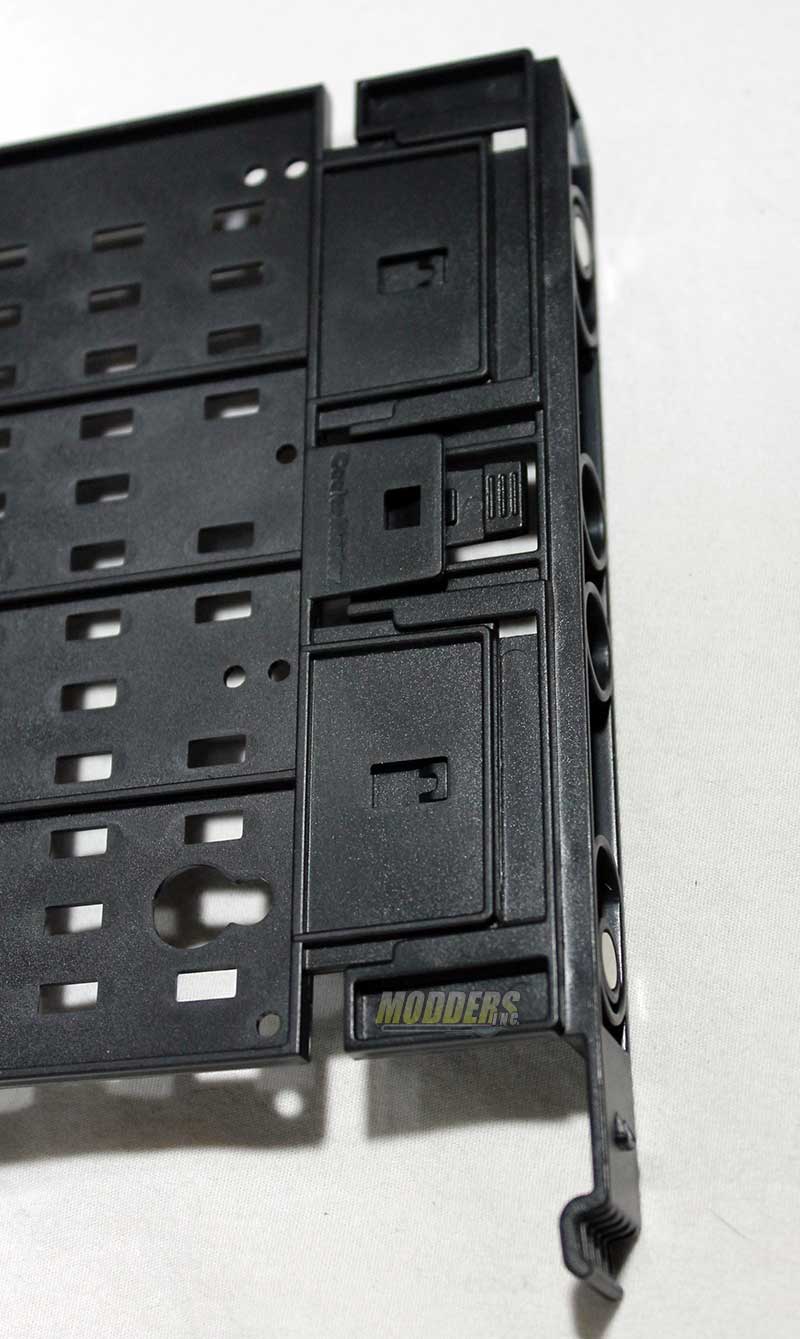

On the backside of the drive carrier a small tab is pressed and it allows the carrier to be spread just enough to set the hard drive in. Pushing the carrier back together locks the pins into place and securely holds the drive. Mounting holes and screws are used when placing a SSD drive into the holder.

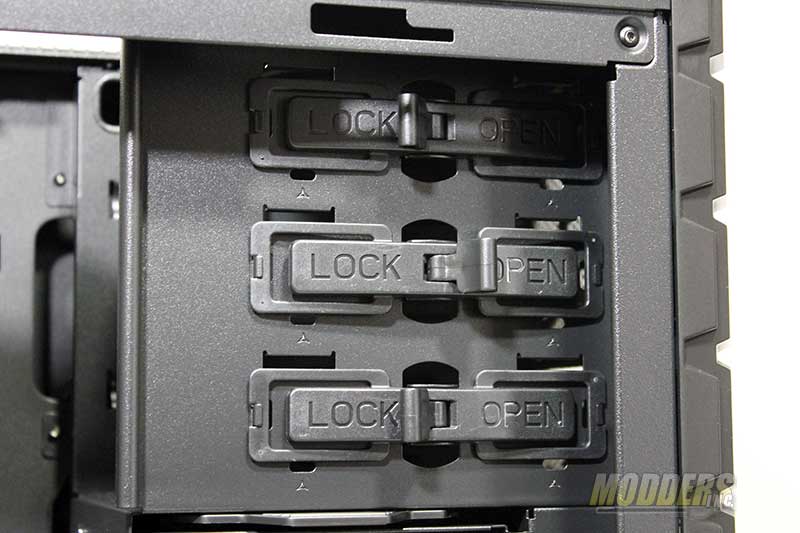

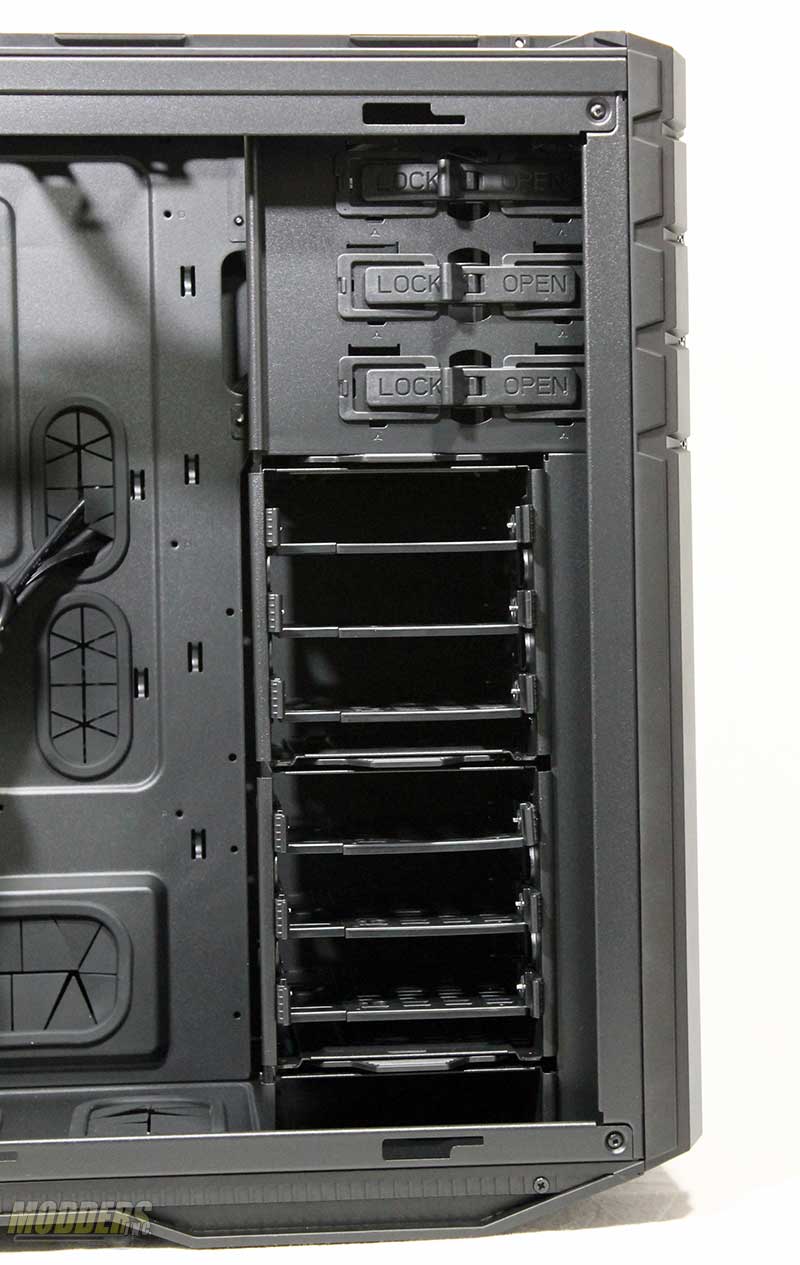

OK, this has to be the easiest locking device I have seen in a long time. I was able to figure this one on out in just a few minutes… no really all you have to is slide in the ROM Drive push the lever towards the big letters that say LOCK and you are done. So guess how you would take the drive out… I knew you could do it.

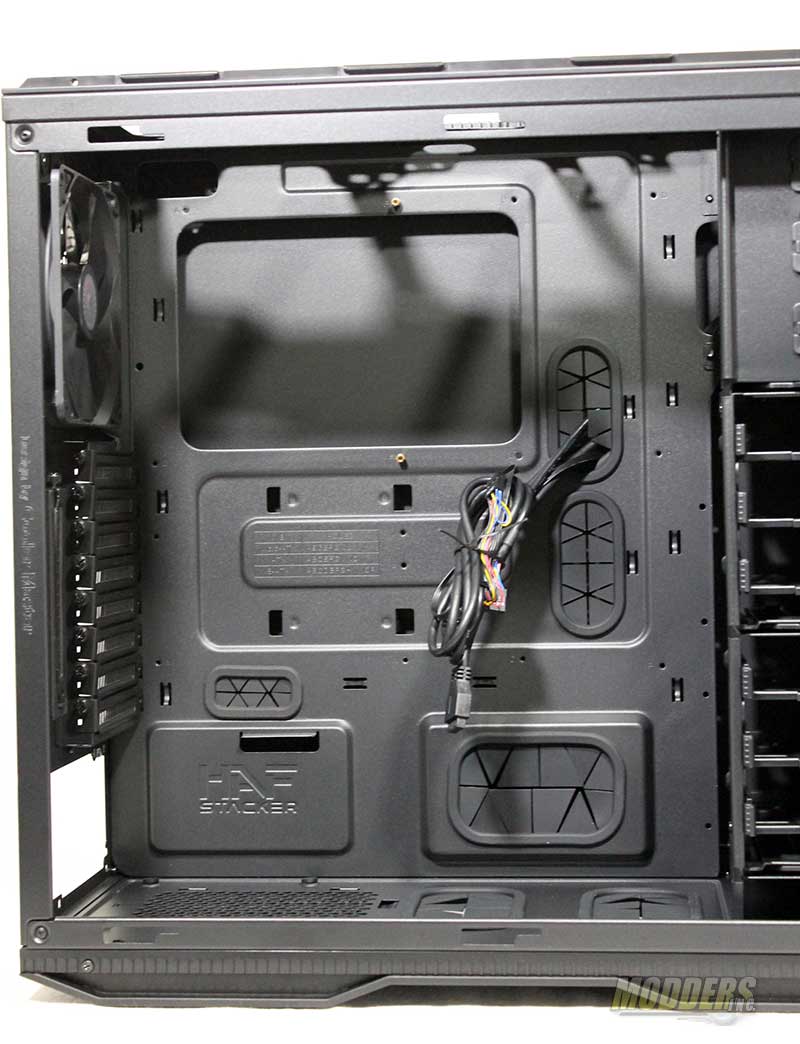

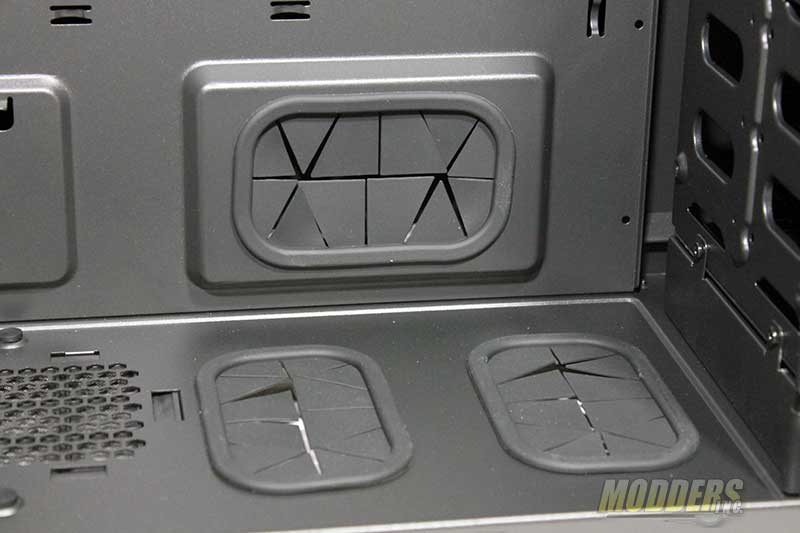

Plenty of large cut outs with rubber gromments are place through-out the HAF Stacker 935.

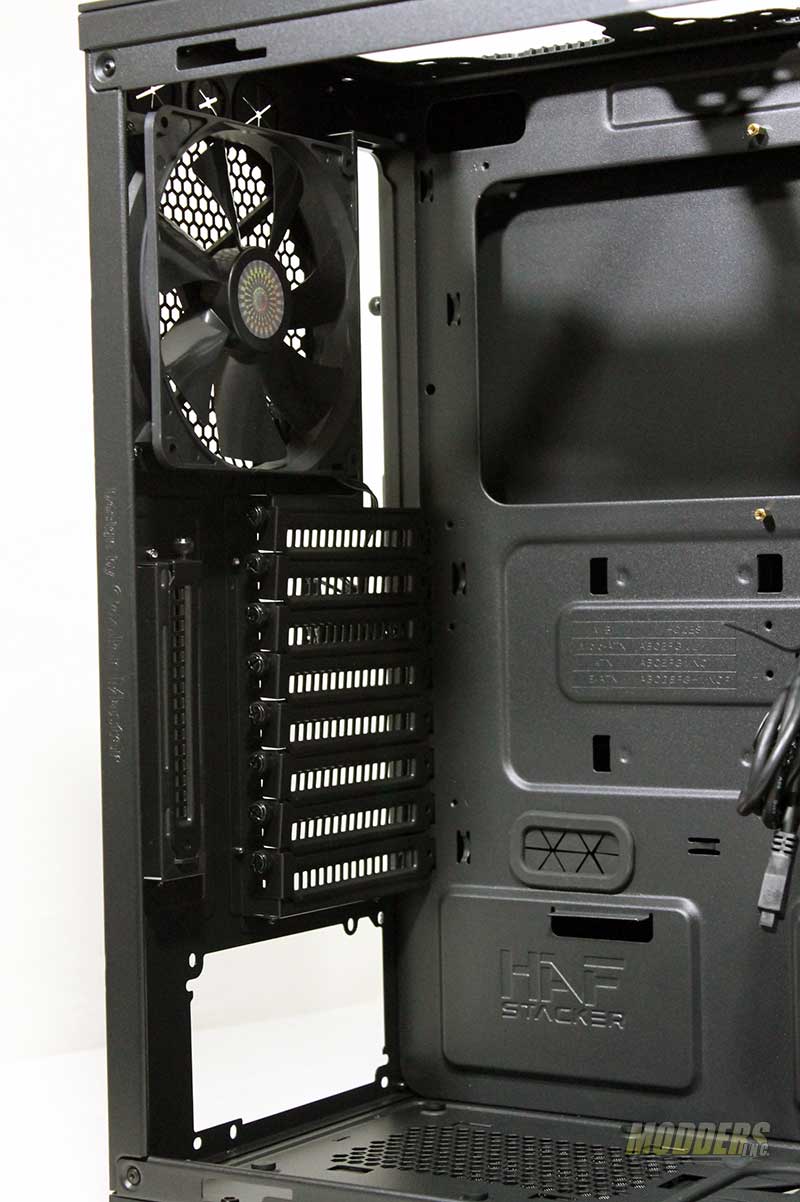

At the back of the case we can see that is has the mounting for the power supply at the bottom. The eight I/O port covers are metal and vented with a 140mm cooling fan pre-installed.
A view of the right side of the case shows that there is very little 0n this side. Anything that would hinder the routing of cables have pretty much been removed. With just a 1/2 inch between the side panel and the back of the motherboard tray it could get a little tight on the cables.
The cables that you do see are the ones that connect the front ports to the motherboard.

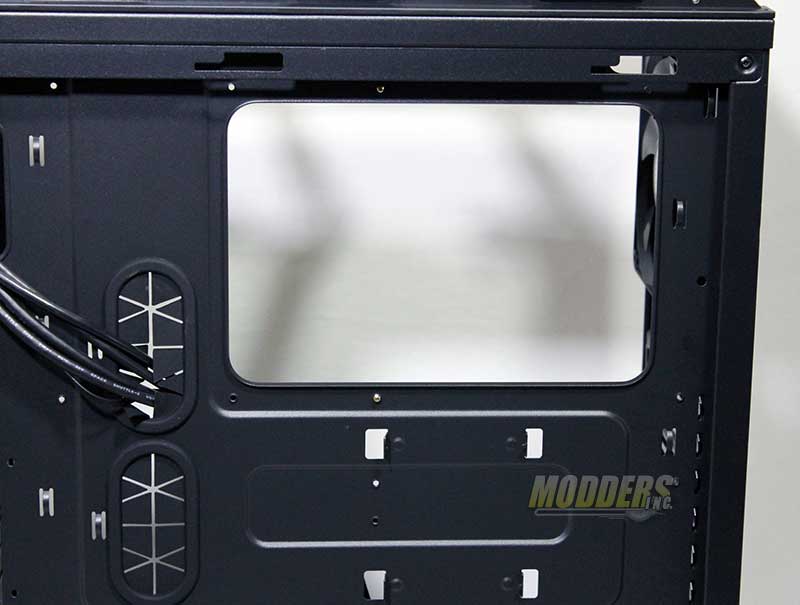

The access cut in the motherboard tray is large enough and located to accommodate just about any motherboard layout so that you can swap out CPU cooler with as little hassle as possible. I was going to say “with ease” be that never happens for me.

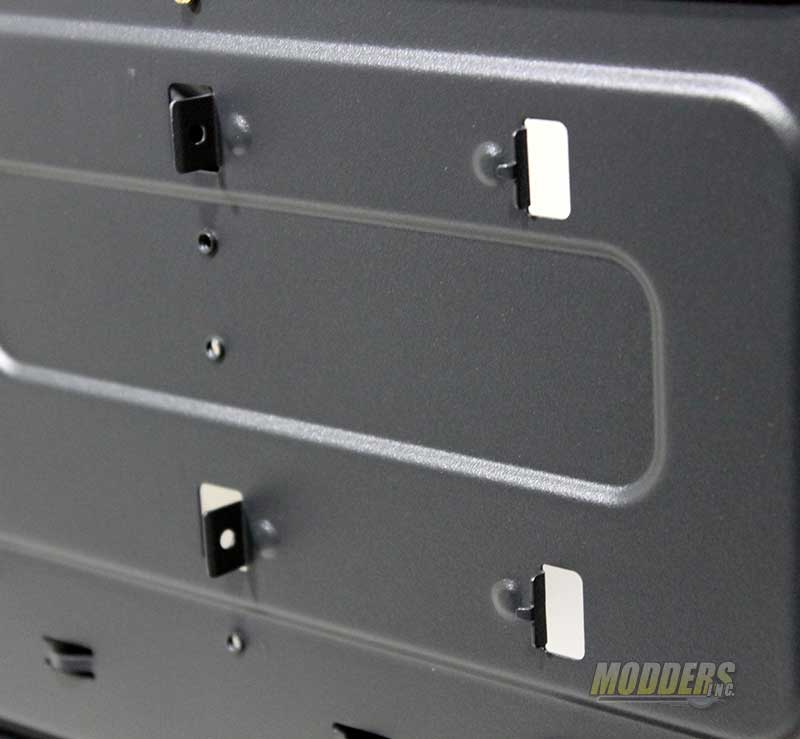

In case you might not have enough space or you want to take out all the drive racks. You can install a SSD right behind the motherboard on the opposite side if the motherboard tray.

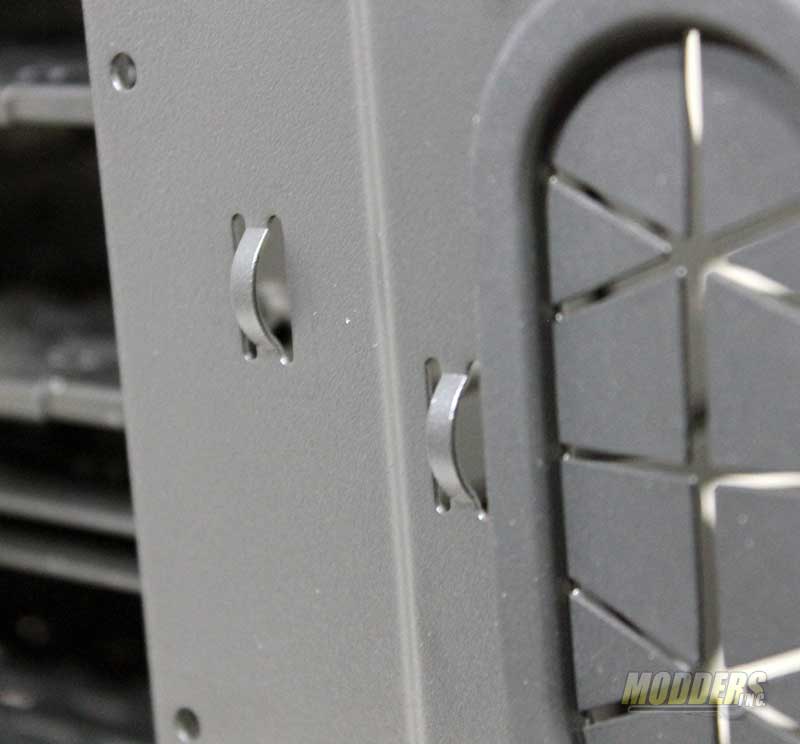

A couple of cable wrap secure tabs are supplied in a different locations on the right side of the case. This will help keep your wire in place and organized.
