Biostar Racing B350GT3 AM4 Motherboard Review
Subsystem and Gaming Benchmarks

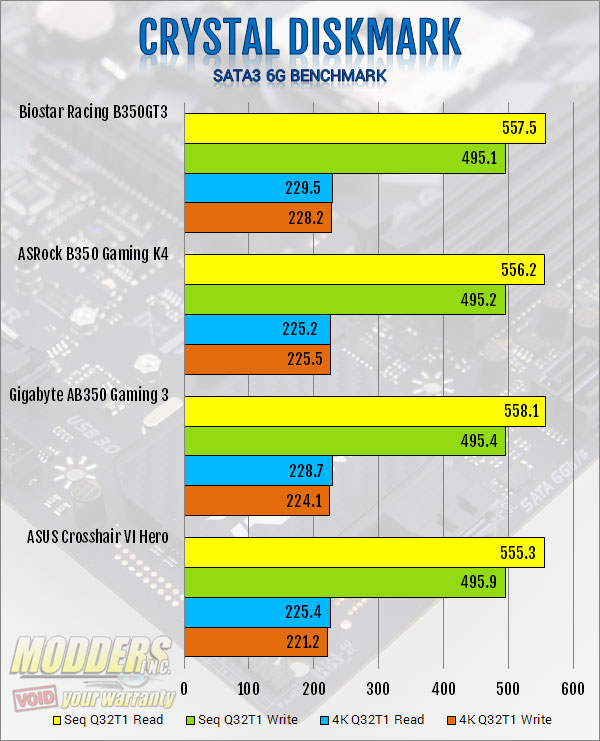

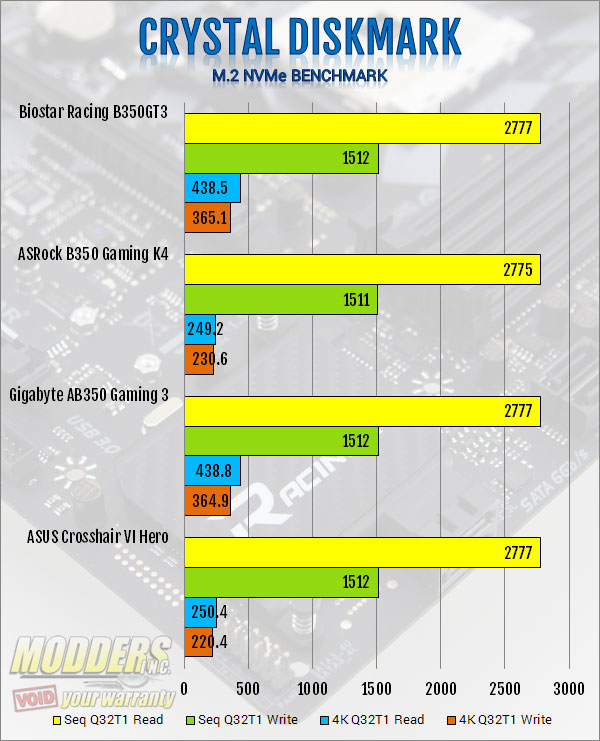

SATA3 6G and M.2 PCIe x4:
USB 3.1 Gen1 and USB 3.1 Gen2:
On-board Audio

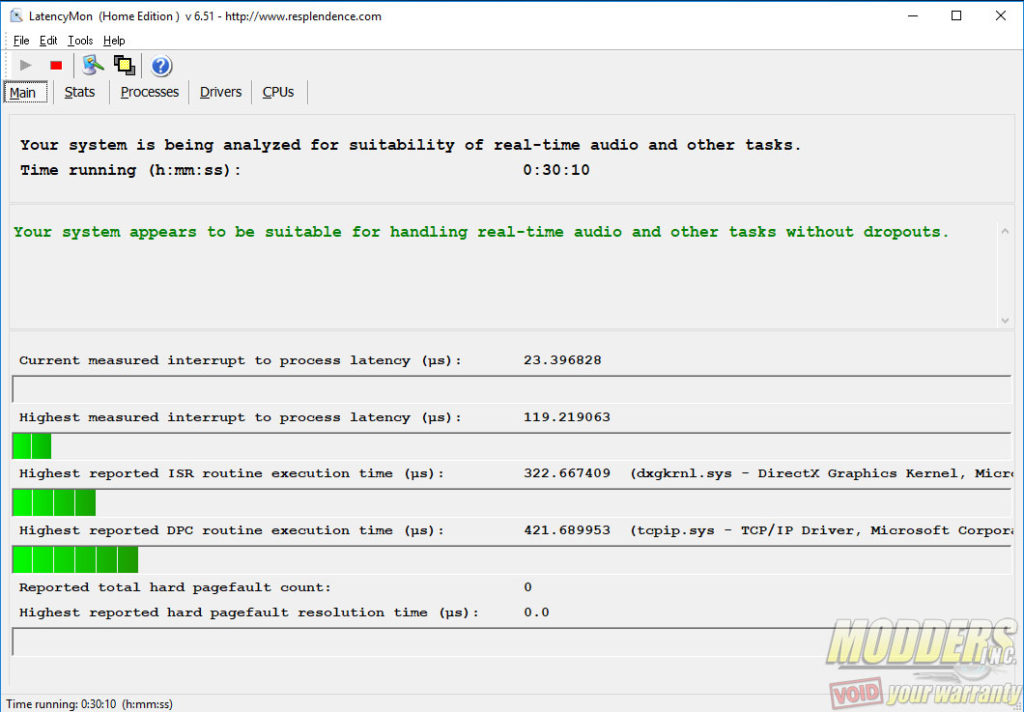

Before proceeding with audio benchmarks, Deferred Procedure Call latency must be first checked to make sure that the system is capable of producing useable results when the Rightmark Audio Analyzer benchmark was run. DPC is a Windows function that involves prioritizing tasks within the OS and high DPC latencies can be caused by several things including hardware device conflict. The DPC Latency Monitor graphically displays the latency level of the system in real time.
After leaving the system running for 15+minutes, the ISR and DPC routine execution times peaked at 322.67 and 421.68 respectively and are well under the 4000 microseconds range (at which point the system will be unsuitable for real-time audio playback), so the audio tests can proceed. Unfortunately, the ALC887 is incapable of receiving 24-bit Line-in so tests are conducted in 16-bit.
| Audio Performance Color Code: | Excellent | Very good | Good | Average | Poor |
| Test (16-bit) |
44kHz
|
48kHz
|
96kHz
|
192kHz
|
| Frequency response (from 40 Hz to 15 kHz), dB |
+0.01, -0.06
|
+0.11, +0.03
|
+0.11, +0.04
|
+0.02, -0.06
|
| Noise level, dB (A) |
-80.9
|
-82.2
|
-82.4
|
-82.4
|
| Dynamic range, dB (A) |
80.4
|
82.2
|
82.4
|
82.5
|
| THD, % |
0.0029
|
0.0026
|
0.029
|
0.0038
|
| THD + Noise, dB (A) |
-74.3
|
-76.1
|
-76.2
|
-76.4
|
| IMD + Noise, % |
0.027
|
0.022
|
0.022
|
0.022
|
| Stereo crosstalk, dB |
-79.0
|
-80.0
|
-77.6
|
-76.8
|
| IMD at 10 kHz, % |
0.027
|
0.021
|
0.021
|
0.020
|
| General performance |
Very good
|
Very good
|
Very good
|
Good
|
Network Connectivity

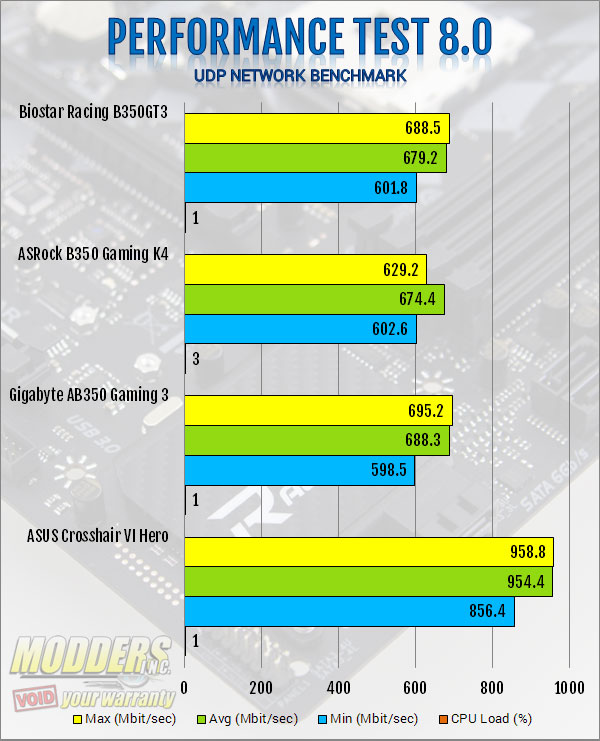

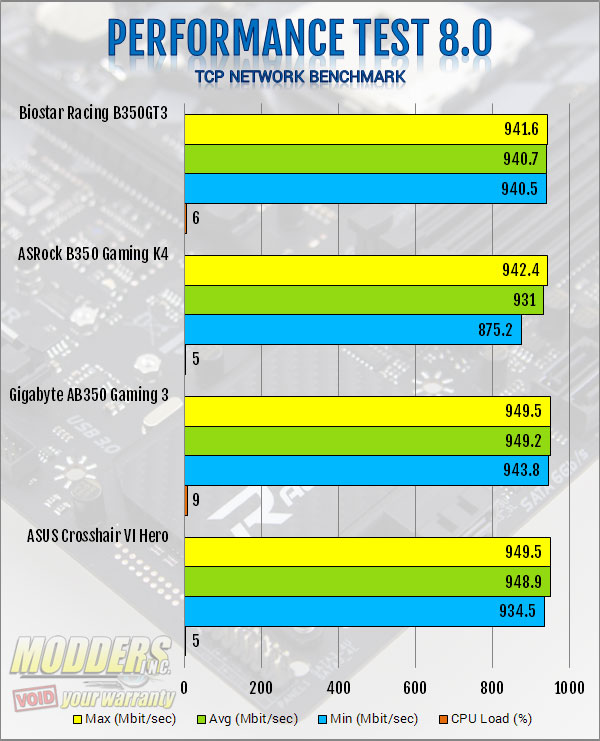

Network testing was conducted with a 4-port Cisco E3200 Gigabit Dual-Band Wireless N router and a pair of 6-ft long Cat5E cables connecting the server PC and the test motherboard. The server system is running an Intel Core i7-5775C processor on an Asrock Z97 Extreme 4 motherboard with an Intel i218V PHY. Interrupt Moderation was disabled, running TCP and UDP tests.
Gaming Tests

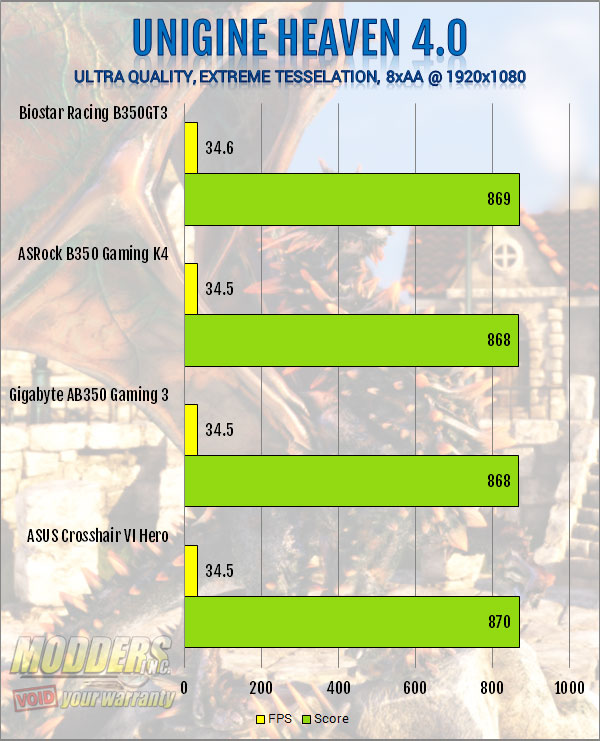

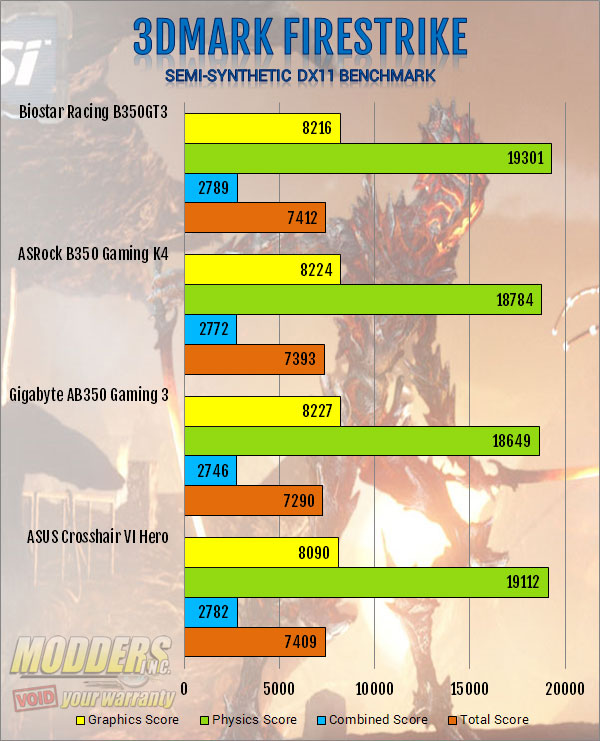

Futuremark’s 3DMark Firestrike is a semi-synthetic DX11 gaming benchmark that calculates both graphics and CPU-bound physics in a controlled series of tests and provides scores that can be compared with other gaming platforms. Unigine Heaven is a synthetic benchmark that is completely GPU bound for testing possible PCI-E graphics performance inconsistencies.

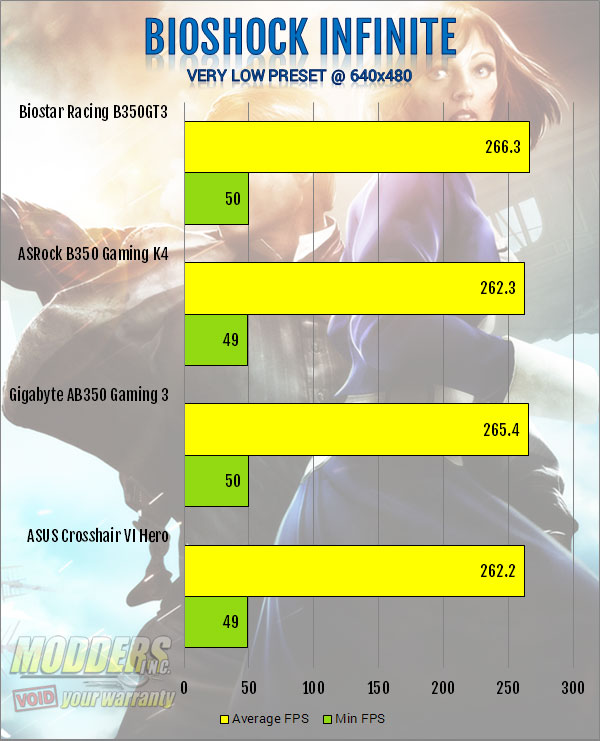

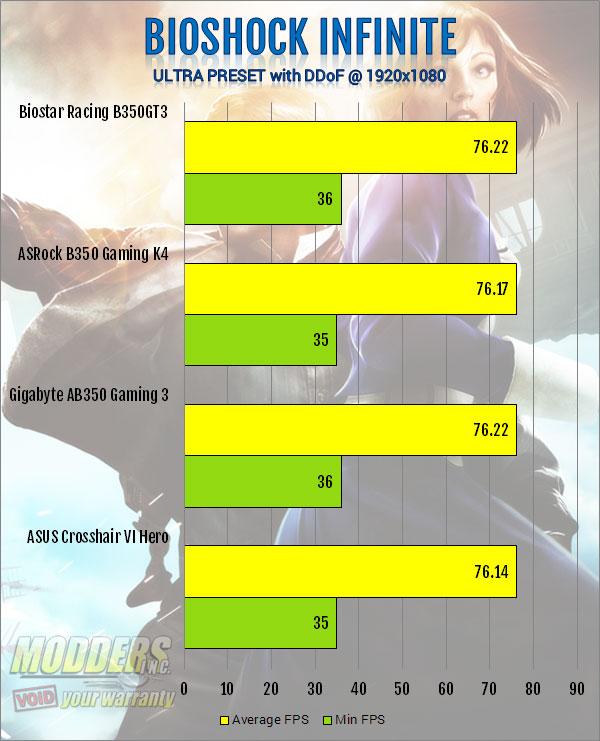

A gaming test run for Bioshock Infinite at the lowest resolution and settings was performed as well as a test with maximum details at a 1920 x 1080 resolution. CPU performance difference can be gauged due to the reduced reliance on the discrete GPU at those low levels theoretically but a high resolution benchmark was also conducted to see if there are inconsistencies with PCI-E graphics performance.
