ASUS A88X-Pro FM2+ Motherboard Review
System Benchmarks
wPrime is a good quick CPU-sensitive multi-threaded math calculation benchmark that utilizes square roots instead of prime numbers. The 32 million number benchmark is used.
Very big gain here with both overclocks, shaving more than a full second from stock to 4.3GHz. For reference, a typical Intel Core i7-4770K will get 6.2~6.5 seconds. Let’s see how that CPU performance metric holds up against more tests.
The AIDA64 suite has various benchmarks for CPU, FPU and memory testing: CPU Queen is an integer benchmark that tests branch prediction and misprediction penalties. CPU PhotoWorxx tests the SIMD integer arithmetic execution units of the CPU and the memory subsystem. CPU ZLib is a compression benchmark that tests the combined CPU and memory performance. CPU AES is a multi-core encryption benchmark that uses Advanced Encryption Standard data encryption. CPU Hash is an integer benchmark that measures performance using SHA1 hashing algorithm. FPUJulia measures single precision FP, FPU Mandel measures double precision FP, FPUSinJulia measures extended precision FP while FPUVP8 is a video compression test utilizing the FPUJulia fractal module.
Performance boost from overclock is evident in all tests except for the PhotoWorxx benchmark which actually lowered down as the CPU frequency increased.

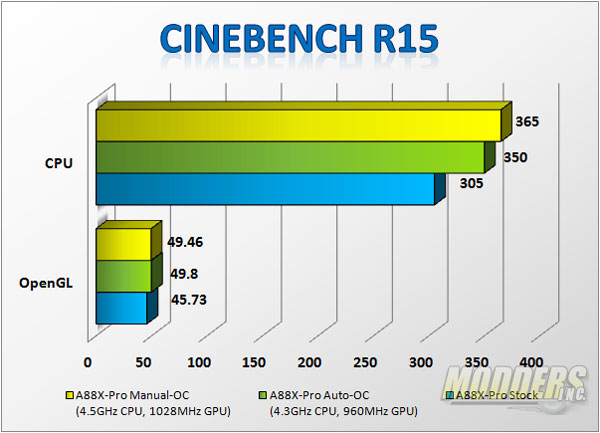

MAXON’s Cinebench R15 runs two sets of benchmarks, a processor test for the CPU and an OpenGL test for the graphics cards. The 3D rendering workload is based on Maxon’s Cinema 4D, a program utilized by movie production studios world wide for special effects so it is a semi-synthetic test closer to real-world 3D graphics benchmarking.

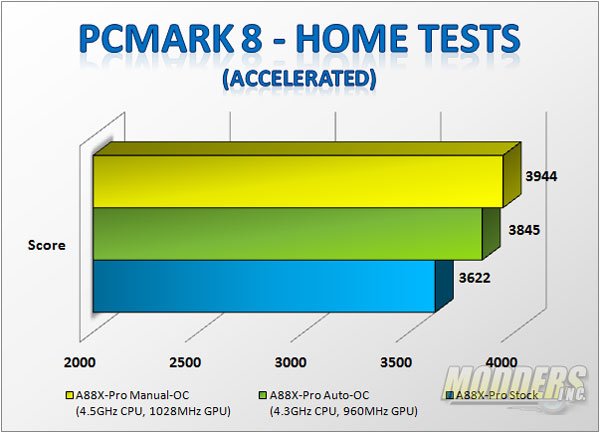

PCMark 8 simulates typical home-related workloads including web browsing, gaming, photo editing, video chat and productivity. Like Futuremark’s 3DMark, a numerical score is generated from the combination of semi-synthetic tests. AMD’s A0-7850K can take advantage of OpenCL acceleration to accelerate the performance.
With OpenCL acceleration, performance is significantly improved. While HSA real-world implementation is still quite a bit away from reality, legacy OpenCL improvements are a welcome sight for the A10-7850K APU performance.
WinRAR is a very popular compression program and has a built-in multi-threaded benchmark.
Minor improvement here with the multi-threaded compression benchmark, even with the 4.5GHz overclock.

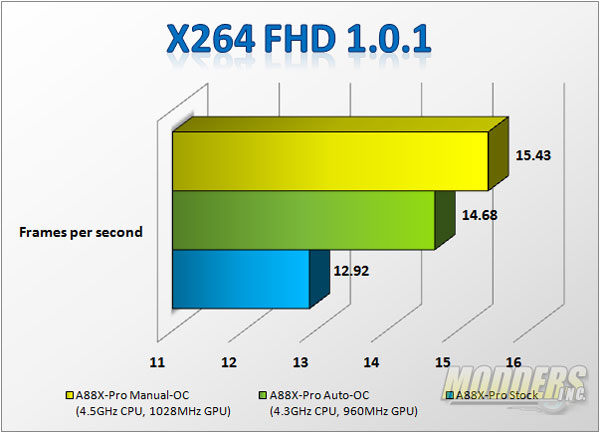

x264 is a popular free software library for encoding video streams into the H.264/MPEG-4 AVC format. x264 FHD measures how efficient a system is in encoding H.264 video and produces results in frames-per-second.
A few more frames-per-second was squeezed out of stock. Results in this benchmark are not linearly comparable to pure CPU performance, but it does demonstrate inherent encoding system performance.

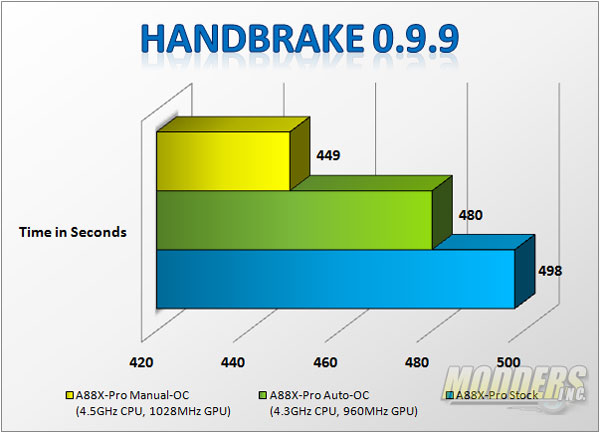

Handbrake is free open-source video transcoder that can convert various video file formats to compatible video files for other typical media viewing applications such as in an iPhone or Android tablet. A 52:55 1.1GB H.264 MKV file was used converted to the built-in iPod Preset (5G Support), then manually timed. The results are in seconds and the lower number is the better result.
Overclocking to 4.5GHz shaves almost a full minute from the test, which may not sound like much but if transcoding multiple items using Handbrake’s queue system, all the minutes can add up to hours saved.
