Test System and Benchmarks
Test System and Benchmark Results of the Alphacool Eisbaer Aurora 240 CPU – Digital RGB
- Temperatures are averaged (last minute) from individual core temperature results monitored by AIDA64 System Stability Test after 15 minutes of the run time.
- FPU load average is used to simulate worst-case scenario load levels similar to Intel Burn Test or OCCT, results marked “0″means thermal limit was reached and the CPU was throttled and thus the results were discarded.
- Stock settings have all power saving features enabled in the motherboard with Vcore set static to 1.232V and set to “Balanced” in the OS. Multiplier at 36 at a stock speed of 3.6GHz.
- Overclocked settings have Vcore voltage automatically set to 1.328V with the adjusted multiplier set at 52 to gain overclock at 5.2GHz.
- All tests were taken at least three times to get the final result.
- TDJ 834 was used for noise level measurement in dBA, 20CM away from the center fan exhaust.
The Stock test was run with the CPU set to the stock settings in the BIOS. The radiator fans and the pump was set to the “normal” setting in the Arous BIOS. This allows the fans and pump to spin up and down based on temperature. The stock temperature curves in the BIOS were used. CPU pump and the radiator fans are controlled by the PWM controller so the pump and fans are controlled by the motherboard as needed. Stock Vcore was set to 1.232V. (Stock speed of 3.6GHz)
The Overclock test was done with custom settings. I set the voltage for the CPU at 1.328V for Vcore and set the multiplier on all cores at 52. To hit stable 5.2GHz. The pump was set to PWM and radiator fans were set to full speed in the EVGA BIOS settings.
TDJ 834 was used for noise level measurement in dBA, 20CM away from the center fan exhaust.
| System Configuration | ||
| Component | Product Name | Provided By |
| Case | Open Test Bench | |
| CPU | Intel Core i7 9700K | |
| CPU Cooler | Alphacool Eisbaer Aurora 240 CPU – Digital RGB | Alphacool |
| Motherboard | EVGA Z390 FTW | EVGA |
| Ram | (2) 8GB Corsair DDR4-3200 CMW16GX4M2C3200C16 | Corsair |
| GPU | MSI GeForce RTX™ 2080 Super GAMING X TRIO | MSI |
| Monitor | BenQ EL2870U 28 inch 4K HDR Gaming Monitor 3840×2160 @ 60 Hz | |
| Hard Drives | Adata XPG SX8200 PRO (512GB) | Adata |
| Power Supply | Thermal Take Tough Power RGB 80 Plus Gold 750W | |
Performance Summary
The sound level of Eisbaer Aurora 240 RGB was measured by TDJ 834 sound tester. Testing was done with both fans at 100% RPM and about 20 cm away. A maximum noise was produced about 56dBA.

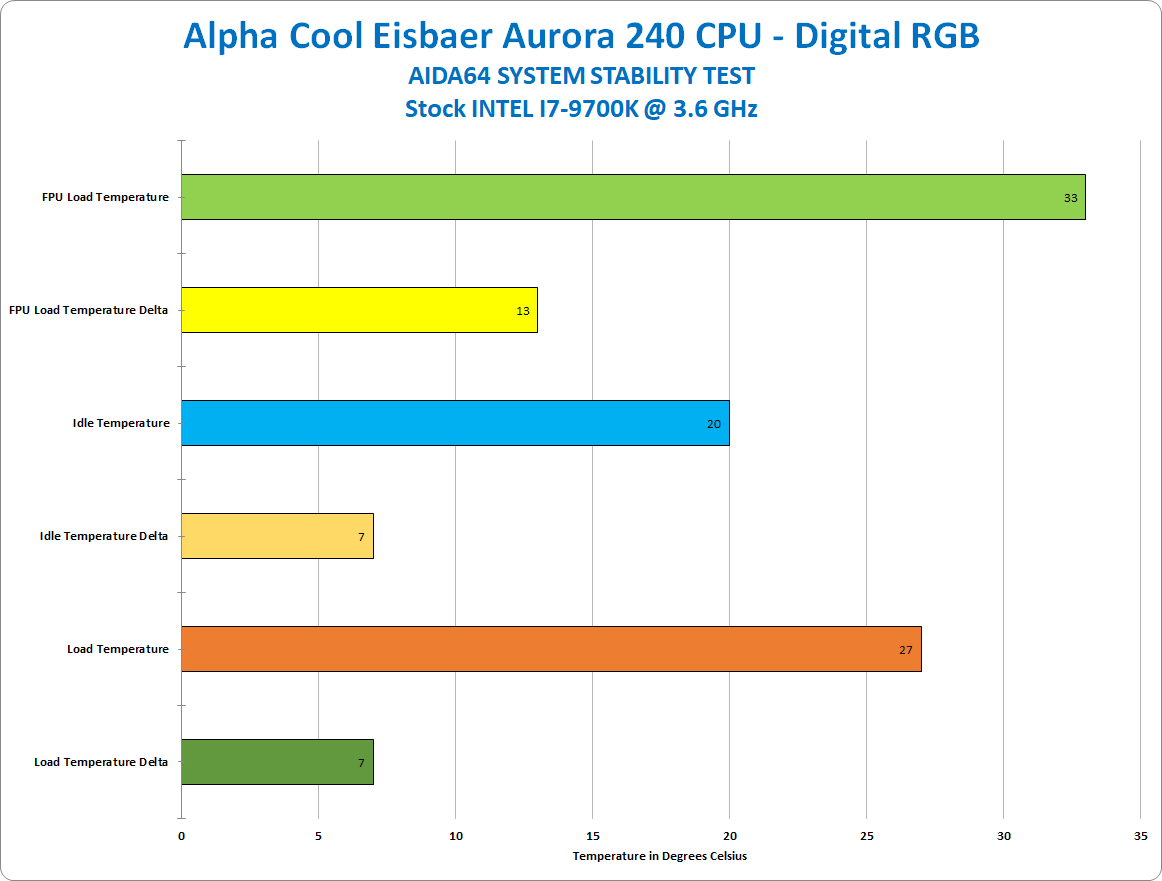

Before performing my testing this AIO unit was completely burned in to get the most accurate temperatures upon reading. The burning in process took about 4 days and after observing idle the temperatures and ensuring stability. In the stock clock speed, the temperatures stayed amazing low. Idle temperatures were 20C. Under full CPU load, the package temperature reached 27C. The FPU temperatures under maximum load were higher, 33C but well in the cool zone.
When overclocking the CPU to 5.2GHz Idle temperatures of Eisbaer Aurora 240 RGB staid at 22C. The CPU package temperature under full load was 48C and FPU temperatures have reached 75C.
The CPU pump was virtually silent as all I could hear is the fans rotating at 2000RPM.
