DeepCool GENOME II Case Review

A Closer Look at the DeepCool Genome II »

DeepCool Genome IIThe Genome as defined by some sources as the complete set of genetic material that makes up an organism. Over the last few release cycles, DeepCool has been working at redefining their products and their Gamer Storm line is no different. The Gamer Storm series is DeepCool’s higher end enthusiast products. The evolution of their cases over the last couple of years shows an increase in their manufacturing processes as well as how their product designers and engineers come up with their products. The Genome II is the second generation of this particular case line and features an integrated DeepCool Captain 360 mm water cooler with an additional double helix reservoir as well as the ability to mount a graphics card vertically and some other minor updates and tweaks.





Packaging

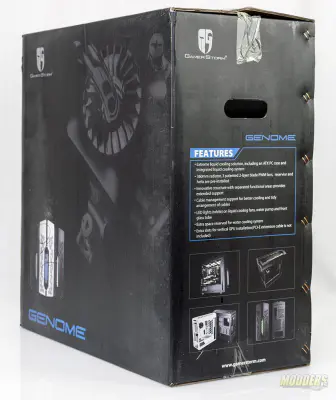

The box  housing the Genome II case features artistic graphics that show off the Captain 360 pump as well as a front shot of the three different color variations the case comes in.
DeepCool Genome II

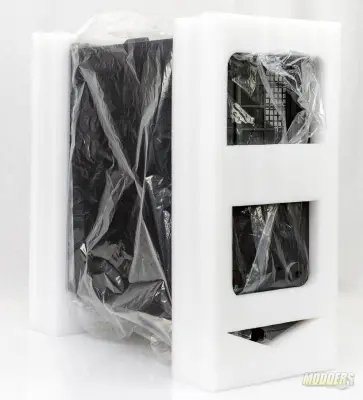

The case is further protected from damage as it is placed in a plastic bag to prevent scuffs and scratches to the finish then then placed inside two foam frames.
DeepCool Genome II

Related Articles

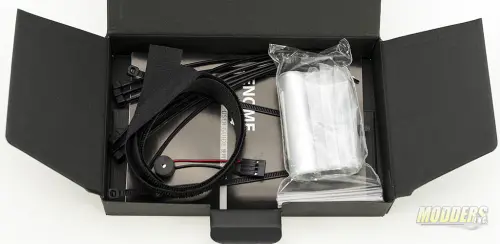

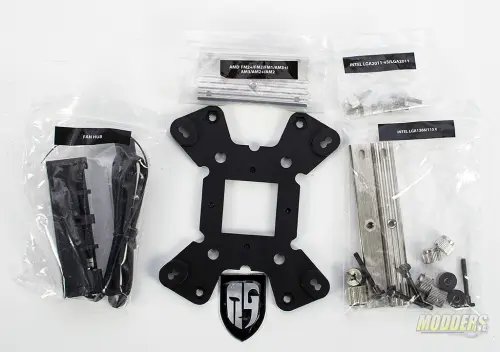

Since the case comes with a built in water cooler, there is more than just the standard case installation accessories. The kit comes with accessories to mount the cooler to LGA 115x, LGA 2011, AMD FM2, FM3, AM2 and AM3. AM4 mounting was not included but would be provided. The kit also includes the accessories to get the PC built inside the case and includes zip ties, extra screws for the motherboard and hard drives, PC speaker, and installation manual.



Specifications

Technical Spec

Motherboards (MAX:305×275MM)E-ATX/ATX/MICRO ATX/MINI-ITX
Materials SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH) 506×210×505 MM
Net Weight 9.77 kg
Gross Weight 12.09 kg
Liquid Cooler Compatibility 120/240mm at front; 120/240/280/360mm at top
3.5″ Drive Bays 2
2.5″ Drive Bays 2
I/O Panel 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots 7  (plus 2 extra slots for vertical VGA card installation)
Cooling Fans Pre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system; Optional: Front: 2×120mm or 1×200mm fan
Power Supply Type ATX PS2
VGA Compatibility 330mm
Carton Dimension 575×285×600 mm
Color of LED Lights White
Radiator Dimensions 395X120X32mm
Fan Dimensions 120X120X25mm(3PCS)
Fan Speed 500±200-1800±10%RPM (4Pin)
Fan Air Flow 229.56CFM(MAX)
Fan Noise Level 17.6~31.3dB(A)
Fan Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.18±10%A(MAX)
Fan Power Consumption 2.16W
Pump Connector 3Pin
Pump Operating Voltage 6~13.8VDC
Pump Rated Voltage 12VDC
 Pump Speed 2200±10%RPM
 Pump Load Current 0.16±15%A
 Pump Power Consumption 1.92W
 Net Weight 2093±10g (liquid cooling system only)
