The Cooler Master Ammo 533 case comes in a pretty descent looking box. Nothing really flashy but you are not buying the case for the box right?
The opposite side of the box gives you a lot of information about the case to help you make an informative purchase. They describe all the features that are packed into this case with highlights and cutaways.

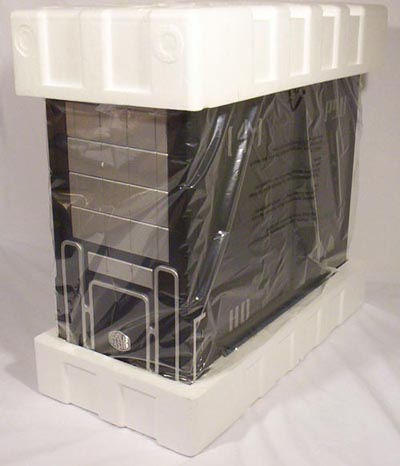

The case is packaged with two pieces Styrofoam at the top and bottom of the case that creates a good 1.5 or more inches of clearance from the box sides. This should greatly reduce any chance of damage when being shipped. Beneath that is the case wrapped in a plastic bag.

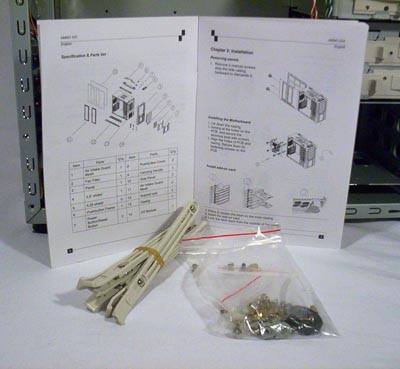

A nicely detailed manual is included along with rails to mount the hard drives and all your screws for the install of the power supply and motherboard.
Here are some quck numbers about the case.
| Dimensions (inches) |
19.10 x 8.46 x 18.11 (L x W x H) |
| Available Color |
Black |
| Material |
Aluminum+Plastic front bezel; SECC chassis |
| Weight |
22lbs |
| M/B Type |
ATX 12" x 9.6" (30.5cm x 24.5cm); Micro-ATX |
| 5.25" Drive Bay |
5 (Exposed) |
| 3.25" Drive Bay |
1 (Exposed), 4 (Hidden) |
| Cooling System |
One 4.72x4.72x0.98(in) front fan 1200rpm 22dBA (Intake);
Supports 4.72in, 3.54in and 3.15in rear fan (Exhaust) (Optional) |
| Hand load |
55lbs |
| Power Supply |
Standard ATX PS2 (Optional) |
-Unique design for tough enclosure
-Tool-Free mechanical design for quick assembly and maintenance
-Superior air flow with heat dissipation holes on top and side
-Firm and solid casing design forcefully contains your elaborate system
-Intelligent handle design for easy carrying
-Cooler Master Ammo 533 PDF- |
